DSI 3D digital analogs provide a significant advantage when compared to traditional analogs, as they can be used in a digital setting.

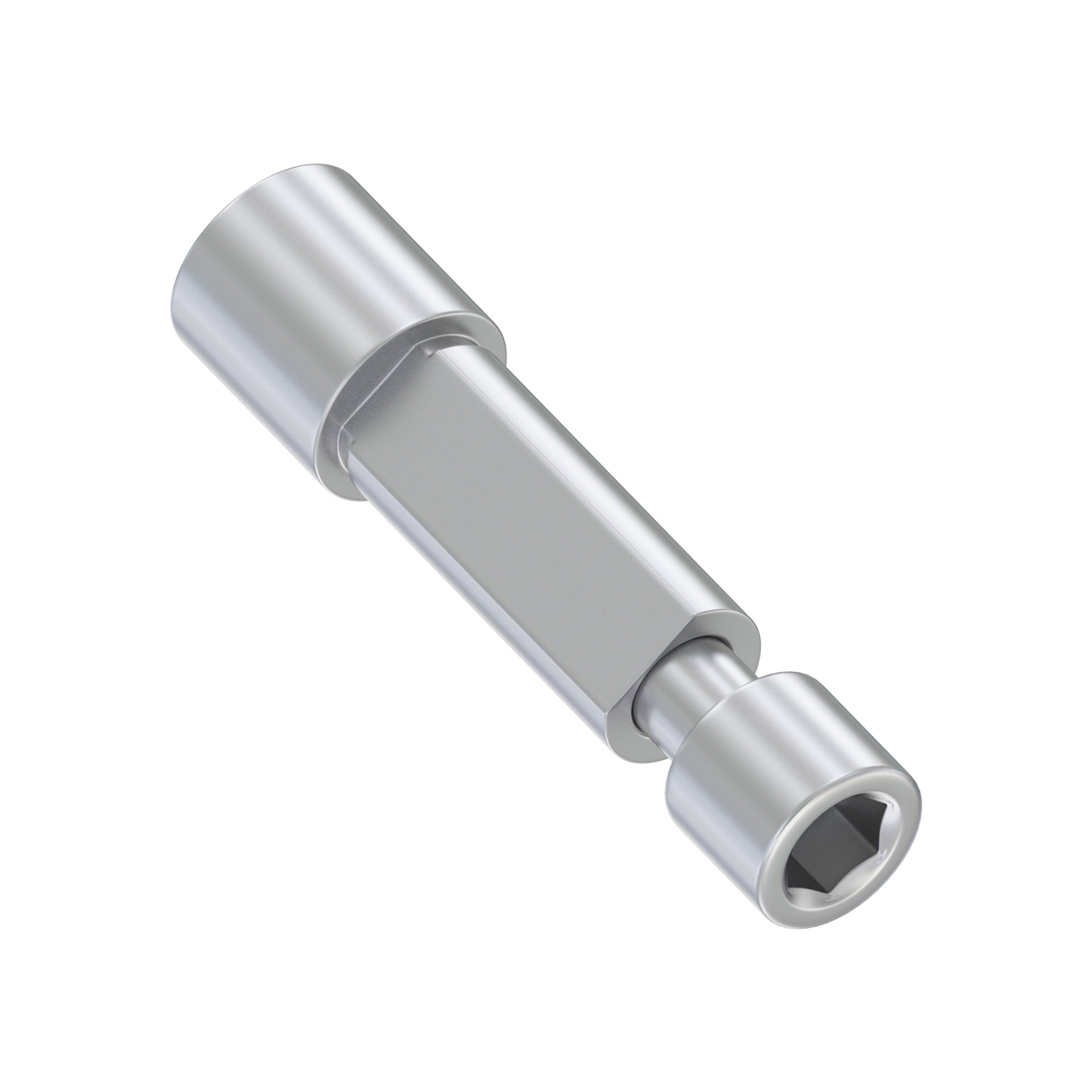

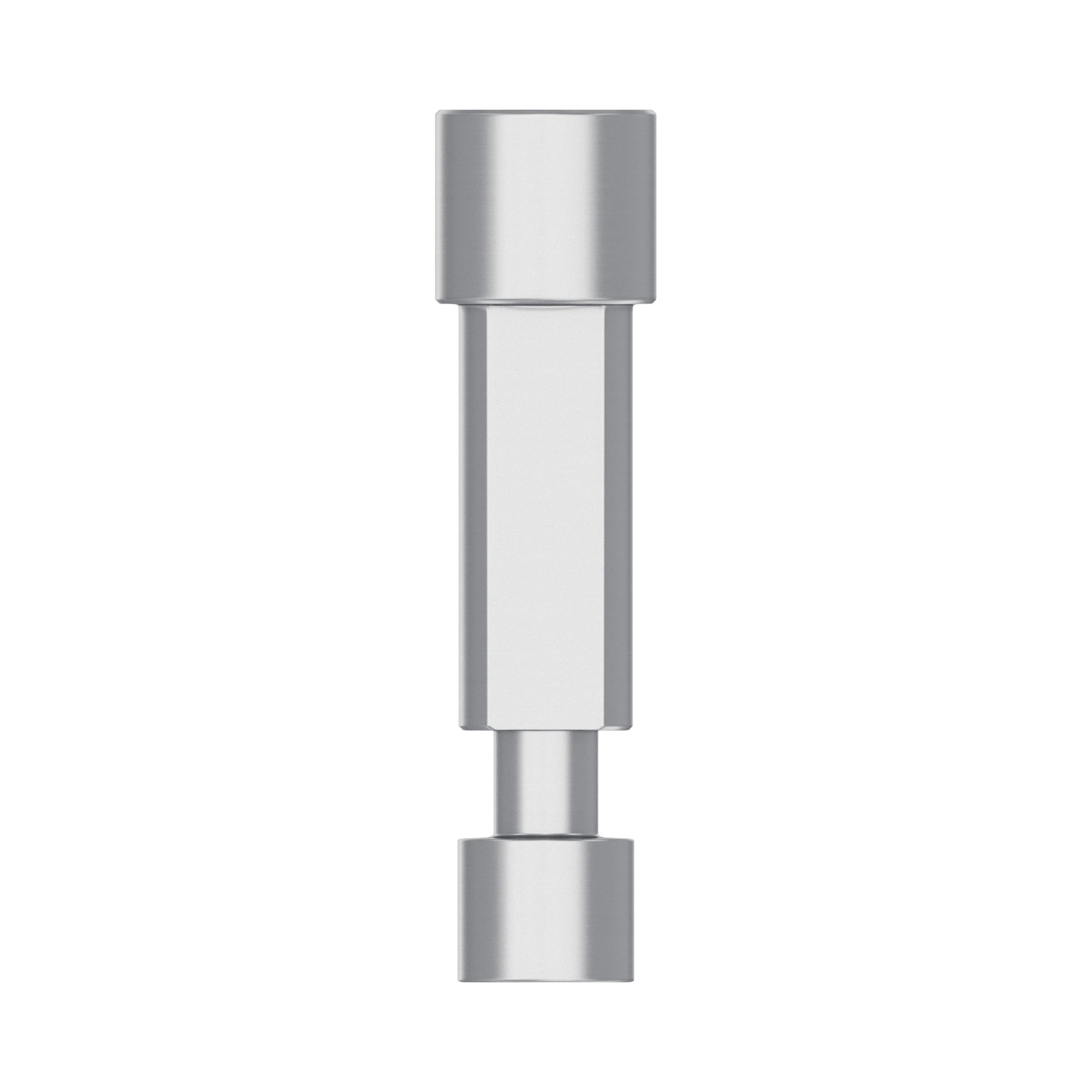

These digital analogs are specifically designed to facilitate the accurate replication of implant positions and orientations in 3D printed models.
-
Digital Workflow: With the use of these digital analogs, it is possible to scan the implant that has been placed within the patient's mouth. This scanned information can then be used to create a digital model, which can be further utilized for 3D printing. The digital analogs serve as replicas of the actual implants, ensuring precise location, orientation, and angle determination.
-
Titanium Construction: Crafted from titanium, each digital analog is made from a high-quality material known for its strength and biocompatibility. The use of titanium ensures durability and reliability in the 3D printing process.
-
Fixation Screws: To enhance stability during the 3D printing process, each digital analog comes complete with fixation screws. These screws help secure the analogs to the model, minimizing movement and ensuring maximum accuracy.
-
Maximum Accuracy and Reliability: By utilizing DSI's digital analogs for 3D printing, dental professionals can achieve maximum accuracy and reliability in their restorations. The precise replication of implant positions and orientations allows for precise planning and design of the final restorations.
It's important to note that these digital analogs are specifically designed for use in a digital workflow and 3D printing. They are not intended for use as permanent restorations but rather as tools to aid in the fabrication of accurate models and restorations.
Download free digital libraries:
Exocad: https://www.dsisrael.com/exocad-lib
3Shape: https://www.dsisrael.com/3shape-lib
supports Exocad model creator module
Indications:
- Single tooth restorations
- Bridges
- Partial and full dentures
- Reusable
- 3d-printed models
faster case turnaround, lower space consumption & costs
Features:
-
Outstanding aesthetic results.
-
Could be used for all types of custom restorations.
-
Compatible with most major brands.
-
Precise installation.
-
Secure press-fit in the model.
-
Can be used with regular tools and drivers, no need for special equipment.
-
Precise duplication of the implant position and angle.
- Repeats perfectly the shape and size of the implant.
-
Helps to minimize the errors in the creation of a dental prosthesis.
Technical information:
- Titanium alloy grade 5 Ti-6Al-4V ELI
- Regular platform - Ø4.75mm / Height 12mm
- Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
