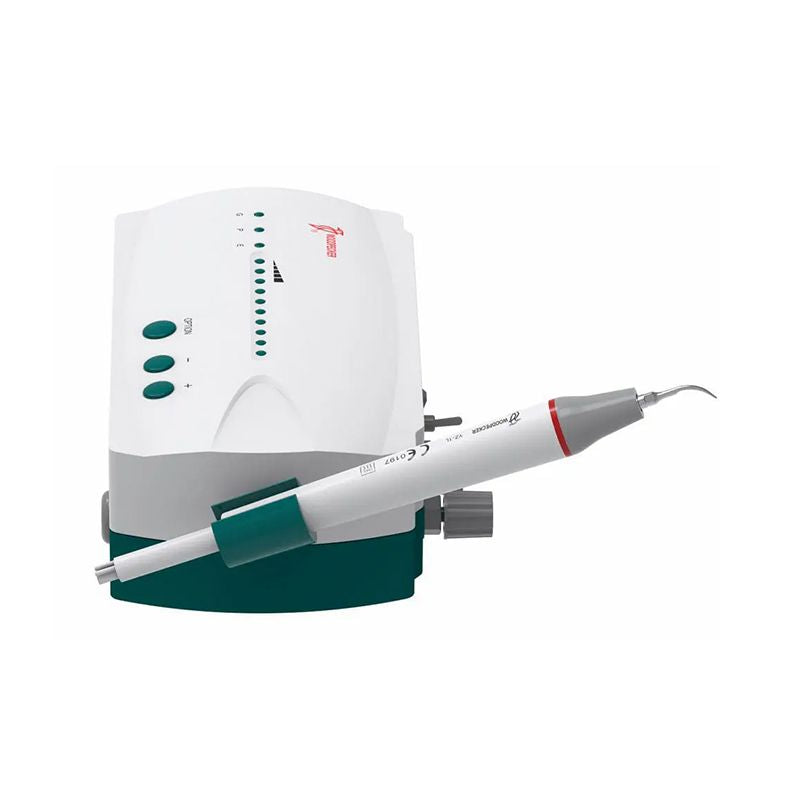

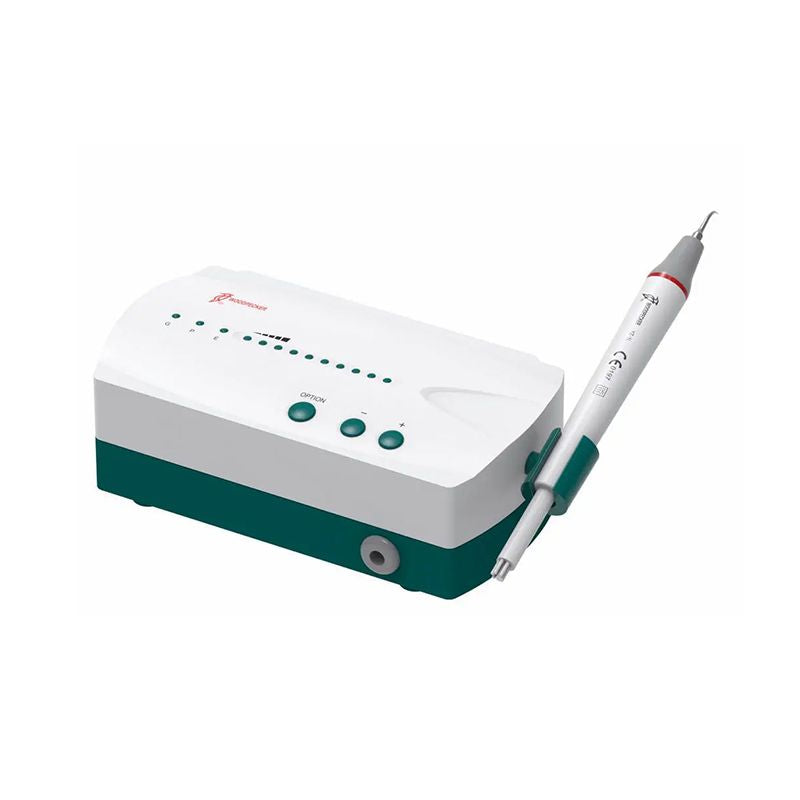

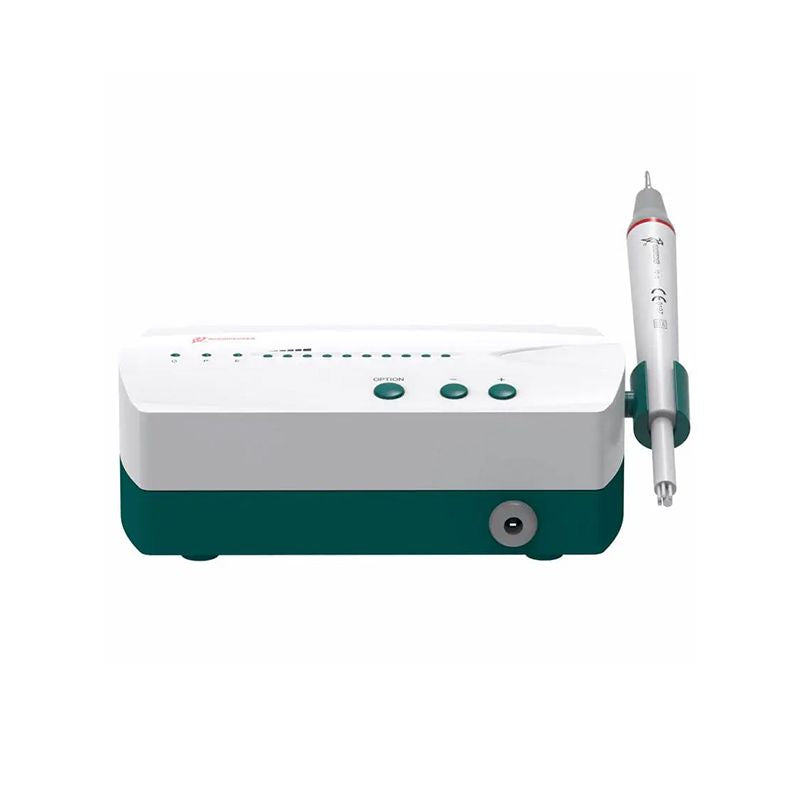

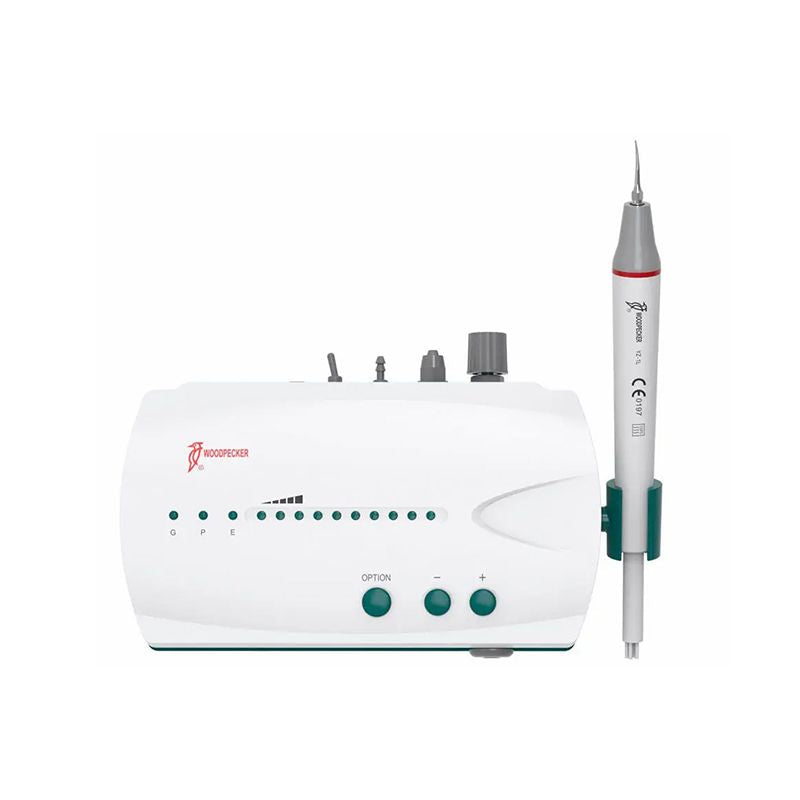

Woodpecker's UDS-L LED Piezo Ultrasonic Scaler packs functionality and value into one unit. Perform normal ultrasonic scaling with the added ability to switch frequency levels for endo and perio procedures.
Automatic frequency tracking ensures the proper frequency for different tooth surfaces, optimizing treatment comfort. LED handpiece illuminates the point of contact for optimum visualization. Handpiece remains lit for 10 seconds after foot pedal is released. Power indicator lights with button-press control panel. Adjustable water flow.
Compatible with all piezo ultrasonic scaling tips. Detachable handpiece is autoclavable to 275°F.
Features
- Multi-function unit for Scaling, Periodontics (Perio), and Endodontics (Endo) applications.

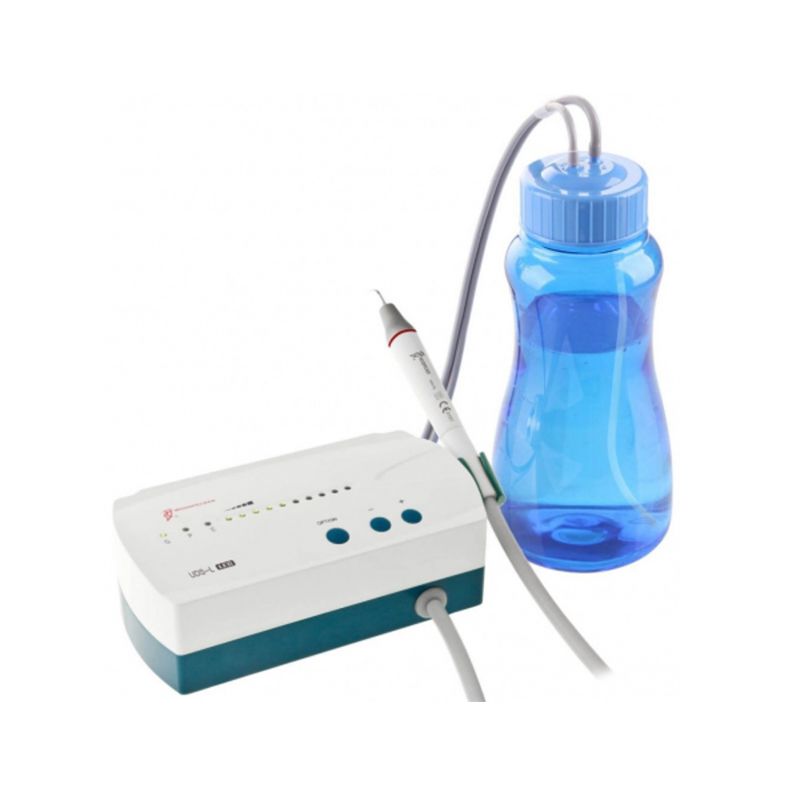

- Dual water supply modes: external purified water supply or automatic water supply system.
- Optical handpiece design for enhanced visibility and more convenient clinical operation.
- Detachable handpiece that can be sterilized in an autoclave at 275°F and 0.22 MPa.
- Handpiece constructed from titanium alloy for superior mechanical performance and long-lasting durability.
- Equipped with high-quality piezoelectric ceramics, delivering powerful and stable performance with minimal heat generation.
- Integrated curing light compatible with the UDS-L LED, utilizing ultrasonic power to supply electricity to the curing light for greater convenience and practicality.
- Durable and flexible cable made from medical-grade silicone tubing.
- Scaling tips are manufactured from special materials. The cavitation effect generated at the tip enables effective calculus removal and antibacterial action.
- Designed for dental calculus removal and root canal treatment.
- Automatic frequency tracking ensures optimal operating frequency for stable and efficient performance.
- Digitally controlled system for easy operation and improved scaling efficiency.
- Compatible with EMS systems. EMS handpieces can be connected to this control unit, and Woodpecker UDS handpieces can also be connected to EMS control units.
- CE and FDA certified.
Technical Specifications
- Adapter Input: 220–240V AC, 50/60Hz, 150mA
-
Main Unit Input:
- 24V AC, 50/60Hz
- 5V AC, 50/60Hz
- Output Power: 3–20 W
- Output Tip Vibration Frequency: 28 kHz ± 3 kHz
- Output Primary Tip Vibration Excursion: ≤ 100 μm
- Output Half-Excursion Force: < 2 N
- Main Unit Fuse: T1.6AL, 250V
- Adapter Fuse: T0.5AL, 250V
- Weight of Main Unit: 0.73 kg
- Weight of Adapter: 1.2 kg
- Dimensions: 190 × 125 × 60 mm
- Protection Against Electric Shock: Class II, Type BF
- Protection Against Harmful Ingress of Water: Ordinary Equipment
- Foot Switch Water Protection Rating: IPX1
Packing List
- Main Unit × 1
- Handpiece × 1
- Foot Switch × 1
- Water Bottle × 1
- Tips × 6
- Power Adapter × 1
- Torque Wrench × 1
- Operation Manual × 1
