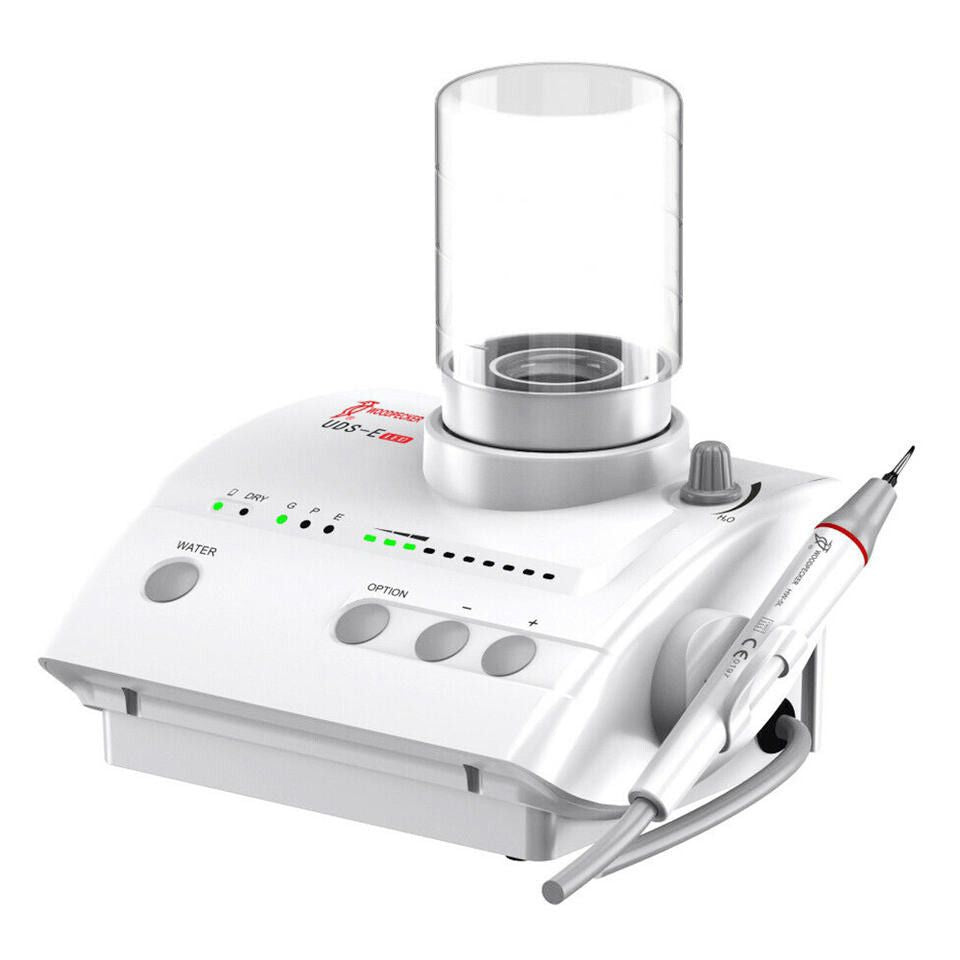

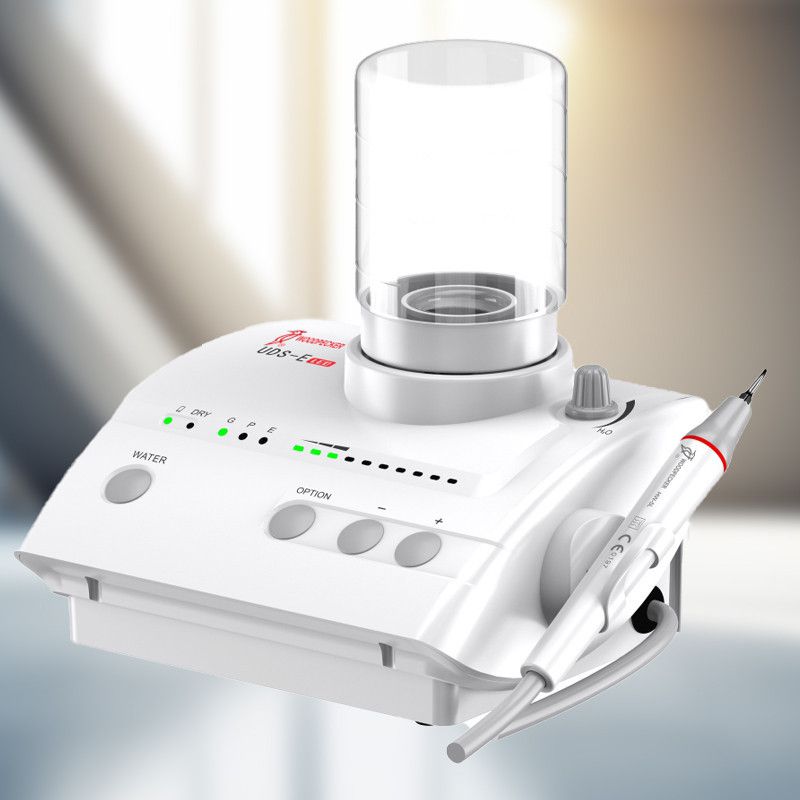

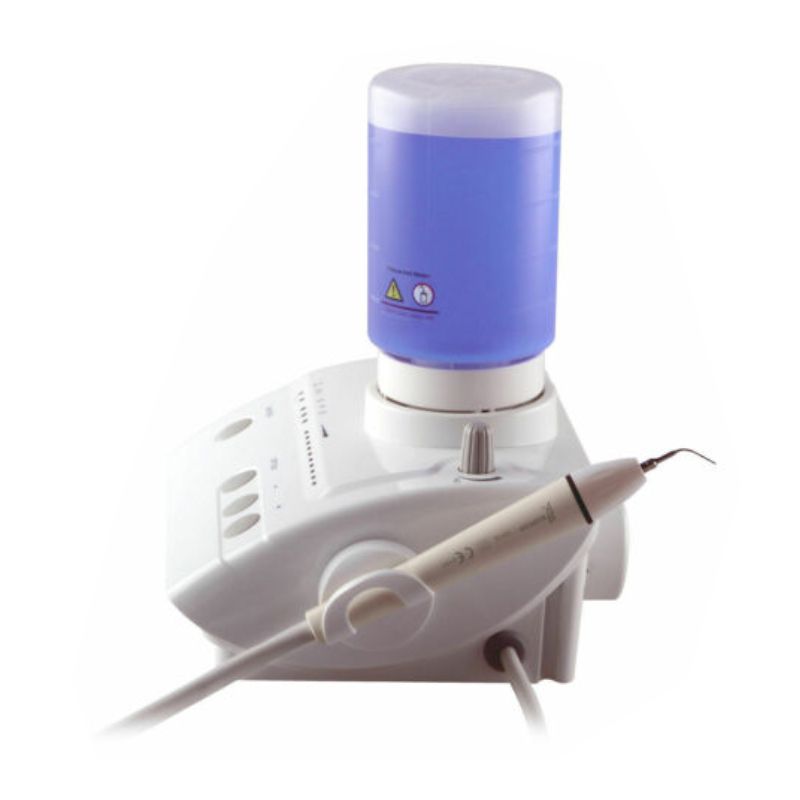

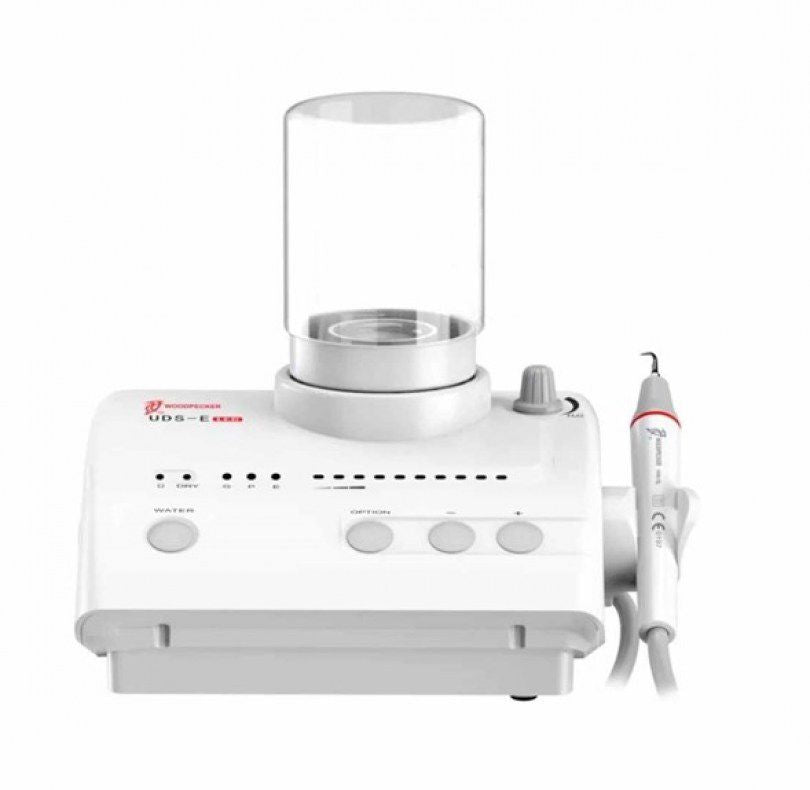

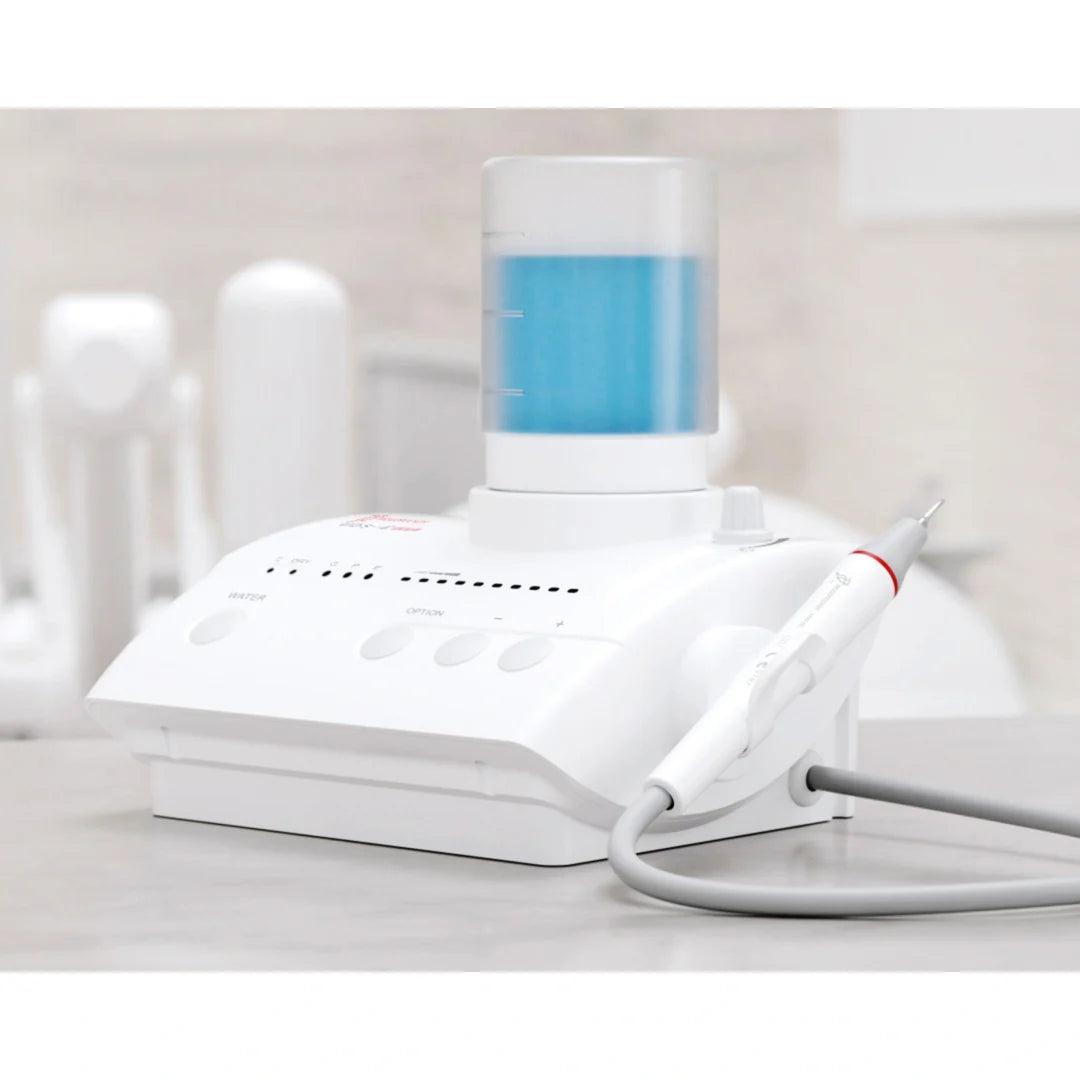

Woodpecker UDS E-LED Scaler

SKU: DD-2998

Your cart
Product	Product subtotal	Quantity	Price	Product subtotal
Woodpecker UDS E-LED Scaler	Woodpecker UDS E-LED Scaler $800.00/ea	$0.00	Quantity	$800.00/ea	$0.00

Add to wishlist

Piezoceramic ultrasonic scaler for periodontal sclaing, cavity preparation, and endodontic treatments; in addition to the standard mode, for which the intensity can be increased or decreased, the USD-E LED also allows operation in Endo mode.
Peak handpiece autoclavable at 135°C, titanium interior and frequency between 28/32 KHz.
Digital control and automatic frequency search, independent irrigation selectable by the operator via 350 ml tank.
Eight inserts supplied,
Equipped with a LED technology light source inside the handpiece, it produces a quality of light similar to natural daylight, ensuring better vision during treatment and without straining the eyes.

Main technical specifications:

Power supply Input: 220-240V~ 50Hz/60Hz 150mA
Main unit input: 24V~ l.3A
Output primary tip vibration excursion: ≤100μm
Output half-excursion force:<2N
Output tip vibration frequency: 28kHz±3kHz
Output power: 3W to 20W
Main unit fuse: Tl.6AL 250V
Power supply fuse: T0.5AL 250V
Weight of main unit: 1.17kg
Weight of power supply: 1 kg
Operating mode: Continuous operation

Product Includes:

UDS-E LED Scaling Unit
Woodpecker LED Ultrasonic scaler handpiece (Based on preference).
Set of 8 scaling tips: (G1, G4, G5, G6, E1, P1, P4D, P3)
Endodontic Files
Torque wrench
Power pack
Foot switch
Water bottle
Hose
Operation manual

Specification

Four functions – scaling, perio, endo, and auto-water supply
Detachable handpiece incorporating an LED light
Automatic frequency tracking which ensures that it is always operating on the most efficient frequency for optimum performance
Features a built-in 350ml capacity water container with an auto-water supply function for easier operation
Also an adaptor for an external water source and spare bottle
Complete with 7 tips, torque wrench, tip holder and spare bottle
Fully compatible with EMS handpieces and tips
Clinical fluids such as hydrogen peroxide, chlorhexidine and sodium hypochlorite etc can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically

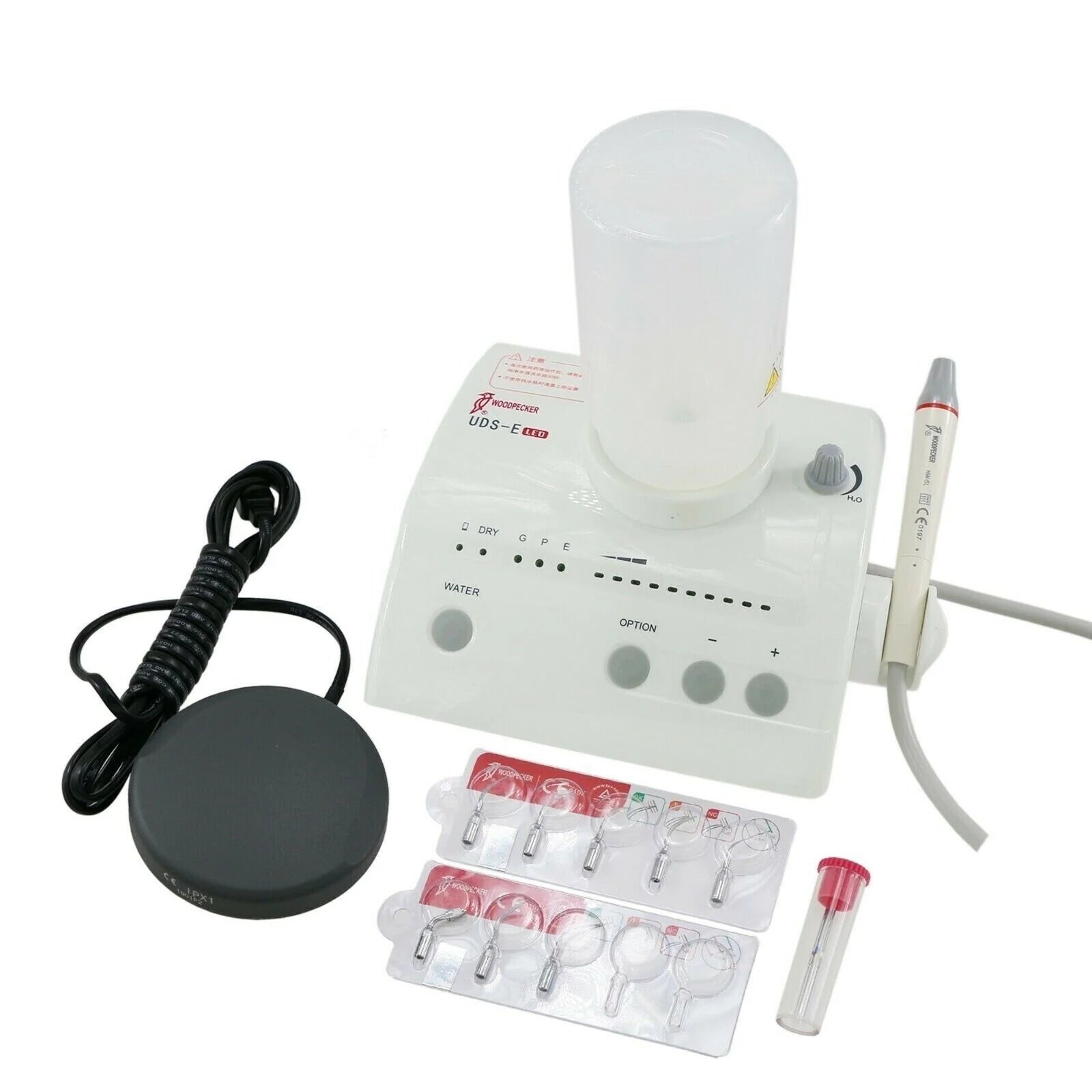

Package contents:

Woodpecker UDS-E with LED Handpiece x 1 Footswitch x 1 Tip x 8 (G1 G4 G5 G6 E1 P1 P4D P3) Adapter x 1 Torque wrench x 1 Operation manual x 1

Units in a box:

Woodpecker UDS E-LED Scaler
