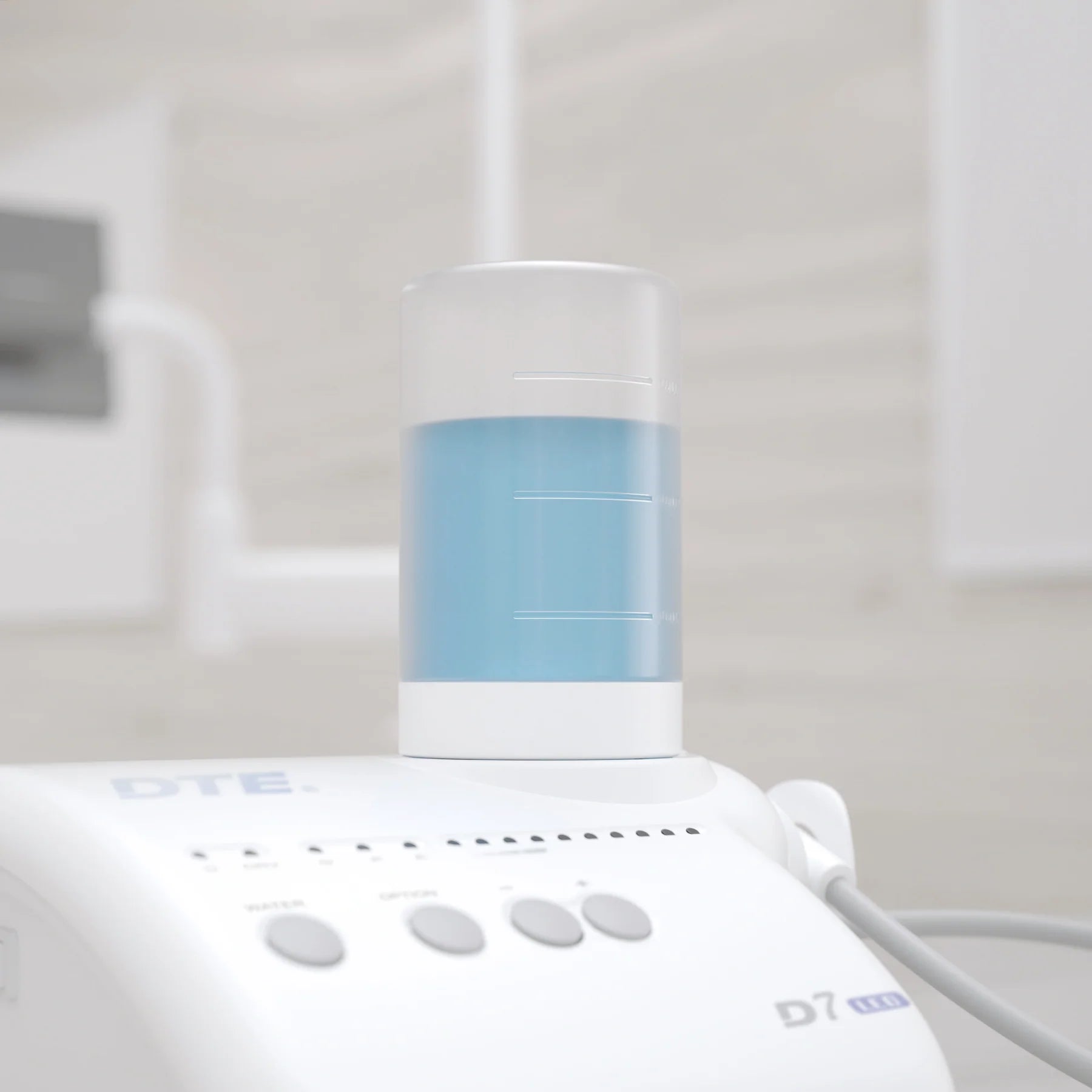

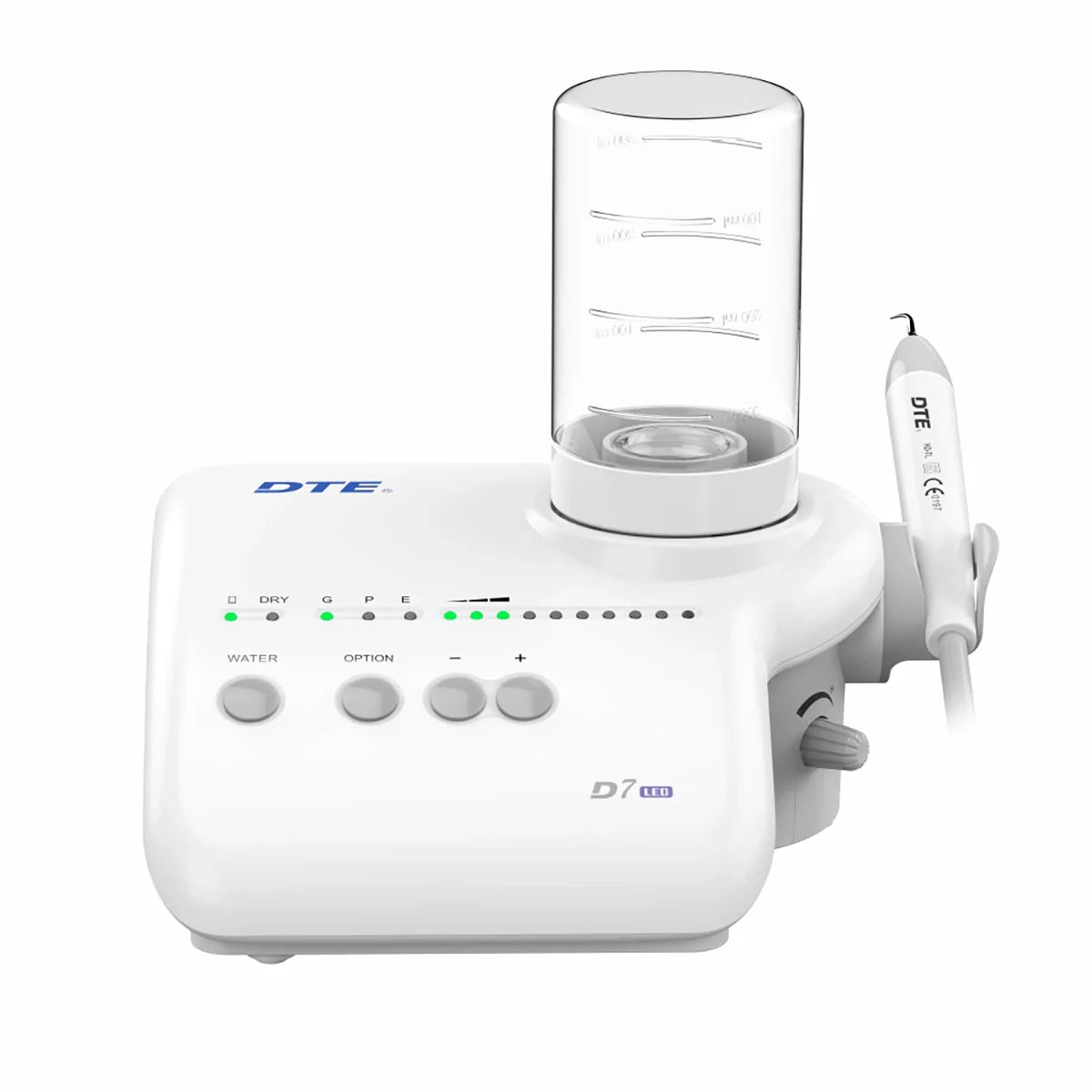

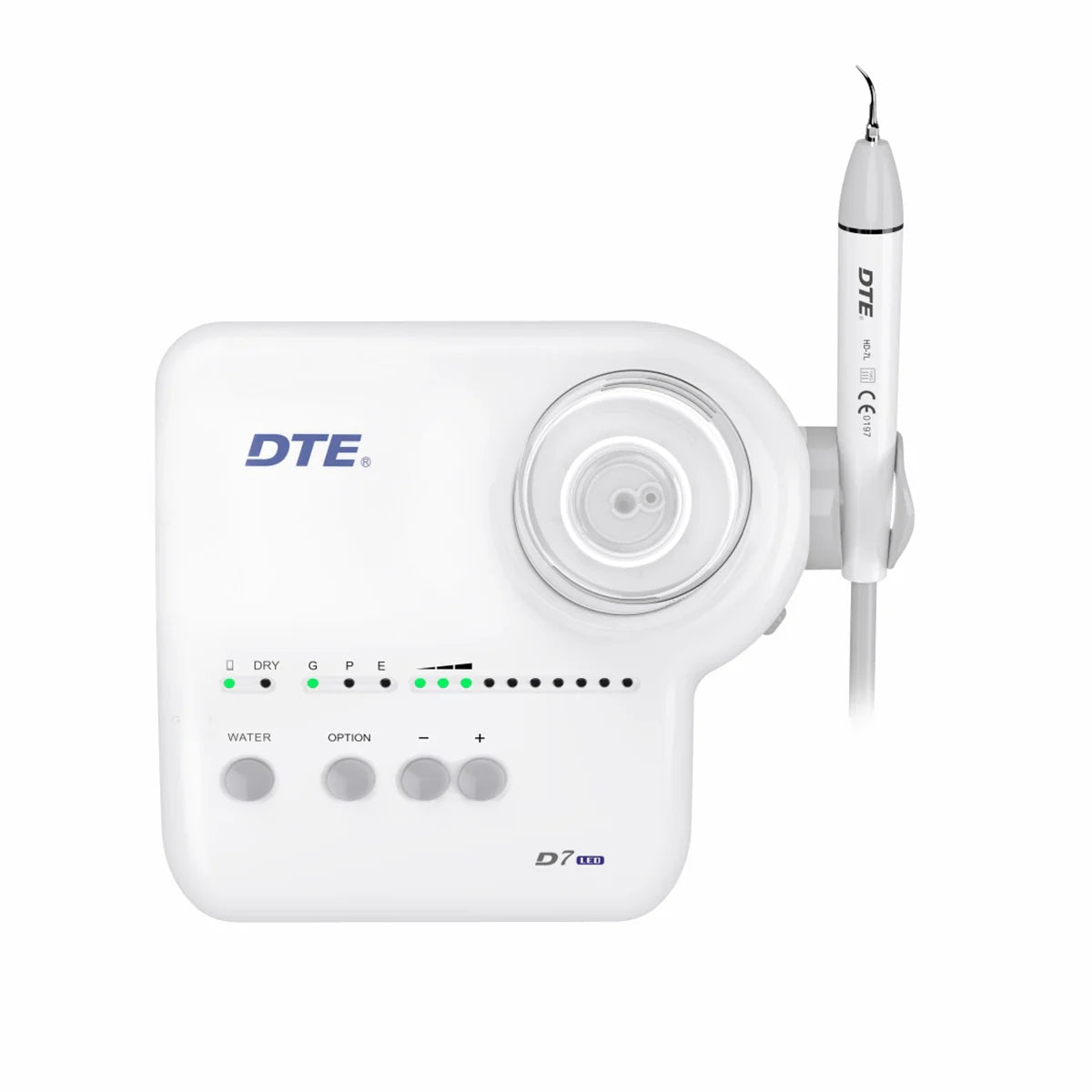

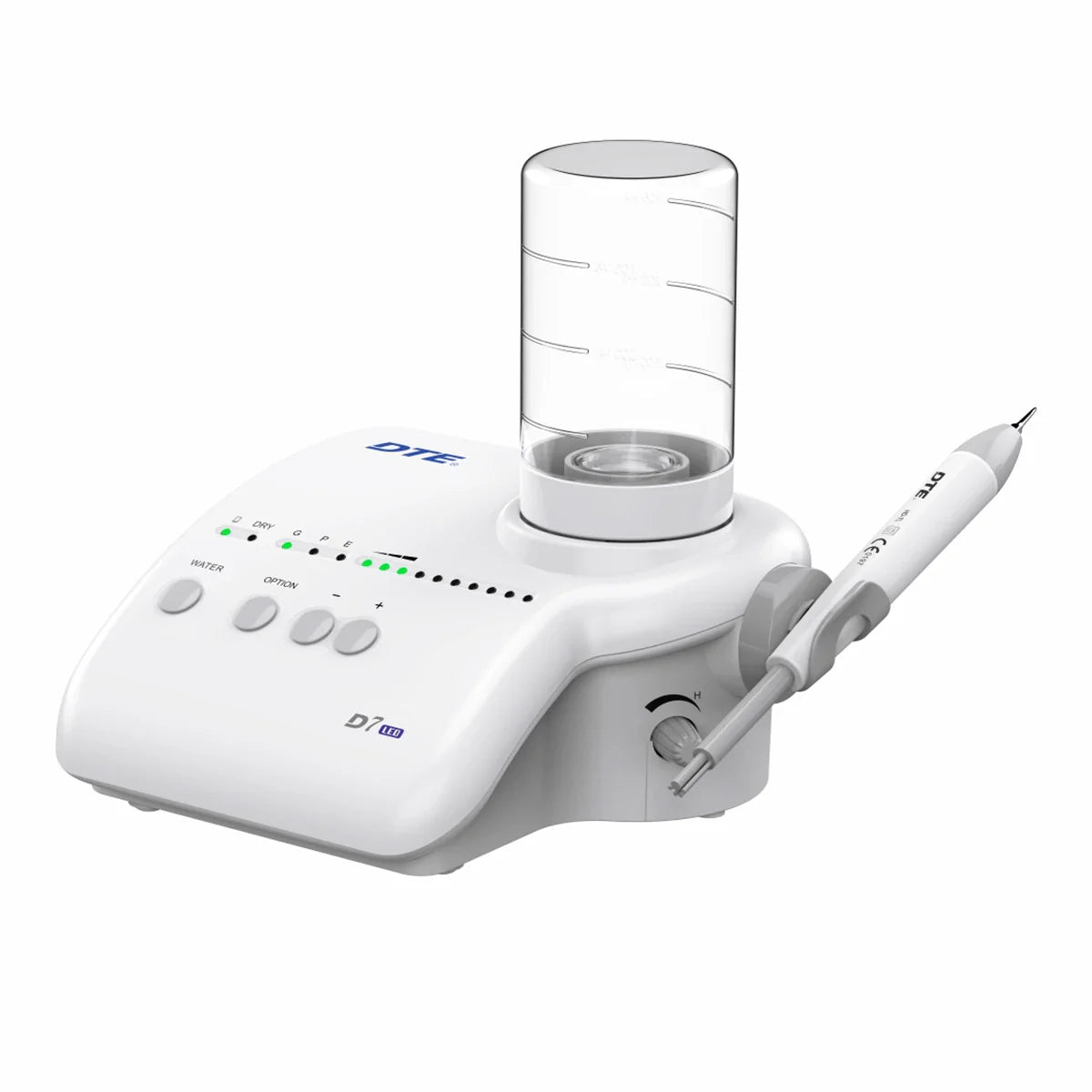

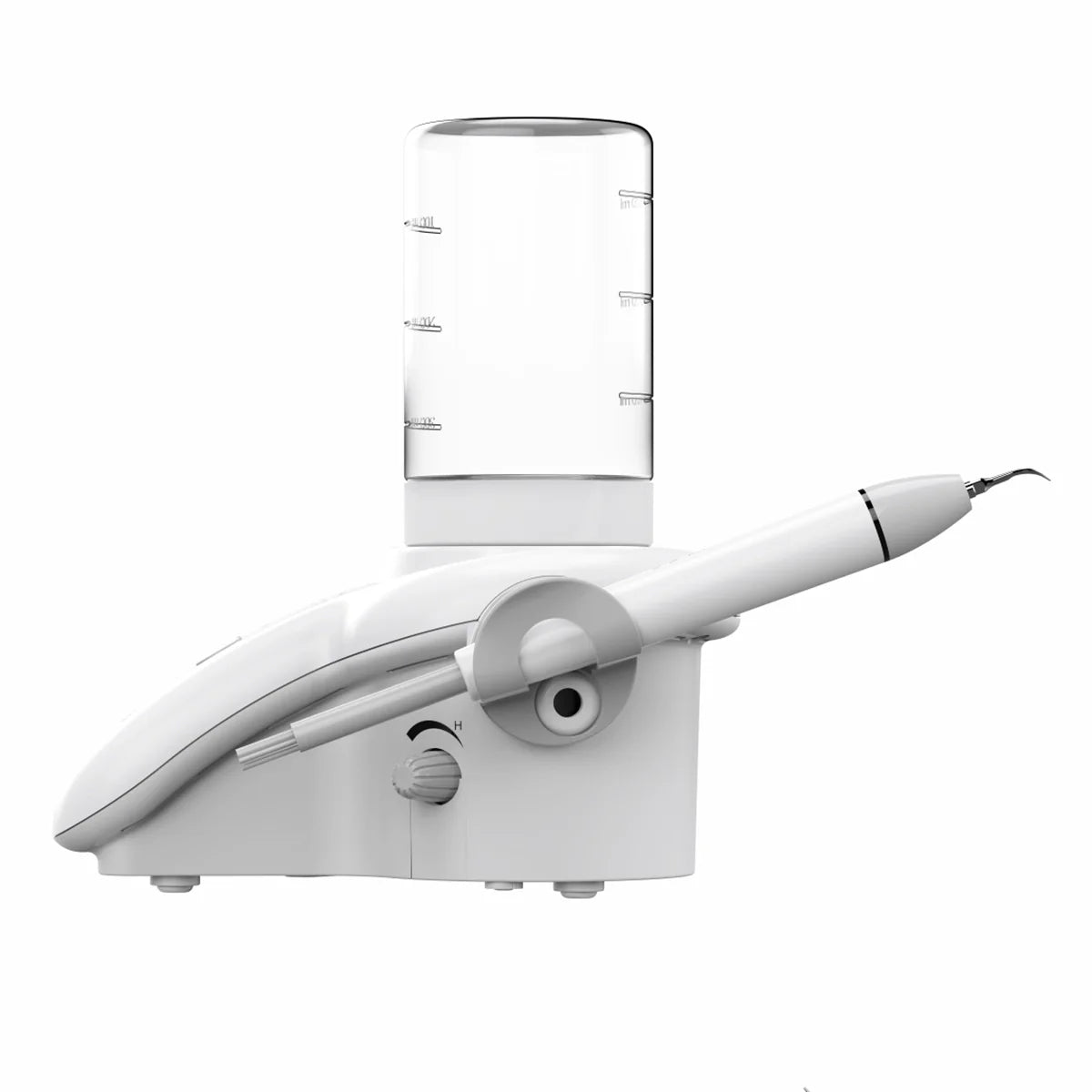

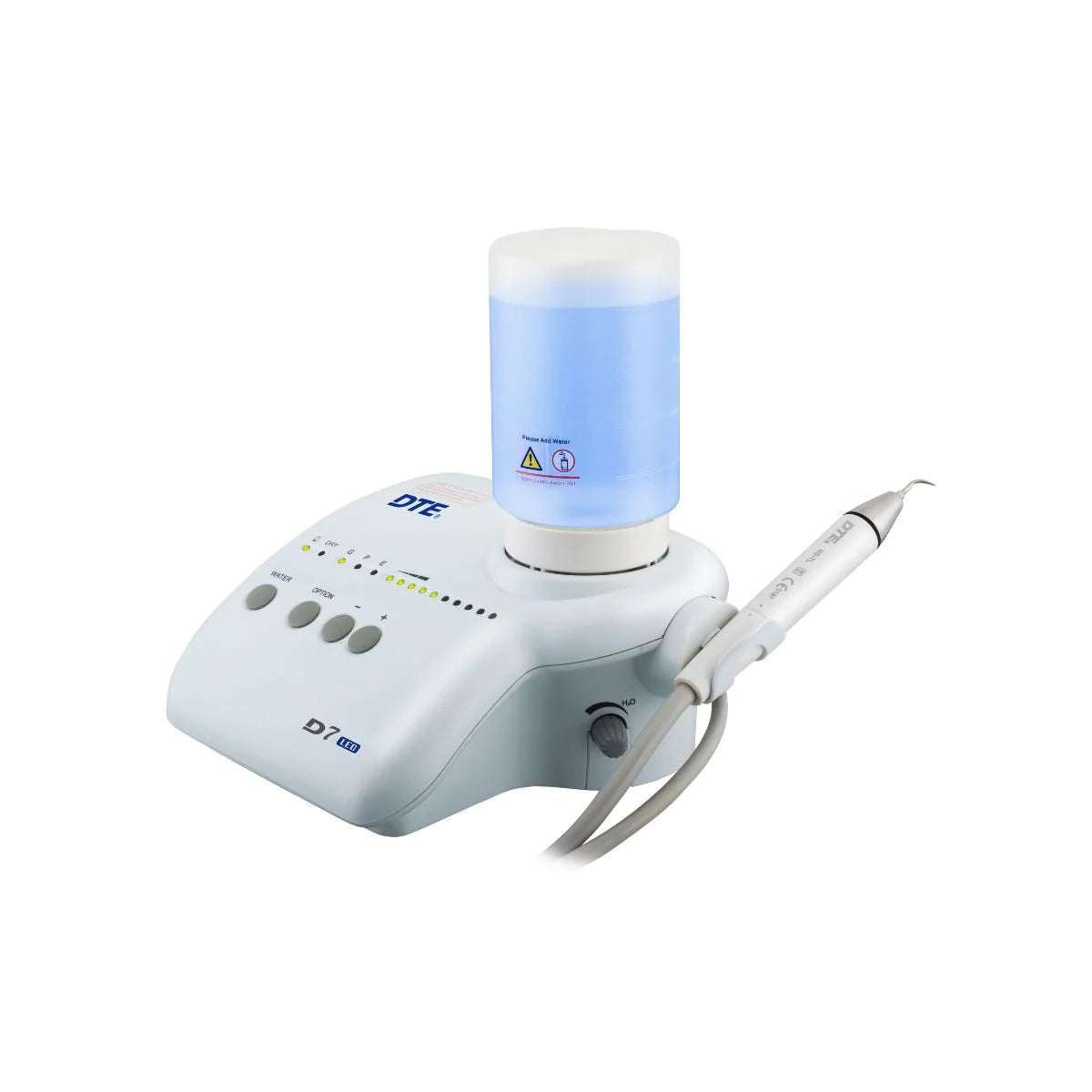

Woodpecker D7 Piezo Aqua Ultrasonic Scaler

The DTE D7 Ultrasonic Piezo Scaling Unit features anti-rot material applied to the internal water line system. Clinical solutions are applicable for automatic water supply mode, improving the performance of perio and endo functions dramatically.

• Water supply is from water bottles only

• Automatic frequency tracking system searches for the best working frequency

• Detachable handpiece and fully autoclavable

• Applicable for general, perio and endo functions

• Constant power output and more comfortable scaling

• No heating in the handpiece for greater patient comfort

Technical Specifications:

• Power input: 240v-50Hz/60Hz (1.2A Max)

• Main unit input: 30VDC (1.3A)

• Output primary tip vibration excursion: < 100 µm

• Tip vibration frequency: 28 kHz + 3 kHz

• Output half-excursion force: < 2N

• Output power: 3W–20W

• Water pressure: 0.1 Bar- 0.5 Bar (0.01MPa to 0.5MPa)

• Main unit weight: 1.35kg

• Adapter's weight: 0.3kg

• Certification & Warranty:

• FDA certified


Packaging includes:

• 1 x D7 LED/ non-LED scaling unit

• 1 x DTE D7 LED/ non-LED ultrasonic scaler handpiece

• 1 x Torque wrench

• 1 x Power pack

• 1 x Foot switch

• 1 x Water bottle

• 1 x Hose

• 1 x Operational menu
