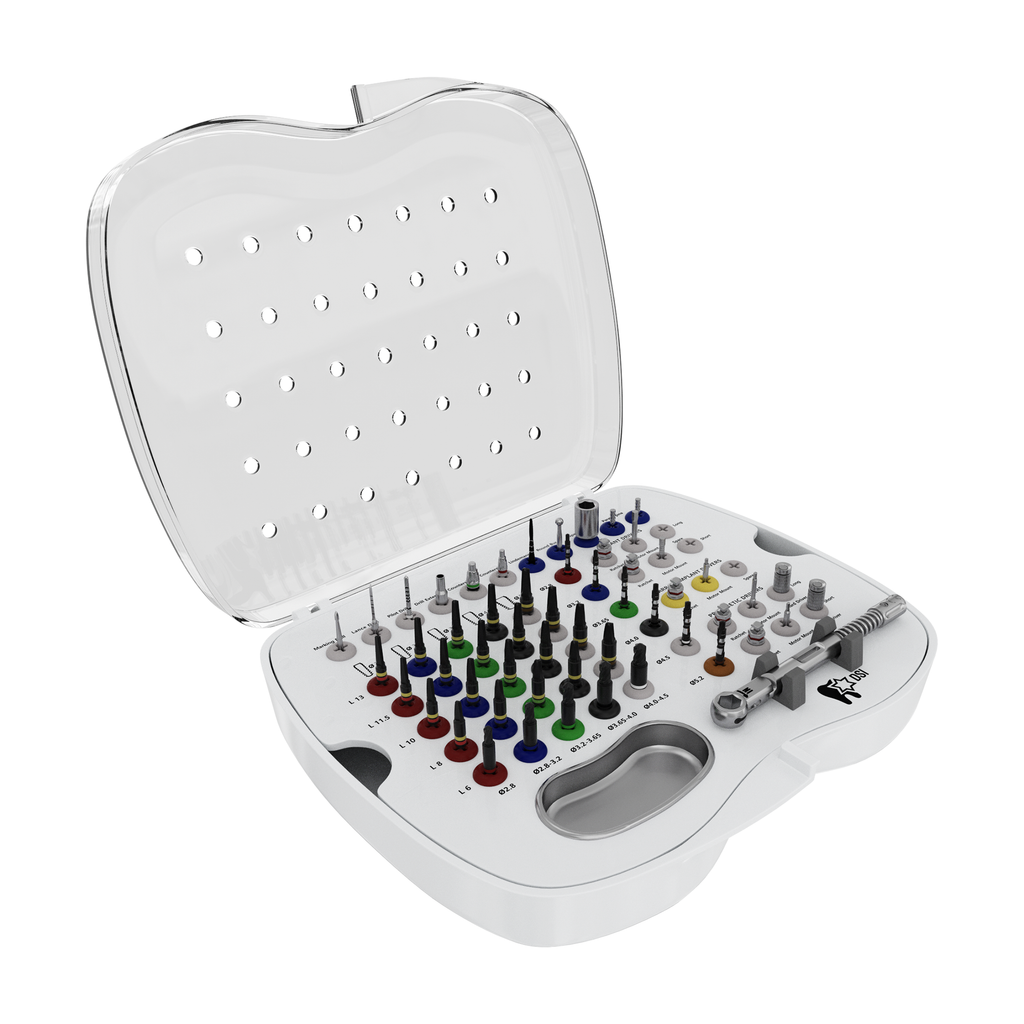

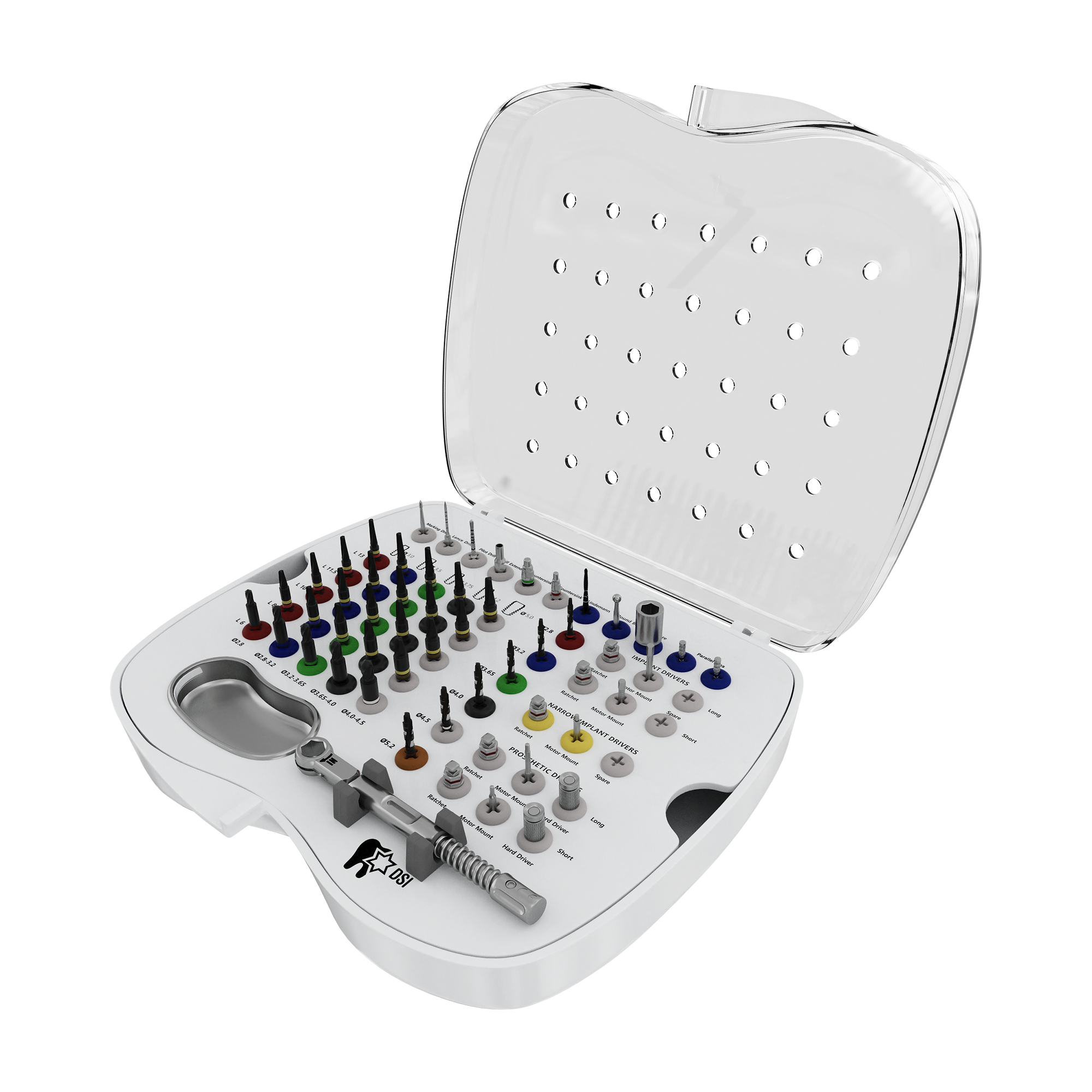

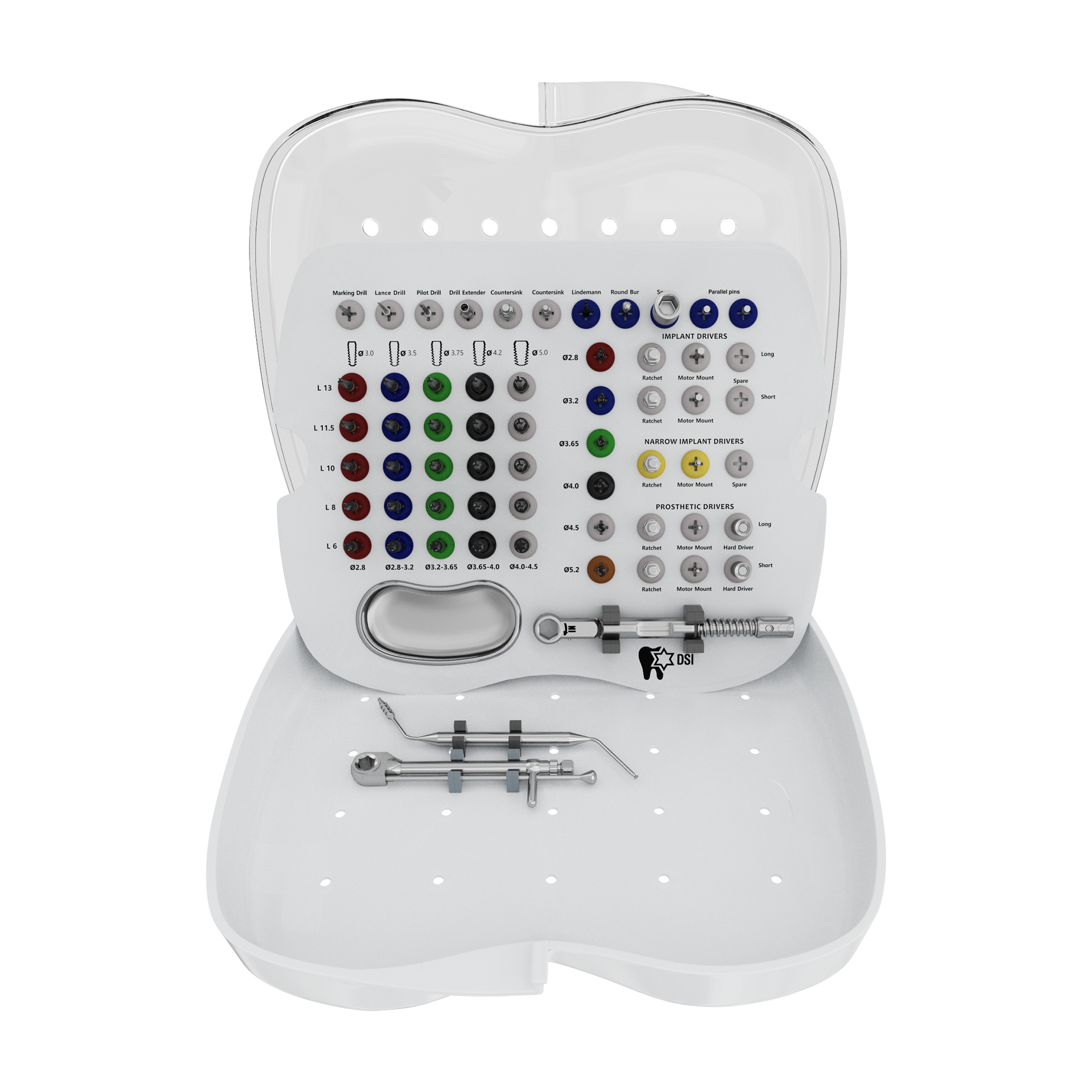

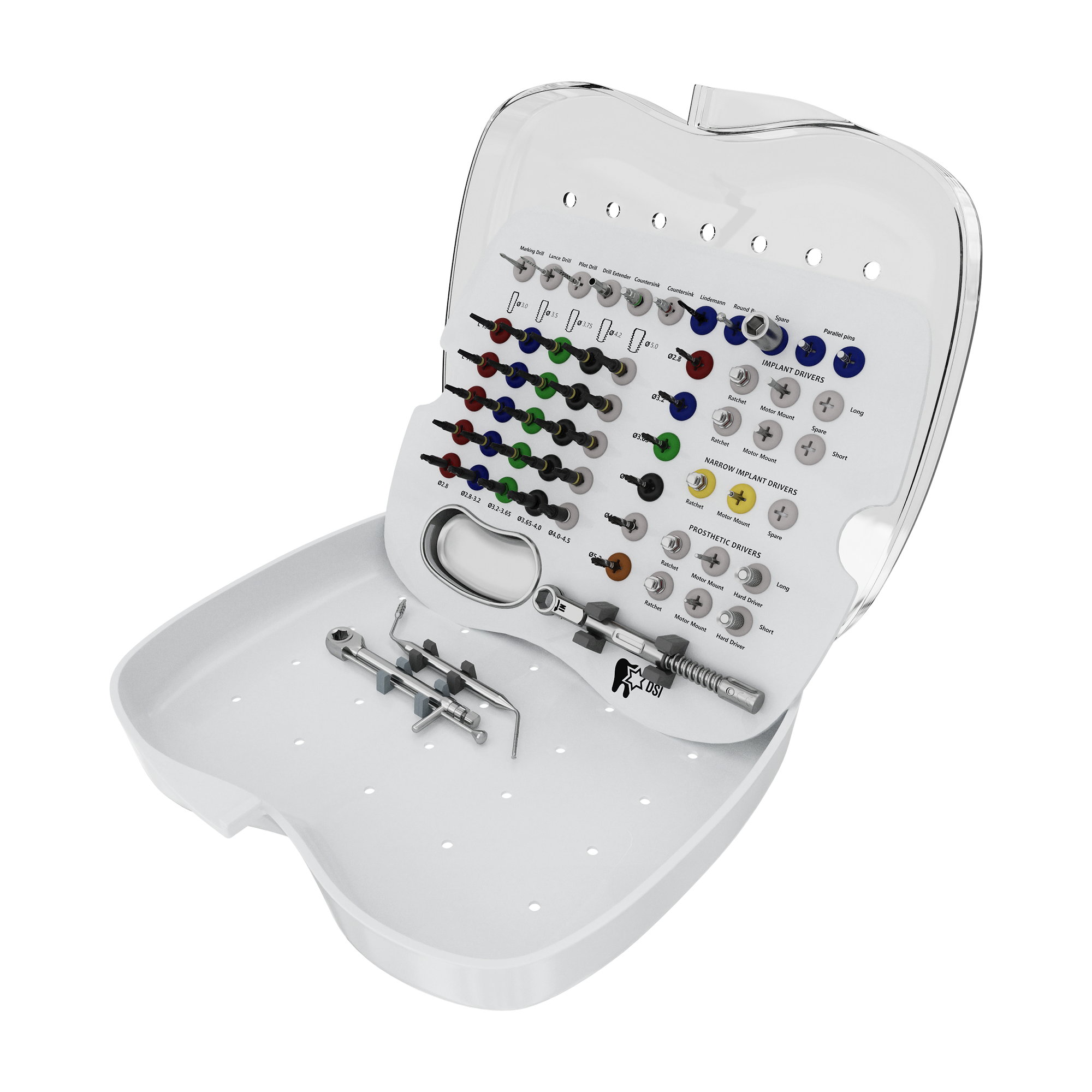

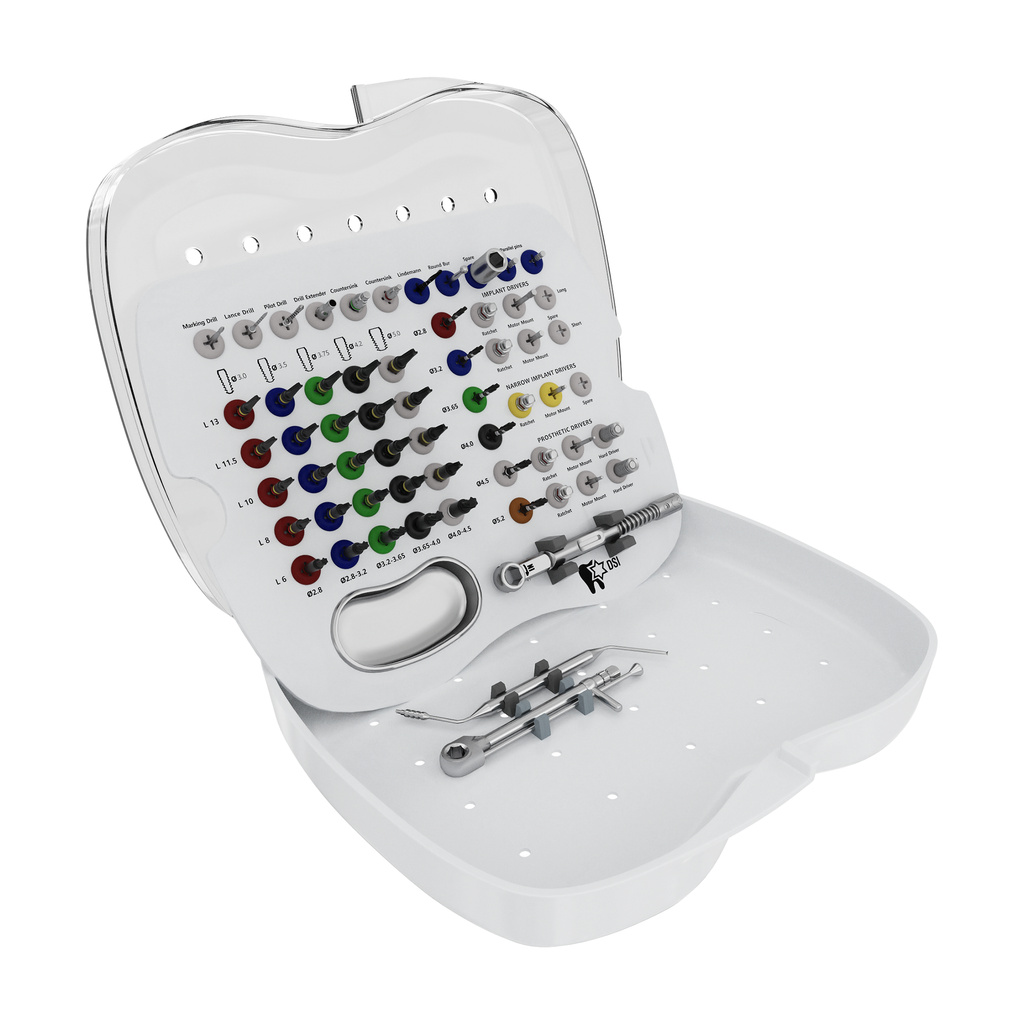

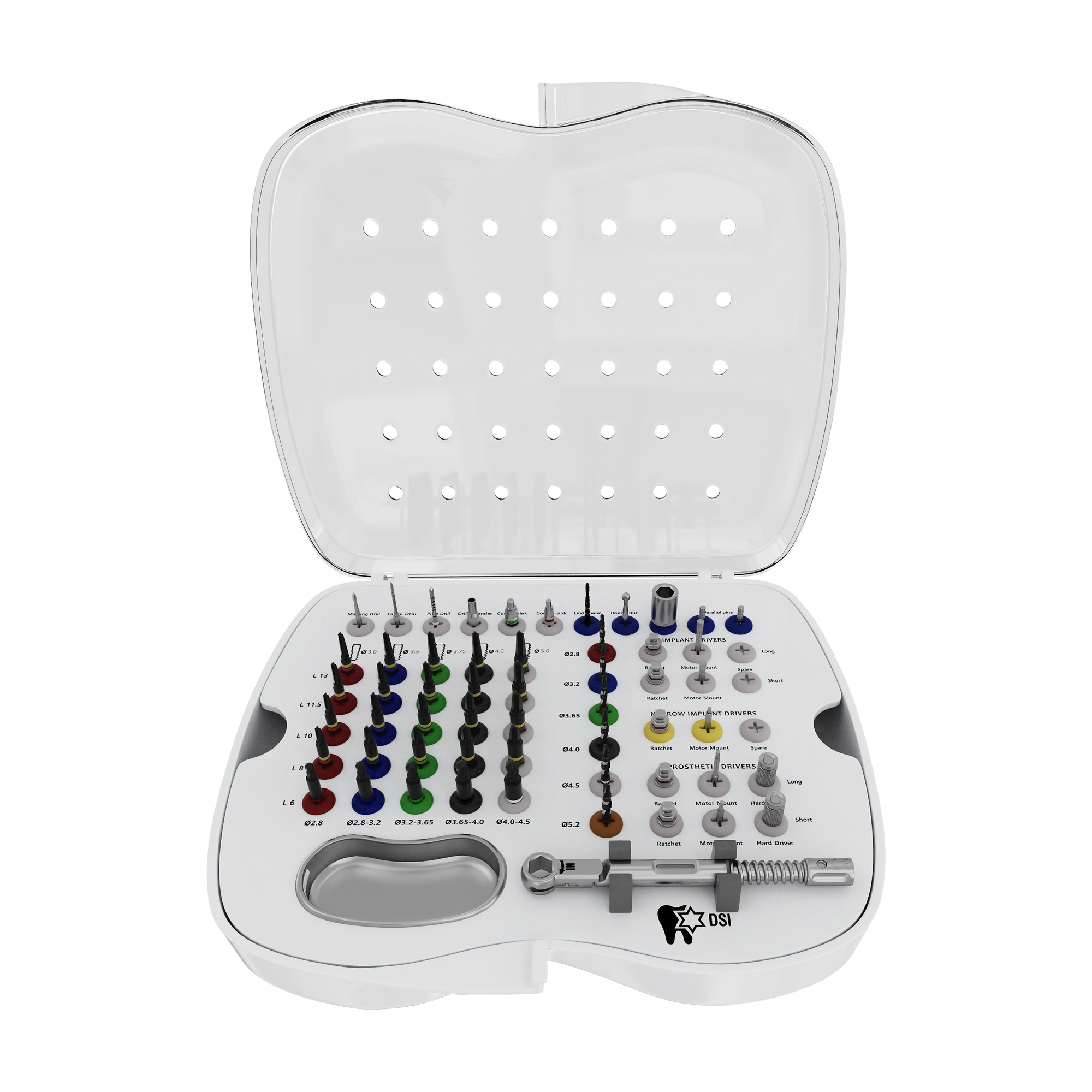

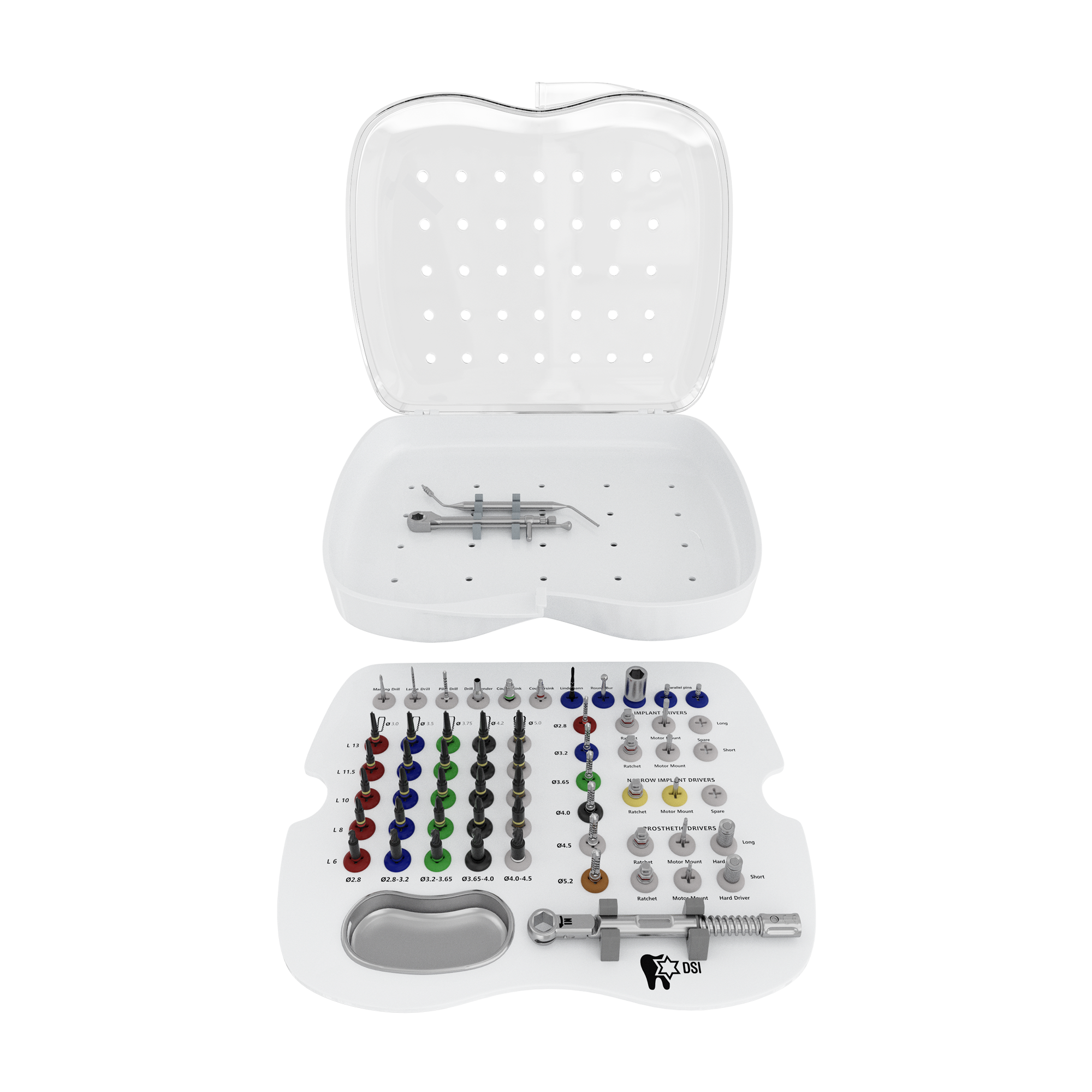

SK006C Pro Kit with Conical Drills

The DSI Conical Drills Surgical Kit is an ideal choice for those needing a superior-quality surgical kit. Offering excellent performance and value for money this kit contains all the necessary instruments to perform precise implant placement operations with tremendous accuracy and simplicity. The main advantage of this kit is DSI Conical Stopper Drills that have been designed and crafted for implantation and surgical procedures. DSI Conical Stopper Drills are an ideal choice for sinus lifting surgeries due to their remarkable precision, dependability, and performance.

Features

• Outstanding performance and exceptional accuracy.
• Minimal heat generation as well as little vibration during the drilling sequence.
• Designed for optimal implantation, ensuring exceptional results each time.
• Reliable and safe solution for any drilling requirement.
• Reduce the time of healing for patients.
• Built with quality and consistency in mind.
• Diamond-like Carbon DLC coating for a superior finish, and unbeatable performance.
• Can be sterilized in an autoclave, including the plastic polymer box itself.
• 100% compatible with any DSI spiral implant and most of the platforms available on the market such compatible with: MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP

Indications

This surgical kit is built to perform precision implant placement procedures with tremendous accuracy and simplicity.

Benefits

• Conical Stopper Drills
  Designed and crafted for implantation and surgical procedures
  An ideal choice for sinus lifting surgeries due to their remarkable precision, dependability, and performance


• DSI Stepped Drills
  The innovative design of DSI Stepped drills has been created with precision to modify the socket shape and reduce pressure on the implant neck. This provides more stable implantation, especially during the first weeks, which is critical in some cases. With DSI Stepped Drills being followed by the DSI Conical Drills the whole drilling procedure is significantly shortened resulting in improved efficiency and expediting the implant installation process


• Materials
  Stainless steel of superior hardness, purity and wearability is selected to craft the components with utmost precision and attention to detail

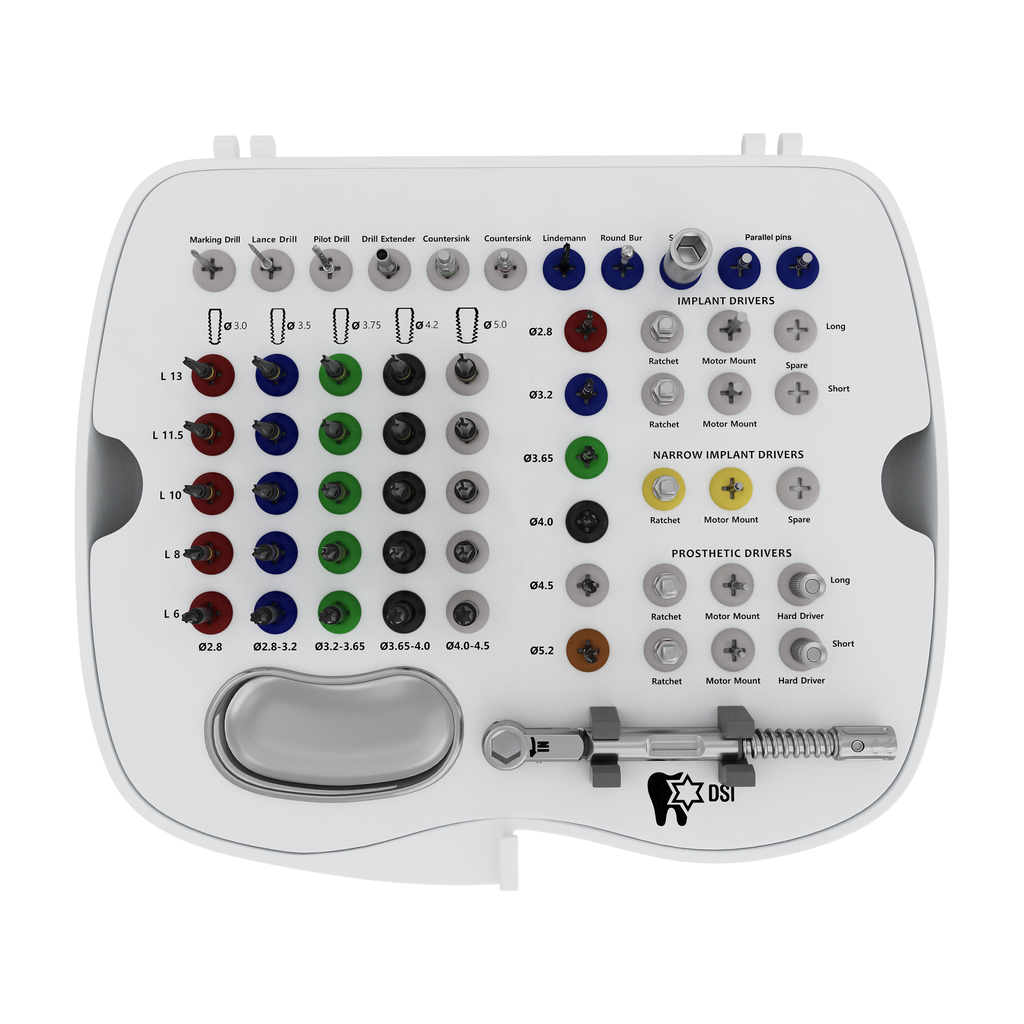

What's inside?

LD150: Lance drill Ø1.5mm
PD190: Marking drill Ø1.9mm
PD200: Pilot drill Ø2.0mm
TDE: Drill extender
CD375, CD500: Countersink drills Ø3.75-4.2 and 5.0-6.0mm
LD1520: Lindemann drill Ø1.5-2.0mm
RB38: Round bur Ø3.5mm
MMRA: Motor mount to ratchet adapter
SPP100, SPP160: Jag parallel guide pins L 10 and 16mm
SD2028L16C, SD2832L16C, SD32365L16C, SD3640L16C, SD4045L16C, SD4652L16C: Step drill with DLC coating Ø2.0x2.8, 2.8x3.2, 3.2x3.65, 3.6x4.0, 4.0x4.5, 4.6x5.2mm L 16mm
RDS2015: Ratchet driver for narrow implant Ø2.0mm
MM2028: Motor mount driver for narrow implant Ø2.0mm
RDK24100, RDK24150: Ratchet driver for implant Ø2.42mm L 10 and 15mm
MM24220, MM24028: Motor mount driver for implant Ø2.42mm L 20 and 28mm
RDK125070, RDK125150: Ratchet driver for prosthetics Ø1.25mm L 7.0 and 15.0mm
MM12520, MM12528: Motor mount driver for prosthetics Ø1.25mm L 20.0 and 28.0mm
HDK125070, HDK125150: Manual driver for prosthetics Ø1.25mm L 7.0 and 15.0mm
1000201: Torque ratchet with hexagonal head Ø6.35mm 10-35Ncm
RS6111: Surgical torque ratchet with hexagonal head Ø6.35mm 25-100Ncm
DPKOP: Depth gauge probe measuring tool
PAL94150: Removable stainless steel surgical tray
TD280L6SC, TD320L6SC, TD365L6SC, TD400L6SC, TD450L6SC: DLC coated stopper drills Ø2.8, 3.2, 3.65, 4.0, 4.5mm
TDC19X27L8CH, TDC19X27L10CH, TDC19X27L115CH, TDC19X27L13CH: Ø1.9-2.7mm L 8, 10, 11.5, 13mm
TDC21X33L8CH, TDC21X33L10CH, TDC21X33L115CH, TDC21X33L13CH: Ø2.1-3.3mm L 8, 10, 11.5, 13mm
TDC28X37L8CH, TDC28X37L10CH, TDC28X37L115CH, TDC28X37L13CH: Ø2.8-3.7mm L 8, 10, 11.5, 13mm
TDC28X40L8CH, TDC28X40L10CH, TDC28X40L115CH, TDC28X40L13CH: Ø2.8-4.0mm L 8, 10, 11.5, 13mm
TDC28X45L8CH, TDC28X45L10CH, TDC28X45L115CH, TDC28X45L13CH: Ø2.8-4.5mm L 8, 10, 11.5, 13mm
