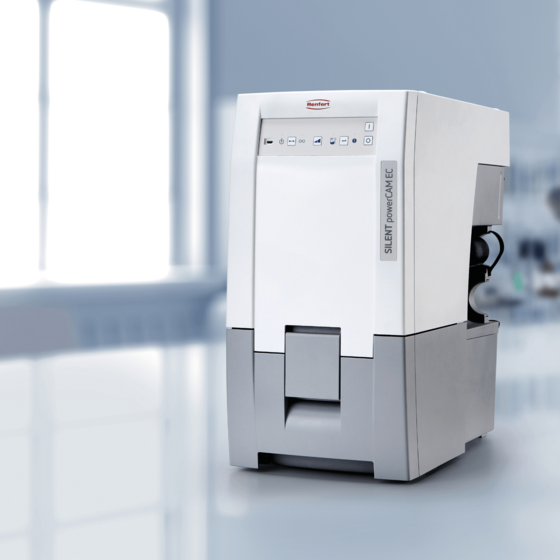

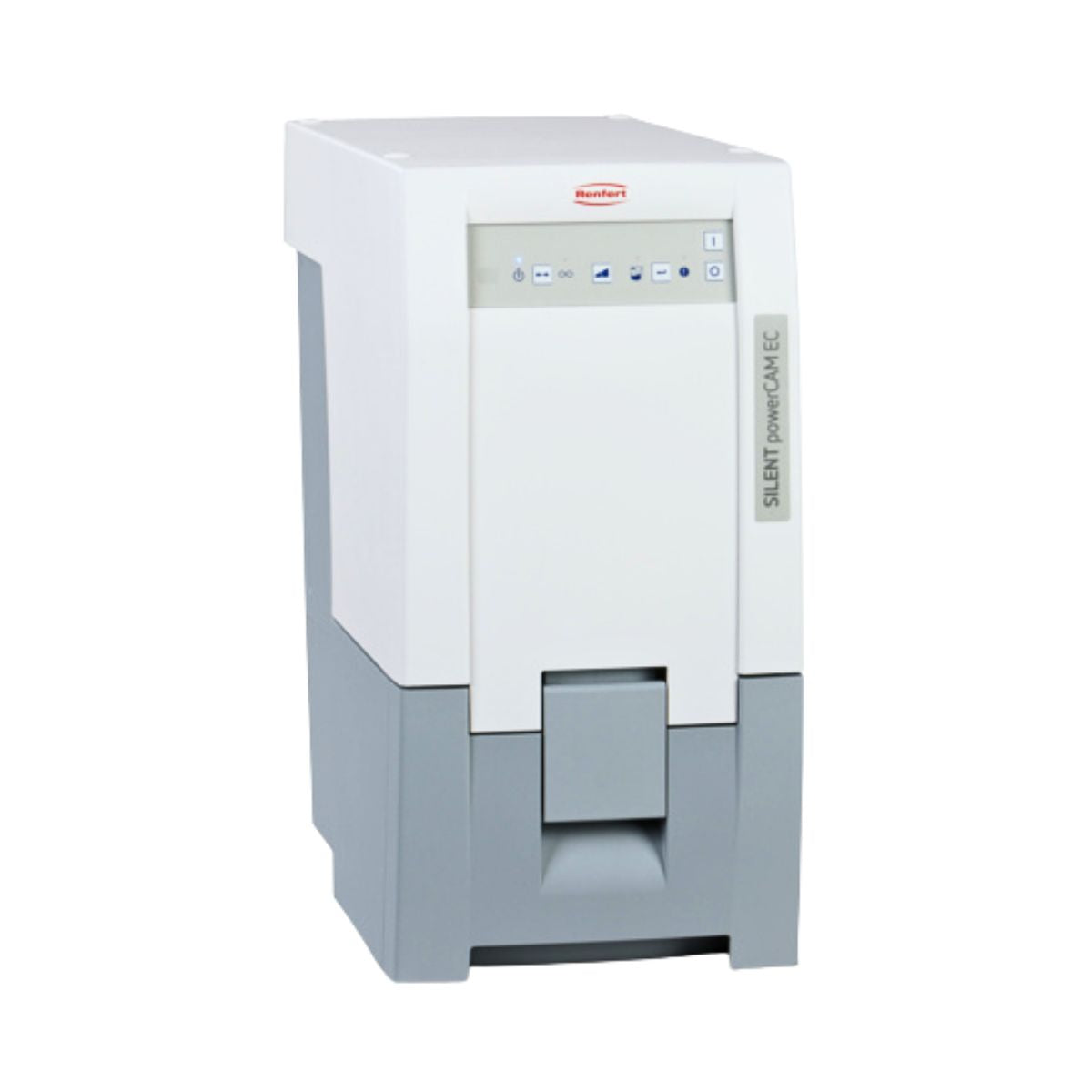

Renfert Silent Compact Cam Extraction Unit for Cam Systems

Roll over image to zoom in Click on image to zoom

Renfert Silent Compact Cam Extraction Unit for Cam Systems

SKU: 29342500

Your cart
Variant	Variant total	Quantity	Price	Variant total
Vacuum cleaner	Vacuum cleaner $2,056.00/ea	$0.00	Quantity	$2,056.00/ea	$0.00

Add to wishlist

The silent compact CAM Extraction unit is the solution for efficient and noise-free extraction in dental CAM systems. This compact and bag-free extraction unit is made for use with compact CAM units, providing seamless integration and optimal performance. The extraction unit has bi-directional communication with the CAM unit, allowing for effortless control and monitoring.

Indication

Compact, bag-free extraction unit created for use with compact dental CAM units.

Features

Bag-free dust collection eliminates the need for follow-up costs.
Working without interruption due to a simple motor change in minutes.

Change Fine Video

Empty Dust Drawer Video

Specification

Permissible mains voltage / frequency: 220–240 V, 50/60 Hz | 120 V, 50/60 Hz | 100 V, 50/60 Hz

Nominal voltage: 230 V / 120 V / 100 V

Suction turbine power: 490 W (230 V) | 480 W (120 V) | 480 W (100 V)

Volume flow (max.): 2500 l/min (1.47 ft³/s)

Max. depression: 219 hPa (3.2 psi)

Max. permitted connected load of the plug-in socket: 1350 W (230 V) | 480 W (120 V) | 320 W (100 V)

Number of suction hoses: 1

Sound pressure level (LpA) at max. volume flow: 55 dB (A)

Fill level dust collector: 2.6 l (0.69 gal)

Weight (empty): 13.2 kg (29.1 lbs)

Dimensions (W x H x D): 245 x 440 x 500 mm (9.6 x 17.3 x 19.7")

Ø suction fittings interior: 35 mm (1.38")

Ø suction fittings exterior: 40 mm (1.57")

Package contents:

Silent Power Cam EC Extraction Unit for CAM systems

Units in a box:

Renfert Silent Compact Cam Extraction Unit for Cam Systems
