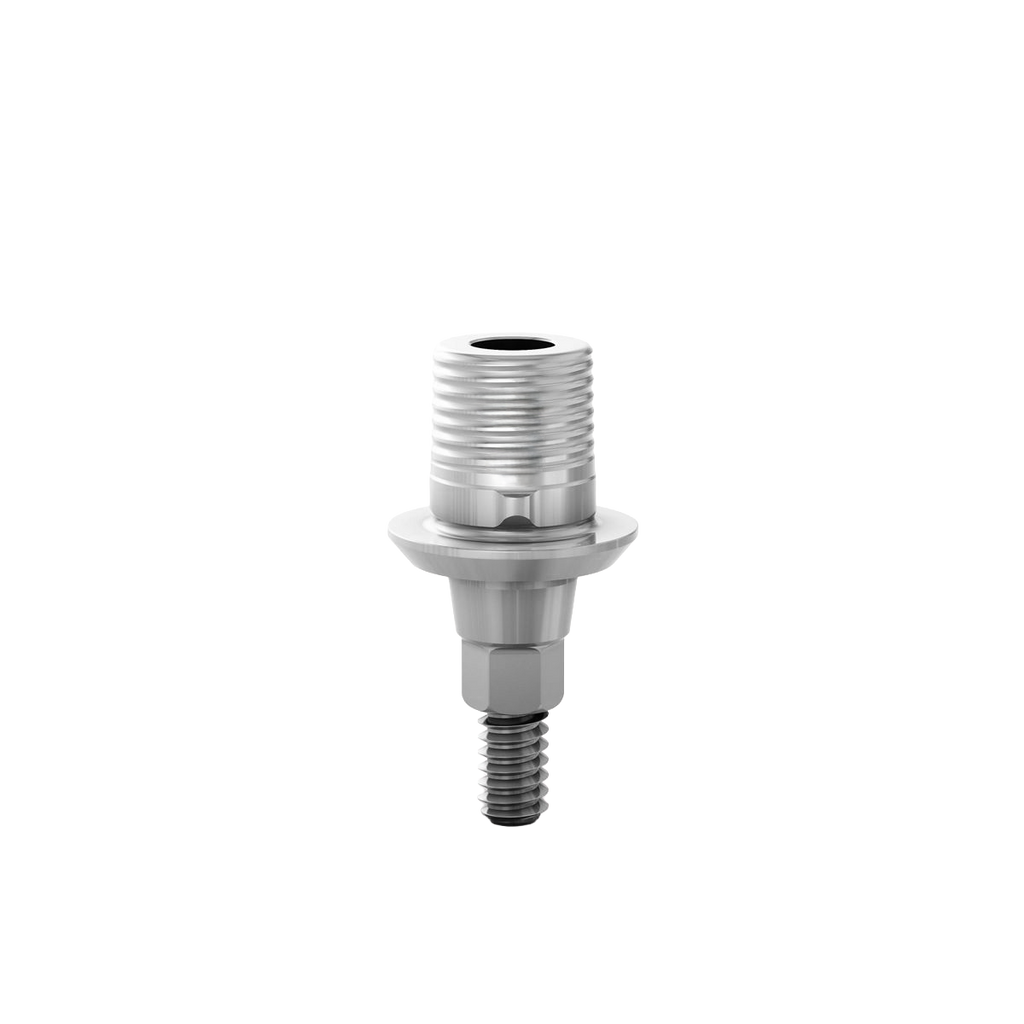

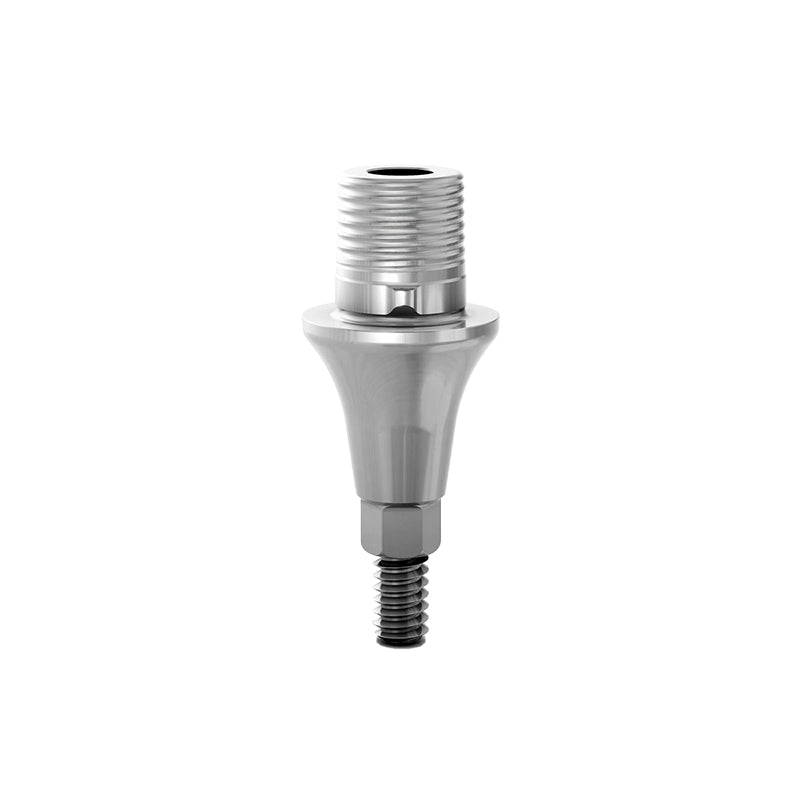

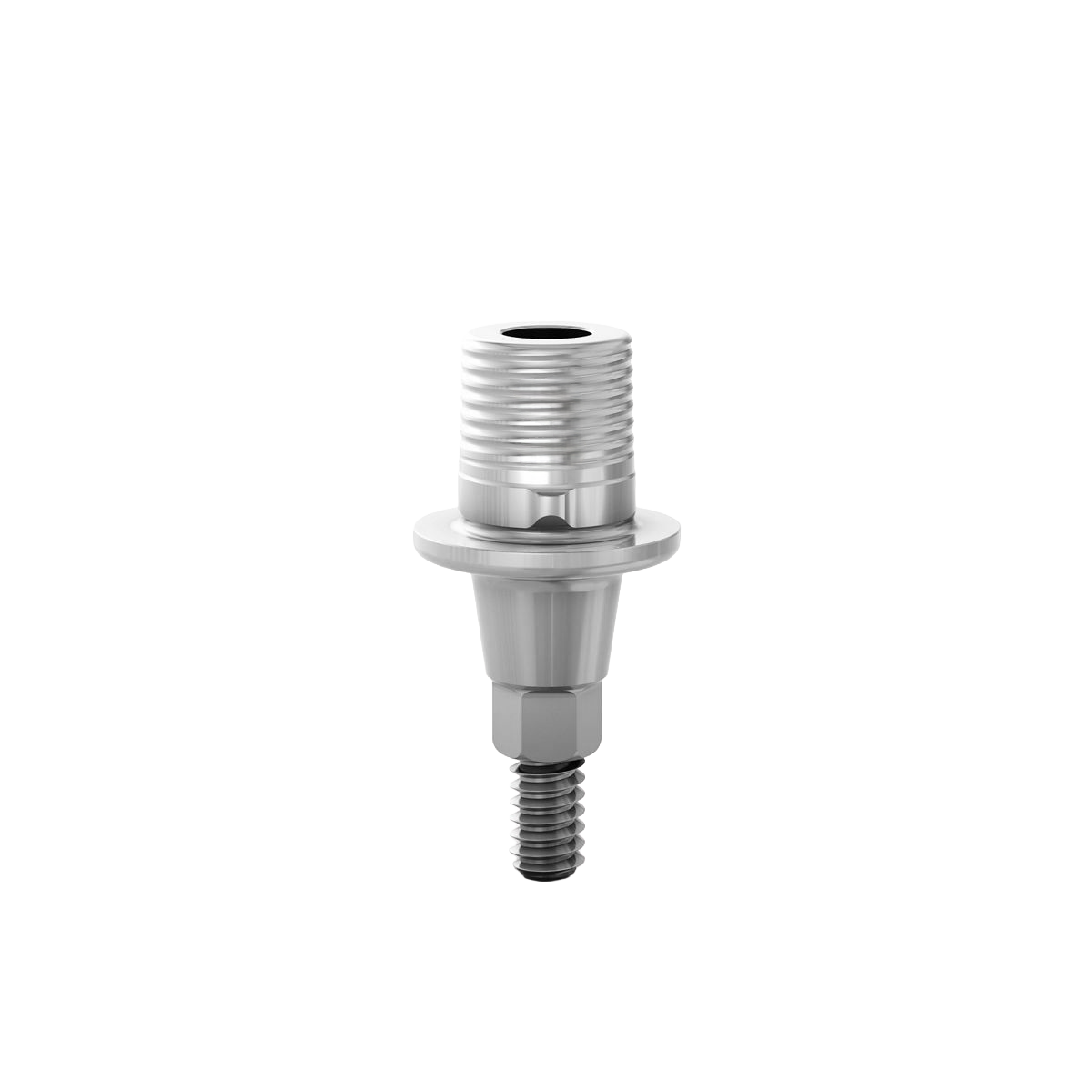

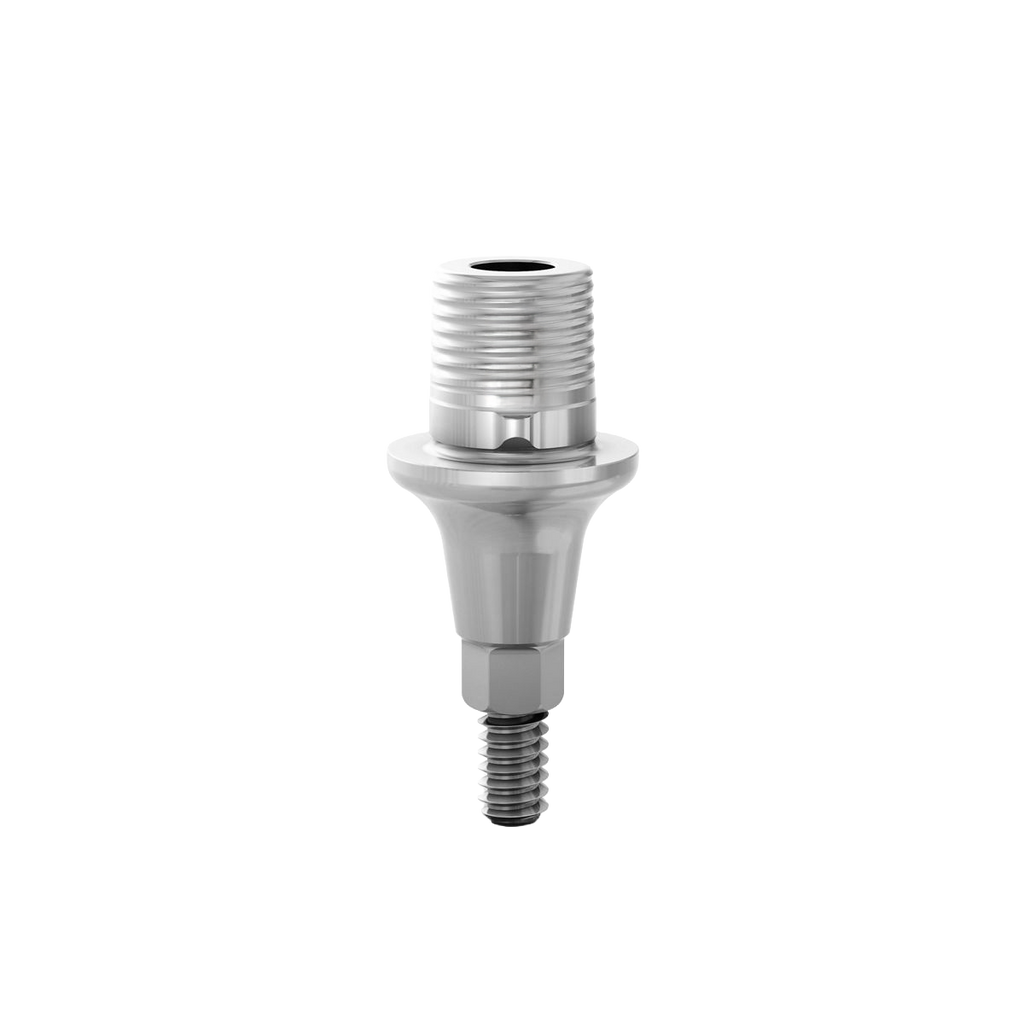

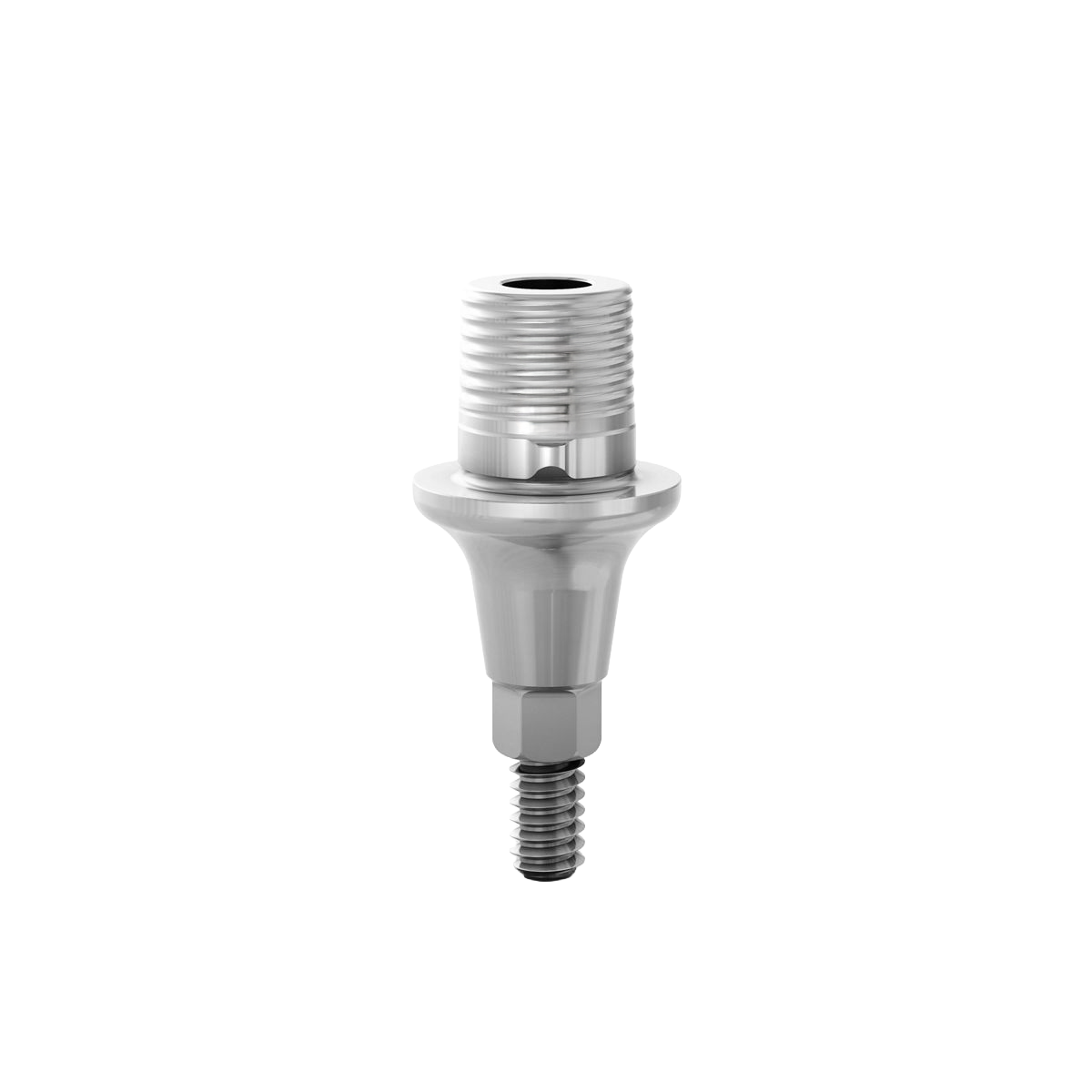

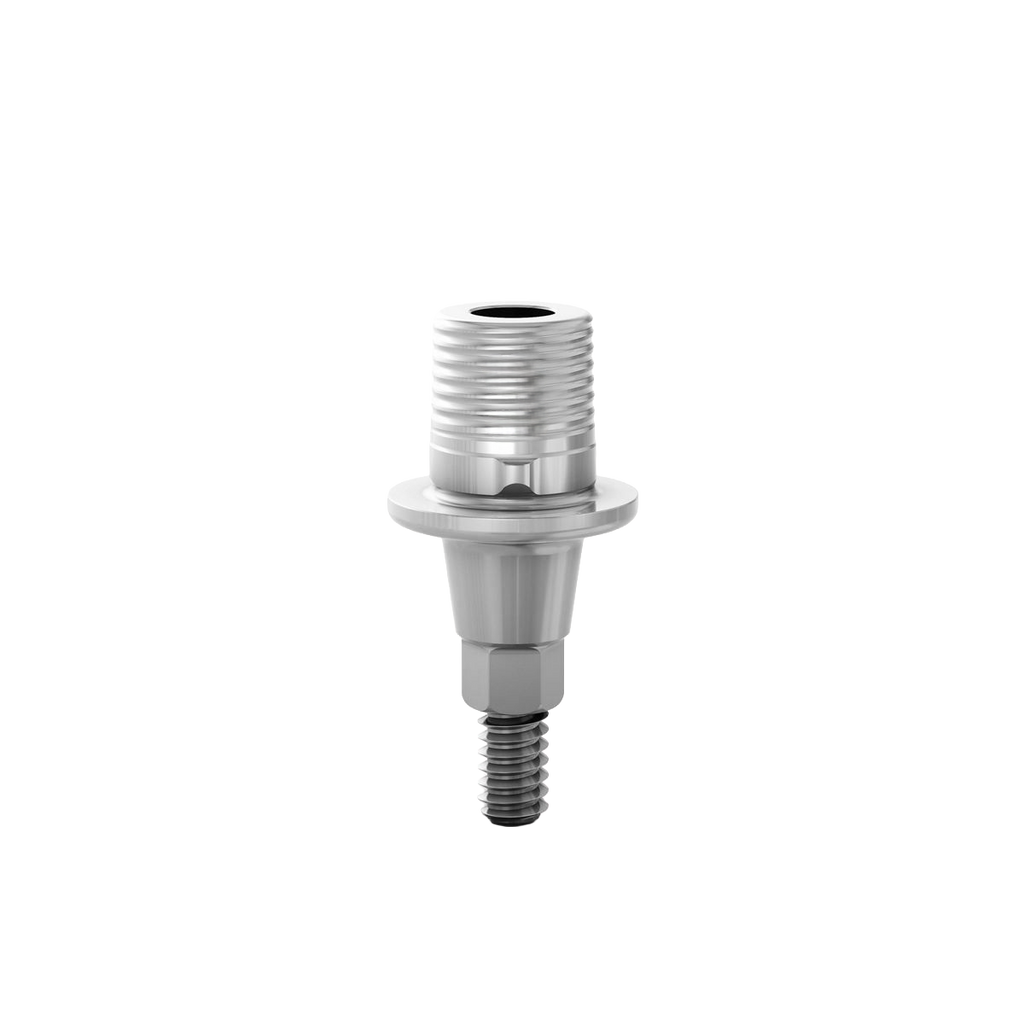

The GM Ti - Base is an intermediate prosthetic component designed for implant-level, single-unit crown restorations within the neodent ® grand morse™ system. Manufactured from high-strength Ti6Al4V-ELI titanium alloy (per ASTM F136), it ensures mechanical stability, biocompatibility, and reliable long-term performance.
These titanium bases are available in three gingival height options - 0.8 mm, 1.5 mm, and 2.5 mm allowing to choose the most appropriate profile to match soft-tissue anatomy and achieve optimal aesthetic outcomes. All versions maintain the same platform (5.5×4), indexed design, and prosthetic compatibility.
Features:
-
Restoration: Crown (final, single-unit restoration)
-
Abutment Diameter: Ø 5.5 mm
-
Cementable Area: 4.0 mm
-
Connection: GM (Grand Morse™)
-
Indexed: Ensuring correct prosthetic orientation
-
Material: Titanium (Ti6Al4V-ELI)
-
Screw Driver: 20 N·cm
-
Implant Line Compatibility: Neodent ® GM implants
-
Use: For CAD/CAM prosthetics, compatible with exocad, 3Shape, and Dental Wings libraries

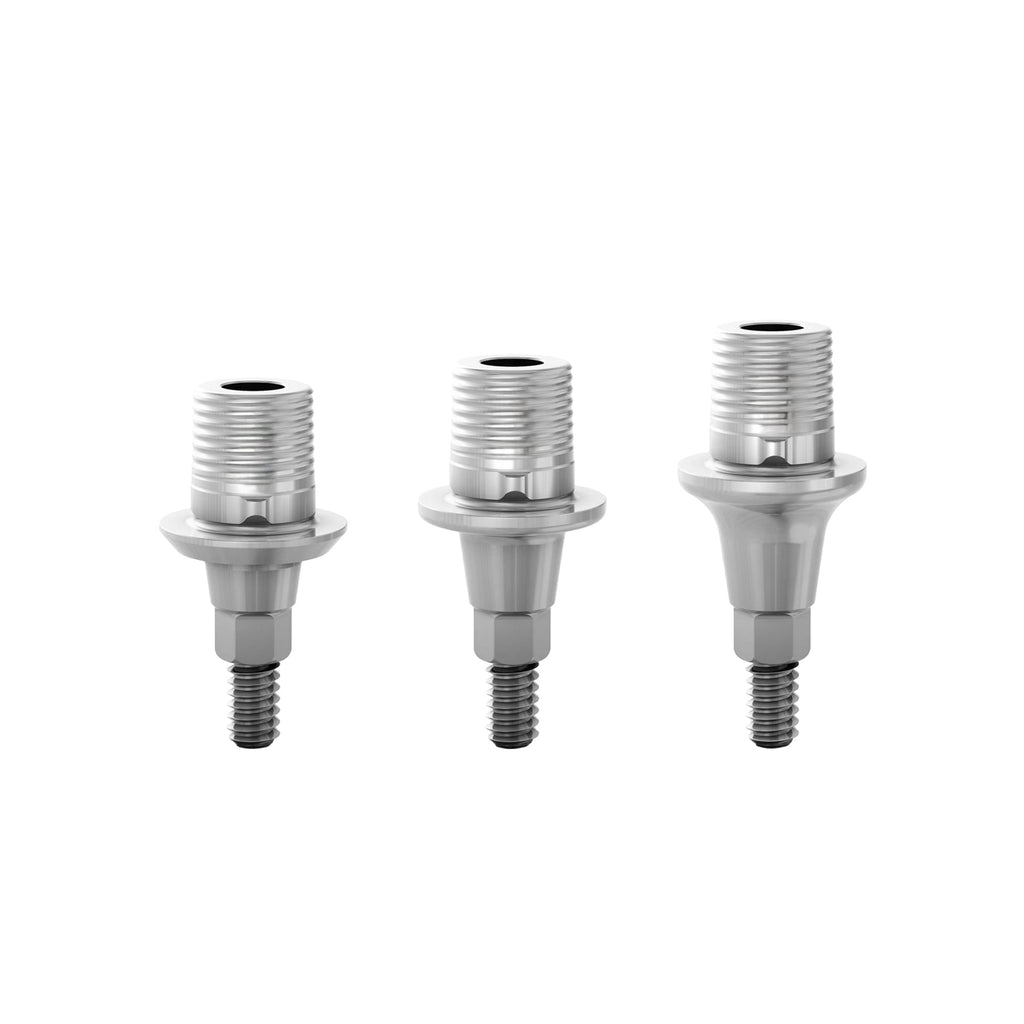

Model Variants:

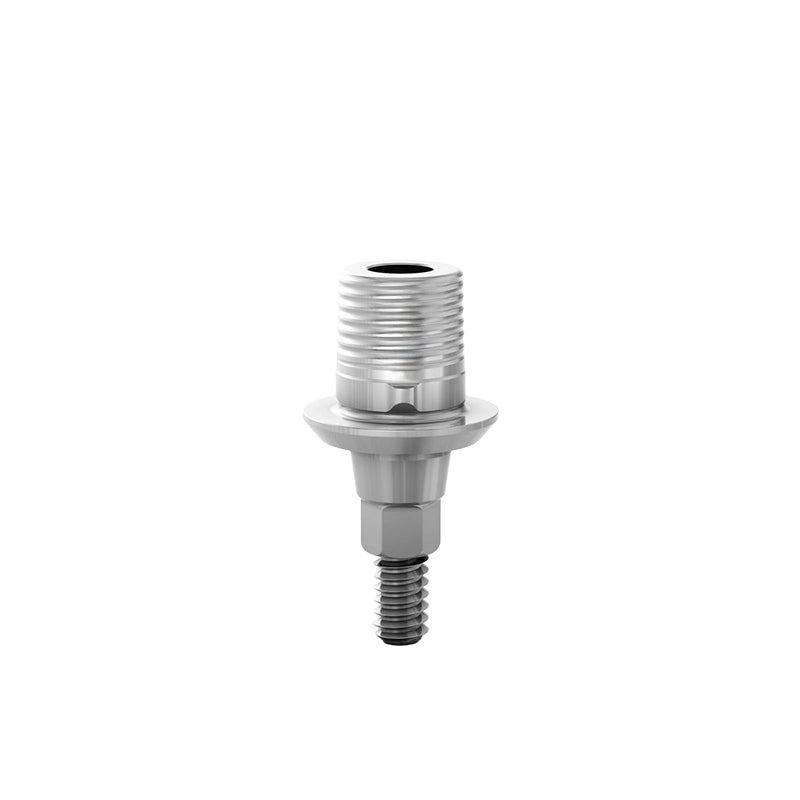

1. GM Titanium Base 5.5 × 4 × 0.8 mm Gingiva Height
This variant features a 0.8 mm gingival height, ideal for cases with minimal soft-tissue thickness.
It offers a low-profile emergence and is most suitable for shallow gingival contours where excessive height could compromise esthetics or crown design.
2. GM Titanium Base 5.5 × 4 × 1.5 mm Gingiva Height
The 1.5 mm option is intended for medium tissue heights, providing a balanced emergence profile while maintaining adequate prosthetic space.
It is a versatile choice appropriate for most standard clinical situations.

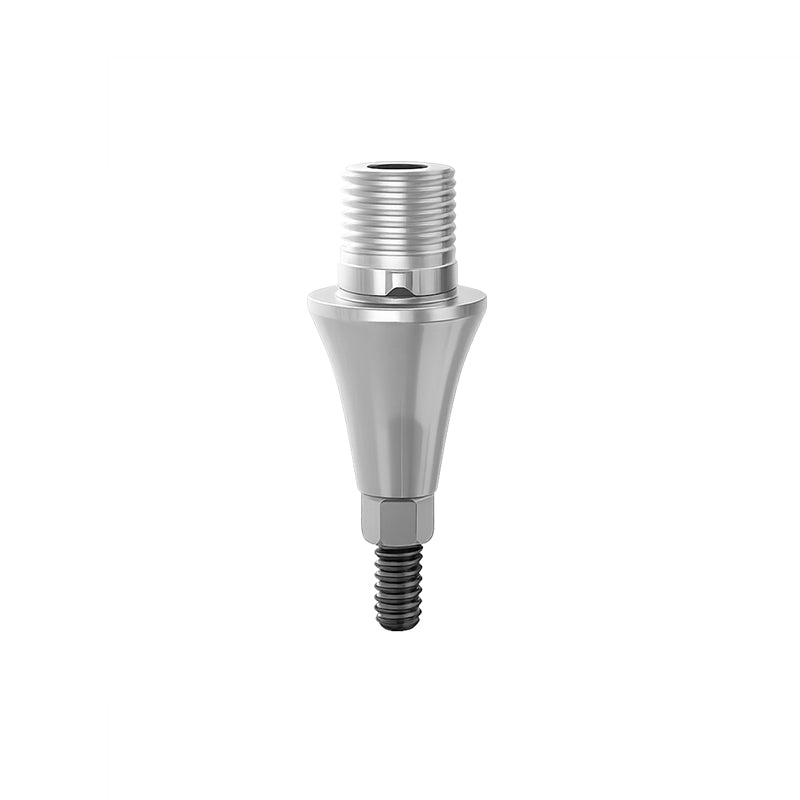

3. GM Titanium Base 5.5 × 4 × 2.5 mm Gingiva Height
The 2.5 mm version offers increased vertical height to accommodate thicker gingival tissues or deeper implant placement.
It ensures proper emergence contour and allows for a more natural transition from implant to crown in high-gingiva areas.
Each unit is supplied with the screw.
