The DSI Gingiva Cuff Height Measure Kit is made to deliver precise readings of the tissue height above dental implants, ensuring the correct attachment is selected for restoration. By minimizing the risk of errors in prosthetic selection, this kit proves to be indispensable for dental professionals. Its compatibility with both internal and external hex connection implants makes it versatile for a variety of clinical scenarios. Additionally, the engraved color-coded millimeter measurements on the tools provide a clear and accurate reference, enhancing the precision of the measurements.
The kit includes a threaded pin with a ball indicator and a stationary pin, ensuring reliable results in all measurement endeavors. The stationary pin is particularly advantageous in tight spaces between implants. The 20 silicone rings further enhance its utility by offering precise depth measurements.
Indications:
- Precisely measures the tissue height above dental implants to ensure the correct prosthetic attachment selection
Benefits:
- Aids in choosing the appropriate prosthetic components by providing exact cuff height readings
- Suitable for use with both internal and external hex connection implants, making it versatile across different implant systems
- Utilizes the stationary pin for accurate measurements in areas with restricted space between implants
- Reduces the risk of incorrect attachment selection by providing clear, color-coded measurement references
- Serves as a valuable tool in dental training and education for teaching accurate measurement techniques
- Compatible with multiple implant systems, allowing for cross-platform measurements in diverse clinical cases
Instructions for Use:
Rotate the golden plate upwards to open the tool fully.
Insert the tool into the implant, ensuring the pin is seated on the implant's top.
Firmly hold the tool and rotate the golden plate clockwise until it contacts the ridge.
Remove the tool and read the cuff height on the color-coded rings.
For internal hex connections, cuff heights range from 0.5mm to 7.0mm, while for external hex connections, they range from 1.0mm to 7.0mm.

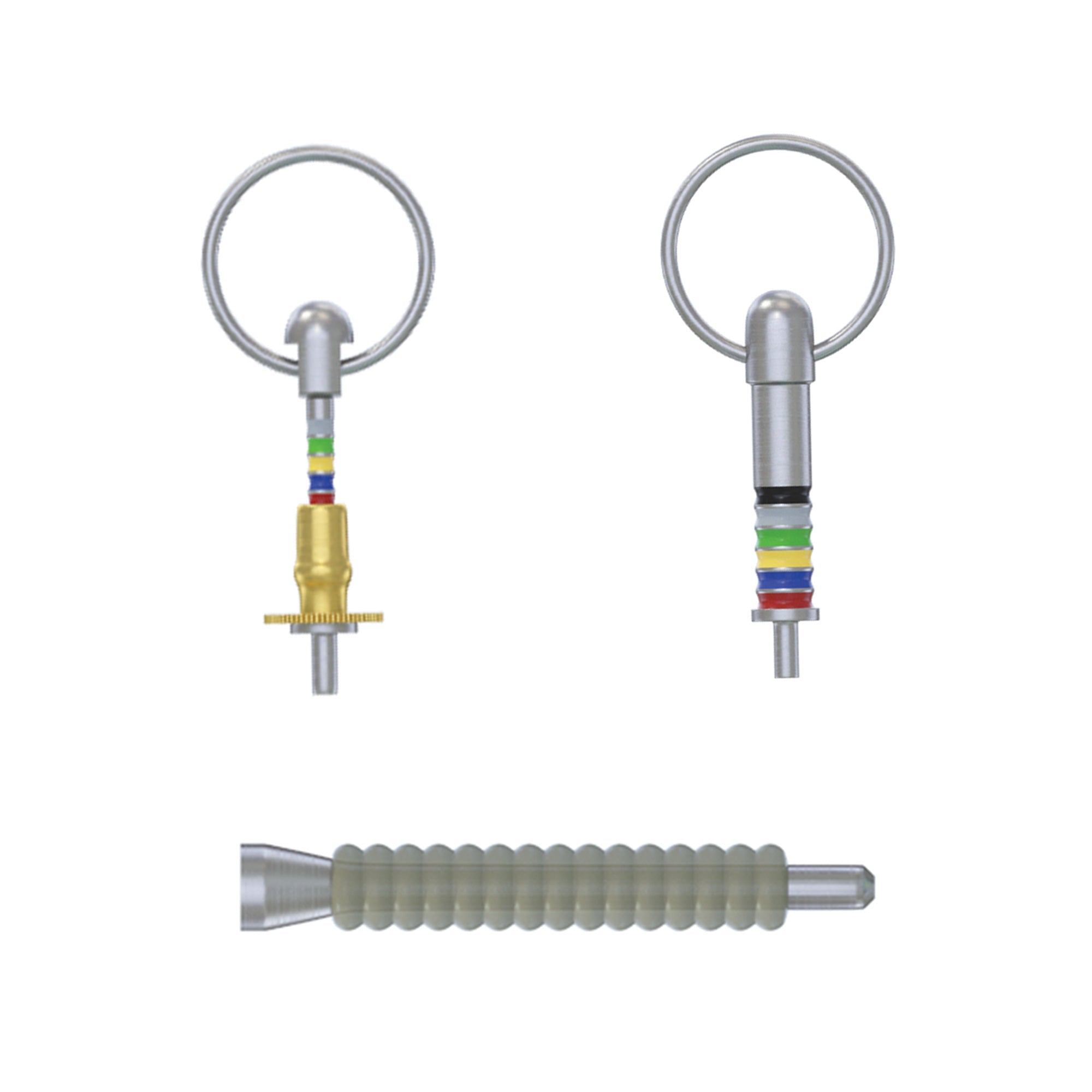

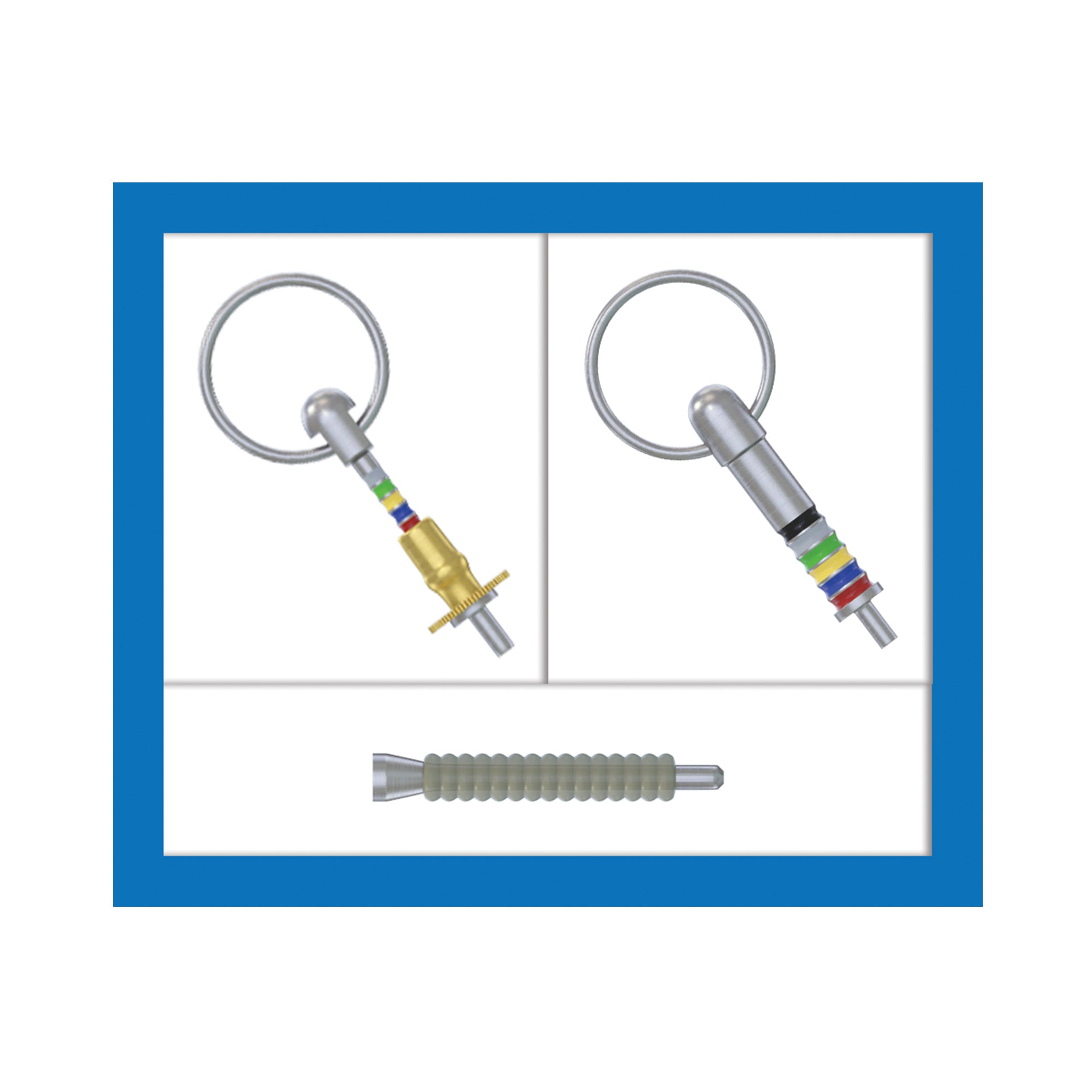

Kit Includes:
- Tool with threaded pin and ball indicator
- Tool with stationary pin
- Ring dispenser (20 pcs silicone rings)
