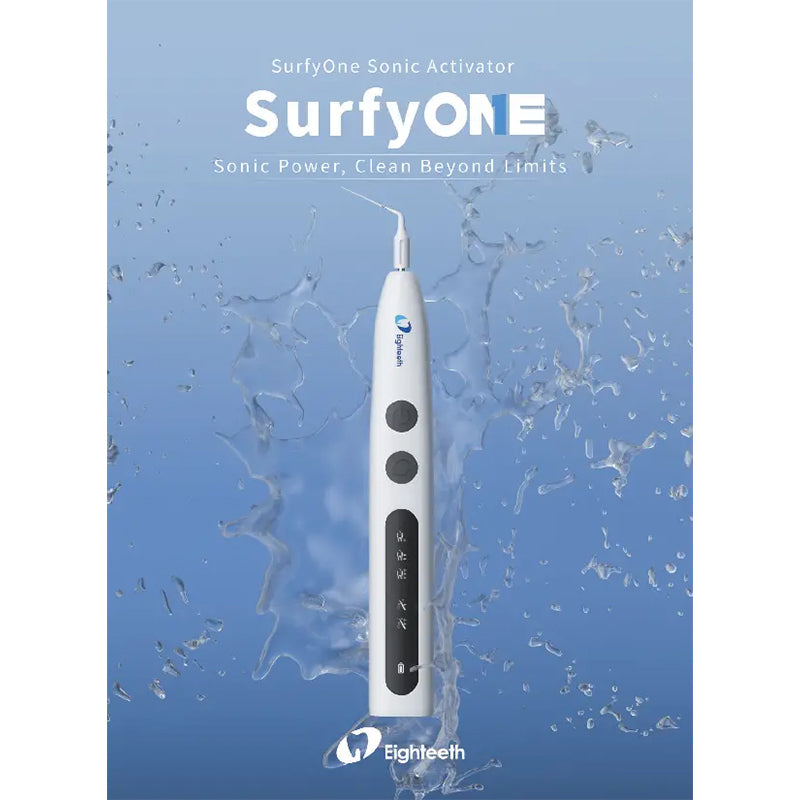

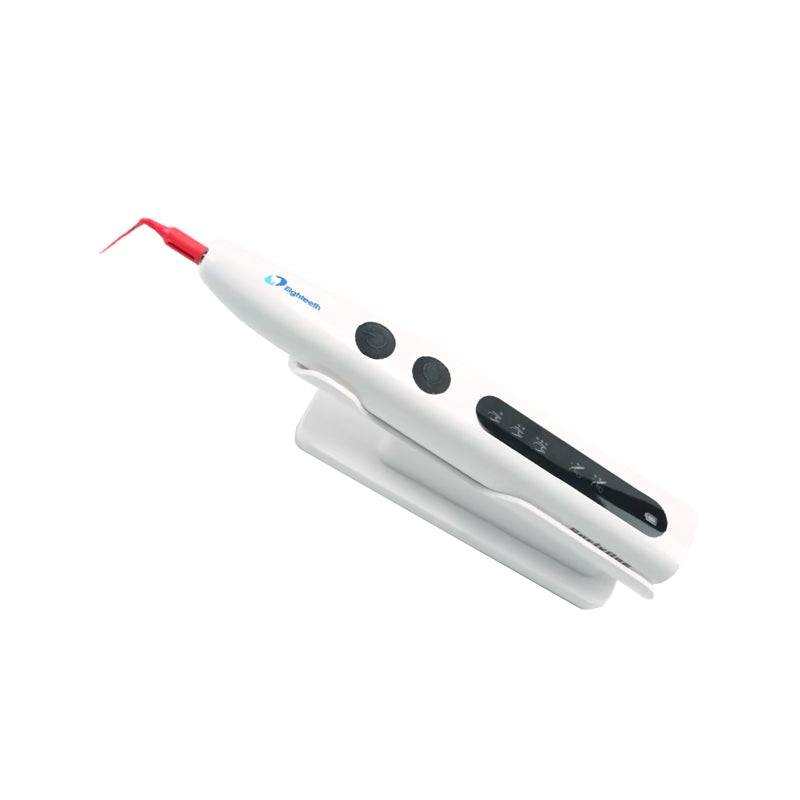

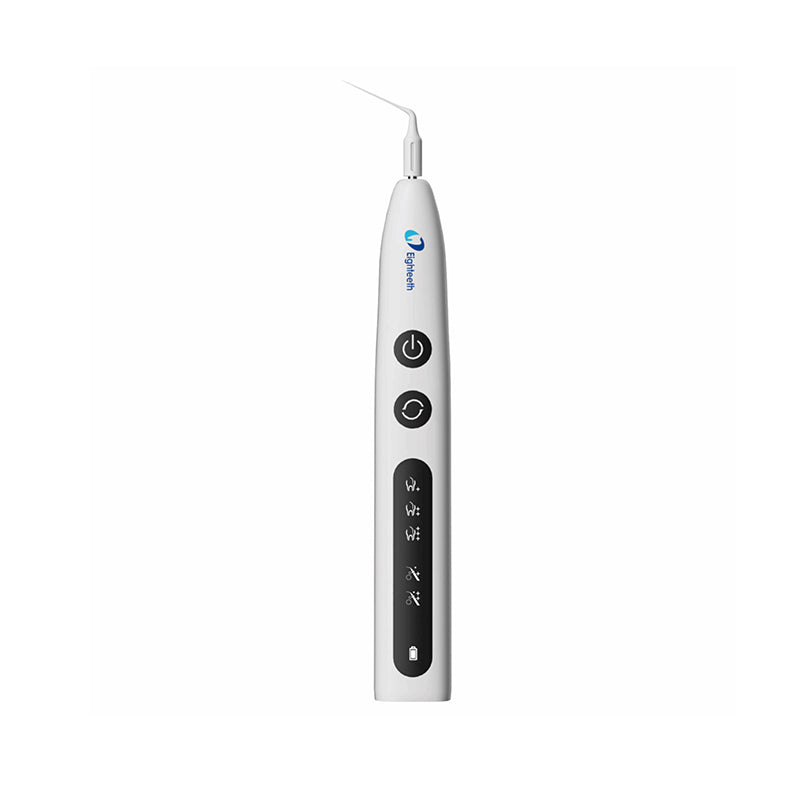

Eighteeth SurfyOne Sonic Activator

The SurfyOne Sonic Activator is an advanced sonic device designed for high-performance endodontic procedures. Powered by an advanced brushless motor, it drives a polymer working tip to generate high-frequency vibration, delivering efficient energy for improved root canal irrigation activation and precise bioceramic sealer placement.

Dual Functionality

1) Sonic Activation

High-frequency vibration creates rapid fluid exchange inside the root canal system, helping to:

• Effectively flush out smear layers
• Remove debris and residue
• Enhance activation efficiency of irrigating solutions for superior cleaning

2) Bioceramic Sealer Delivery

SurfyOne also supports bioceramic sealer delivery, assisting clinicians in placing sealer with greater precision to achieve:

• Higher filling density
• Reduced void formation
• Improved sealing quality and consistency

Key Features

• Mini Head Design - Provides a wider, clearer field of view under the microscope

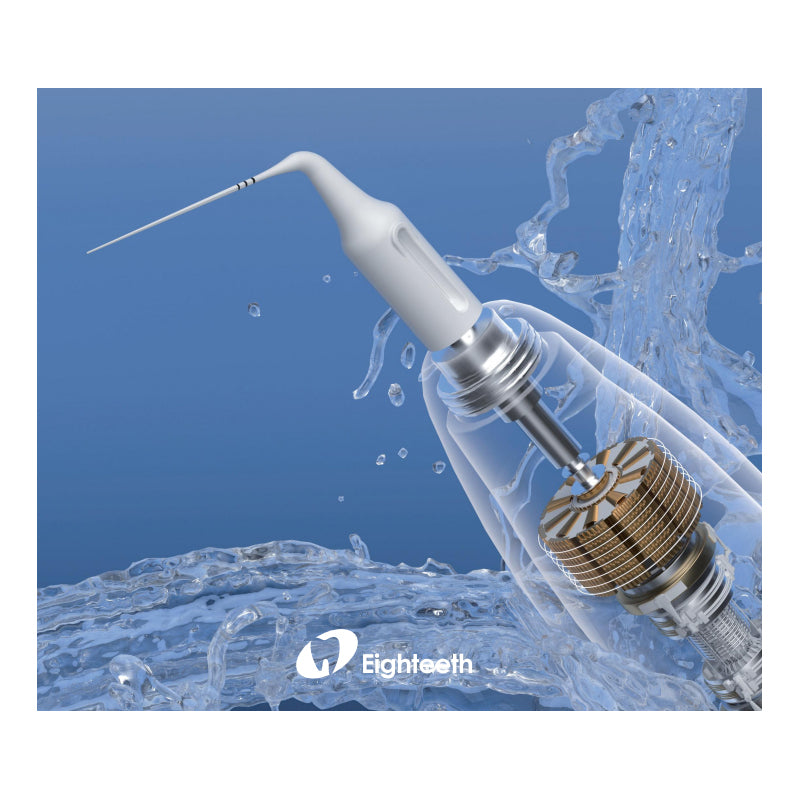

• Advanced Brushless Motor - Ensures longer service life and stable power support throughout treatment
• Rechargeable Lithium Battery - Long-lasting, eco-friendly, and cost-efficient power source

Six Optional Working Modes

SurfyOne offers six selectable working modes, allowing clinicians to adapt settings to different treatment requirements.

Sonic Activation Mode

• 100Hz | 0.7W - Sensitive Type: Suitable for patients with tooth pain, sensitivity, or loose teeth
• 200Hz | 2.7W - Comfortable Type: Standard activation mode for regular use
• 250Hz | 7.5W - Cleaning Type: Highly efficient for liquid activation
• 400Hz | 7.5W - Deep Type: Suitable for teeth with multiple lateral root canals

Bioceramic Sealer Delivery Mode

• 40Hz | 0.61W - Standard setting for assisting sealer delivery in regular root canals
• 60Hz | 0.65W - Suitable for assisting sealer delivery in curved and complex root canals

(A working mode indicator light displays the selected mode.)

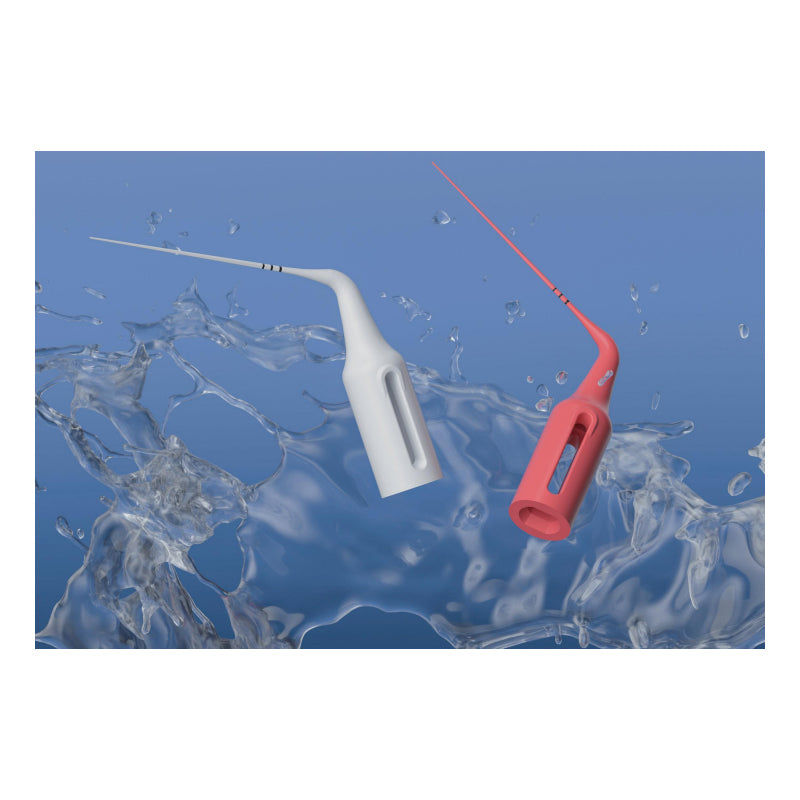

Sterilizable Medical-Grade Tips

SurfyOne’s tips are engineered for optimal canal conformity, enhanced durability, and efficient activation:

• Flexible Polymer Material - Improves canal adaptation with superior breakage resistance
• Willow Leaf-Shaped Flat Design - Maximizes fluid contact for enhanced activation efficiency
• Innovative 360° Auto-Rotating Tips - Enables one-handed operation and easy rotation during use
• Sterilizable Medical-Grade Construction - Designed for clinical safety and reusability

Available Tip Options

• 15/02 | 17mm | 5 pcs - For narrow curved root canals
• 15/02 | 21mm | 5 pcs - For narrow curved root canals
• 25/04 | 17mm | 5 pcs - For large regular root canals
• 25/04 | 21mm | 20 pcs - For large regular root canals
• 25/04 | 25mm | 5 pcs - For large regular root canals

1502 Tip: White | 2504 Tip: Red

Technical Specifications

• Handpiece Size: 25 × 23 × 176 mm
• Head Size: Ø10 mm
• Weight: 110 g
• Battery Capacity: 1400mAh Lithium Battery
• Charging Time: 4 hours
• Battery Life: Up to 300 uses per full charge (Sonic Activation Mode at Level 1, 1 minute per use)
• Power Output:
  0.7-7.5W (Root Canal Activation Mode)
  0.61-0.65W (Bioceramic Sealer Delivery Mode)
• Working Frequency Range: 40Hz-400Hz
