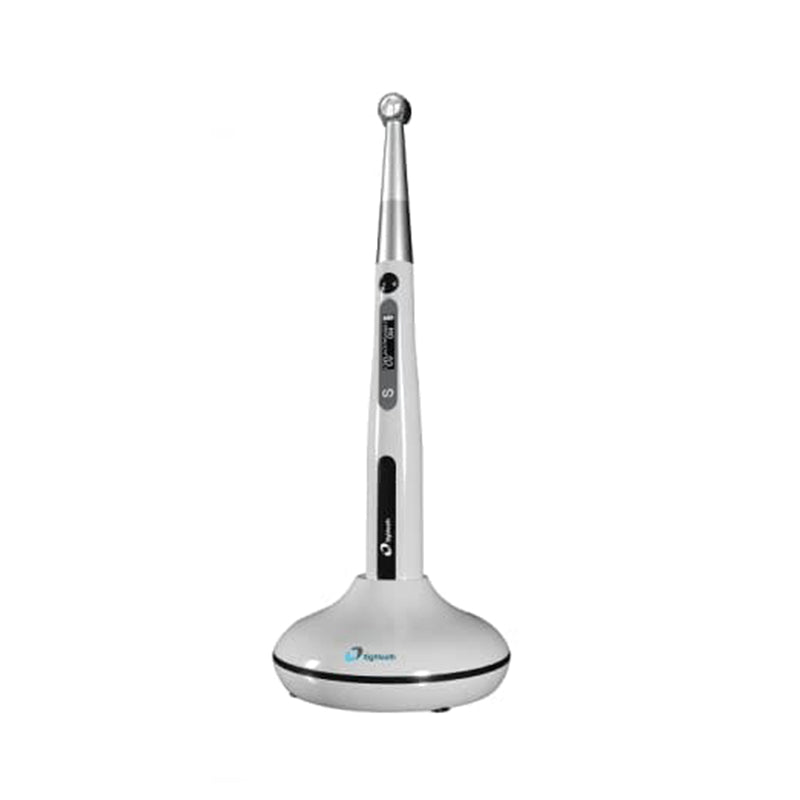

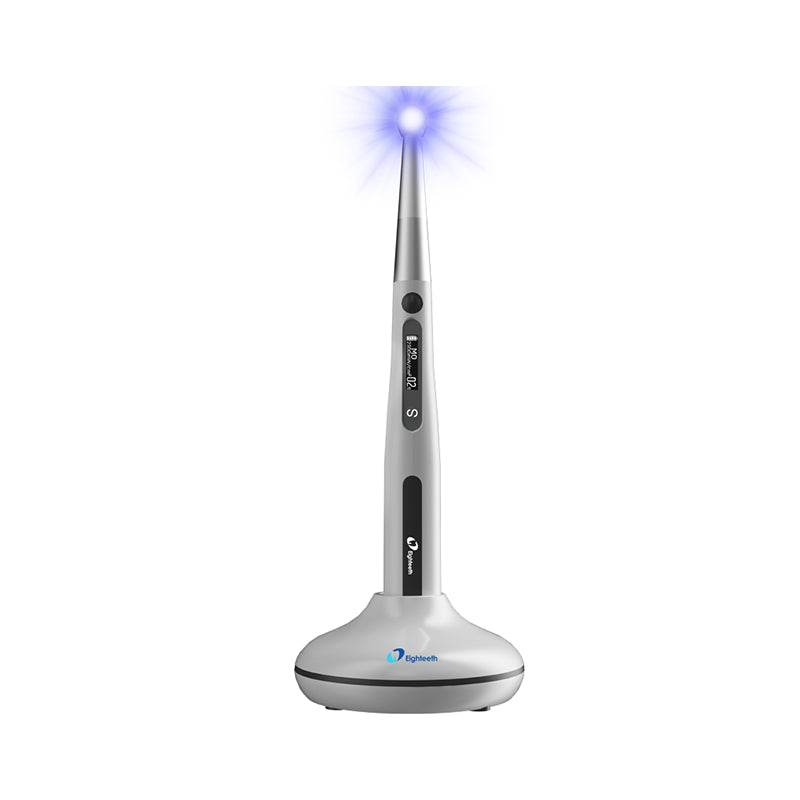

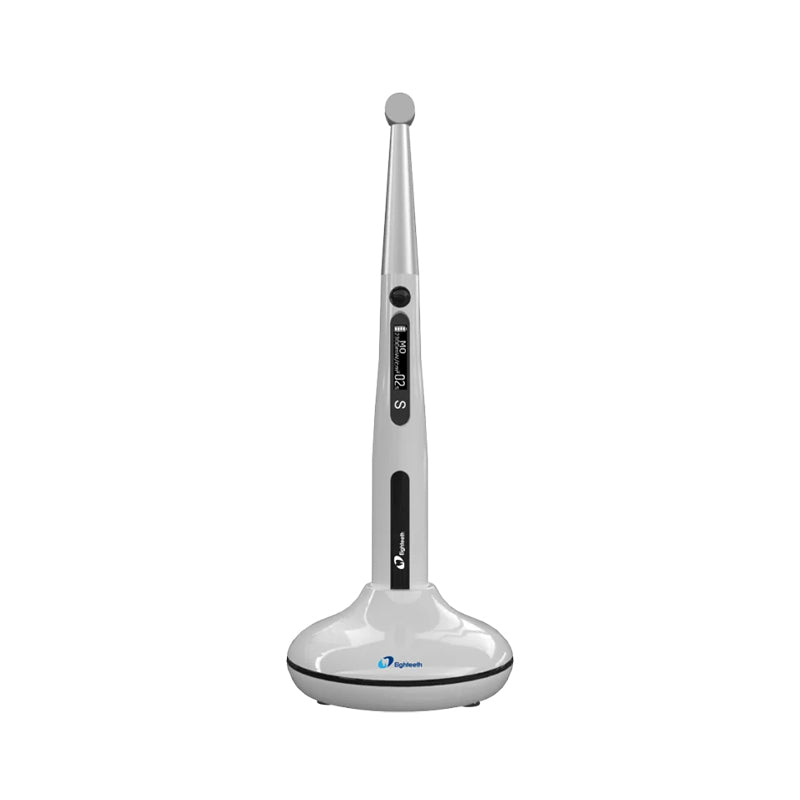

The Eighteeth Curing Pen is a powerful and versatile LED curing light designed to deliver reliable polymerization across a wide range of dental materials. Combining high output, advanced curing modes, and ergonomic design, it ensures efficiency, precision, and comfort in everyday clinical use.
Key Features
Multiple Light Intensity Options
The curing pen offers three adjustable intensity levels-1000 mW/cm², 1500 mW/cm², and 2300 mW/cm²-allowing clinicians to adapt curing power to different restorative materials and procedures.

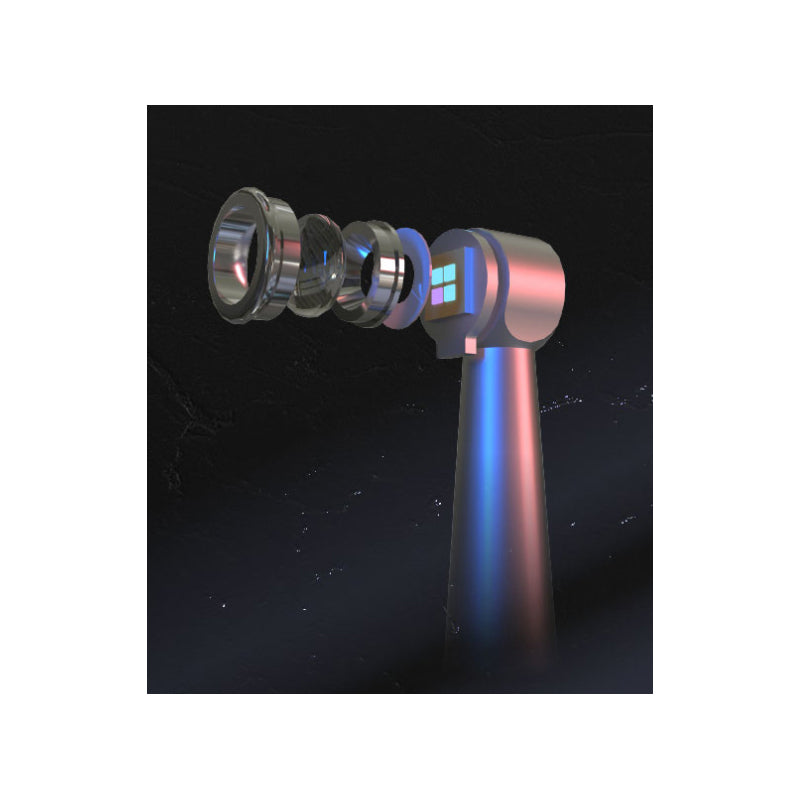

Advanced 4-LED Configuration
Equipped with 4 LEDs (3 blue + 1 violet), the device ensures broad-spectrum curing, improving compatibility with modern composite resins and bonding agents.
Wide Wavelength Coverage
With a wavelength range of 385-515 nm, the curing pen is suitable for curing a wide variety of dental resins and materials.
Curing Modes
-
Ramp Mode - Gradually increases light intensity to 1000 mW/cm² over 5 seconds to reduce polymerization stress.
-
Pulse Mode - Delivers intermittent flashes at 1000 mW/cm² for controlled curing.
-
Caries Detection Mode - Operates at 600 mW/cm² to assist in detecting dental caries and cracks.
Battery & Performance
-
High-capacity battery supporting over 1200 curing cycles
(Tested at 3 seconds per cycle at maximum intensity)
-
Auto power-off function with selectable intervals of 1, 5, 10, or 15 minutes to conserve battery life.
Ergonomic Design
-
Lightweight construction at 109 g for reduced hand fatigue
-
Slim, ergonomic dimensions: 24 × 21 × 230 mm
-

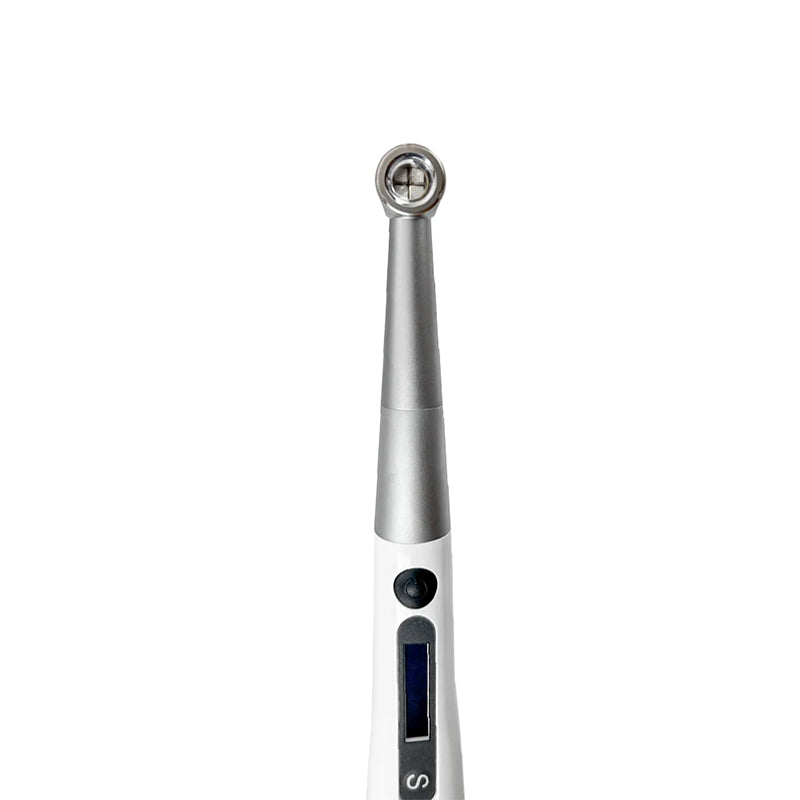

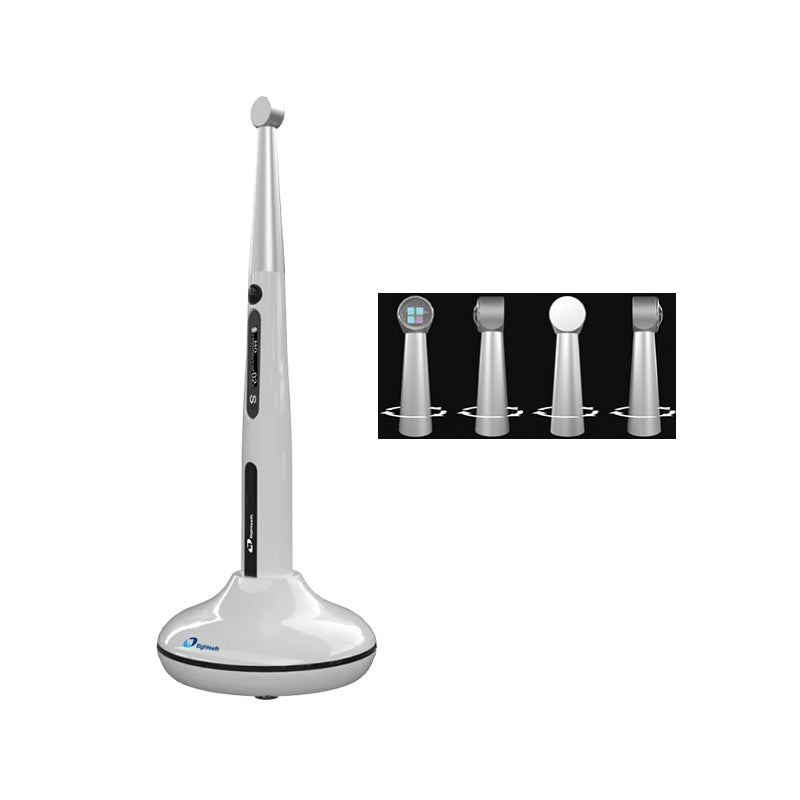

360° rotatable head for easy access and improved visibility in all areas of the mouth
Packaging Includes
-
1 × Main Unit
-
1 × Charging Base
-
1 × Adapter
-
1 × Protective Shield
Specifications
-
Light intensity: 1000 / 1500 / 2300 mW/cm²
-
Battery capacity: >1200 curing cycles (3s at max intensity)
-
Weight: 109 g
-
Dimensions: 24 × 21 × 230 mm
-
Wavelength range: 385-515 nm
-

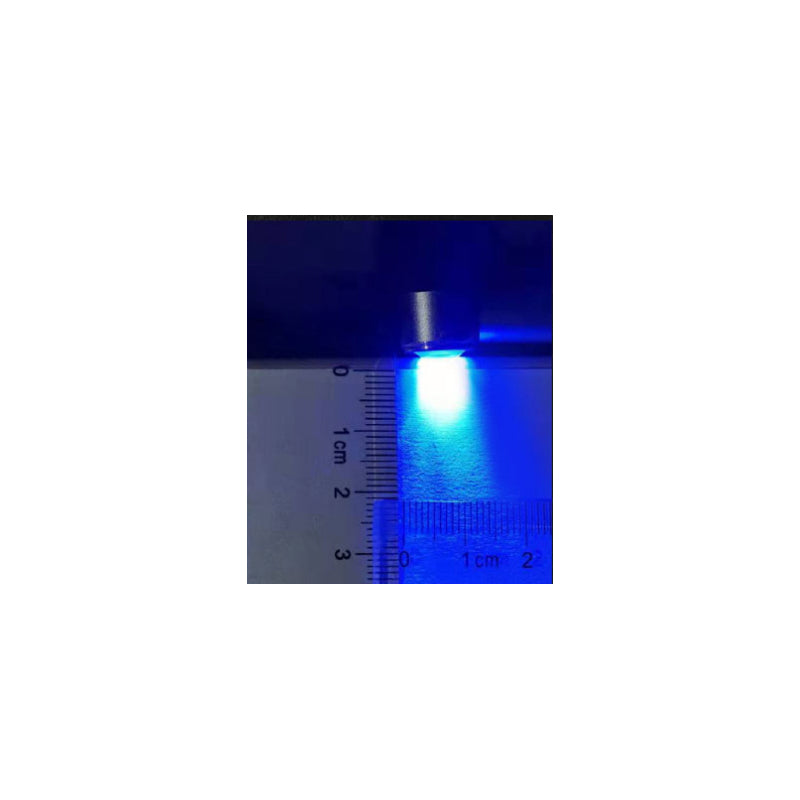

Lens size: 11 mm
