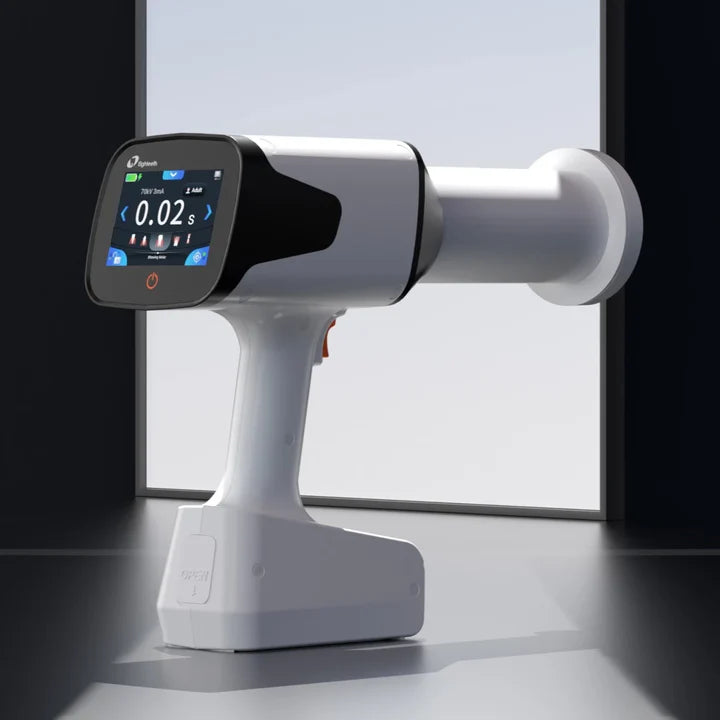

The World’s First Portable X-Ray with Intelligent Sensor Positioning
One-Shot Perfection Powered by M-TECH
HyperLight-M is driven by exclusive M-TECH technology, delivering a perfect X-ray image in just one shot, within 10 seconds.
- No retakes
- No sensor holders
- No wasted time
- No fear of unnecessary radiation

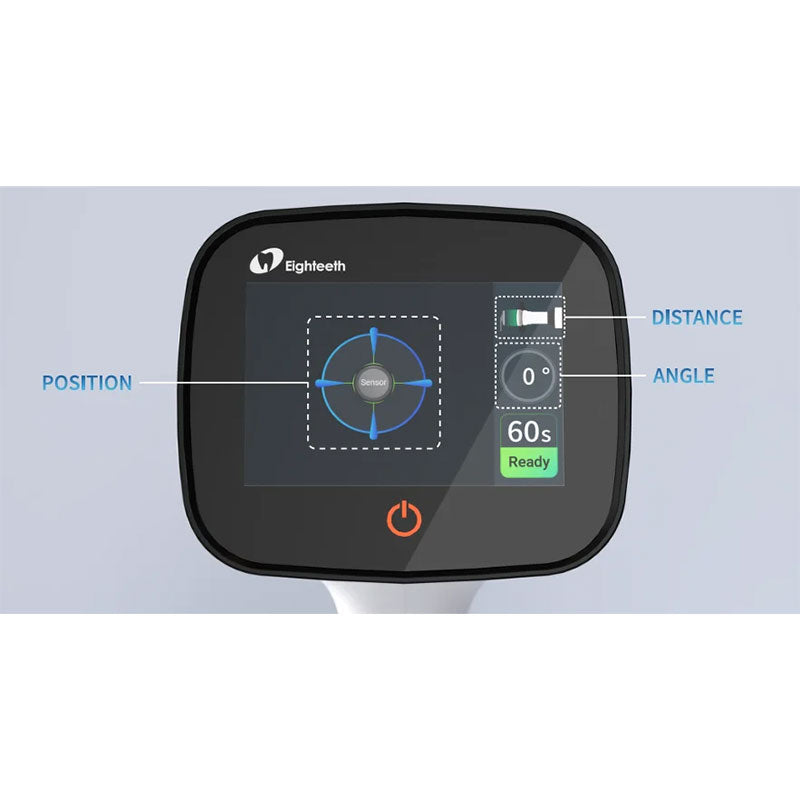

M-TECH Technology - The Next Generation of Dental X-Ray Imaging

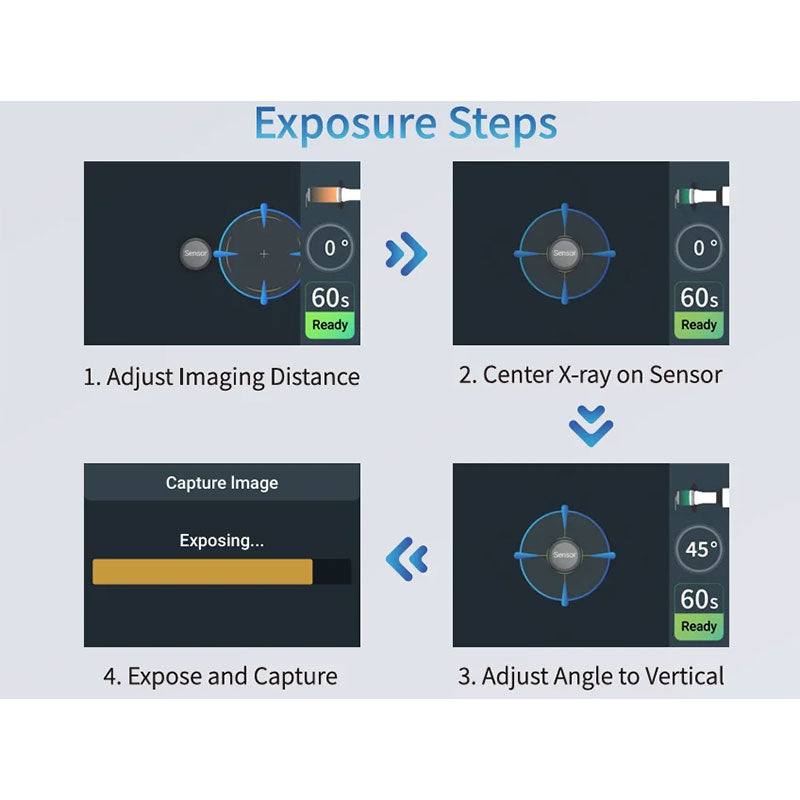

POSITION - Dual-Axis Alignment
Intelligent dual-axis positioning ensures the sensor is centered and calibrated at optimal shooting angles.
DISTANCE - Micro-Distance Monitoring
High-sensitivity short-range sensing technology monitors positioning in real time.
ANGLE - Smart Angle Monitoring
The smart angle function automatically adapts and locks the angle based on the patient’s posture, whether upright or reclined.
Precision, Safety, and Versatility
-
0.4 mm focal spot for high-resolution, sharp images
-
Four-layer lead shielding (99.99%) to significantly reduce radiation leakage
-
Multiple imaging modes in one device:
Sensor | Film | Phosphor Plate
-
High-frequency X-ray tube for stable and accurate imaging
-
80,000+ stable exposures
Technical Specifications:
-

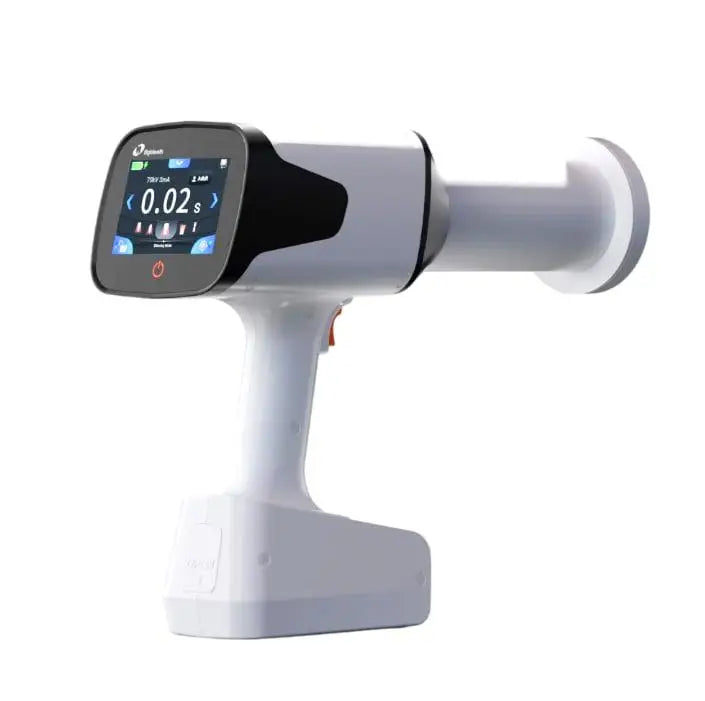

Model: HyperLight-M
-
Tube Voltage: 70 kV
-
Tube Current: 3 mA
-
Focal Spot: 0.4 mm
-
Exposure Time Range: 0.02-2 seconds
-
Battery: 2500 mAh × 4
-
Gross Weight: 2.10 kg (shielding panel not included)
-
Input Voltage / Frequency: 100V-240V, 50Hz / 60Hz
