DSI Premium Angulated Multi Unit Abutment (M1.6) 4.8mm Full Set - Conical Connection NP Ø3.5mm
Quick Buy
Description
The DSI Premium Angulated Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.
DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals
- DSI Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level
DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

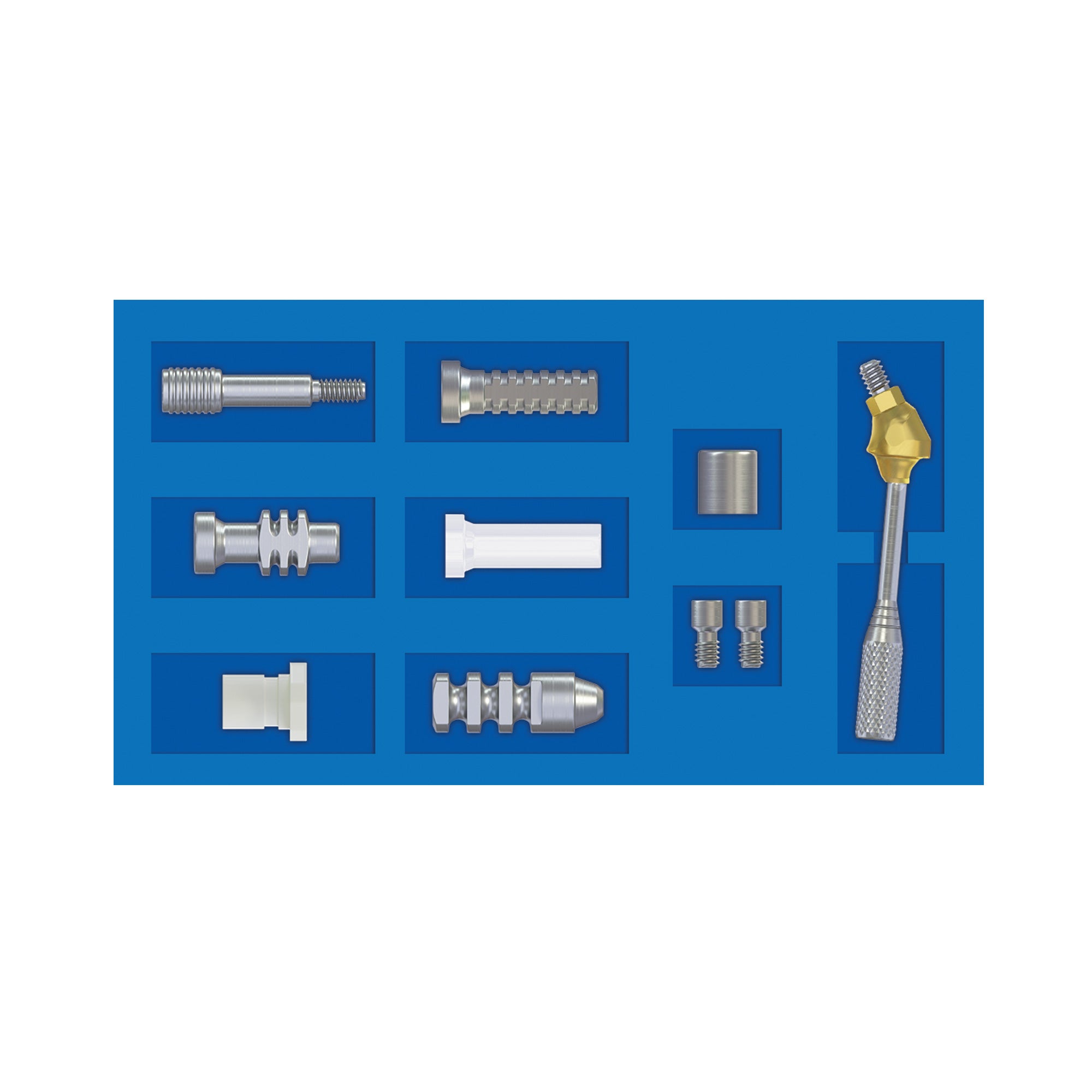

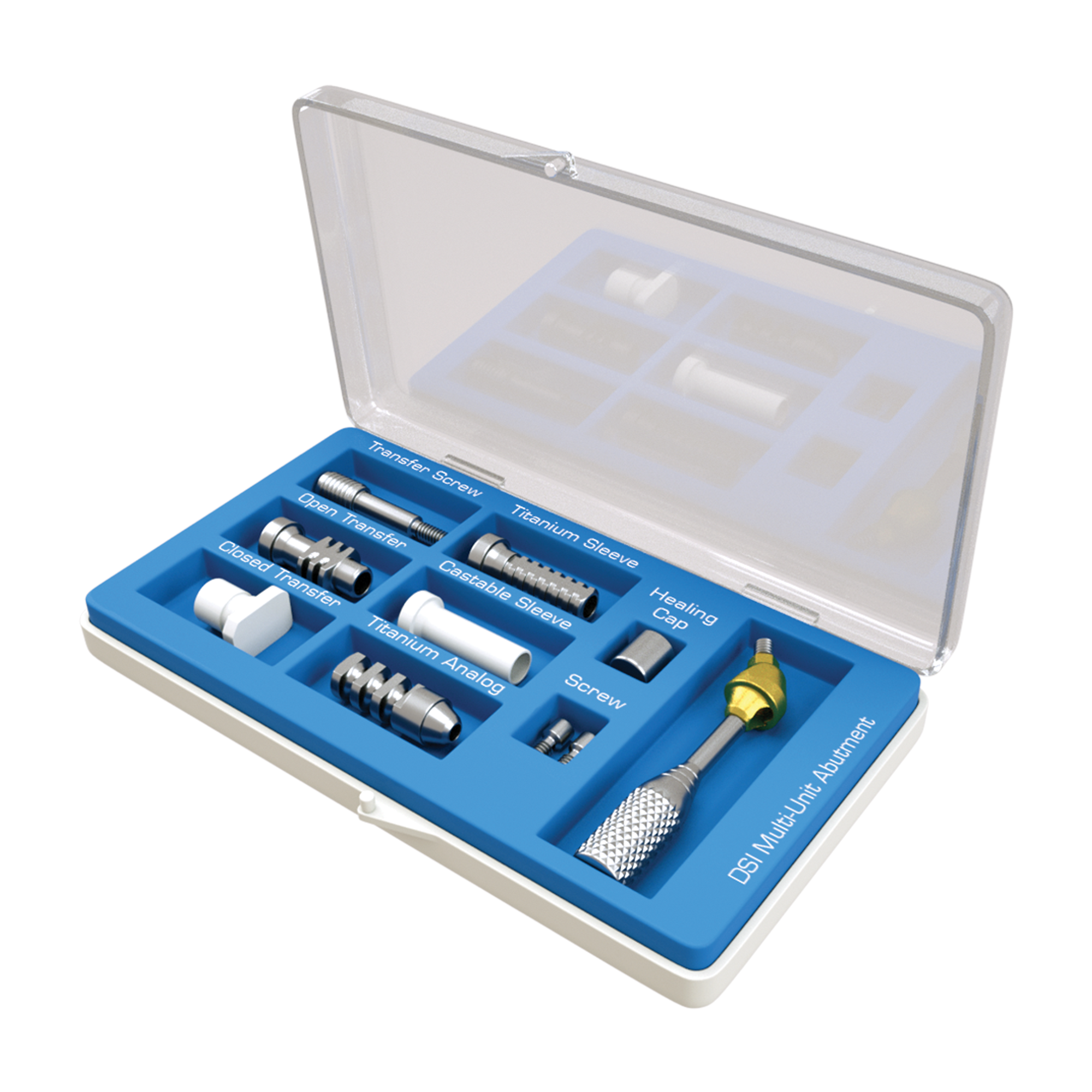

The most commonly used and versatile is the Full Set, which includes
One abutment of the chosen size:

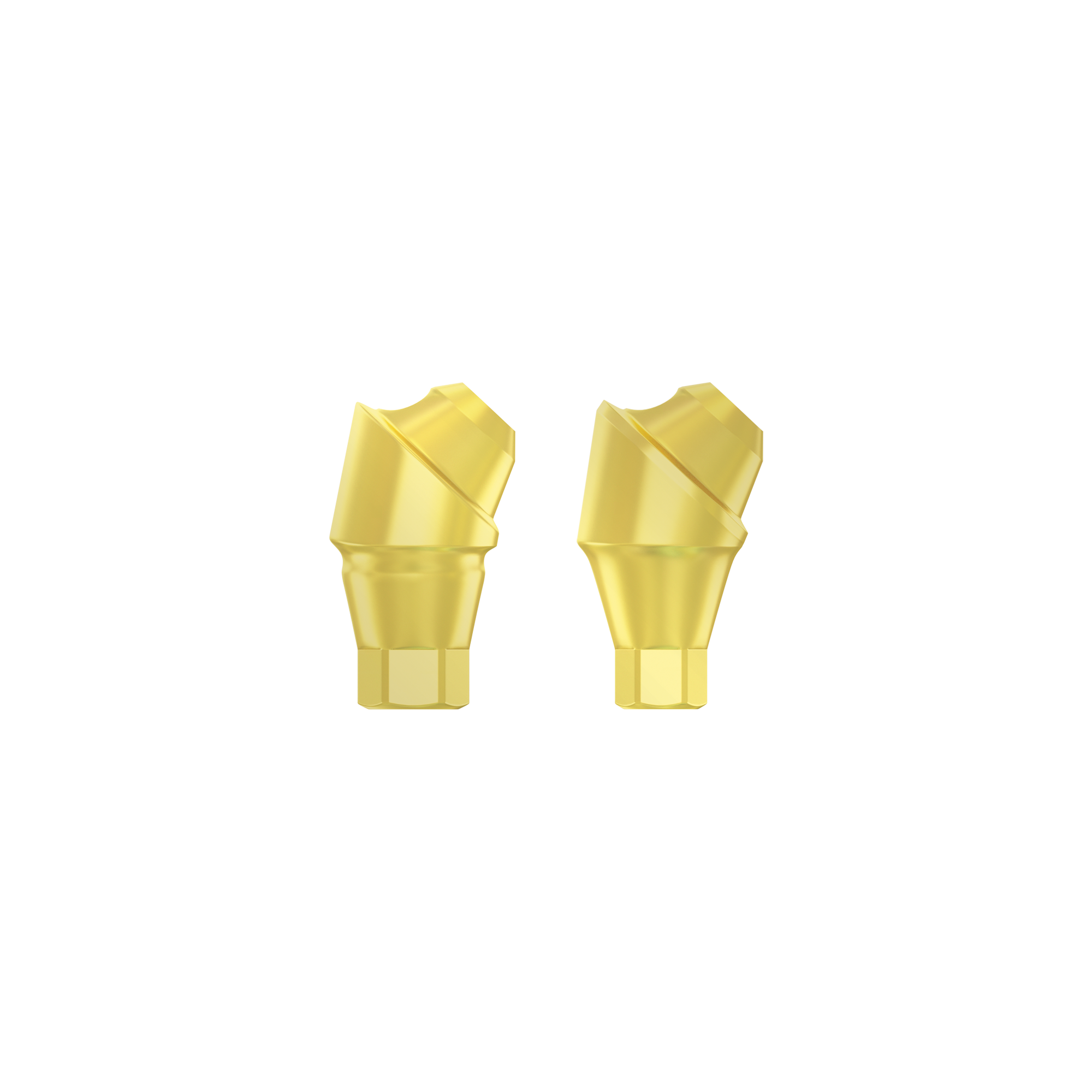

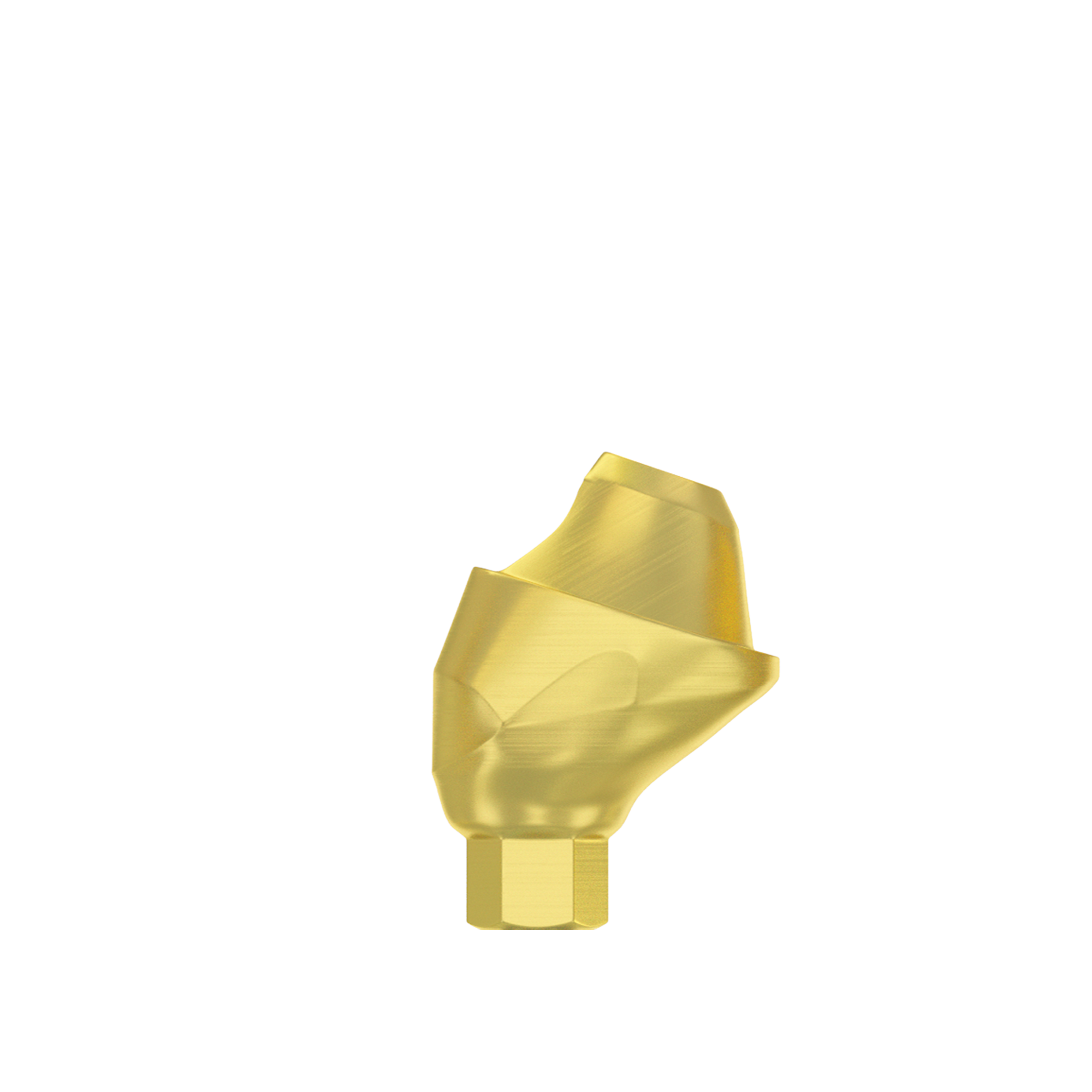

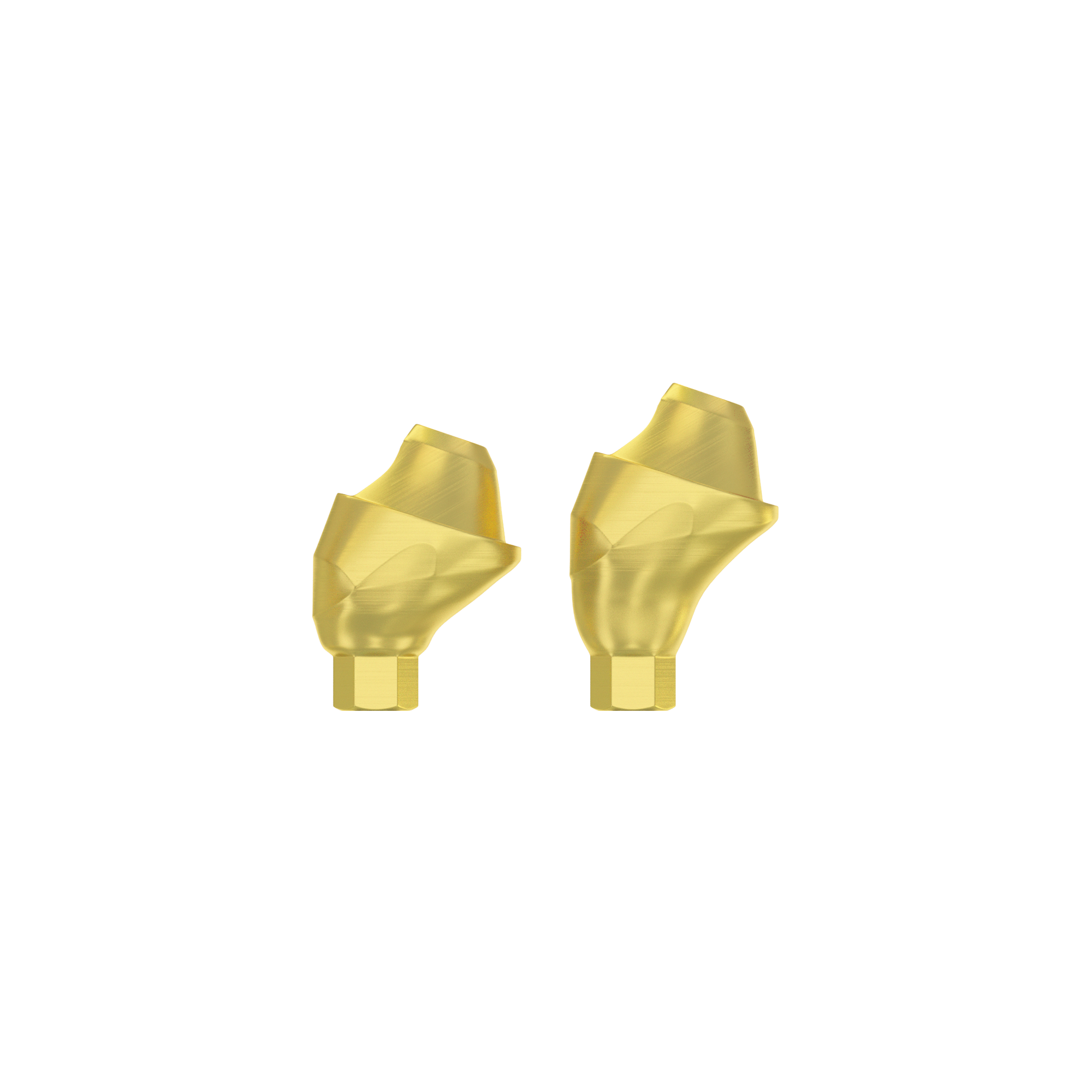

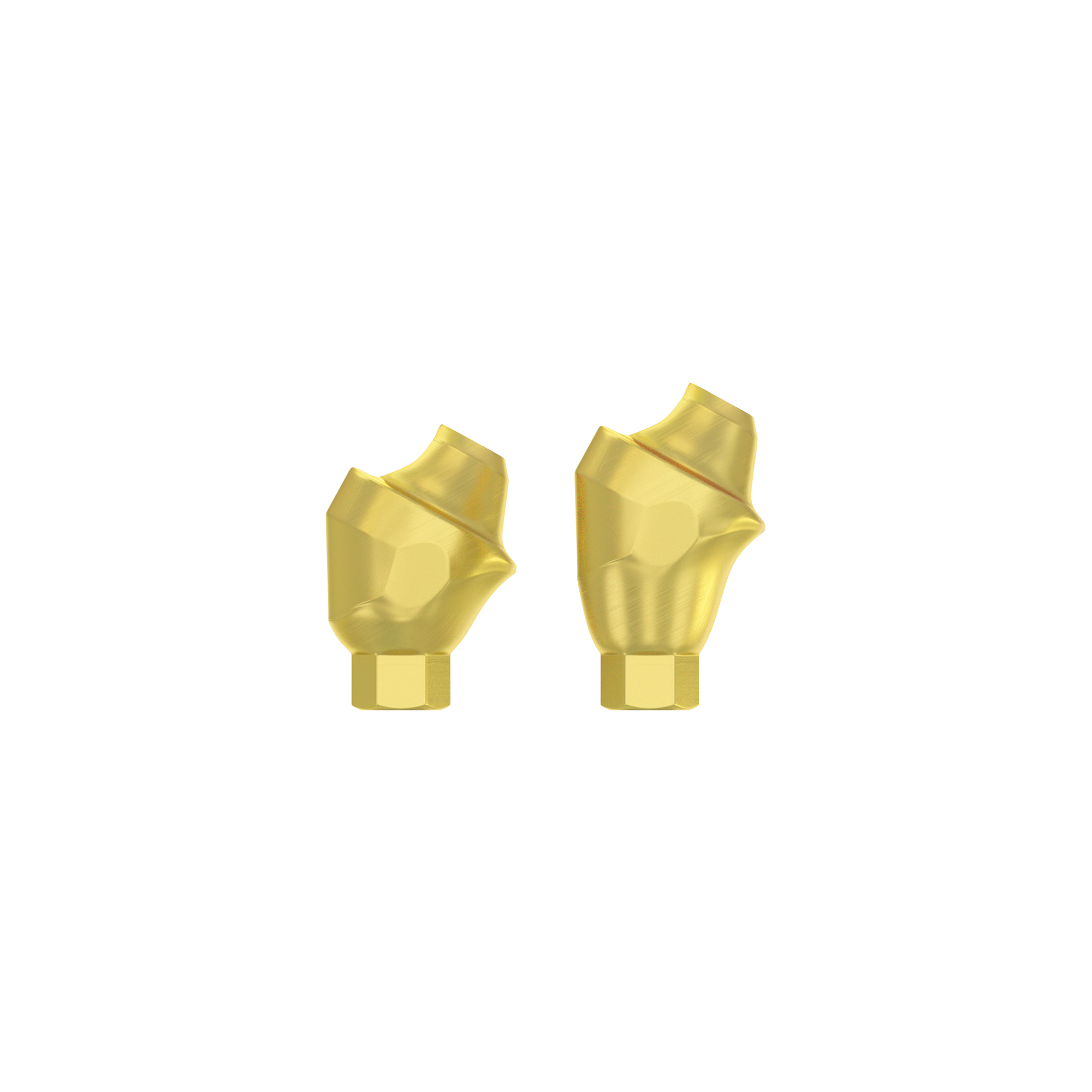

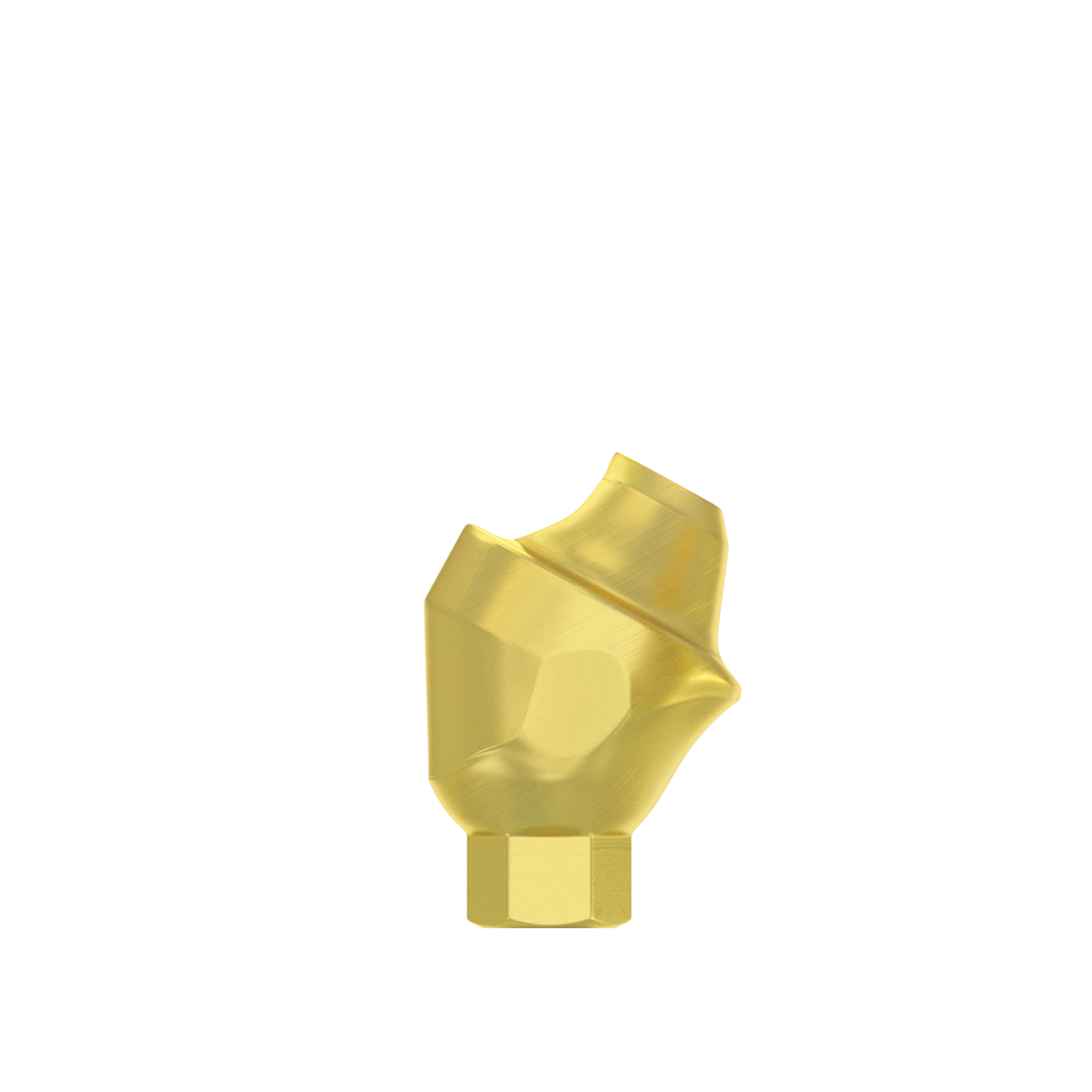

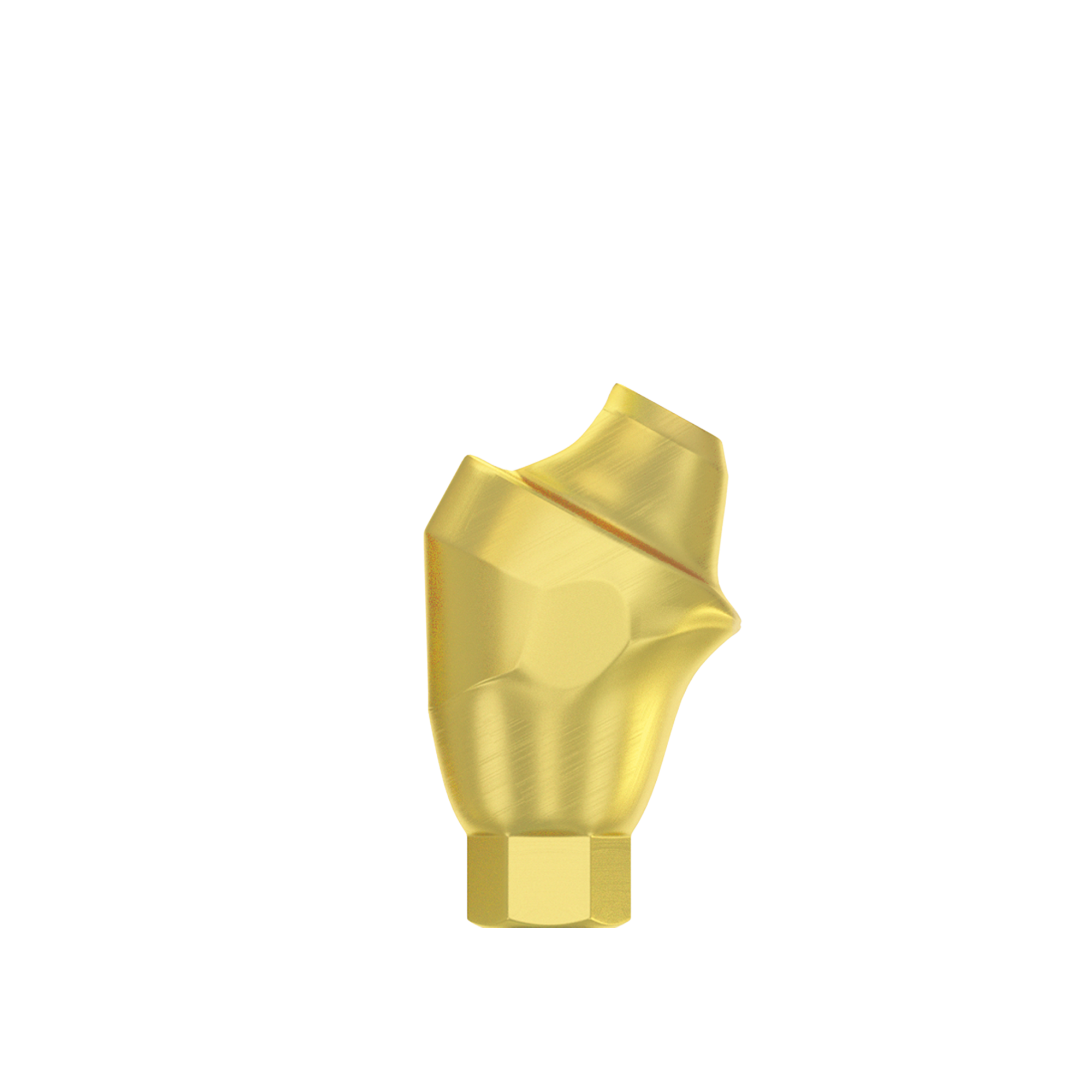

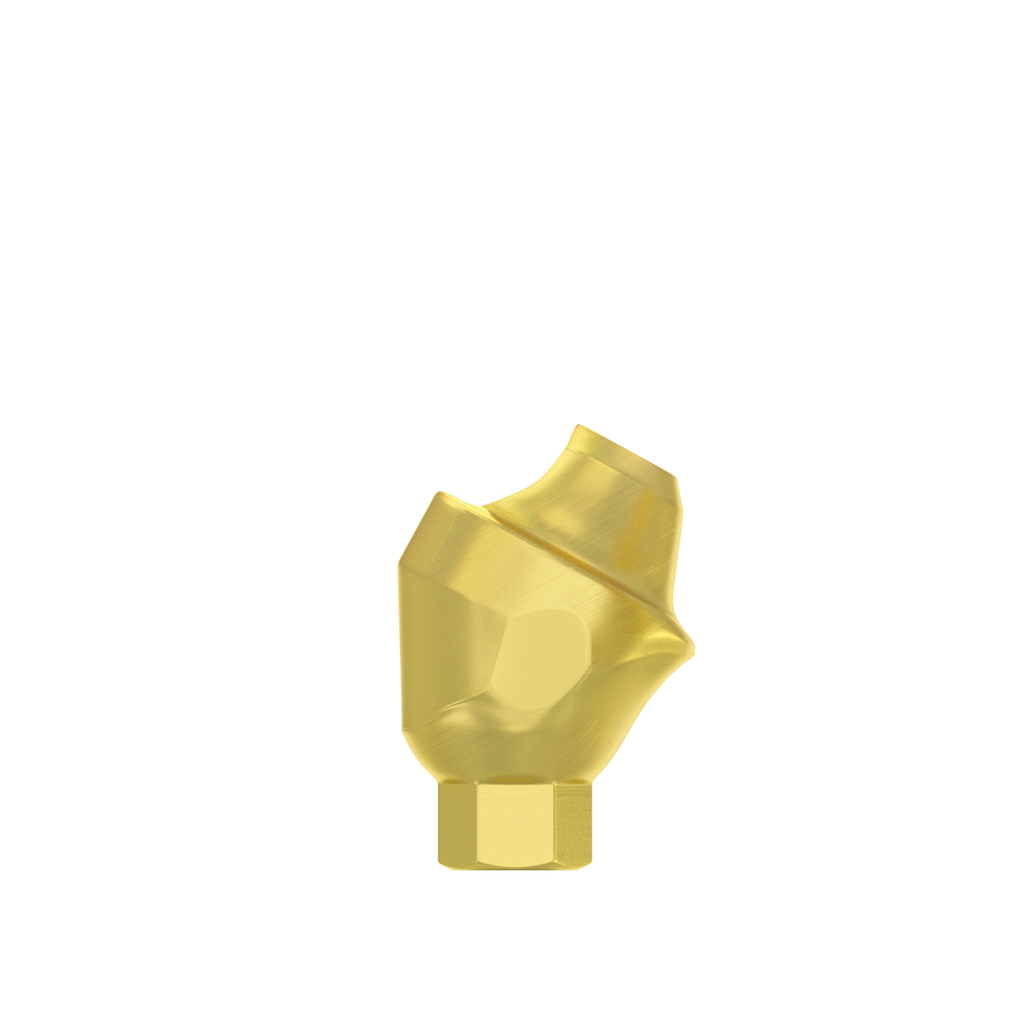

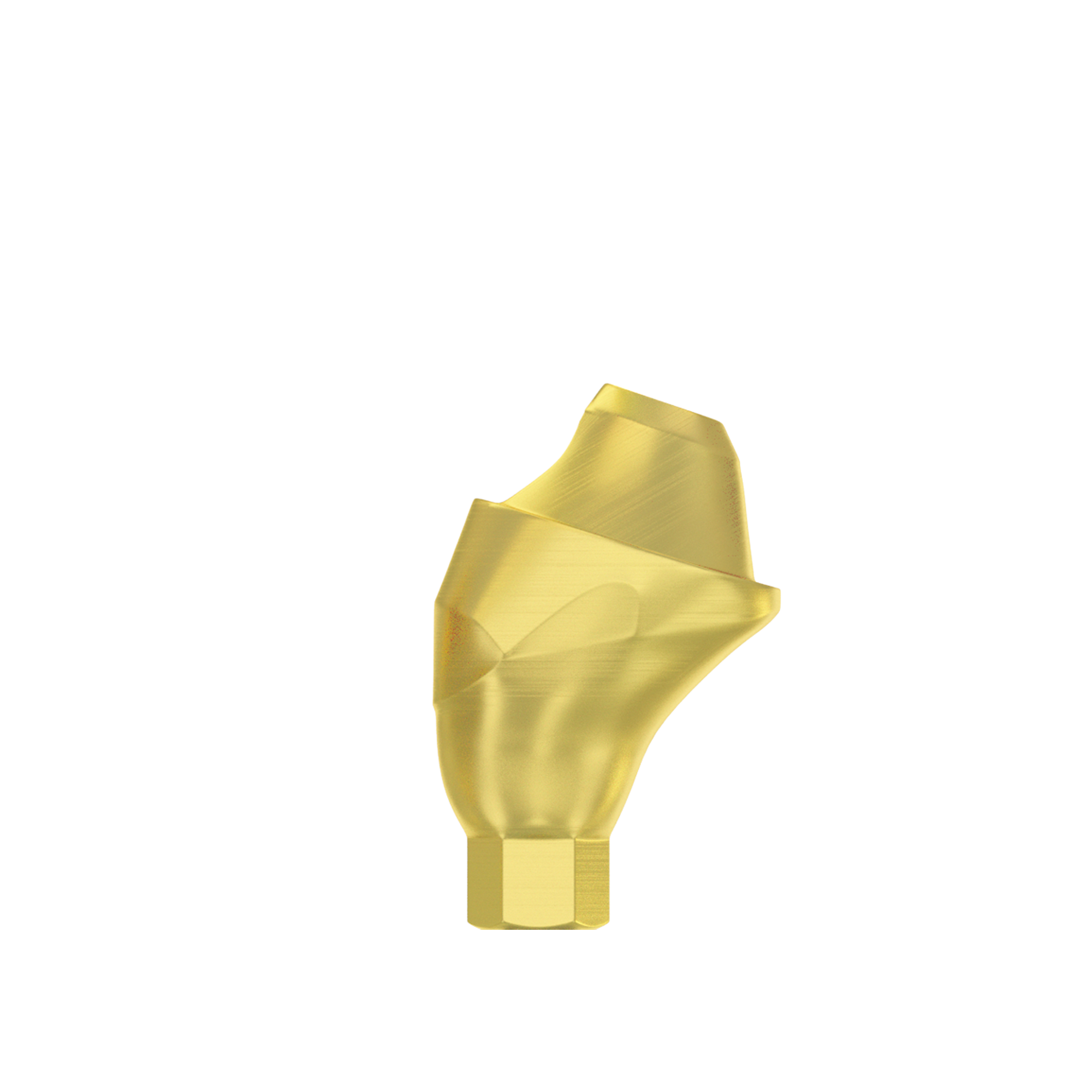

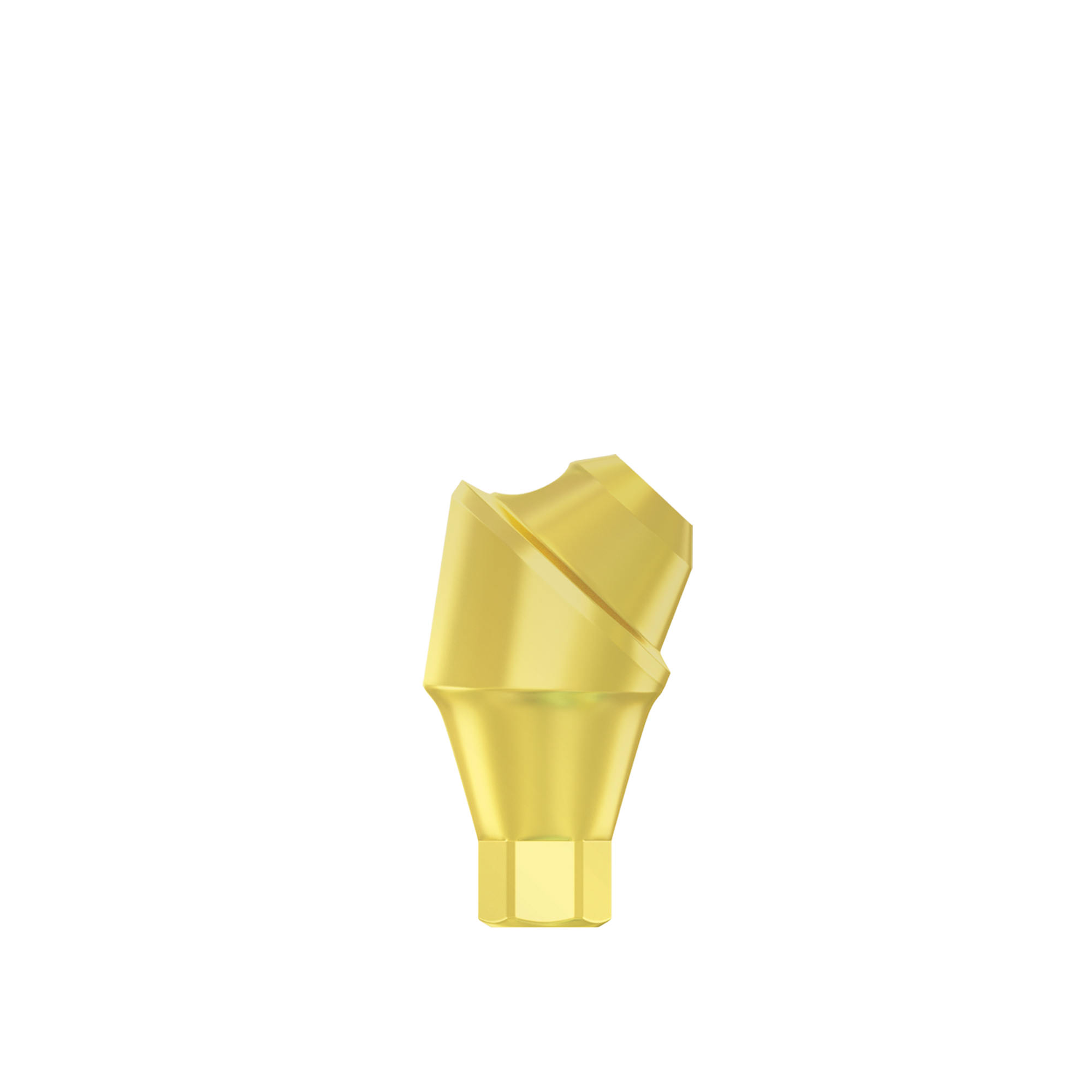

- MUA-NB-NP1710, MUA-NB-NP1720 , MUA-NB-NP3010 , MUA-NB-NP3020: Angulated Multi Unit Abutment Ø4.8mm ,1.0-2.0mm x1
And the following parts:
-

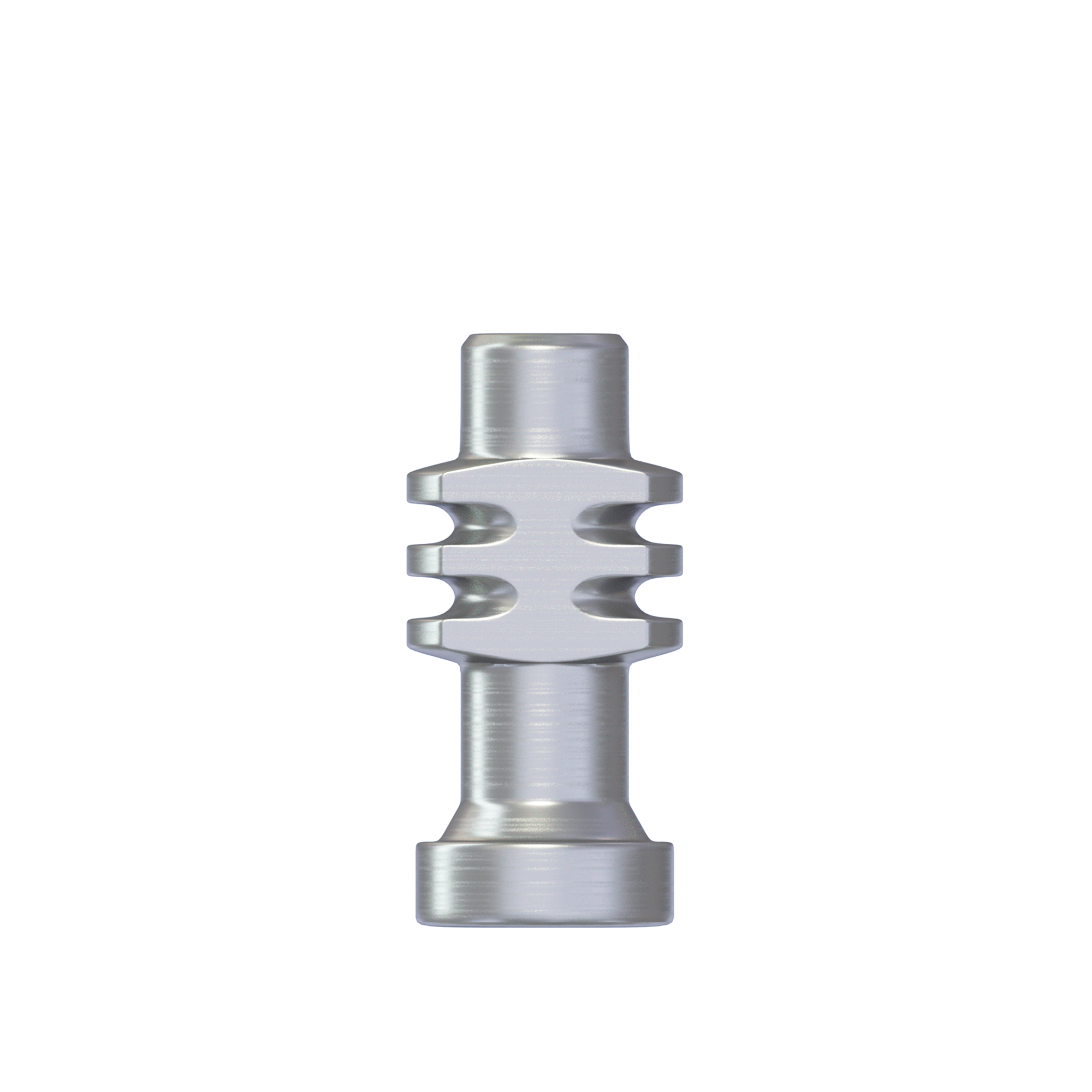

STFMU-K: Open Tray Transfer Ø 4.8mm , L=8.5mm, H=10.7mm x 1

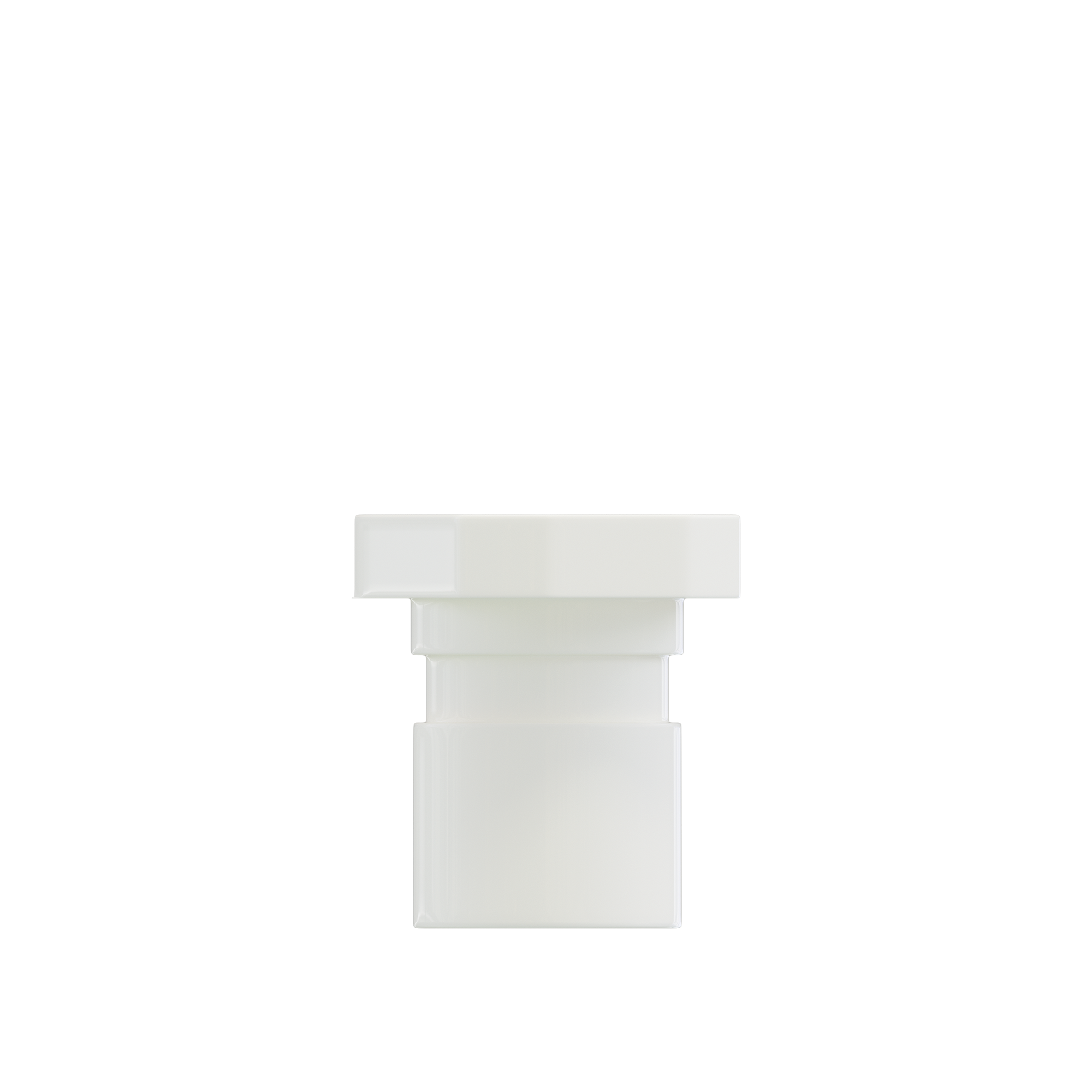

- STFMU-KC: Snap-On Closed Transfer Ø 4.75mm , L=5.0mm, H=7.2mm x 1

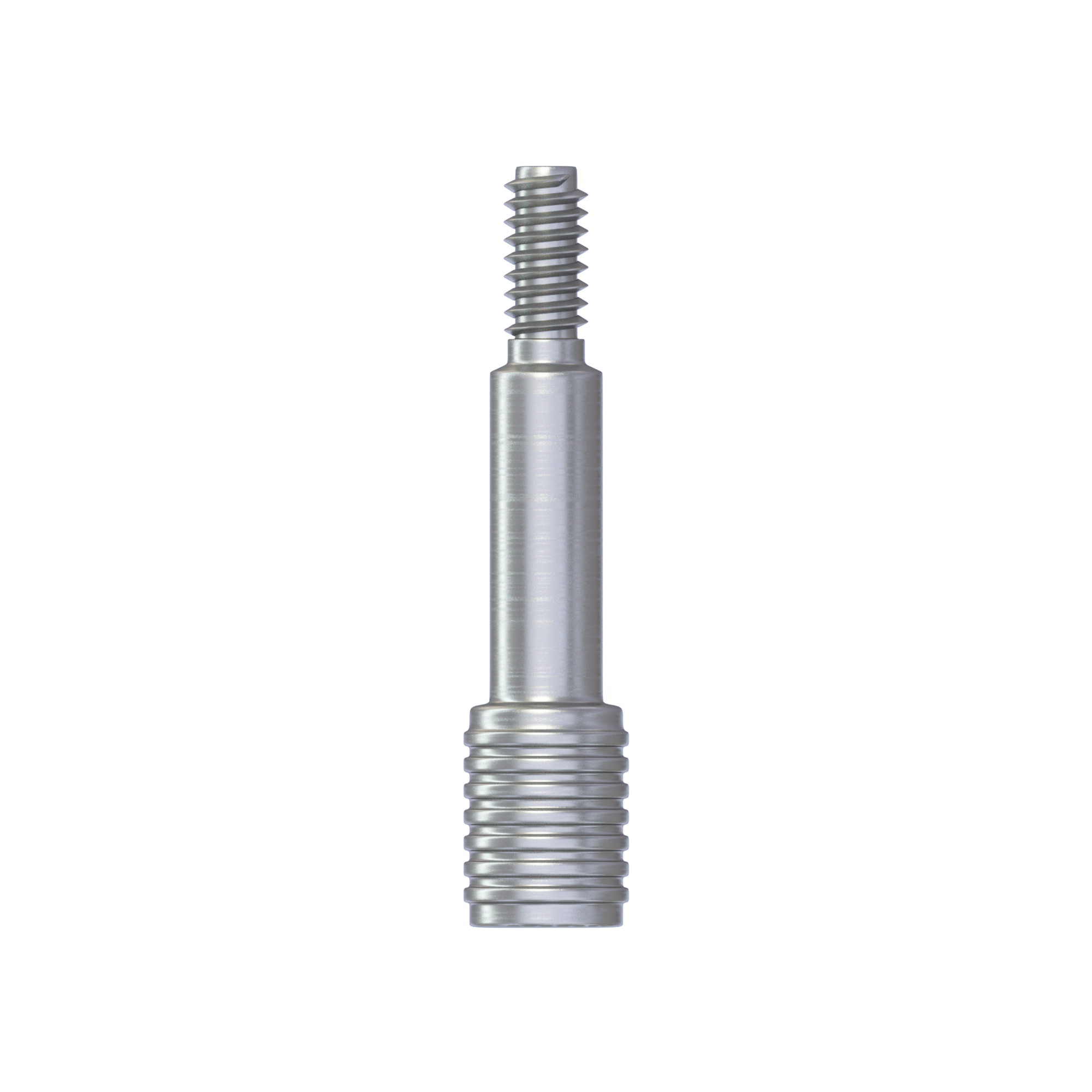

- SSFTMU-K: Premium Transfer Screw Ø 2.0mm , L=11.0mm, H=14.5mm x 1
-

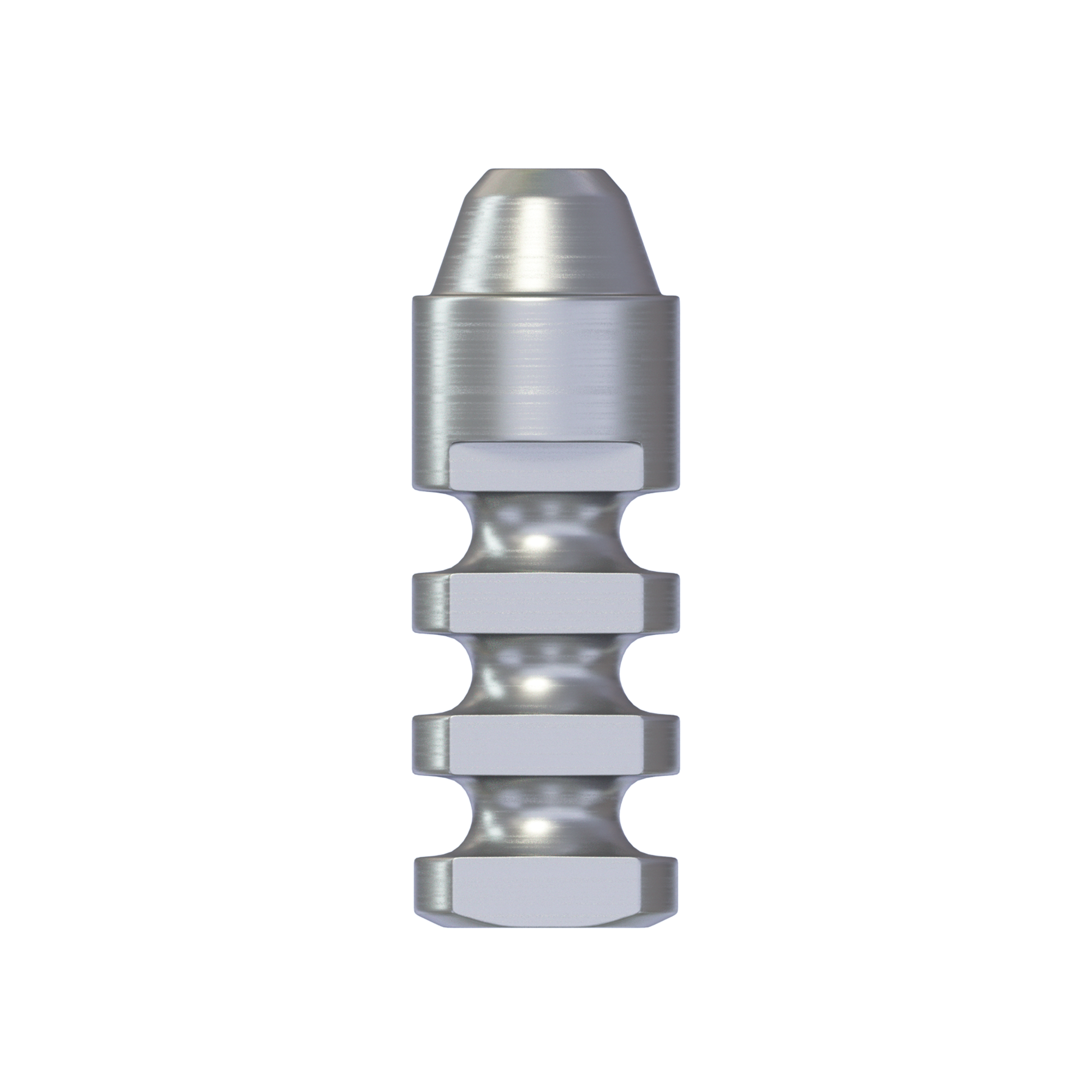

SAFMU-K: Titanium Analog Ø 4.8mm , L=7.0mm, H=13.5mm x 1

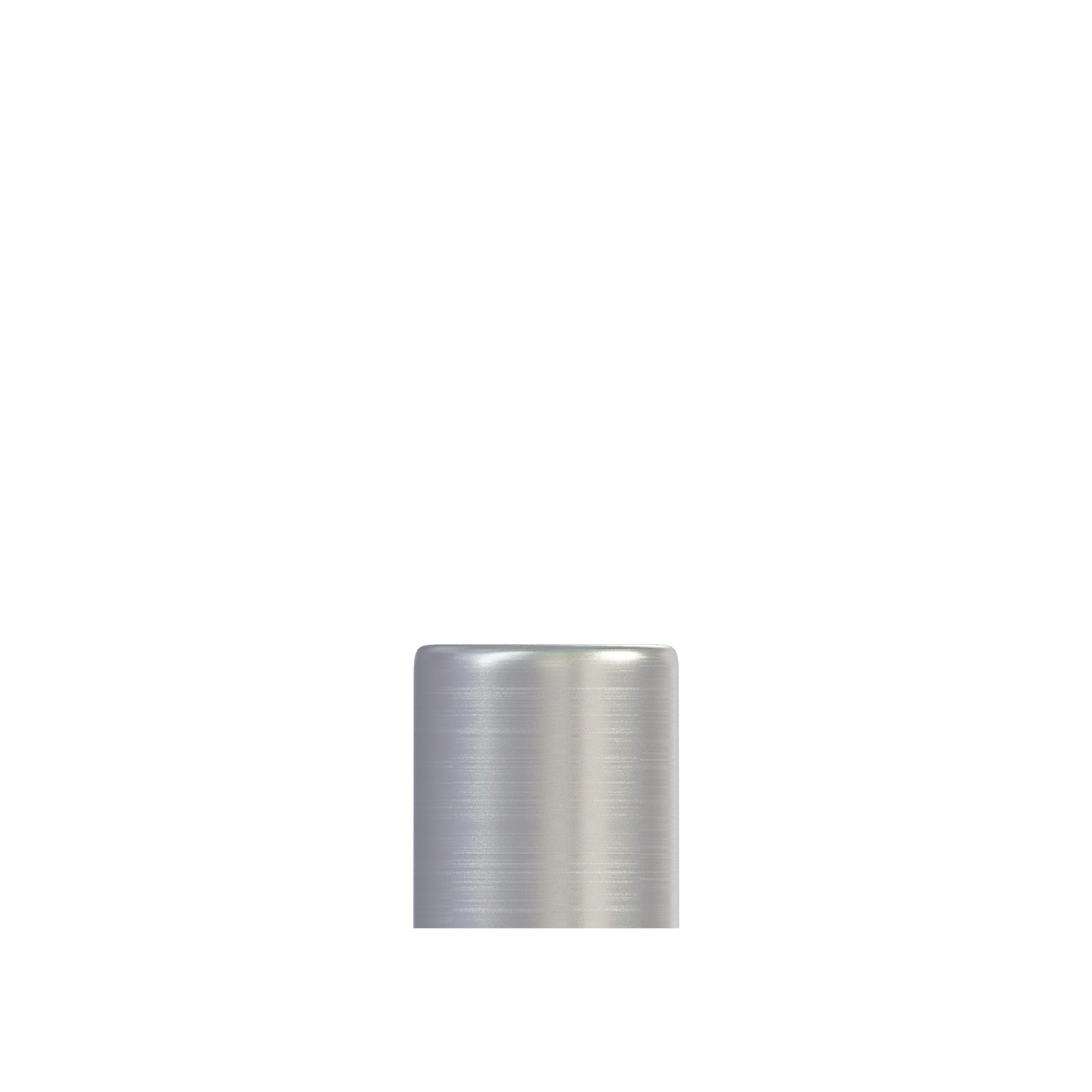

- SHCFMU-K: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

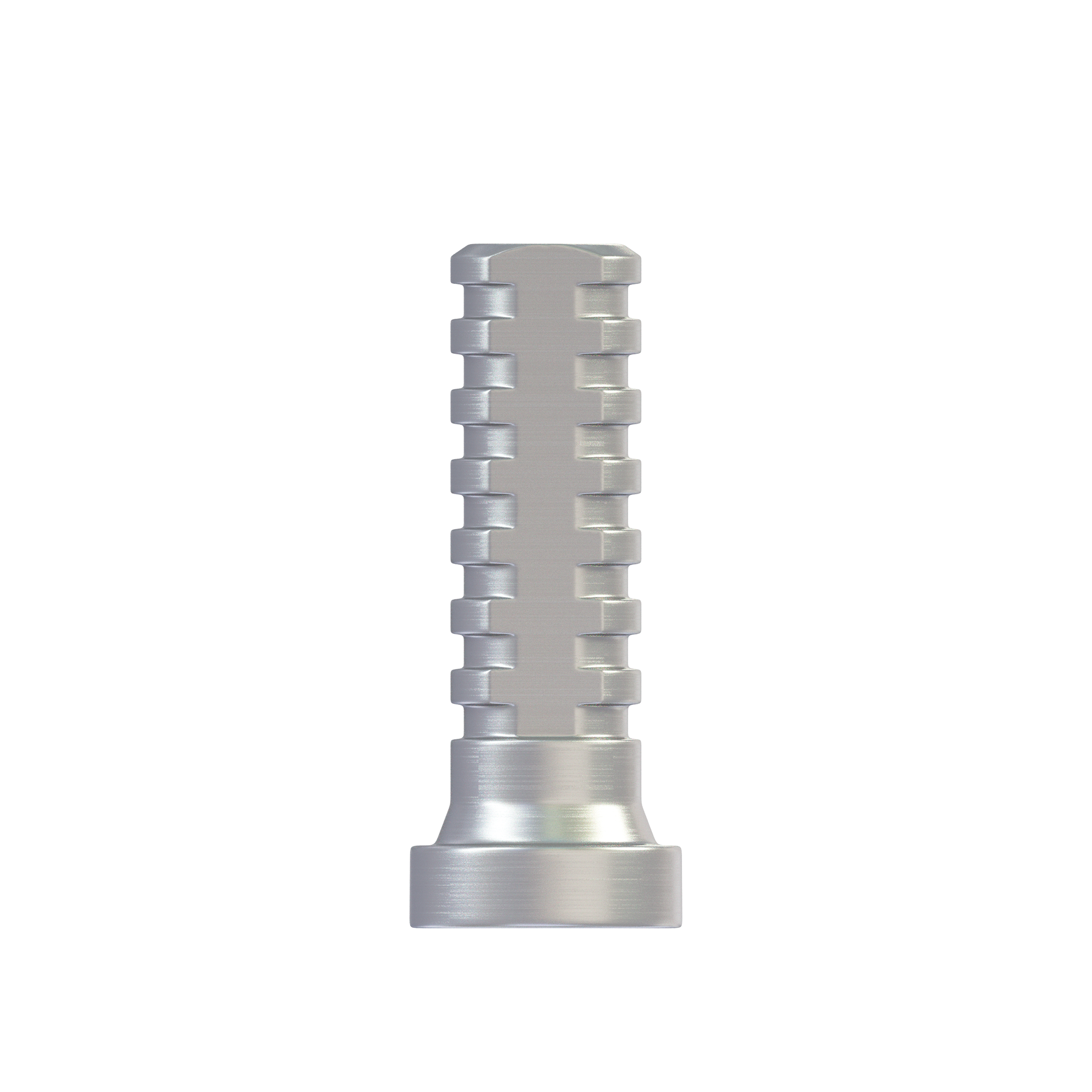

- SSTFMU-K: Titanium Sleeve Abutment Ø 4.8mm , L=10.0mm, H=12.0mm x 1

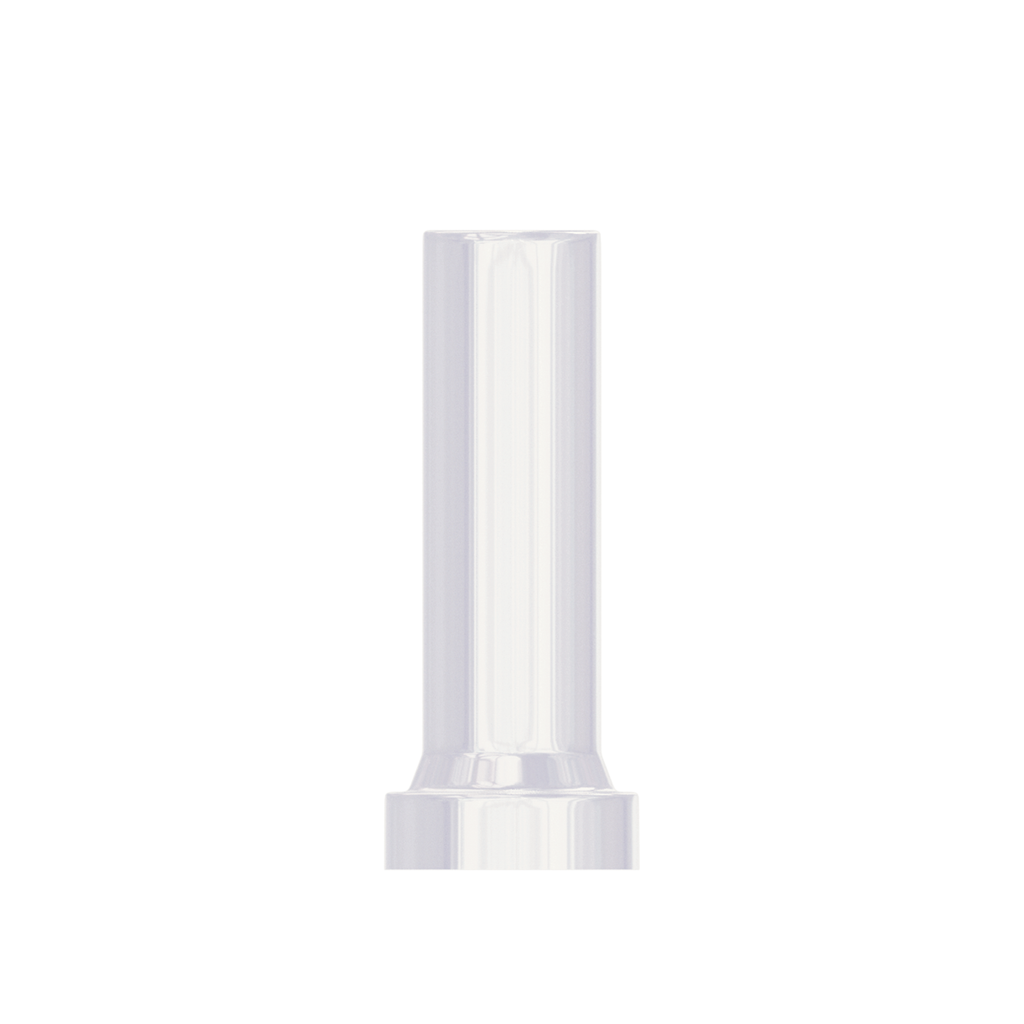

- SSPFMU-K: Castable Sleeve Abutment(for Lab) Ø 4.8mm , L=10.0mm, H=12.0mm x 1
- SSFMU-K: Fixation Short Screws Ø 2.0mm , L=2.6mm, H=3.9mm x 2

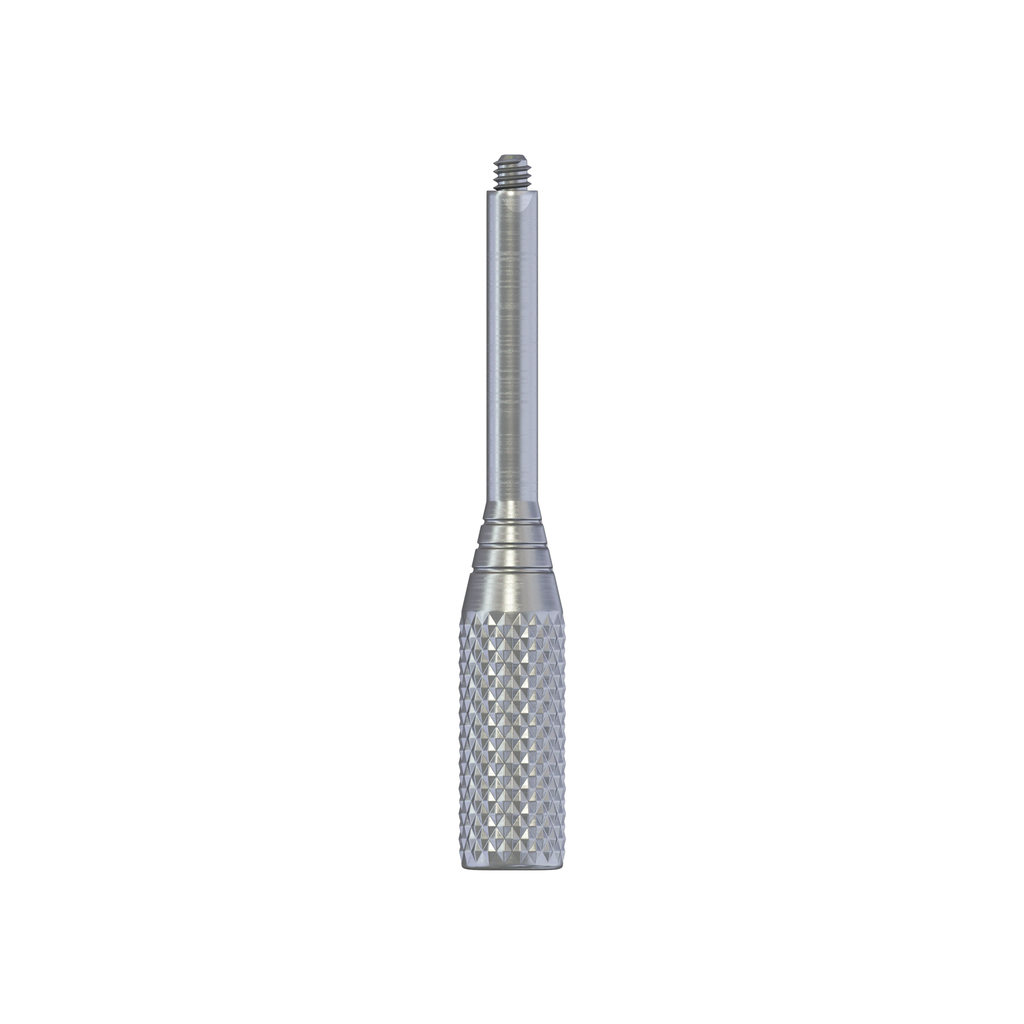

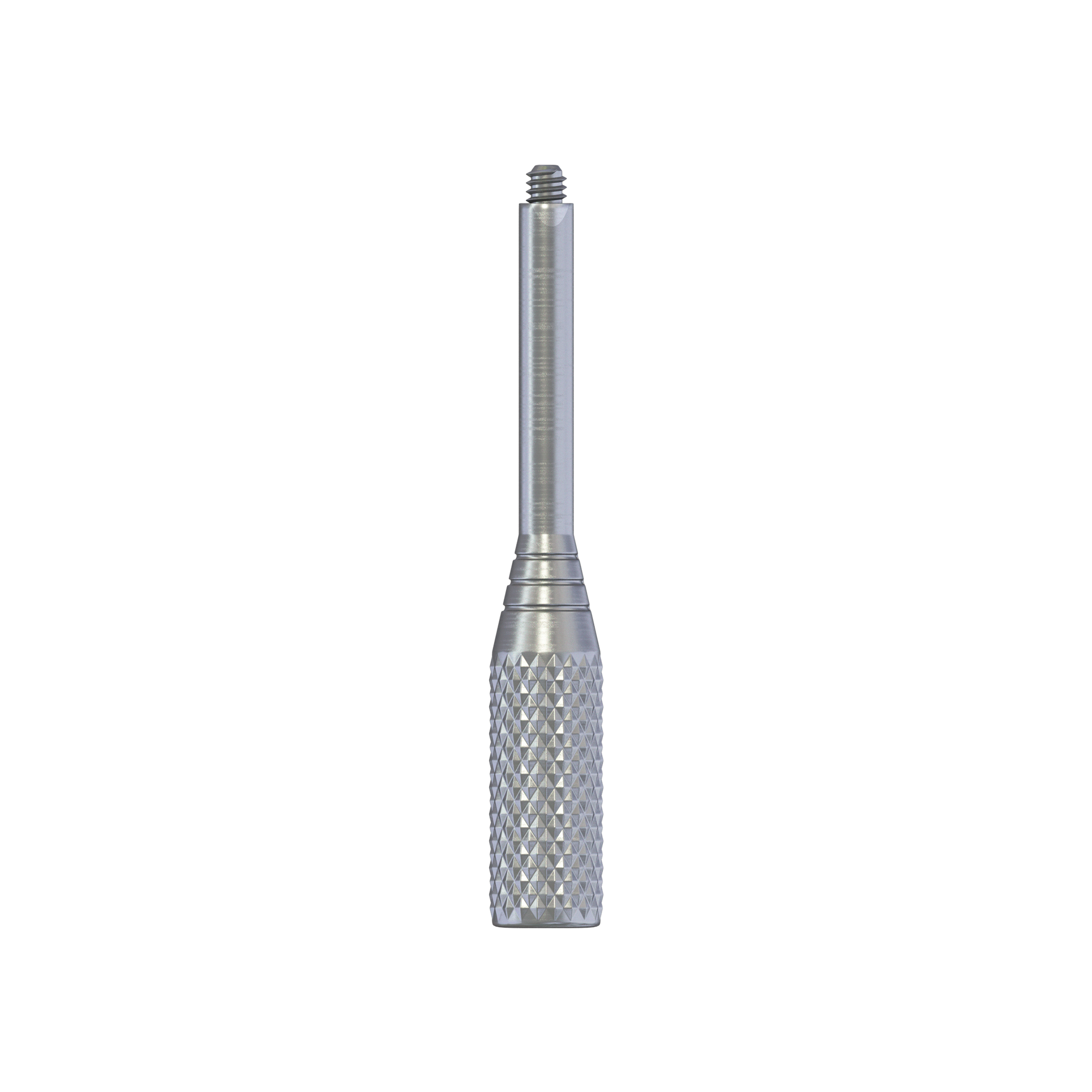

- MUD-M1.6: Metal Position Holder Ø 1.6mm , L=12.2mm, H=25.2mm x 1
Indications:
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- All-on-4,All-on-6
- For non-parallel implant alignment cases
Features:
- Excellent biocompatibility, no risk of abruption.
- Precise, non-rotational, functional.
- Simple, fast, and accurate positioning.
- Outstanding stability for the crowns and bridges
-
Superior aesthetic results.
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
-
Narrow Platform NP - Ø4.8mm / collar height 1.0-2.0mm
- Implant Level Connection Conical Connection NP Ø3.5mm, compatible with: DSI Conical NP, NobelActive® NP platform Ø3.5mm
- Multi Unit level Connection M1.6 Compatible with : DSI®, MIS®,
- 17° Degrees
- 30° Degrees
- Titanium fixation screw included with every abutment
- Titanium alloy Ti-6Al-4V grade 23 ELI
- Acetal (Delrin®)
- 1 Angulated MUA + Accessories (see description)
Conical Connection NP Platform Ø3.5mm
