Description
The K-Bar attachment by DSI is revolutionary in its size, with a gingiva height so low that it is nearly invisible above the gum line. An especially important feature when it comes to a part that is worn on the BAR itself
When a case calls for a bar attachment, the DSI K-Bar Attachment provides superb retention, long-lasting durability and a low profile design.
The most commonly used and versatile is the FULL SET, which includes:

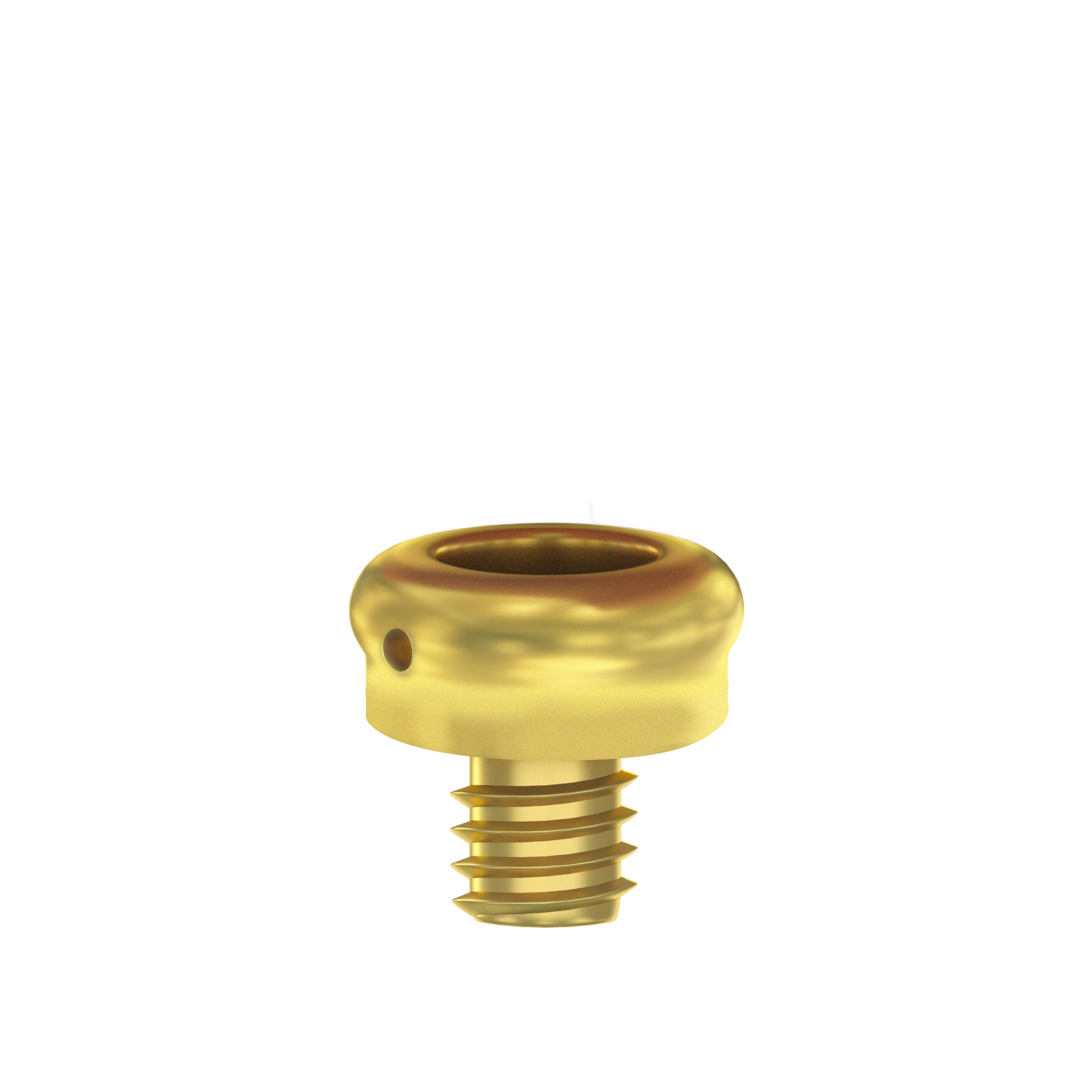

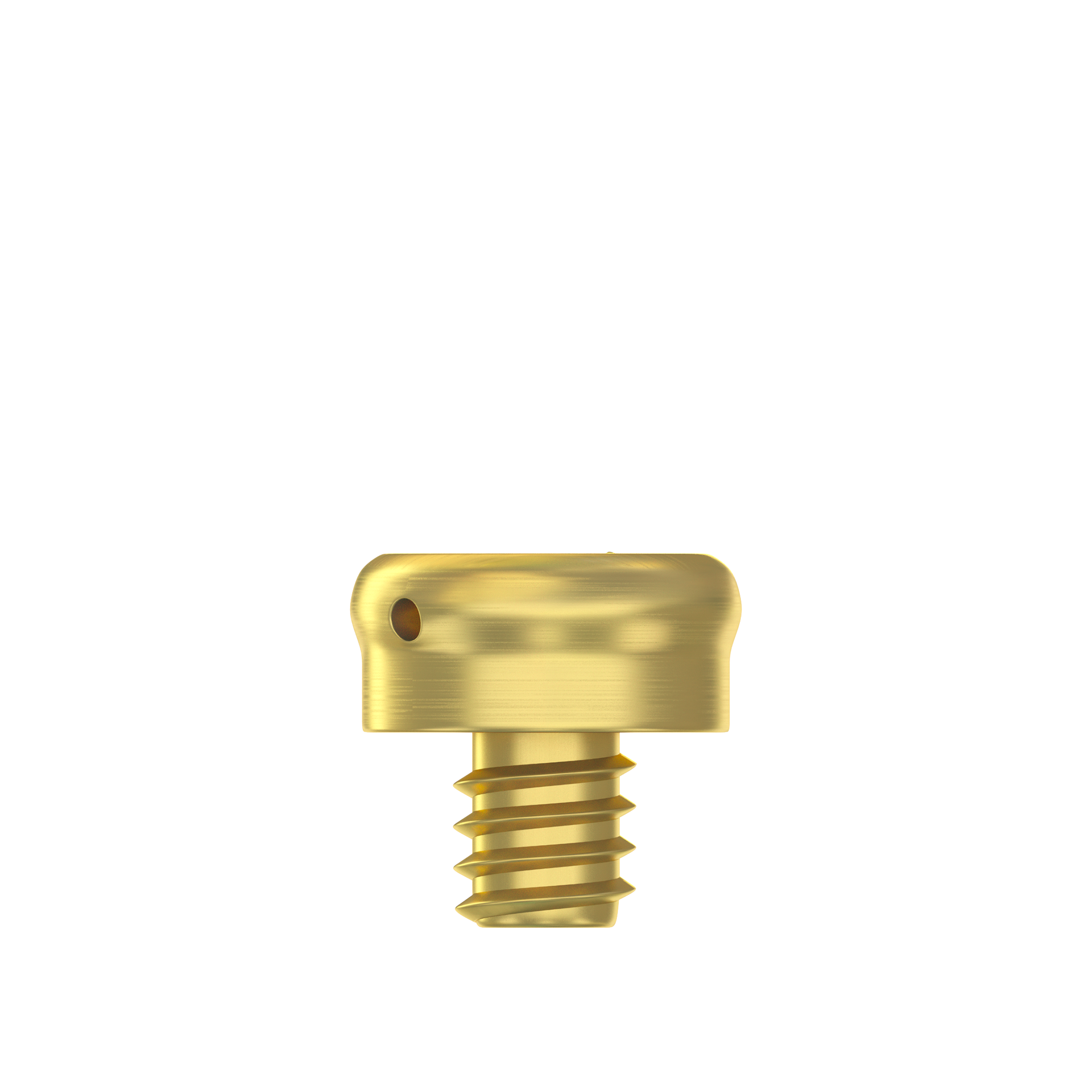

- Straight K-Bar Abutment 4.2mm x1

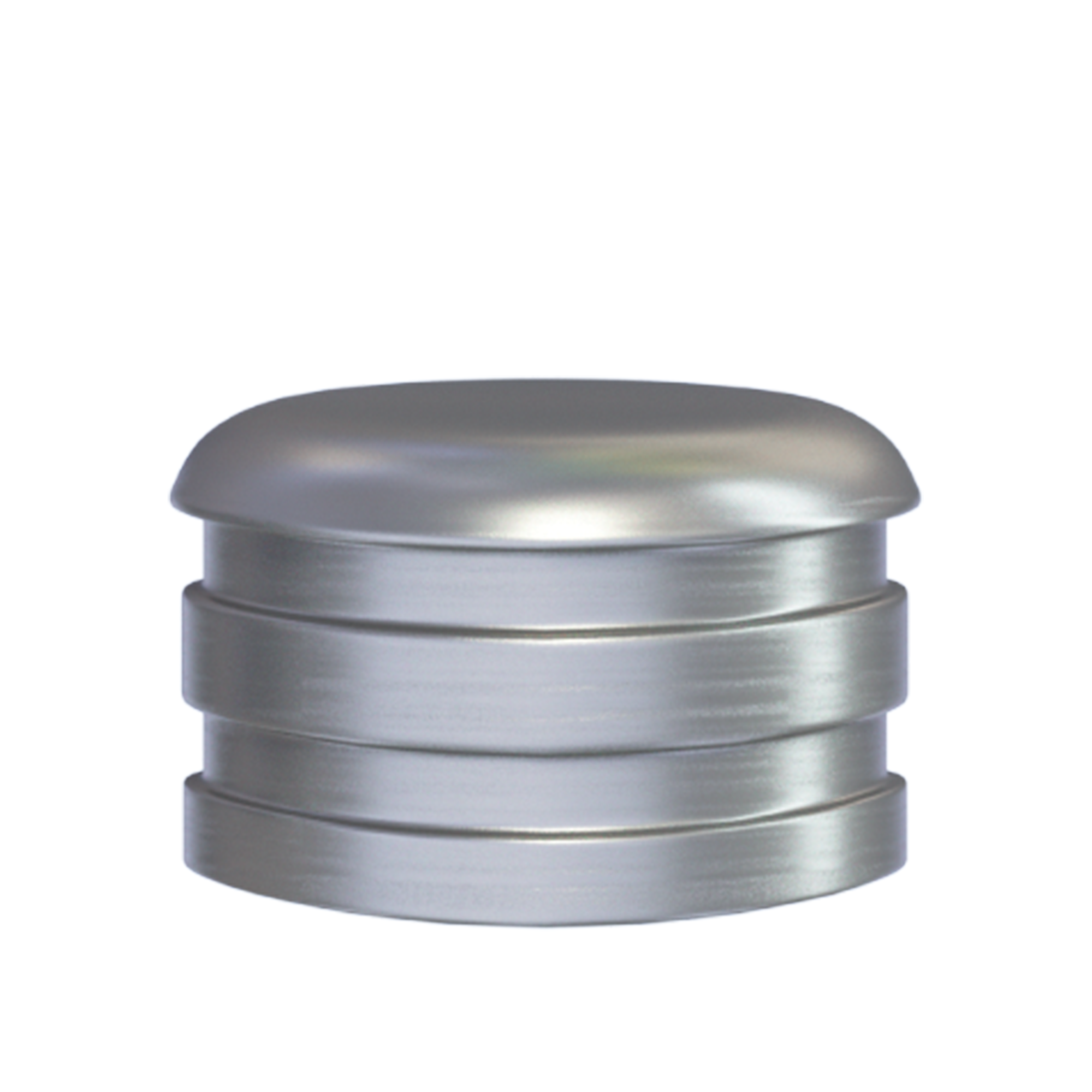

- Silver Metal Housing (height 2.0mm) -Ø 5.6mm x 1

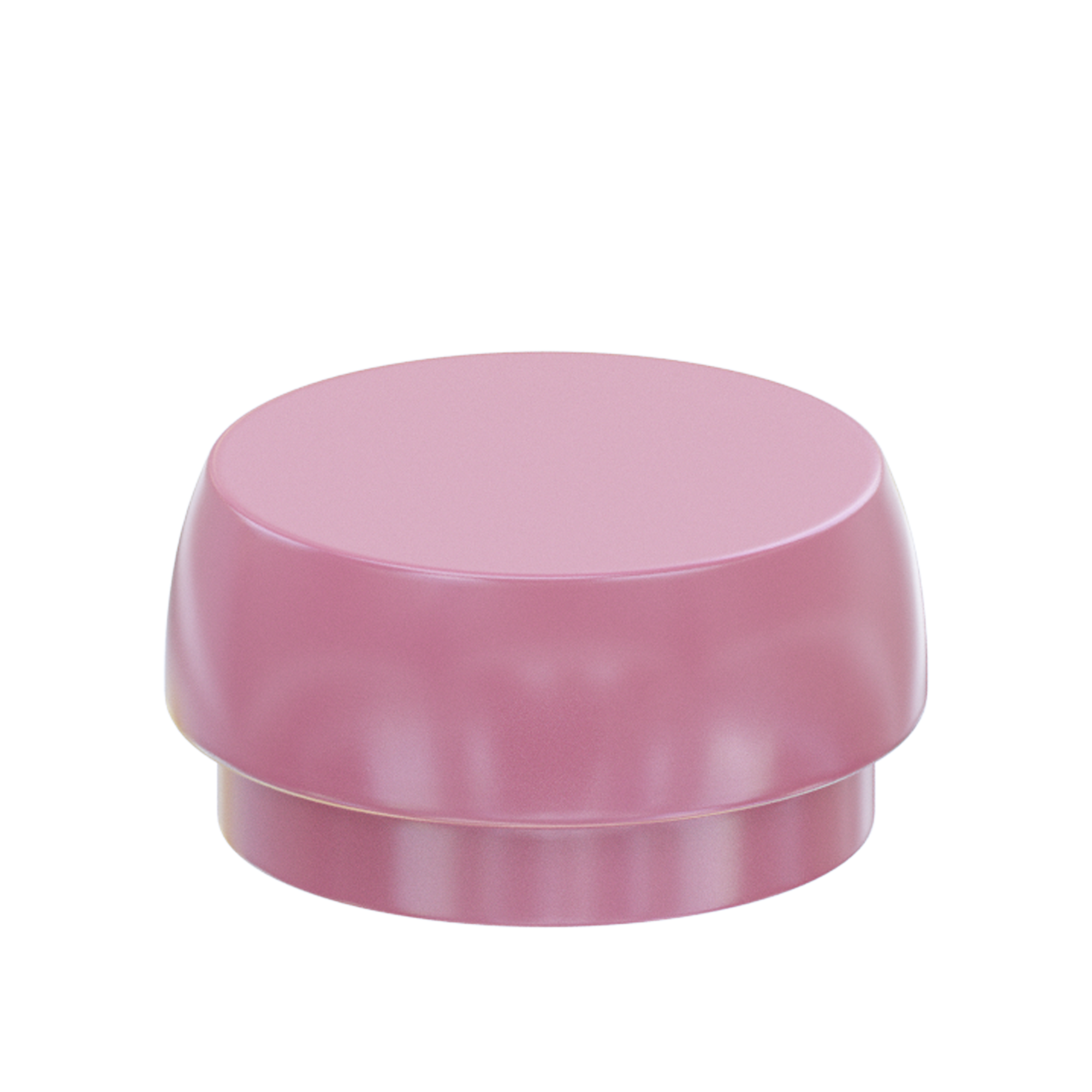

- Pink Soft Cap 1.2kg/2.6lbs retention x 1

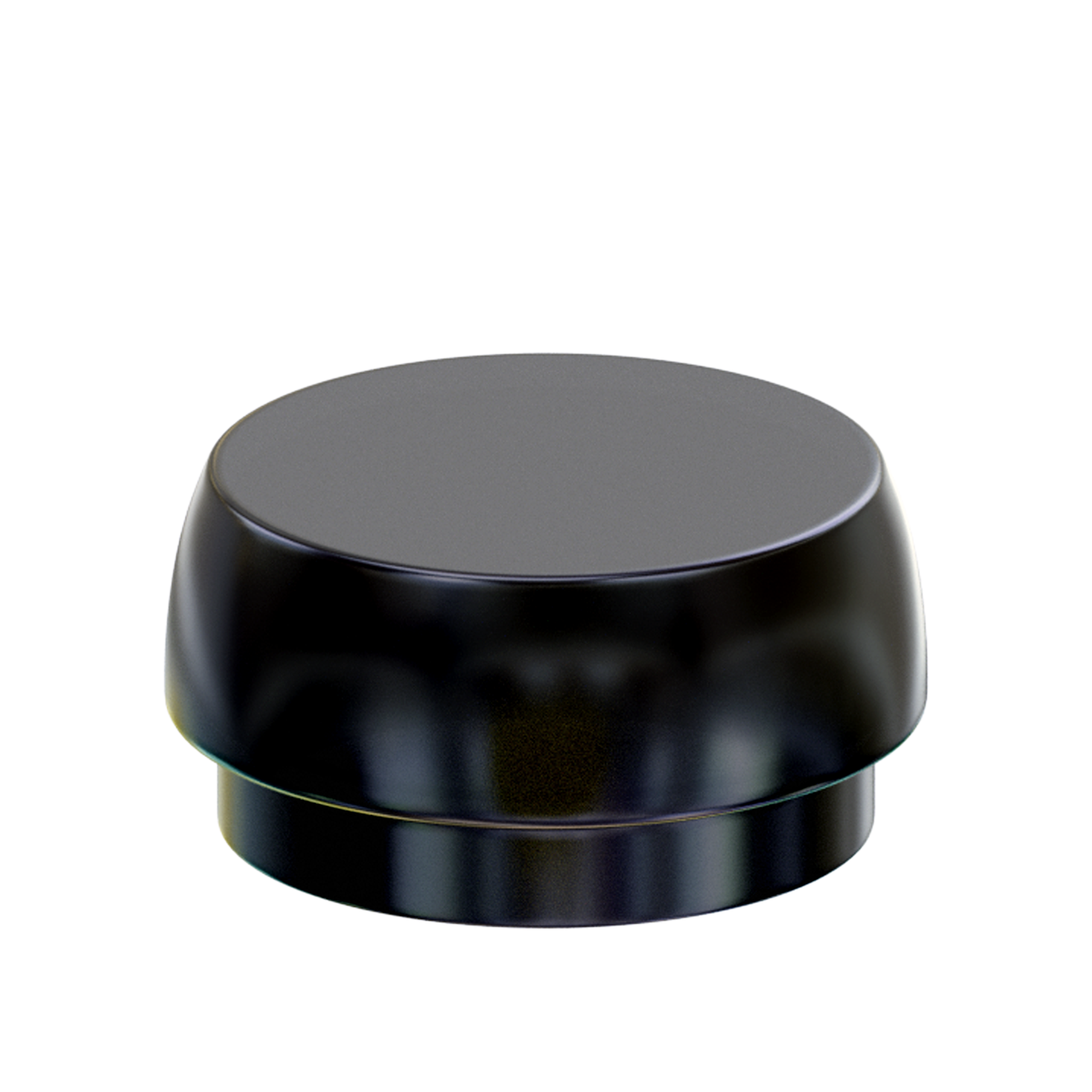

- Black Lab Cap 0 retention x 1

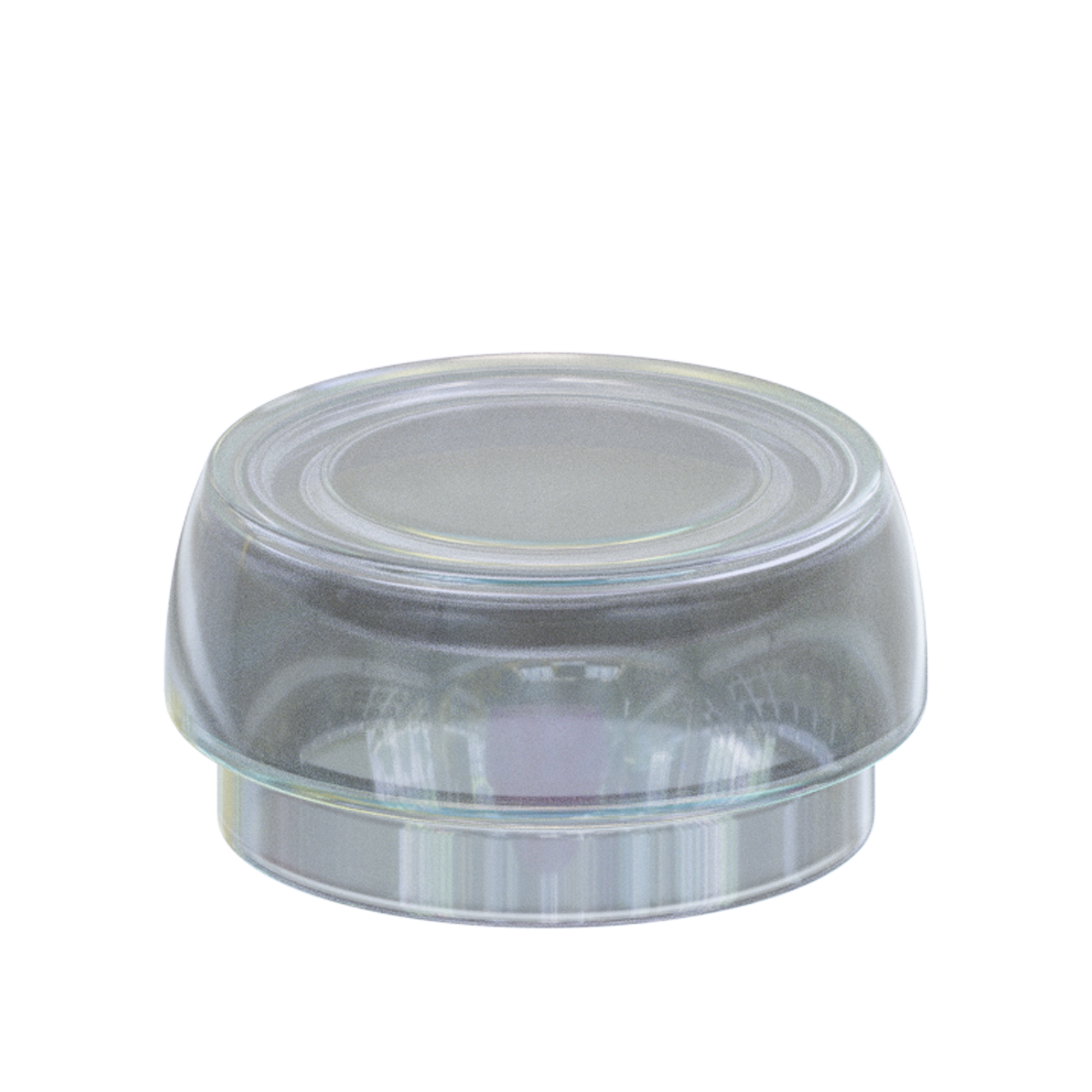

- Clear Standard Cap 1.8kg/4.0lbs retention x 1

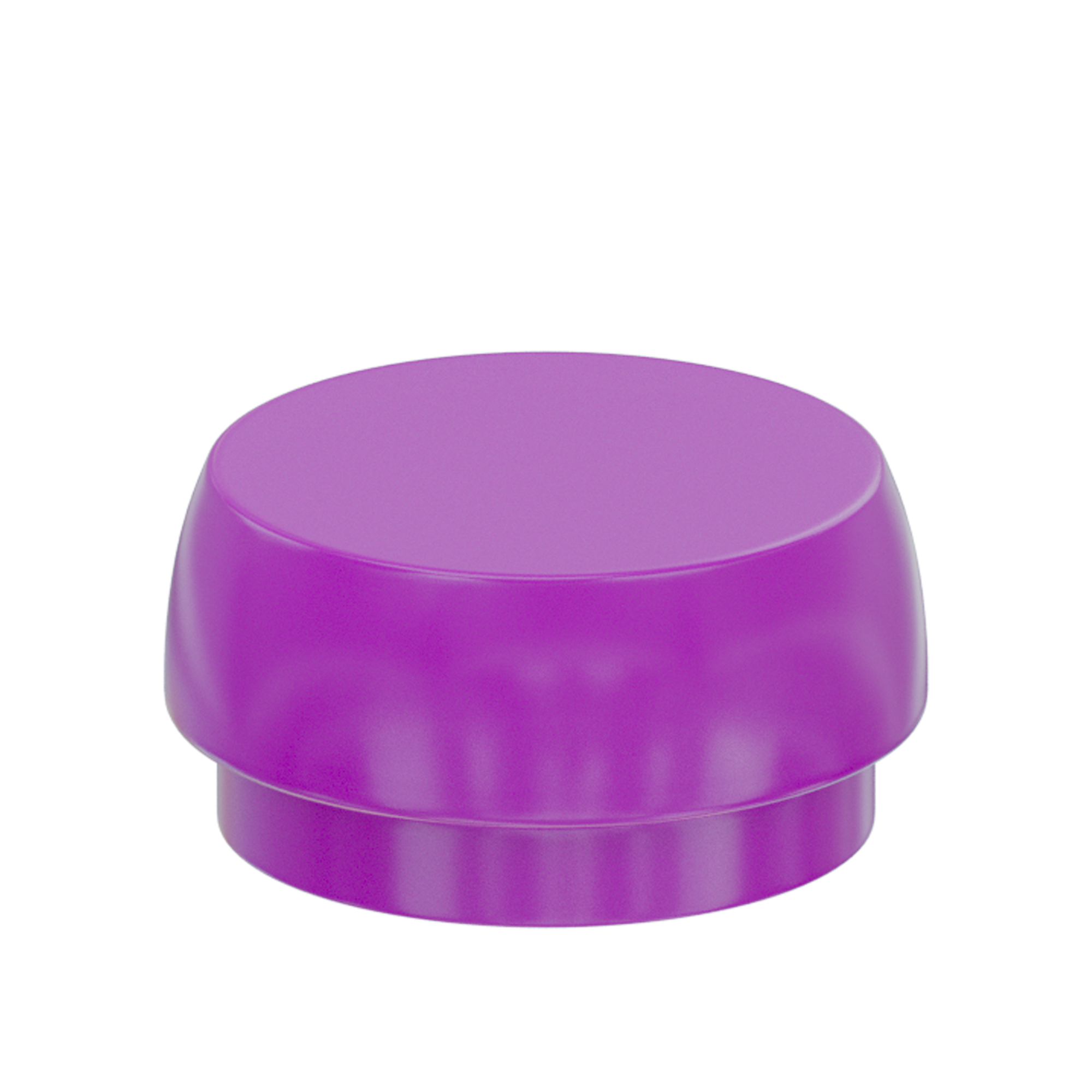

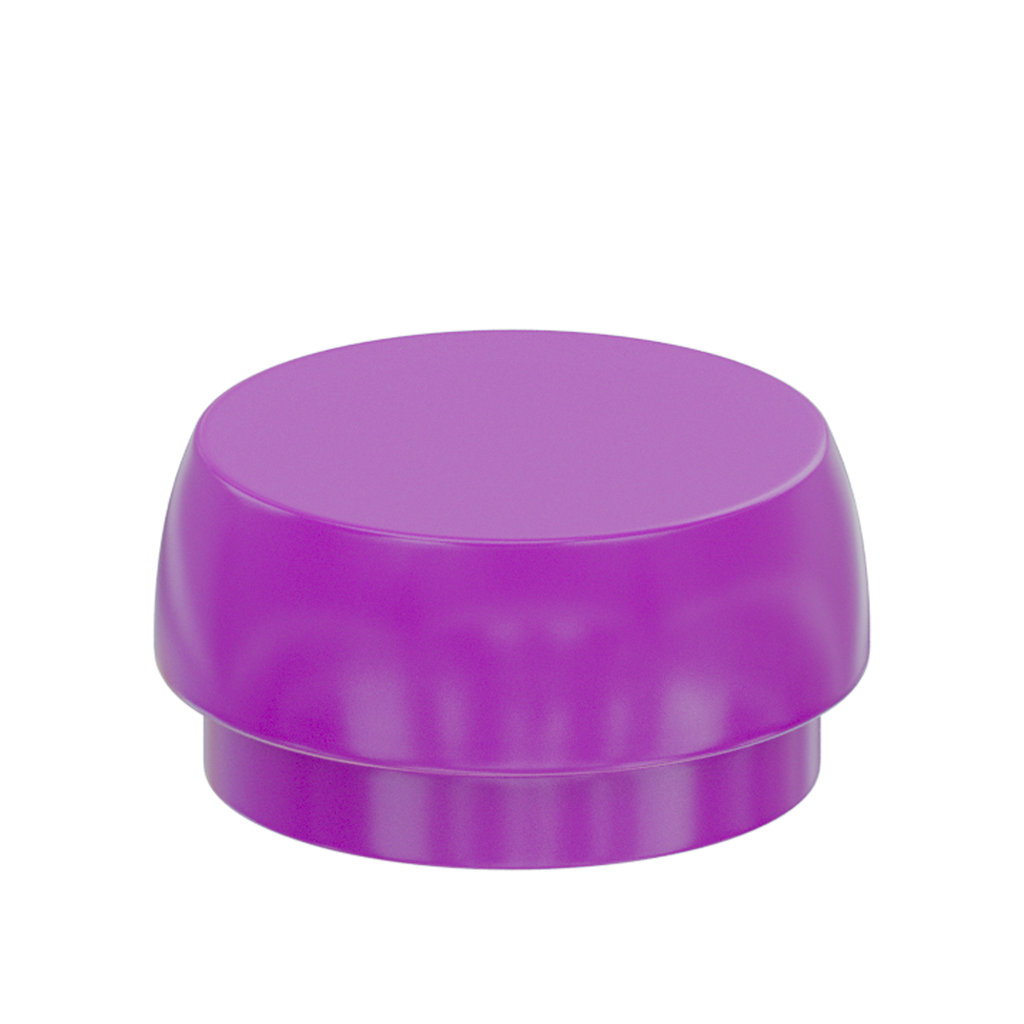

- Violet Strong Cap 2.5kg/5.5lbs retention x 1
- Pink Protective Disc Ø 14.0mm/Internal Ø2.9mm
With the help of the black cap, measurements can be taken after the implantation
And this is in light of the fact that it got 0 retention.
Indications:
- Implant-supported, cast alloy or milled titanium bar options
- Self-aligning Denture Cap for easy and accurate overdenture seating
- Partial and full dentures
- All-on-4, All-on-6
- Denture conversion
Features:
- Low Vertical Height
- Self-Aligning Design
- Exceptional Durability
- wide range or different resilience/retention level soft silicone inserts are available for maximum patient comfort and natural chewing motion
- Full solid titanium body.
- Hygiene-friendly construction.
- Perfect choice for overdentures
- Designed for easy placement.
- Long term survival of silicone inserts thank to a steady placement.
- Stable and durable for a long time
Technical information:
- Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
- Standard Body - Ø4.2mm / height 1.0mm
Material:
- Titanium alloy Ti-6Al-4V grade 23 ELI
- Partial and full dentures
- All-on-4, All-on-6
- Denture conversion
- Implant-supported, cast alloy or milled titanium bar options
- Self-aligning Denture Cap for easy and accurate overdenture seating
- Straight K-Bar Abutment 4.2mm x1
- Silver Metal Housing (height 2.0mm) -Ø 5.6mm x 1
- Pink Soft Cap 1.2kg/2.6lbs retention x 1
- Clear Standard Cap 1.8kg/4.0lbs retention x 1
- Violet Strong Cap 2.5kg/5.5lbs retention x 1
- Black Lab Cap 0 retention x 1
- Pink Protective Disc Ø 14.0mm/Internal Ø2.9mm
Internal Hex Ø2.42mm
