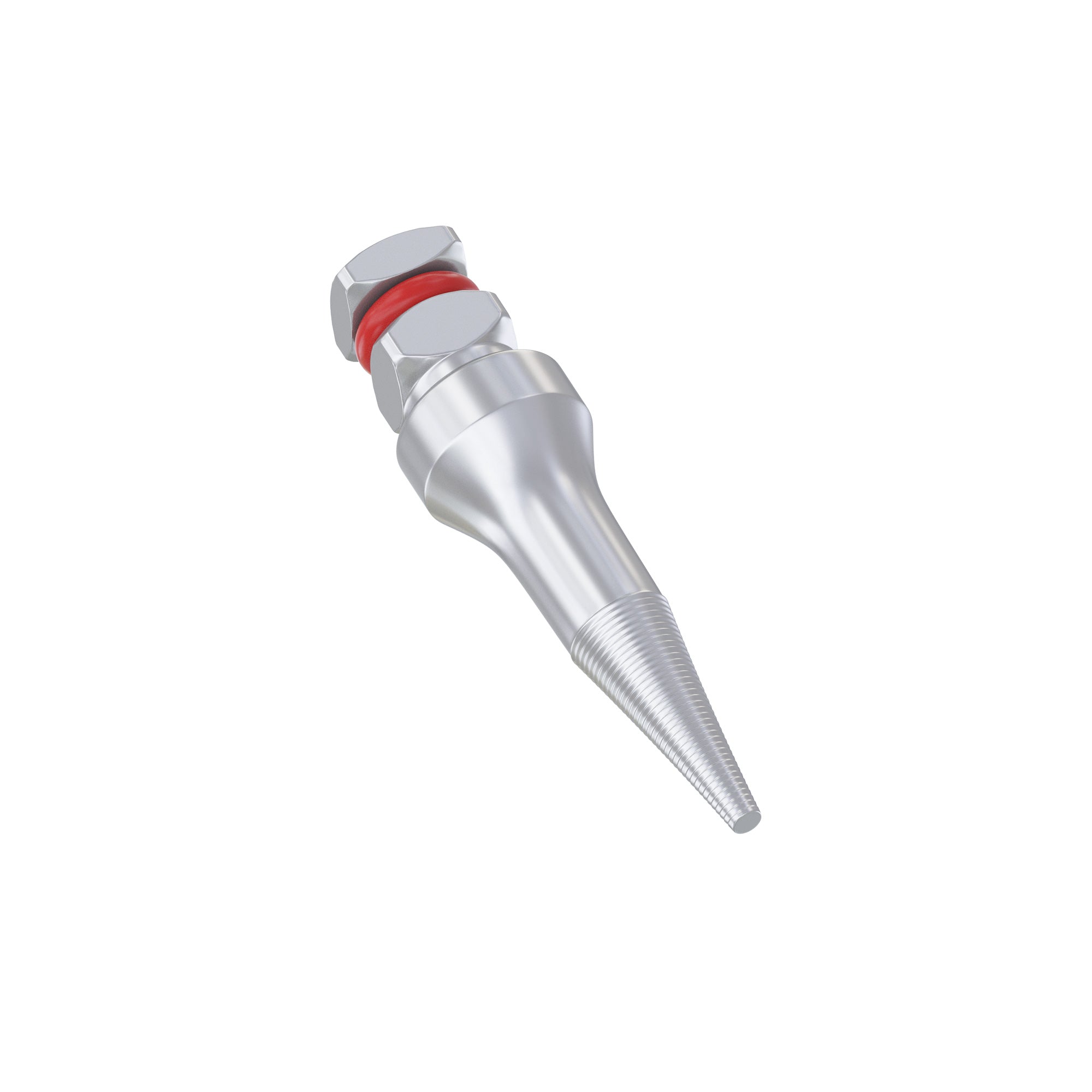

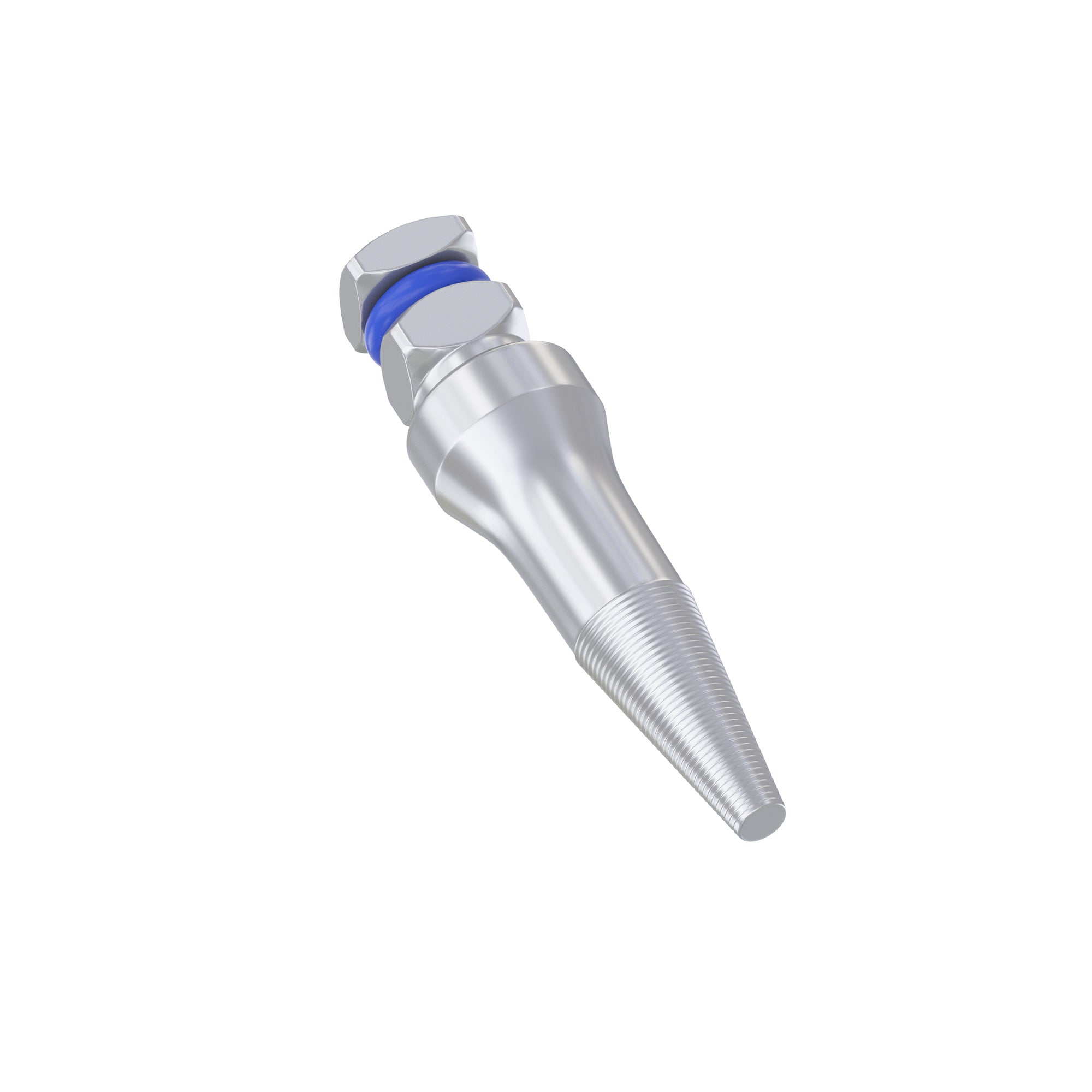

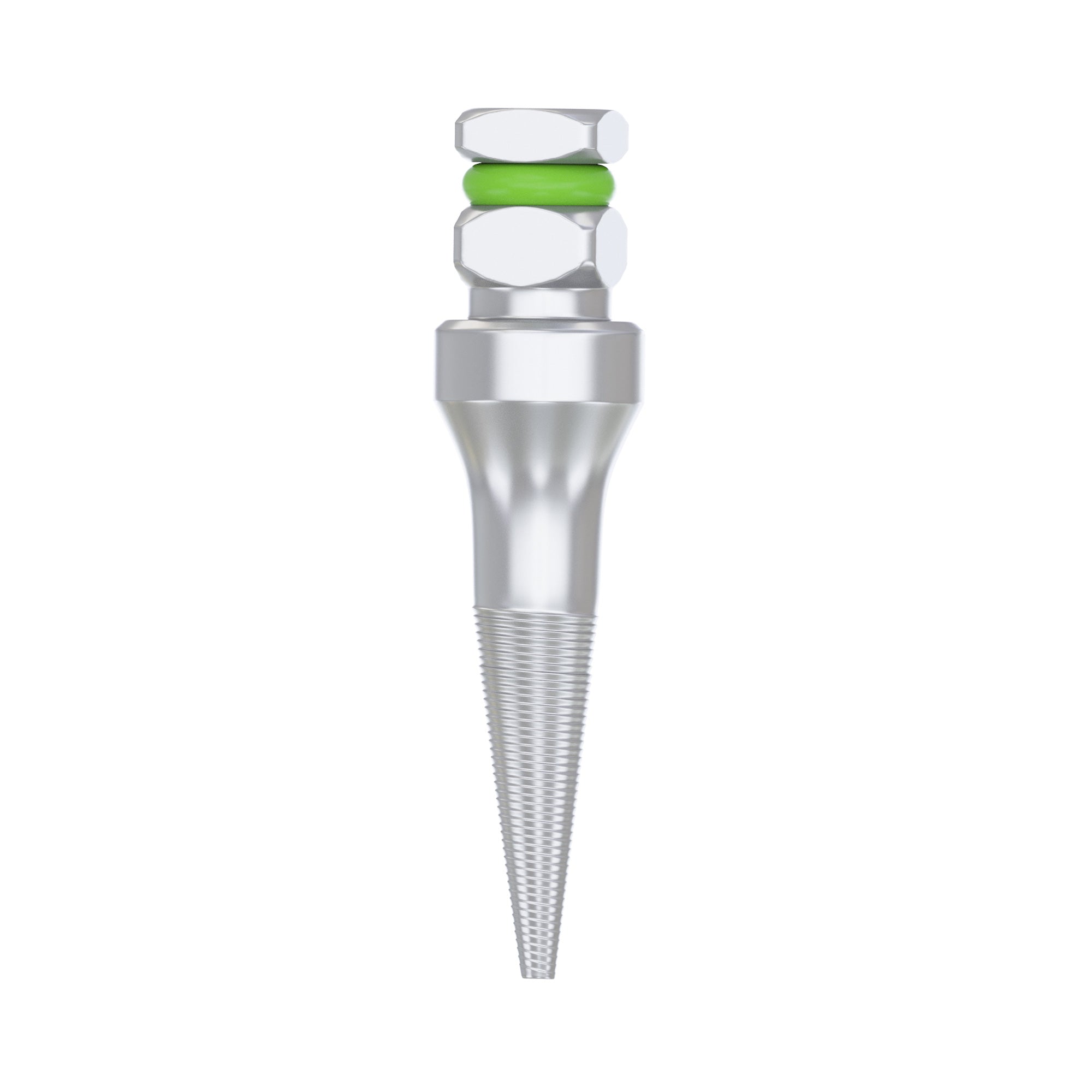

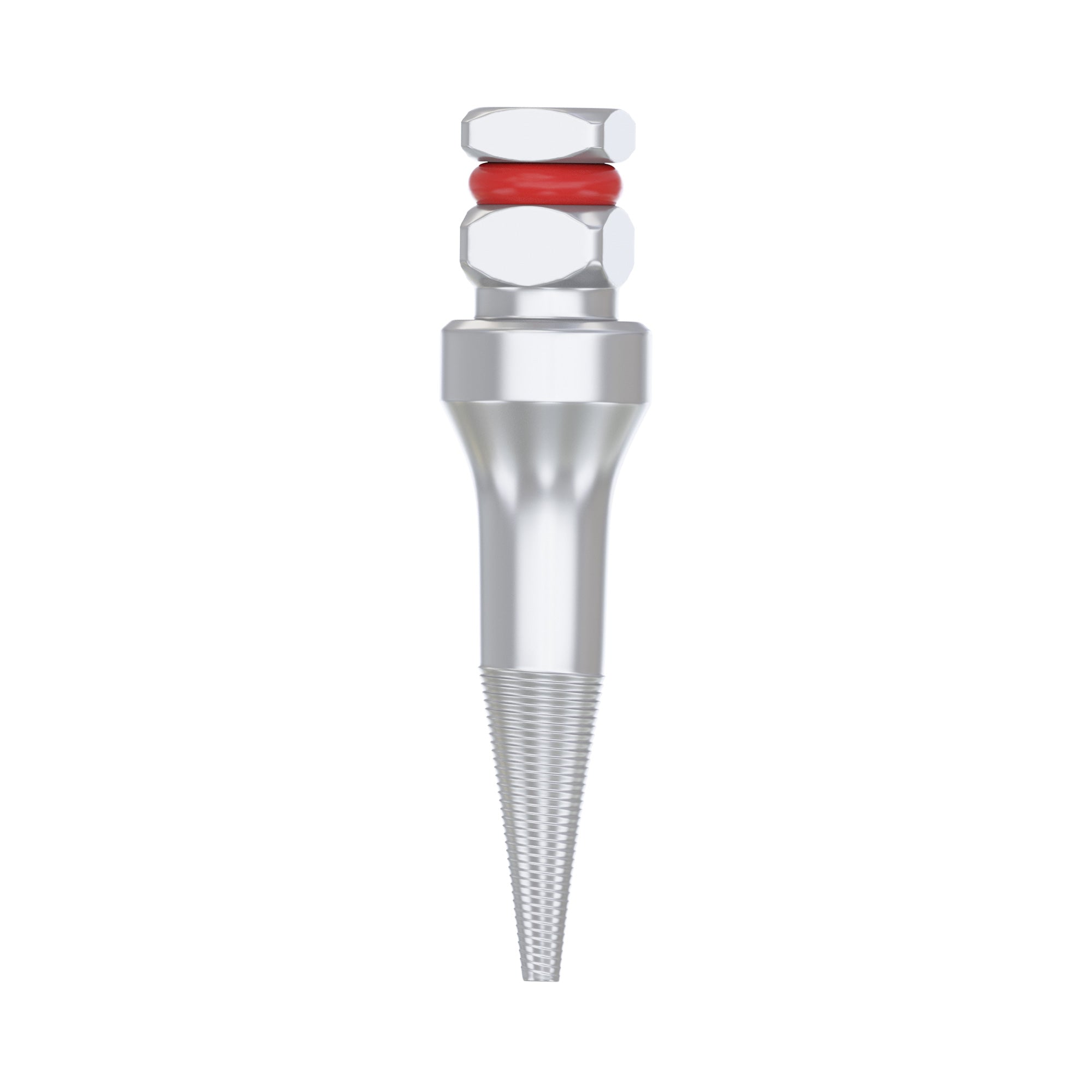

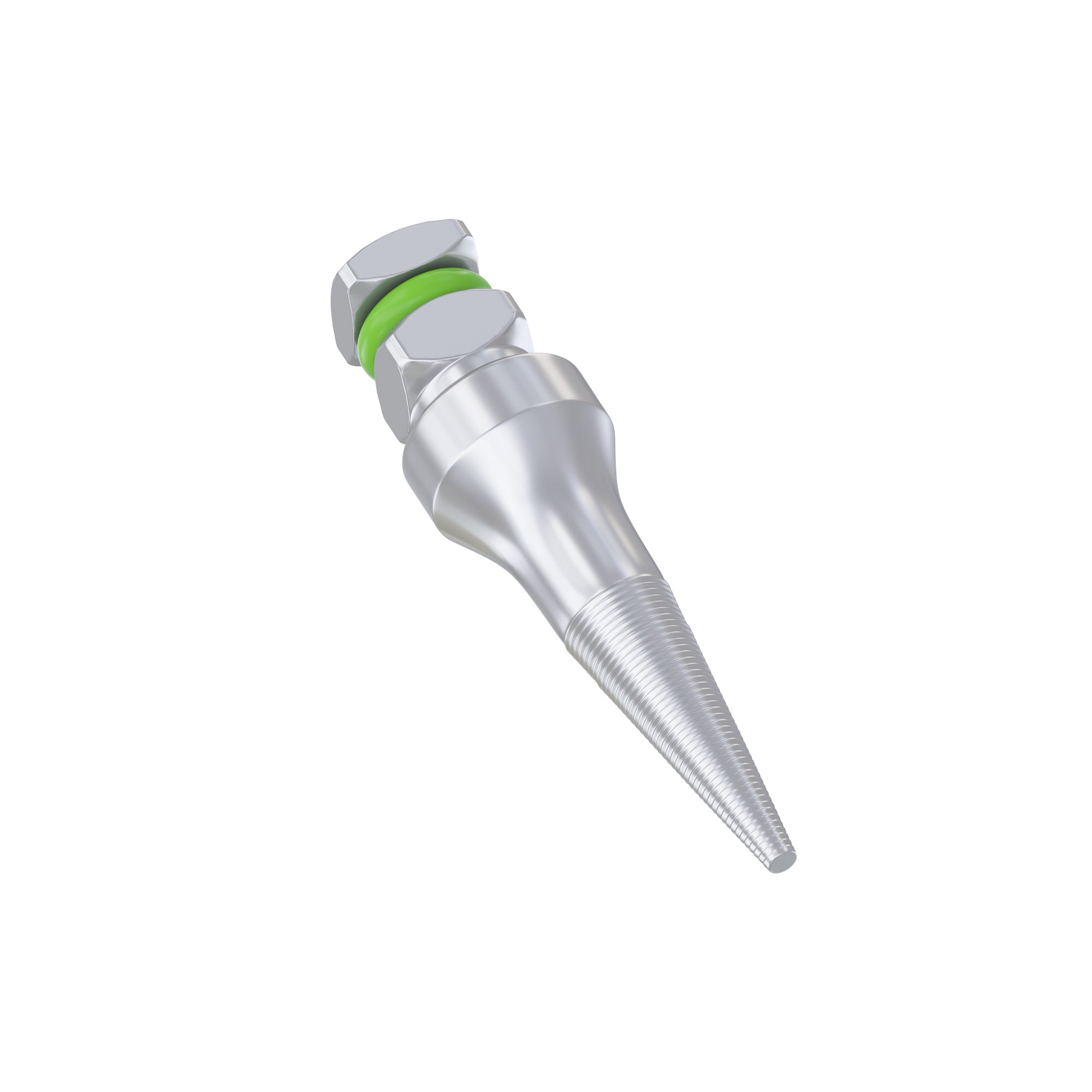

DSI Implant Extraction Removal Drills (SD-FSR refill)

DSI Implant Removal Drills are designed specifically for the extraction of broken, ill-fit, or misplaced implants. This is not an invasive solution without the need for surgical intervention. The procedure is fast, reliable, and not traumatic for the patient.

The Implant removal drills can be used with a designated ratchet (square head connection Ø4.0mm), or hand adapter, or with any contra-angle handpiece using the special latch-type RA connection adapter.

Indications:

• Removal of failed, misplaced, or broken implants

Features & Benefits:

• Easy and fast removal on any implant, including the ones that are already osseointegrated into a bone structure
• No bone damage or serious trauma for patients
• There is no need for surgical intervention, trephine drills, or additional units
• Applicable for a large variety of implant types, and diameters
• Removes failed implants without compromising surrounding bone or damaging neighboring structures
• Fast, reliable, and cost-effective solution
• Can be used with a ratchet, hand adapter, or with a contra-angle handpiece

Technical information:

• Material: Stainless steel
• External device connection type: Ratchet square Ø4.0mm
• Additional adapters: Manual adapter and Latch-type RA connection adapter
• Length of the removal units: 22mm

• Autoclavable and reusable


Compatibility:

• FRD-01(Ø1.6-1.8mm): Used for implants with diameters between 3.5-4.5mm

• FRD-02(Ø2.0-2.5mm): Used for implants with a diameter larger than 4.5mm

• FRD-03(Narrow): Used for implants with a diameter smaller than 3.5mm

Package includes 1 implant removal drill for selection
