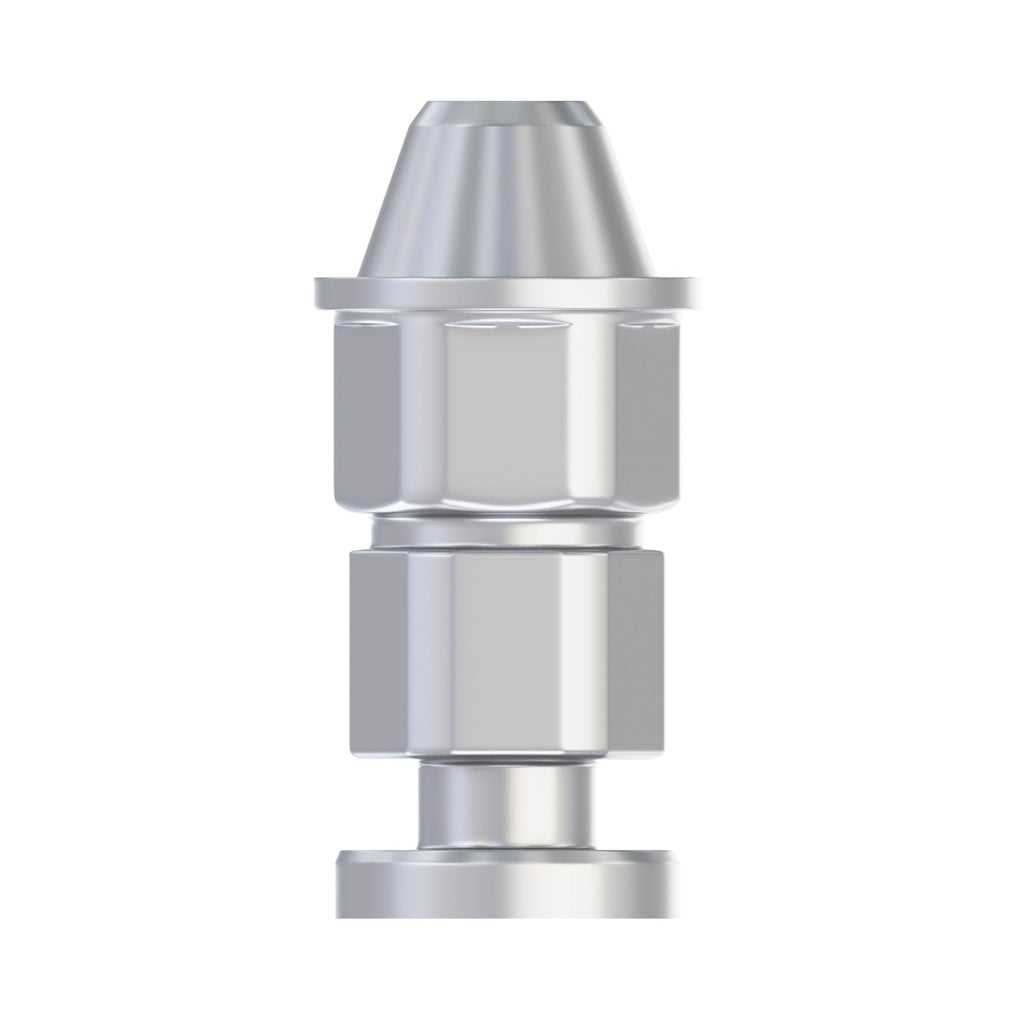

Digital Analog

DSI 3D digital analogs provide a significant advantage when compared to traditional analogs, as they can be used in a digital setting.

These digital analogs are specifically designed to facilitate the accurate replication of multi unit positions and orientations in 3D printed models.

1. Digital Workflow: With the use of these digital analogs, it is possible to scan the multi unit that has been placed within the patient's mouth. This scanned information can then be used to create a digital model, which can be further utilized for 3D printing. The digital analogs serve as replicas of the actual multi units, ensuring precise location, orientation, and angle determination.

2. Titanium Construction: Crafted from titanium, each digital analog is made from a high-quality material known for its strength and biocompatibility. The use of titanium ensures durability and reliability in the 3D printing process.

3. Fixation Screws: To enhance stability during the 3D printing process, each digital analog comes complete with fixation screws. These screws help secure the analogs to the model, minimizing movement and ensuring maximum accuracy.

4. Maximum Accuracy and Reliability: By utilizing DSI's digital analogs for 3D printing, dental professionals can achieve maximum accuracy and reliability in their restorations. The precise replication of implant positions and orientations allows for precise planning and design of the final restorations.

It's important to note that these digital analogs are specifically designed for use in a digital workflow and 3D printing. They are not intended for use as permanent restorations but rather as tools to aid in the fabrication of accurate models and restorations.

Download free digital libraries:

Exocad: https://www.dsisrael.com/exocad-lib

3Shape: https://www.dsisrael.com/3shape-lib

supports Exocad model creator module

Indications:

• Bridges

• Partial and full dentures
• Reusable
• 3d-printed models
  faster case turnaround, lower space consumption & costs
• All-on-4 , All-on-6

Features:

• Outstanding aesthetic results.

• Could be used for all types of custom restorations.

• Compatible with most major brands.

• Precise installation.

• Secure press-fit in the model.

• Can be used with regular tools and drivers, no need for special equipment.
• Precise duplication of the multi-unit position and angle on the technical model.
• Repeats perfectly the shape and size of the MUA.
• Minimizes the errors in the creation of a dental prosthesis.

Technical information:

• Titanium alloy grade 5 Ti-6Al-4V ELI
• Compatible with Nobel Biocare and DSI premium multi-unit abutments M1.4
• Ø4.9mm / Height 9mm
