DSI Blue Line Spiral Implant Immediate Loading - Internal Hex

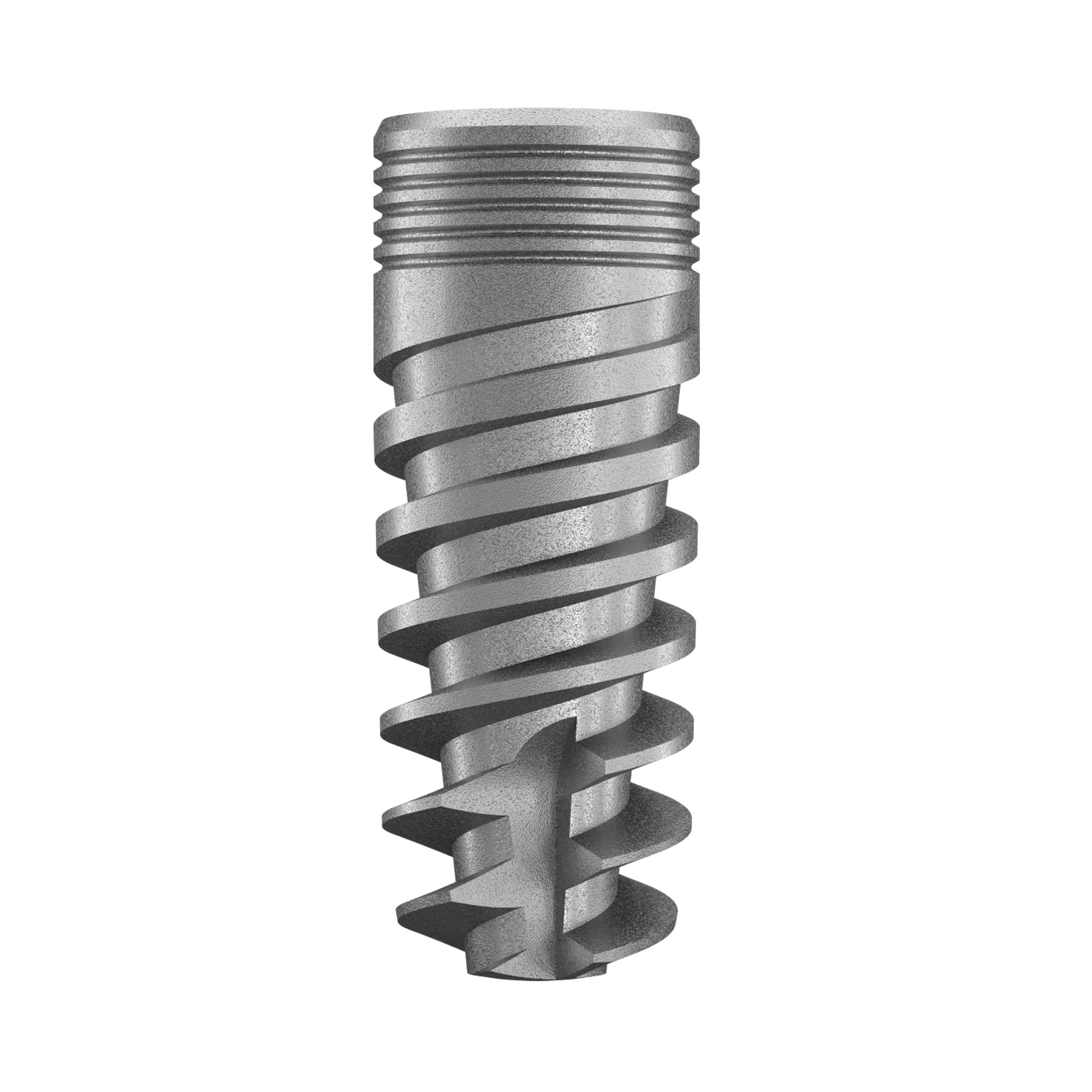

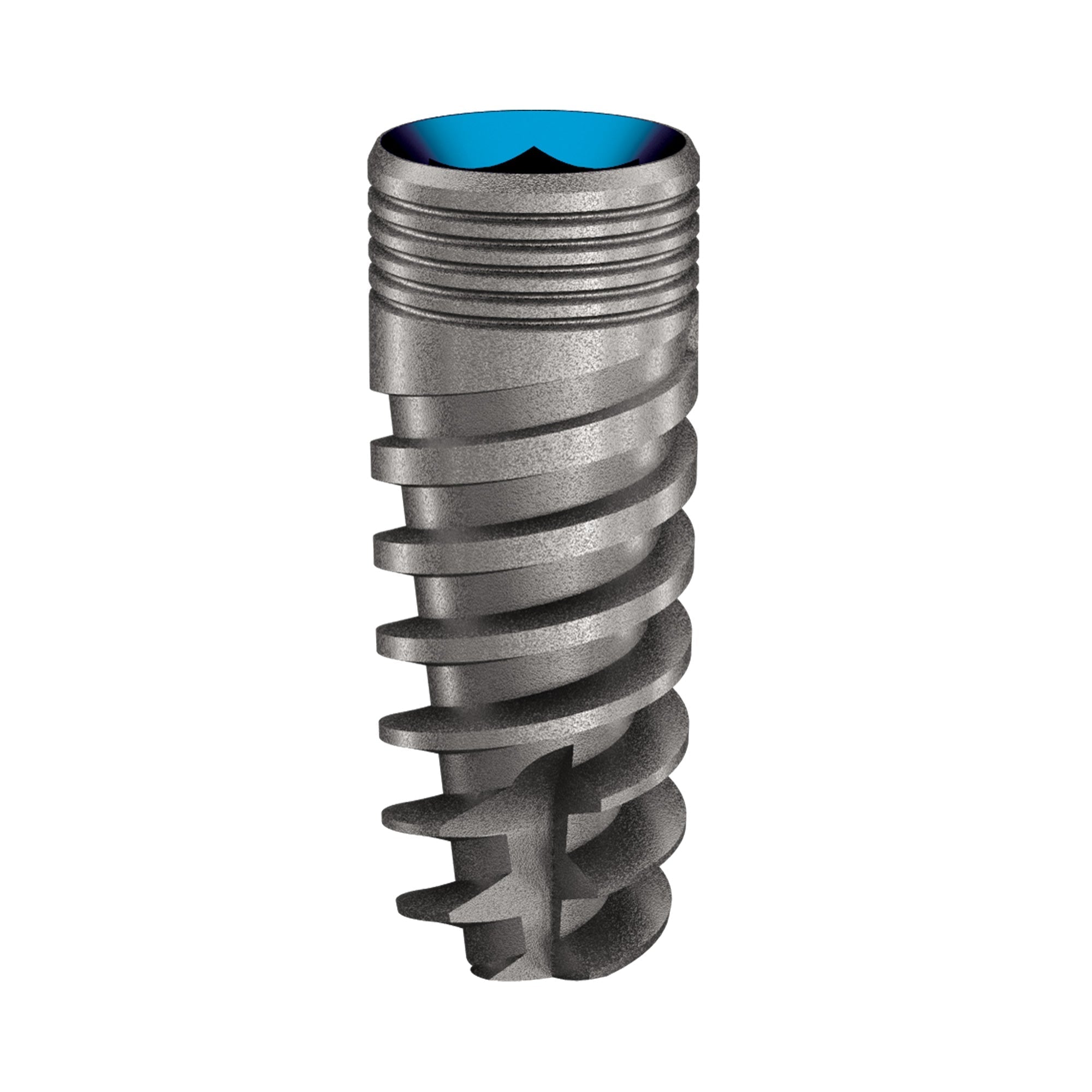

DSI Blue Line spiral implant shape includes dual threads, two spiral channels stemming from the apex, micro-grooves on the implant top, and a changing thread thickness along with the implant. The result is that soft bone is collected and compressed during the implantation.

DSI Blue Line spiral implants are indispensable for immediate loading technique and guarantee high stability. Could be used with different bone types, ideally suited for multi-unit immediate load applications and insertion into fresh extraction sites.

Indications:

• Immediate loading - suitable for extraction sites
• Designed especially to achieve increased stability in soft bone
• Both single and multi-implant restorations

Advantages:

• Self-tapping and self-drilling with the bone condensing feature.

• Aggressive threads provide greater primary stability.

• The cutting apex assures fast and smooth insertion into the bone.

• Platform switching preserves crestal bone height and soft tissue levels.

• No Peri-Implantitis.

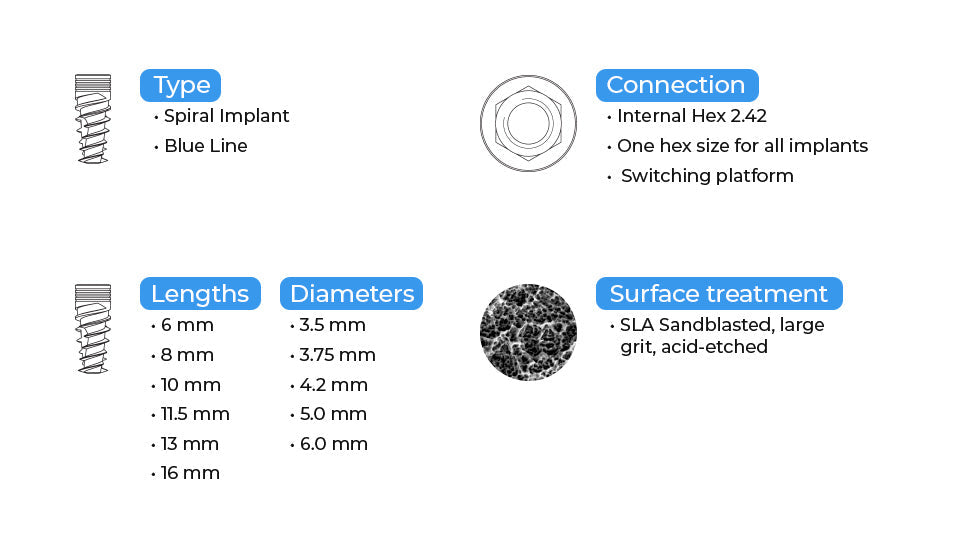

• Made of titanium alloy grade 5 Ti-6Al-4V ELI with SLA surface treatment.

• Connection 2.42mm Internal Hex, accepts the full range of the DSI Prosthetic component.
• Accelerated and improved osseointegration process.

• Increased overall stability, especially in the soft bone.



SLA Surface Treatment:
‍
The classic SLA surface, short of «Sand-blast, Large grit, Acid-etch» is based on a large aluminum oxide Al2O3 particles sandblasting technique that generates a macro-roughness on the titanium surface. Sandblasting is followed by an acid-etching batch at high temperatures. As a result, subtle-sized 2-5 micron micropores appear at the implant surface. This unique macro/micro-topography provides an ideal structure for cell attachment while reducing the possibility of bacterial colonization. SLA surface treatment is one of the most used in modern dental implantology. The studies confirmed its strong long-term performance, high mechanical stability, and low odds of developing peri-implantitis. DSI has improved the process, making it hands-free and minimizing the aluminum oxide residuals that may remain on the surface and could significantly impair osseointegration.
