DSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mm
Roll over image to zoom in Click on image to zoom
DSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mmDSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mm

DSI Angulated Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mm

SKU: PAMU-1710

Quick Buy

  • Collar Height / Angle
  • 1.0mm
  • 2.0mm
  • 3.0mm
  • 17°
  • 30°
  • 45°
Add to wishlist

We deliver to more than 120 countries worldwide.
In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping type Shipping cost Estimated delivery Tracking info
USPS - Standard Shipping $30
14-21
Business days
 Available within one week
DHL Express Shipping $49
2-5
 Link with full tracking
On-site pickup Free (subject of VAT) - N/A



Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.
In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

We deliver to more than 120 countries worldwide.
In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping type Shipping cost Estimated delivery Tracking info
USPS - Standard Shipping $30
14-21
Business days
 Available within one week
DHL Express Shipping $49
2-5
 Link with full tracking
On-site pickup Free (subject of VAT) - N/A



Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.
In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

Description

The DSI Angulated Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

DSI Next-Gen multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Next-Gen multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

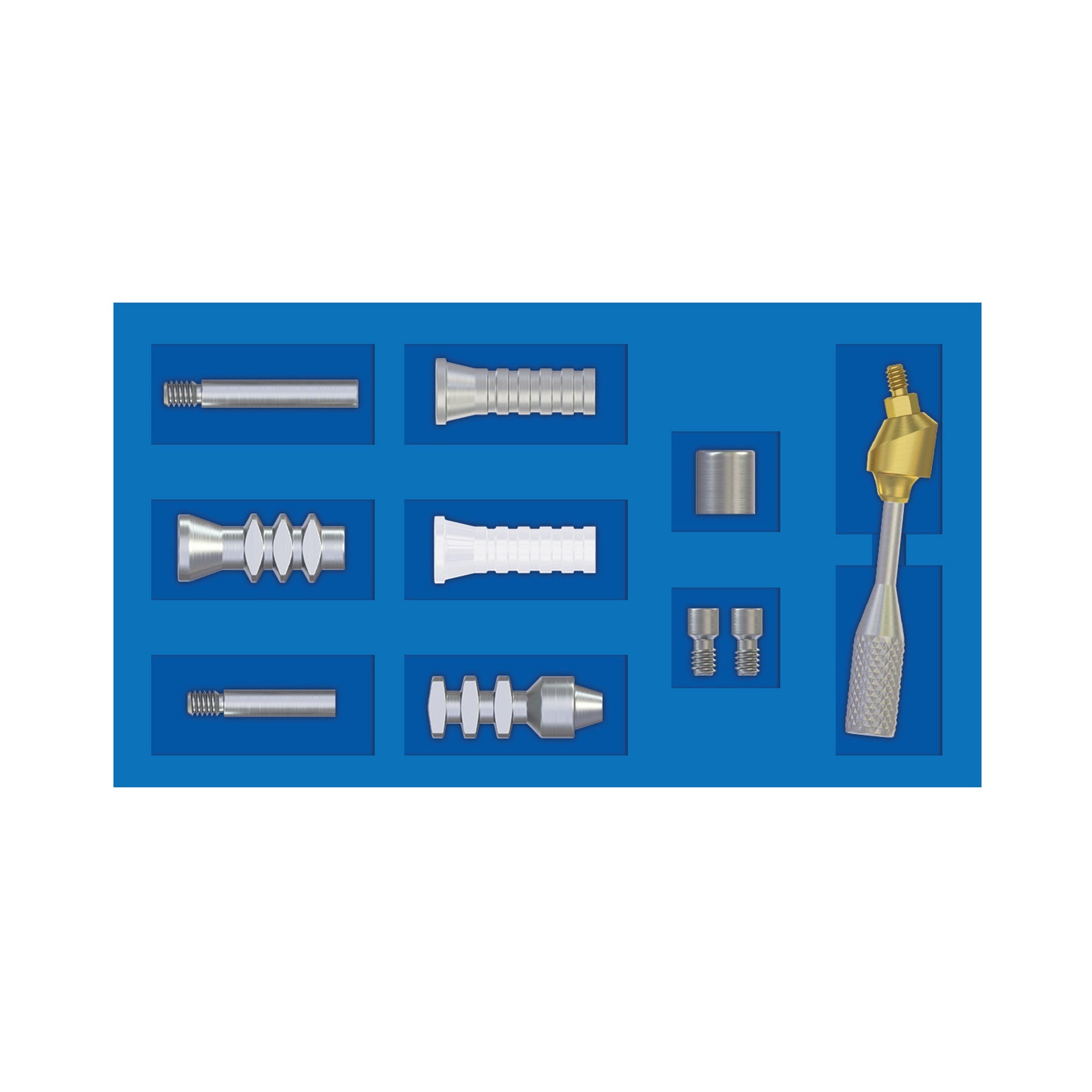

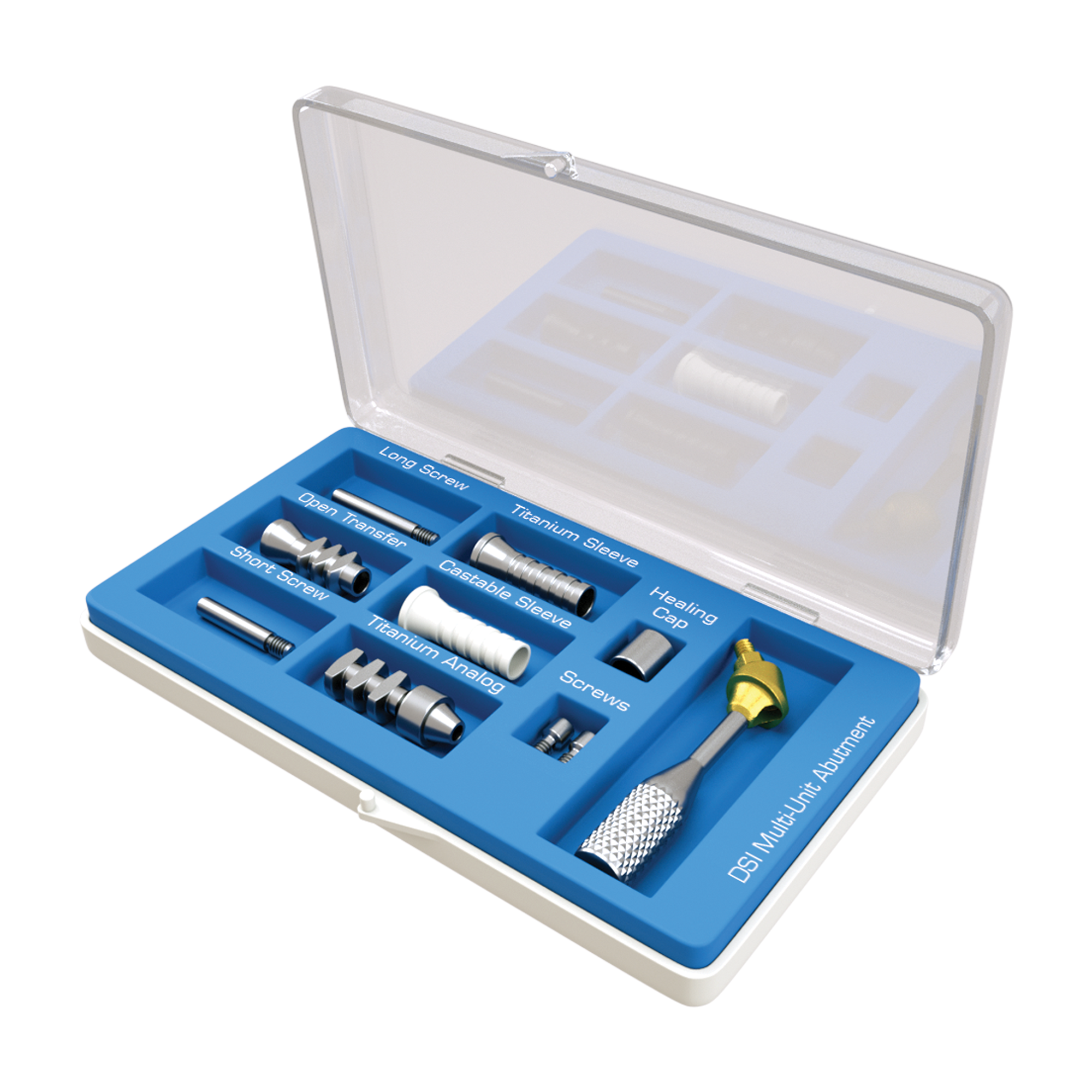

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

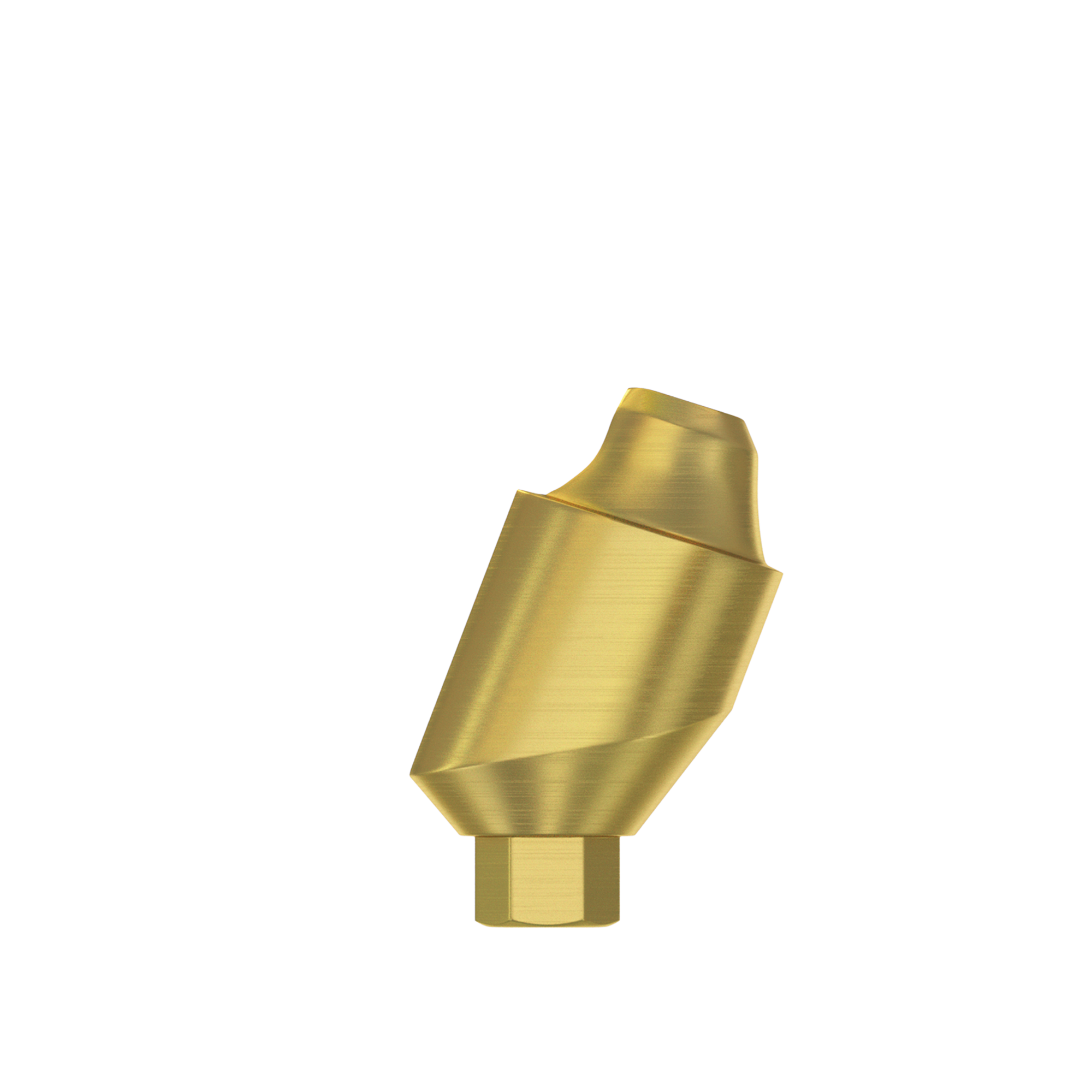

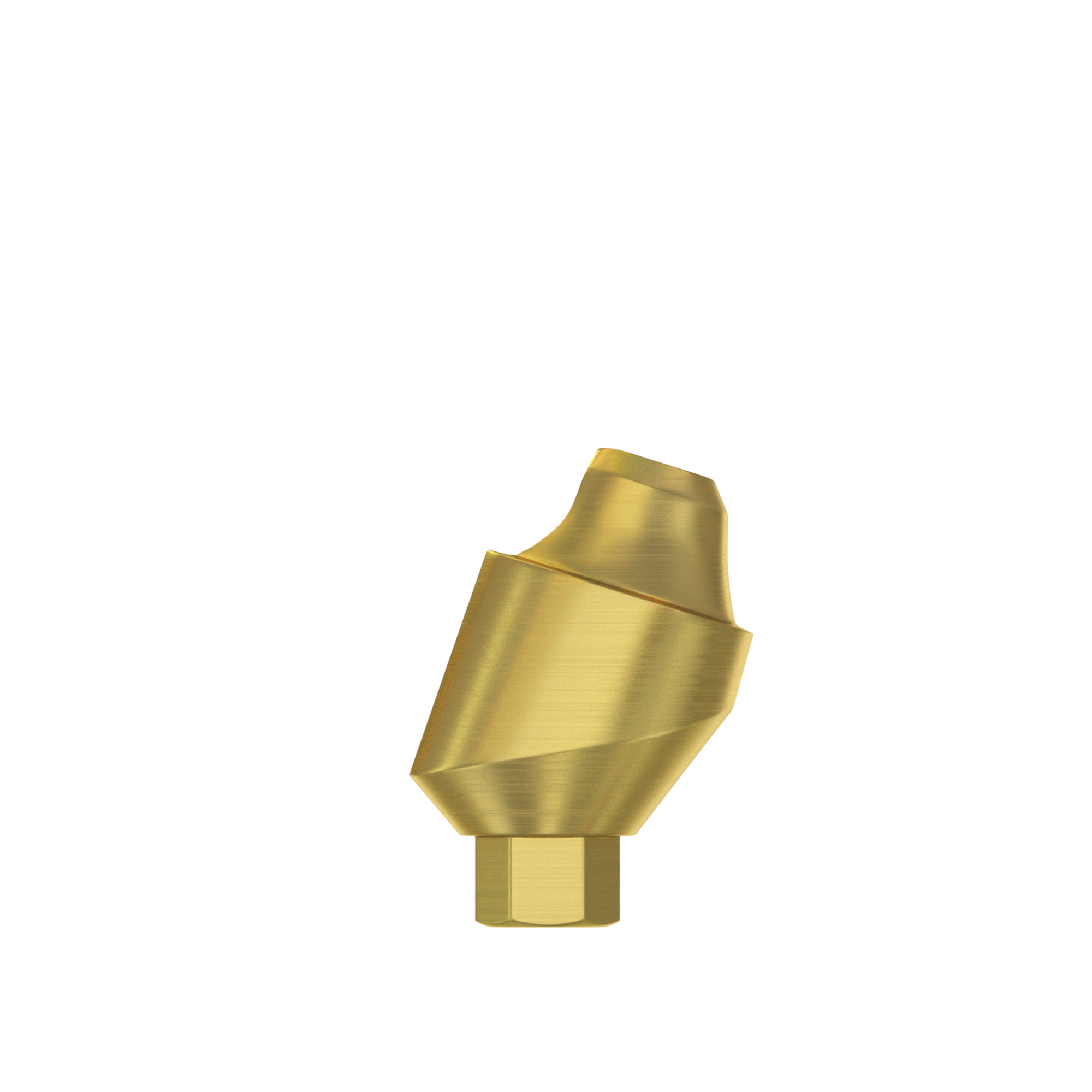

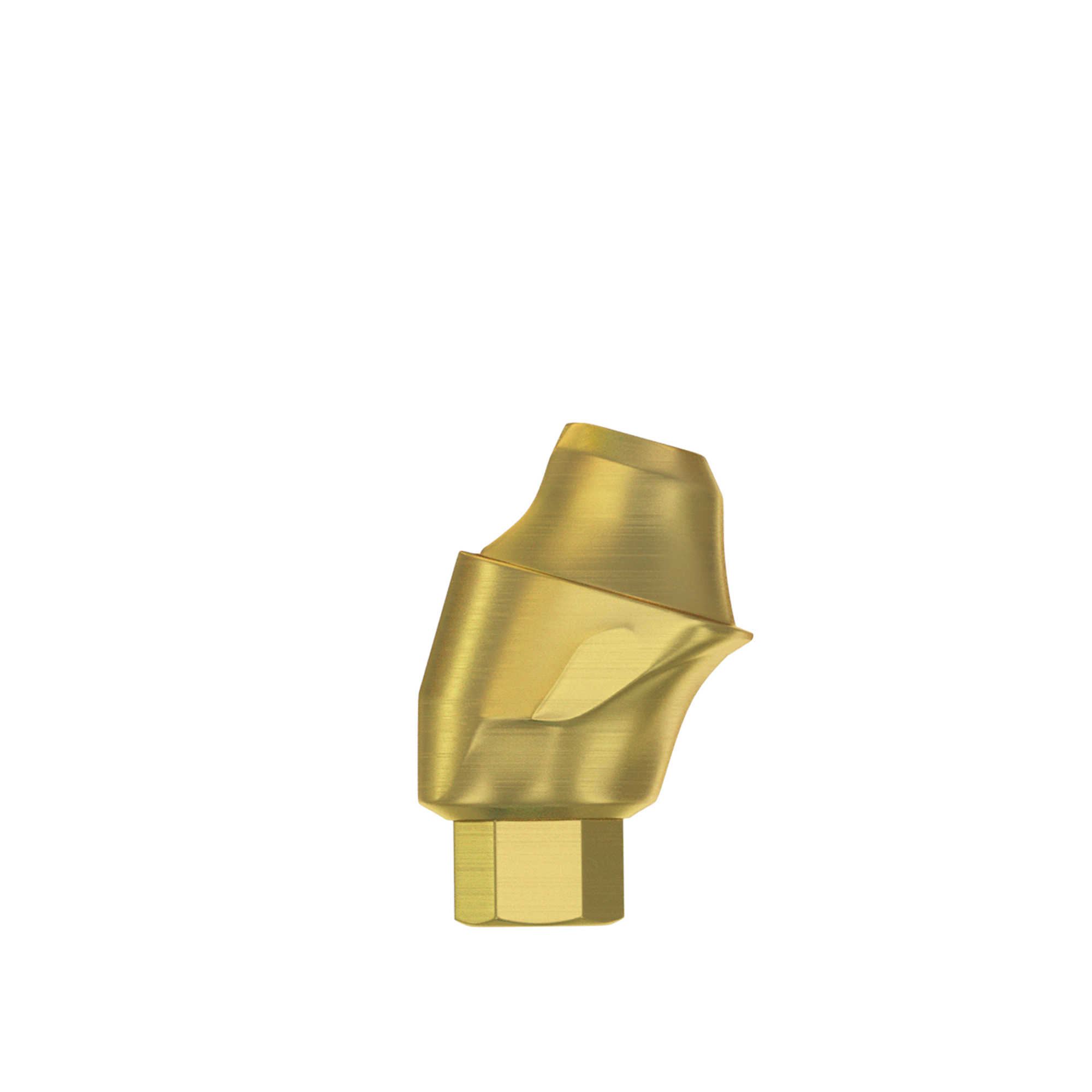

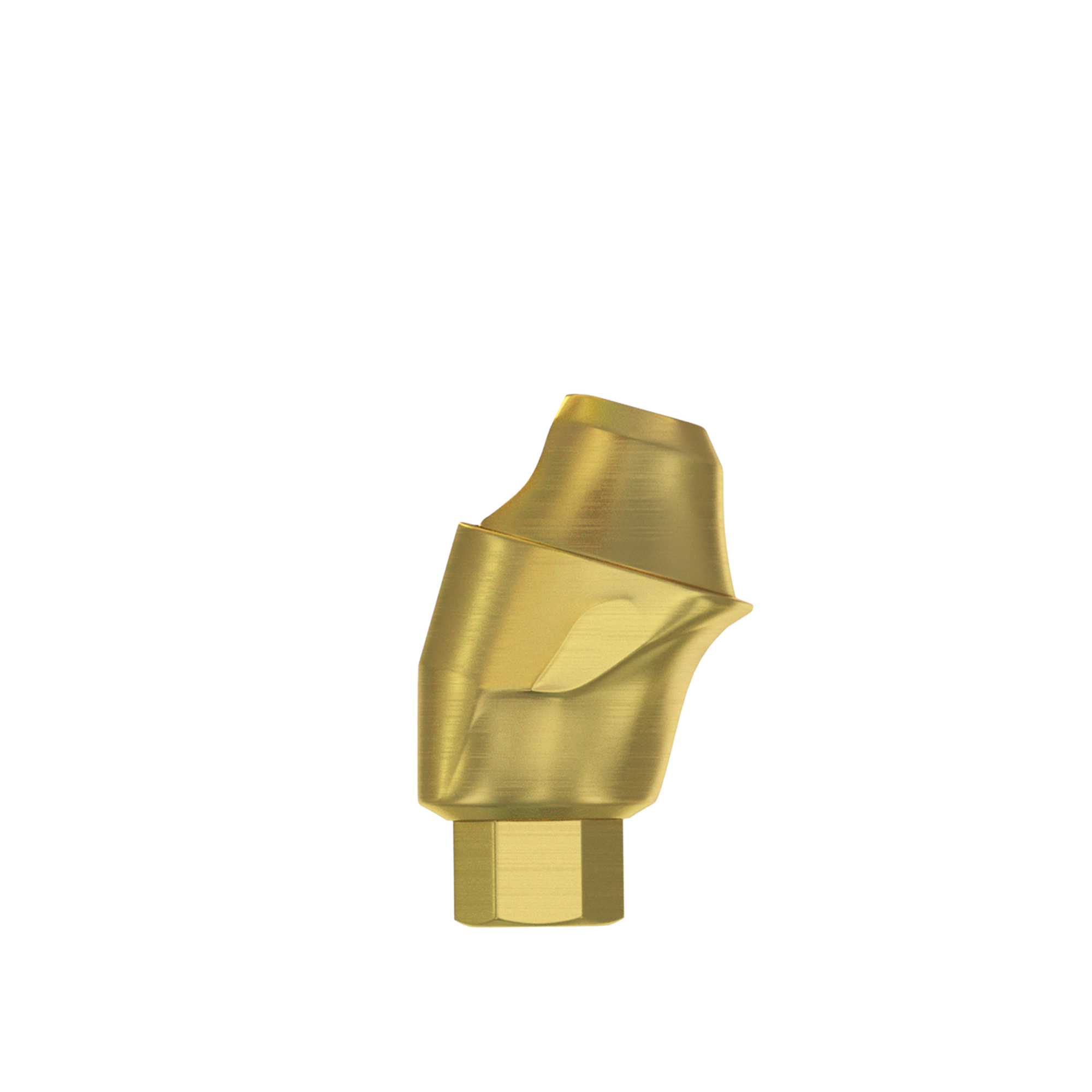

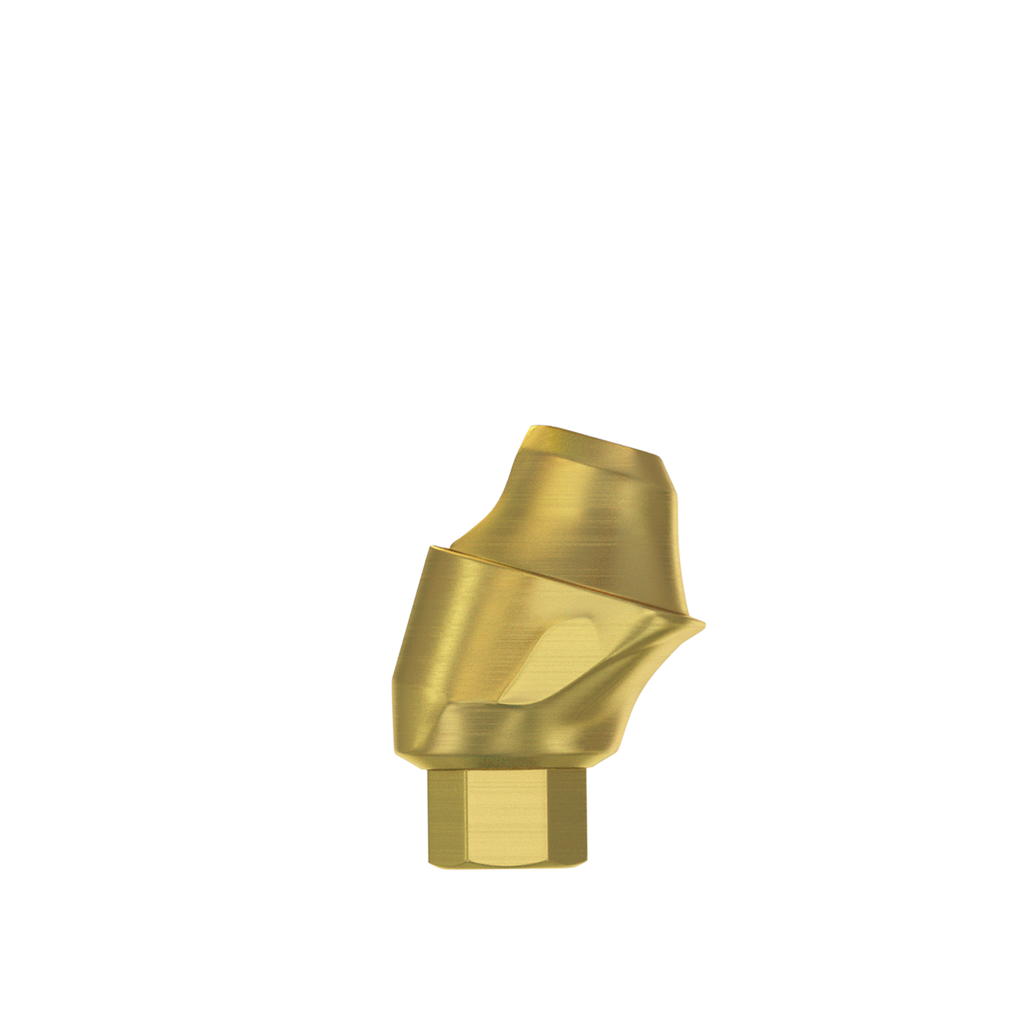

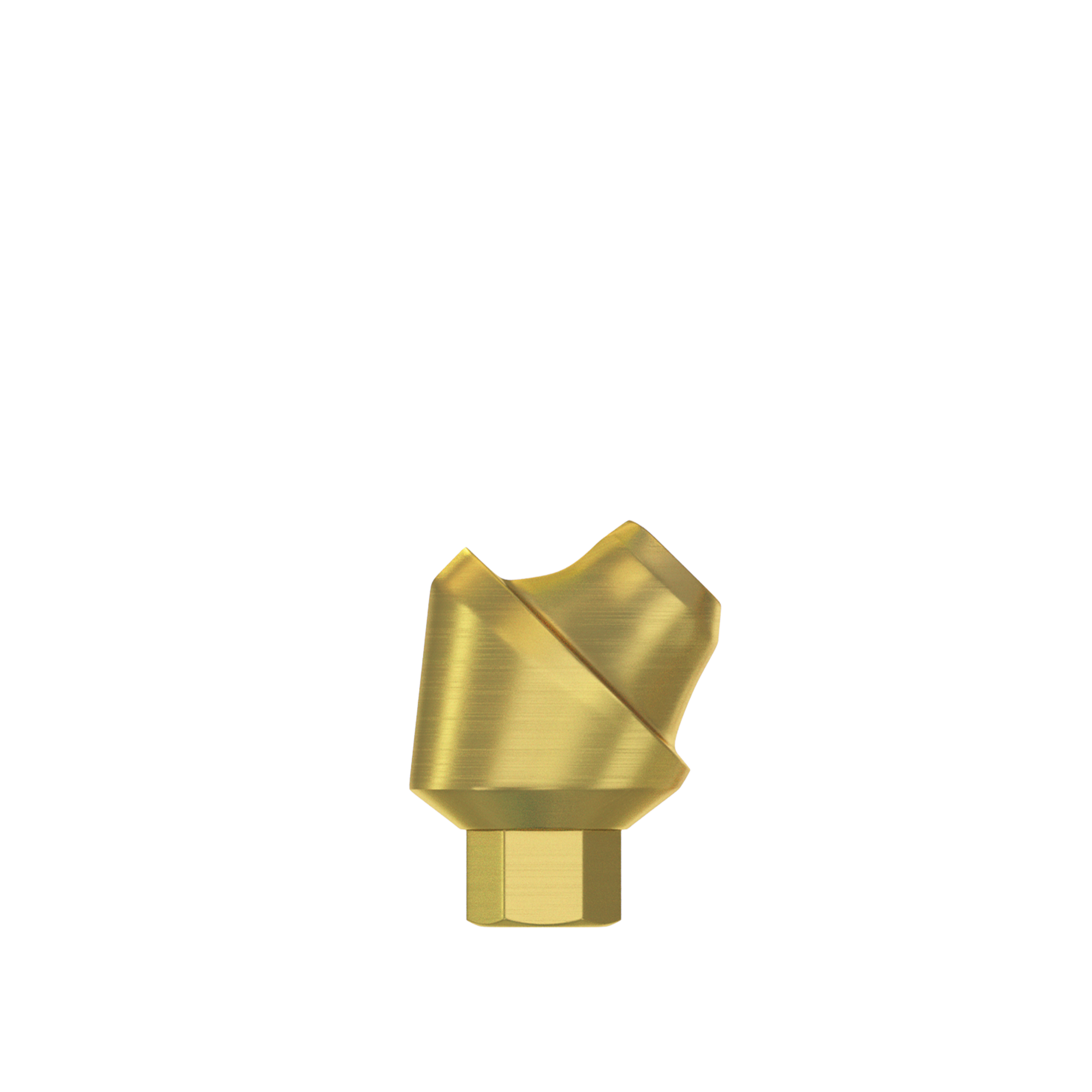

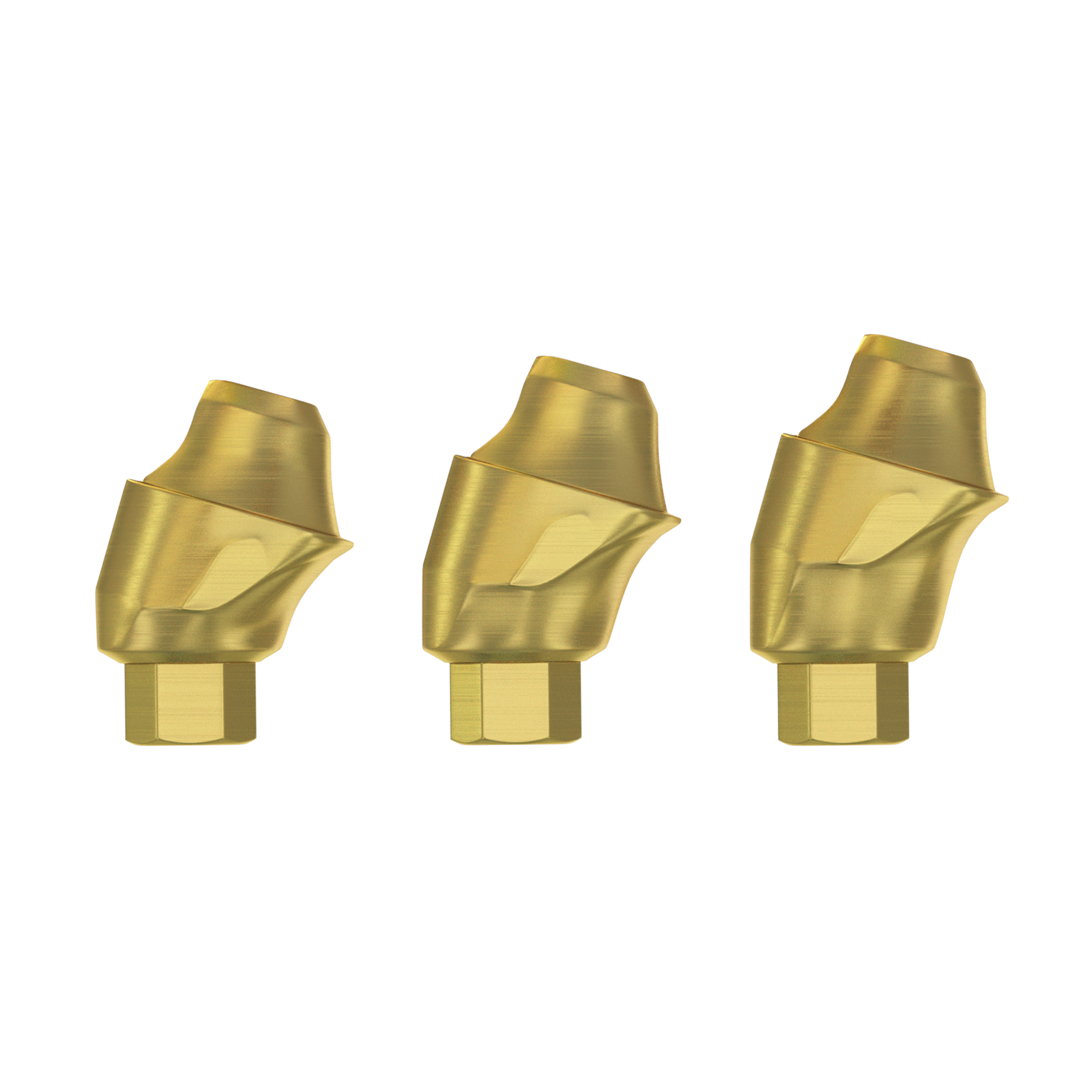

  1. GAMU-1710,GAMU-1720,GAMU-1730,GAMU-3010,GAMU-3020,GAMU-3030,GAMU-4510: Angulated Multi Unit Abutment Ø5.0mm ,1.0-3.0mm  x1

And the following parts:

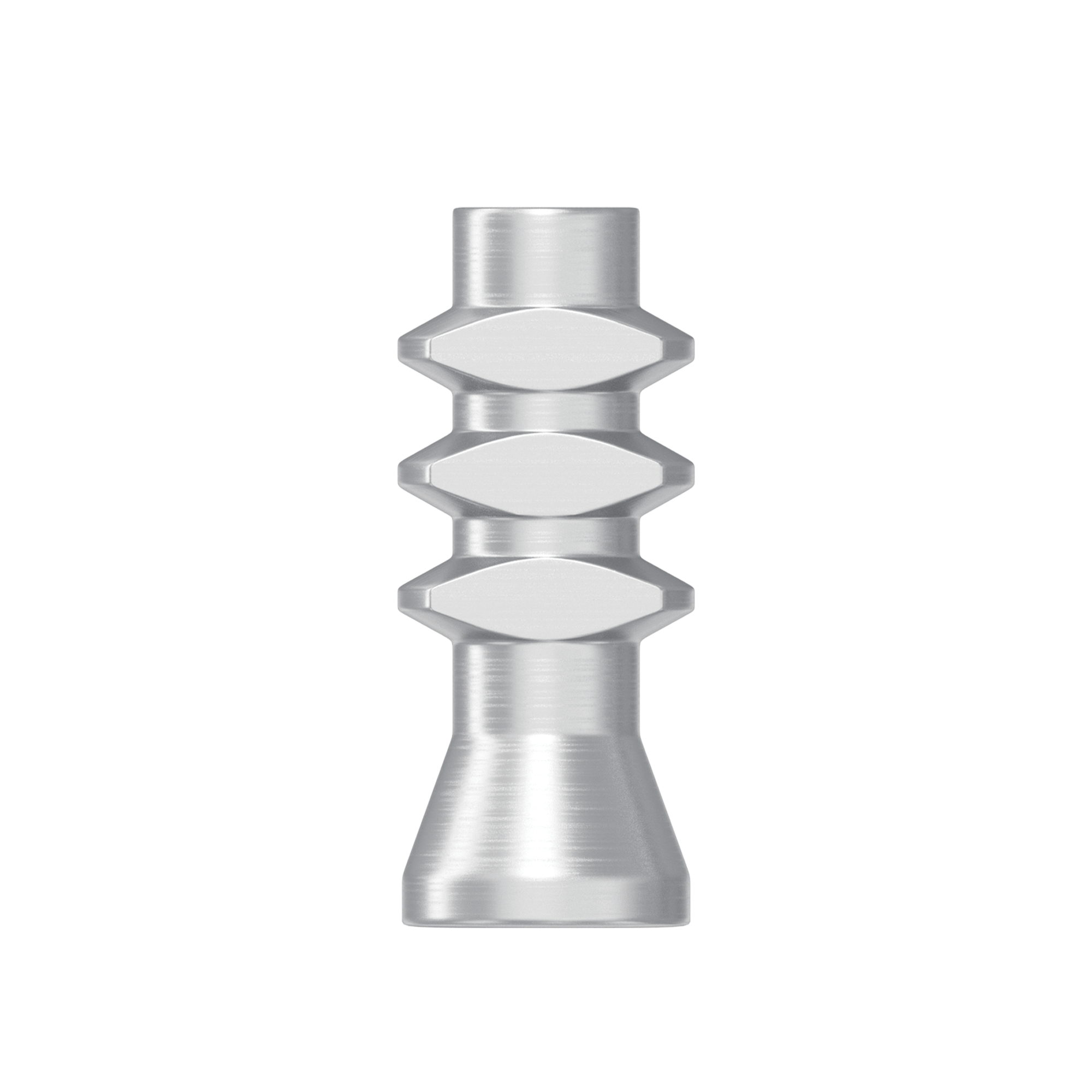

  1. MU-S-OT: Open Tray Transfer Ø 5.0mm , L=9.0mm, H=11.5mm  x 1

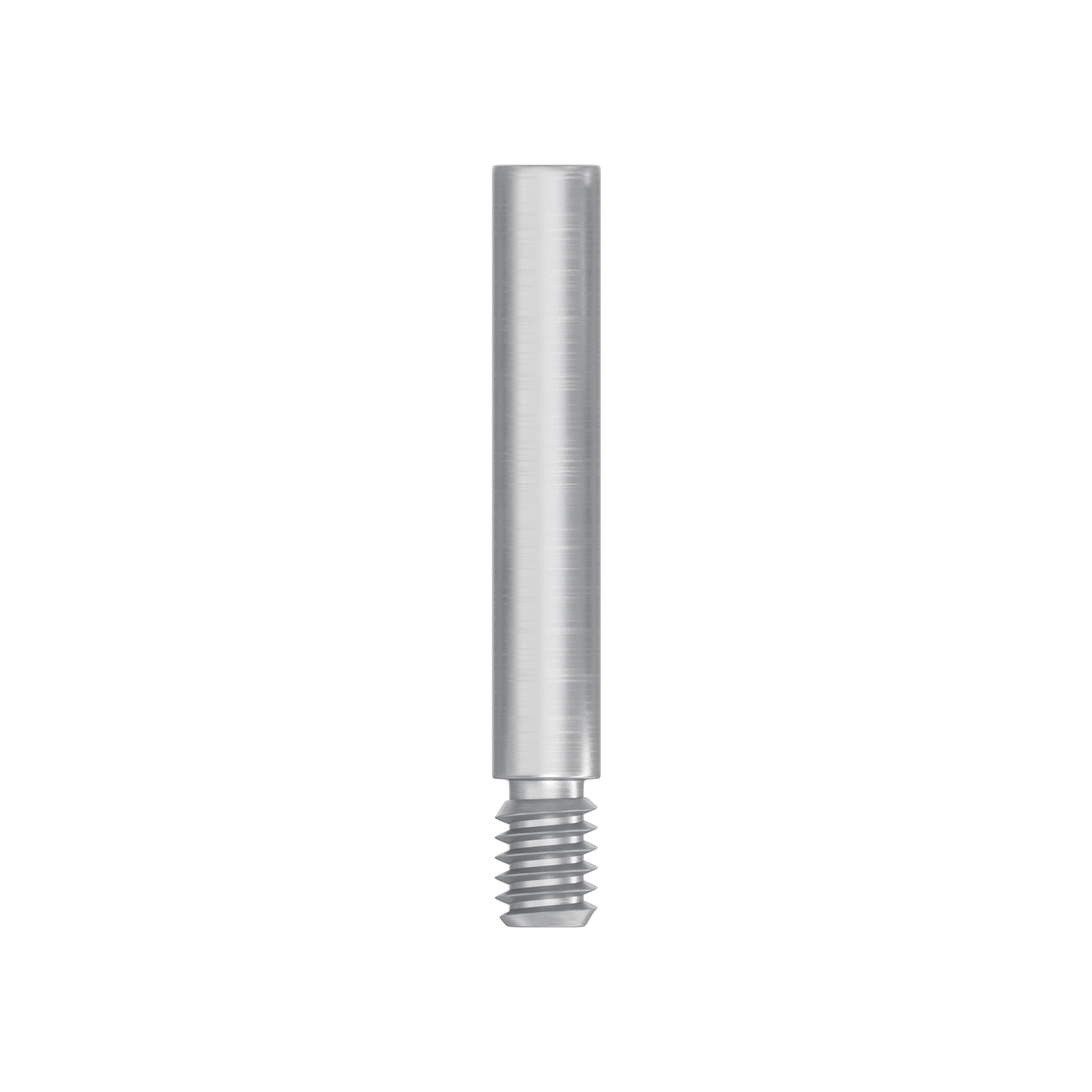

  2. MU-S-LT: Long Transfer Screw Ø 2.0mm , L=12.0mm, H=14.0mm  x 1

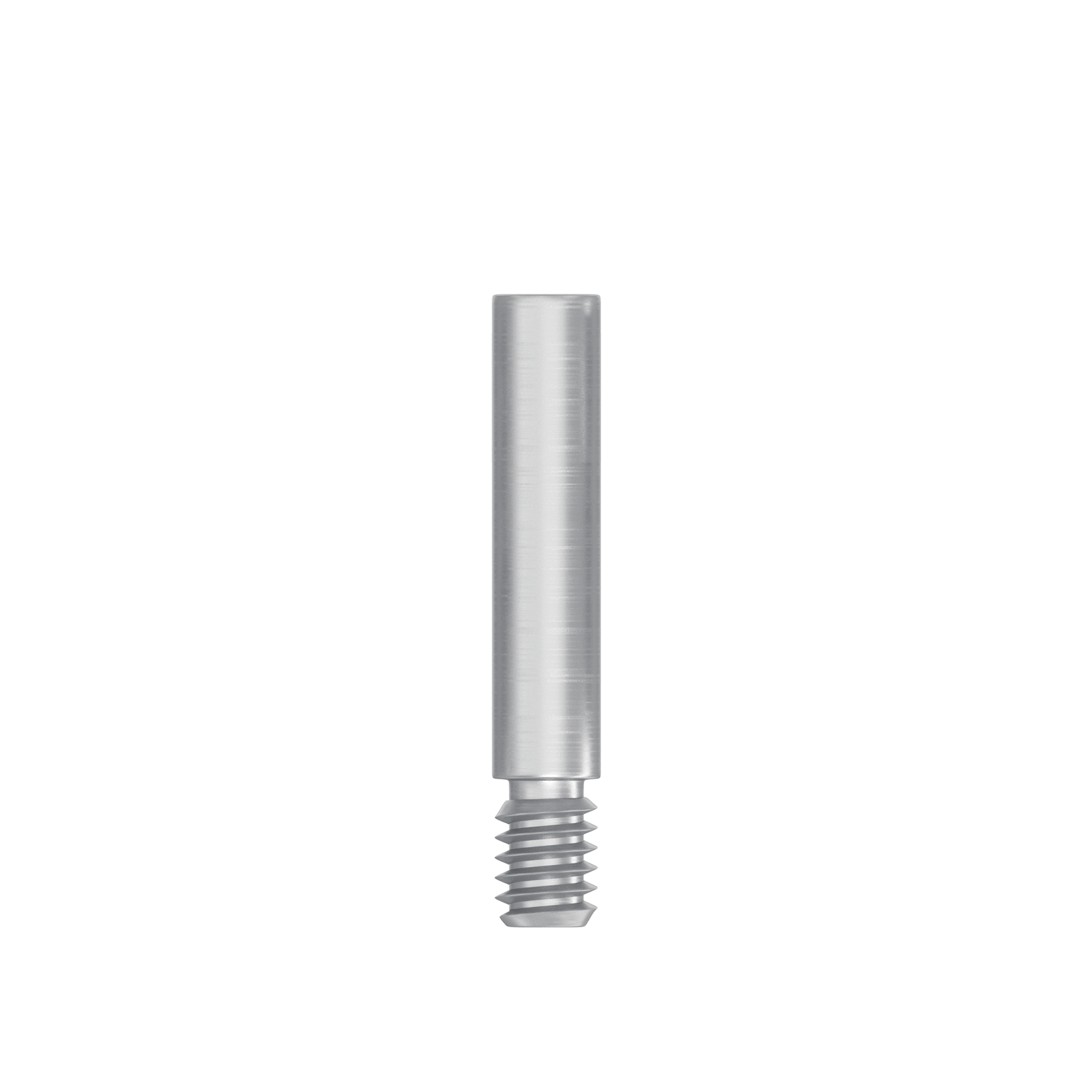

  3. MU-S-ST: Short Transfer Screw Ø 2.0mm , L=9.0mm, H=11.0mm  x 1

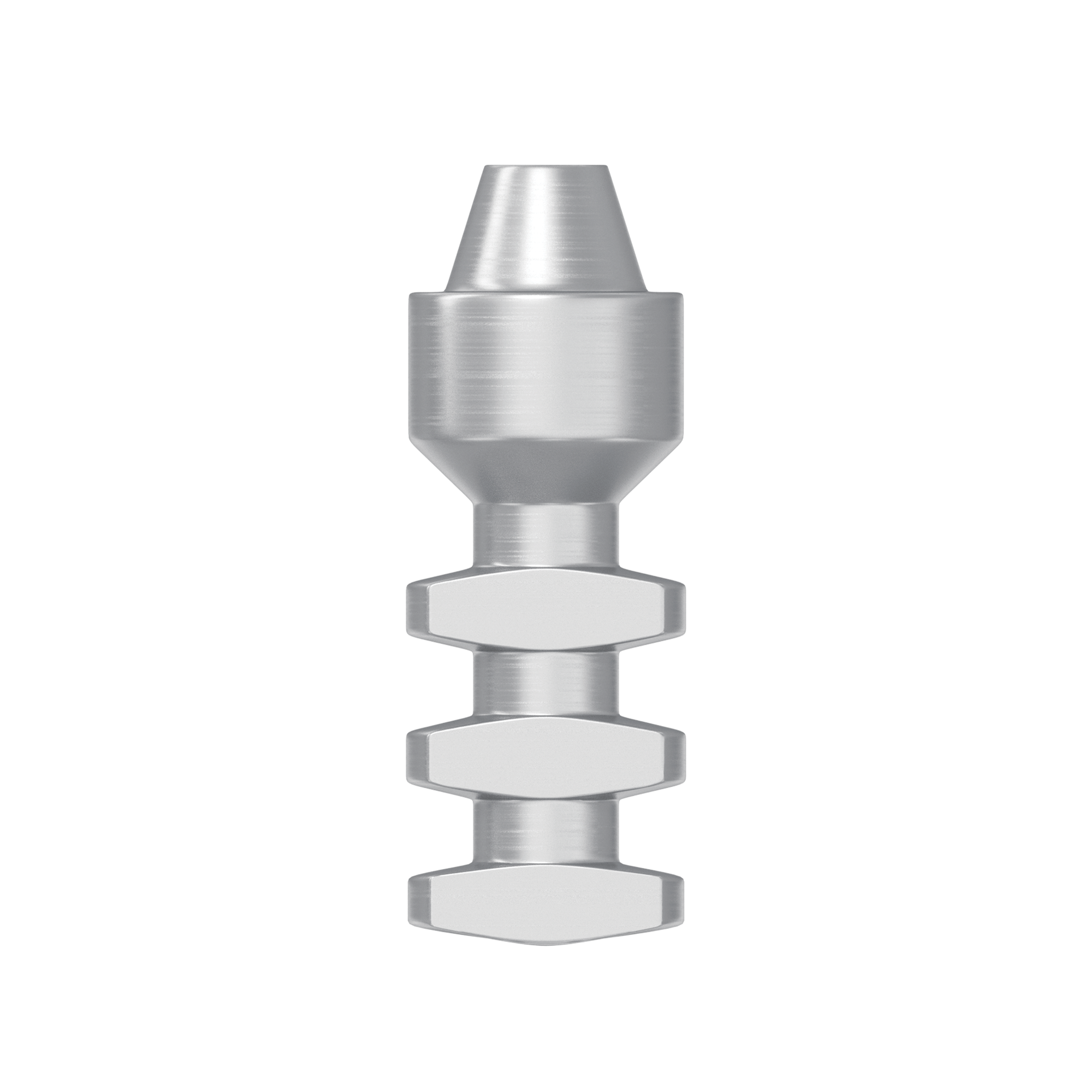

  4. MU-S-AN: Titanium Analog Ø 5.0mm , L=7.3mm, H=13.5mm  x 1

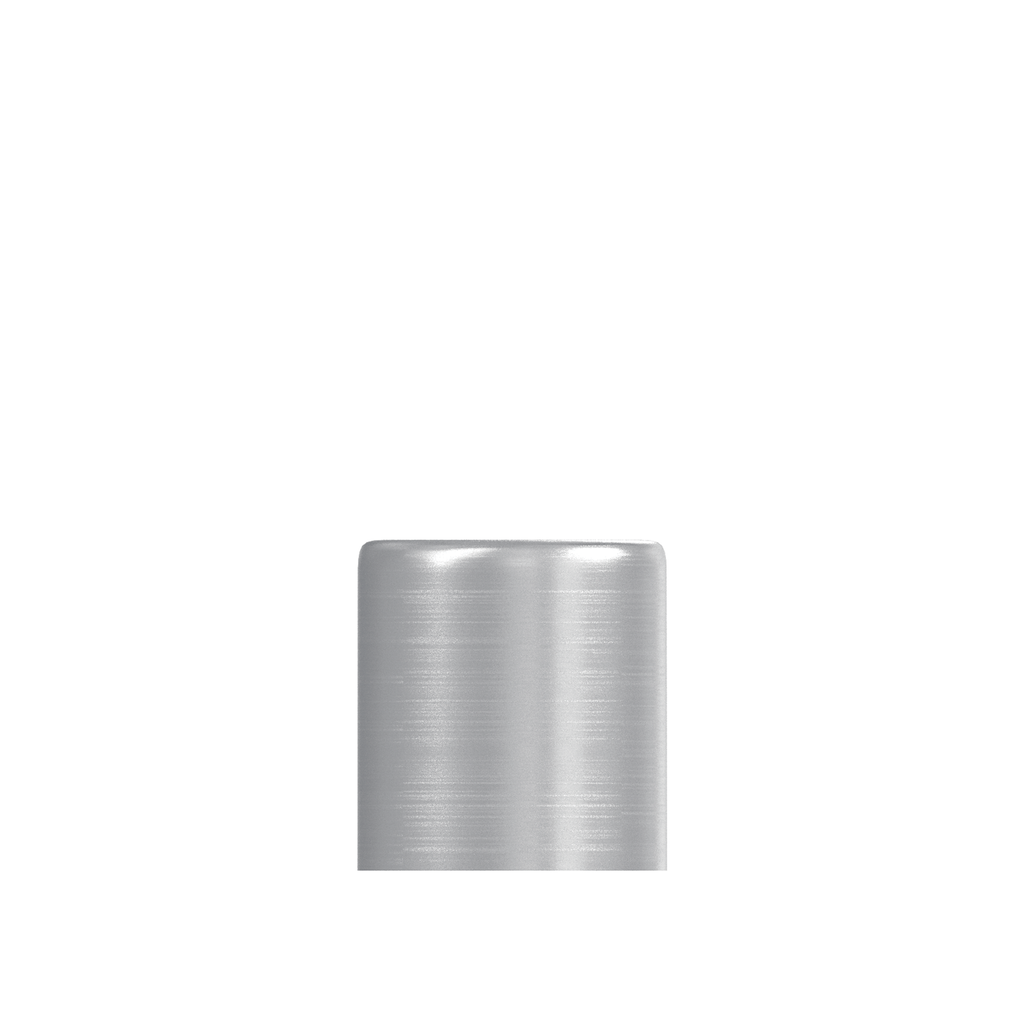

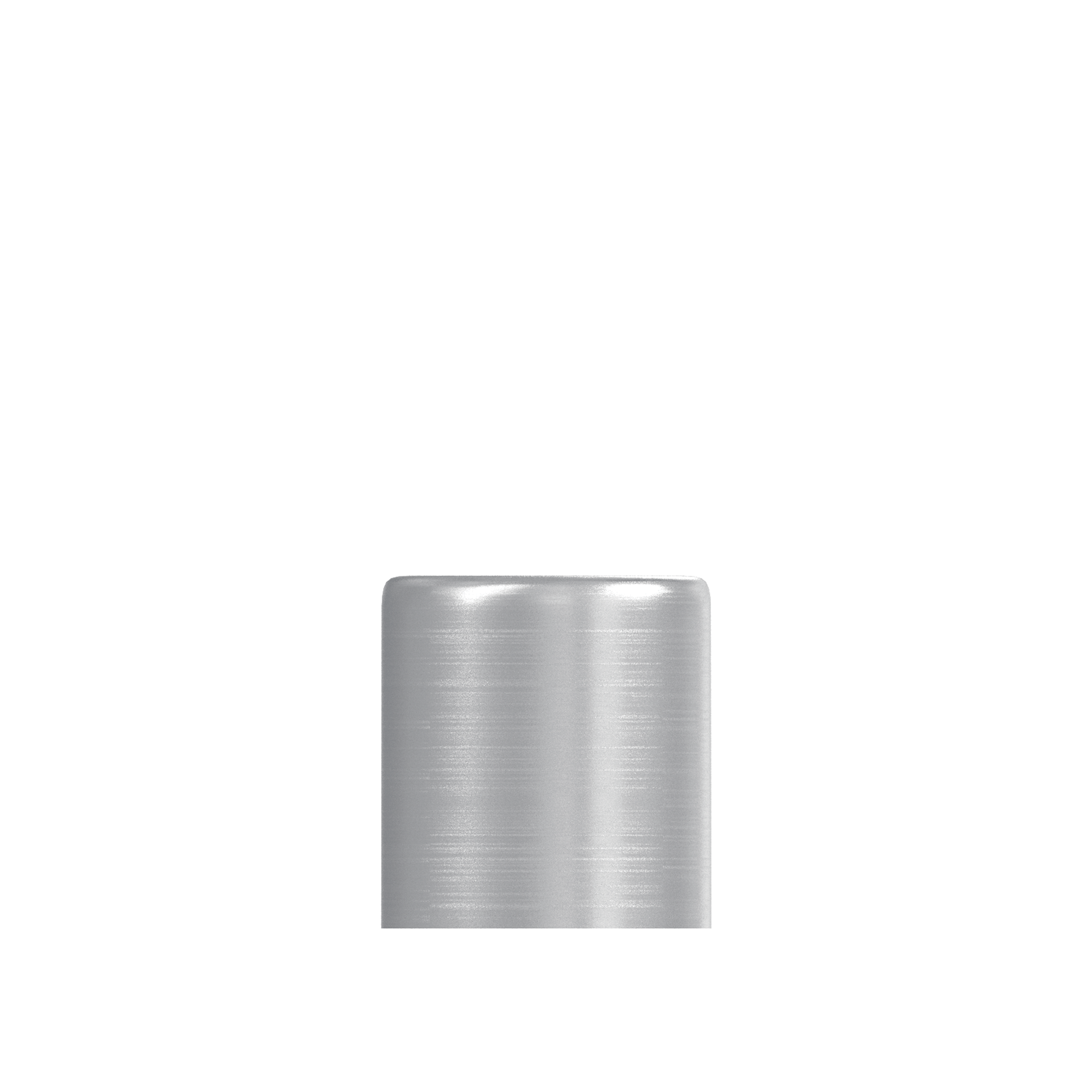

  5. MU-S-HC: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm  x 1

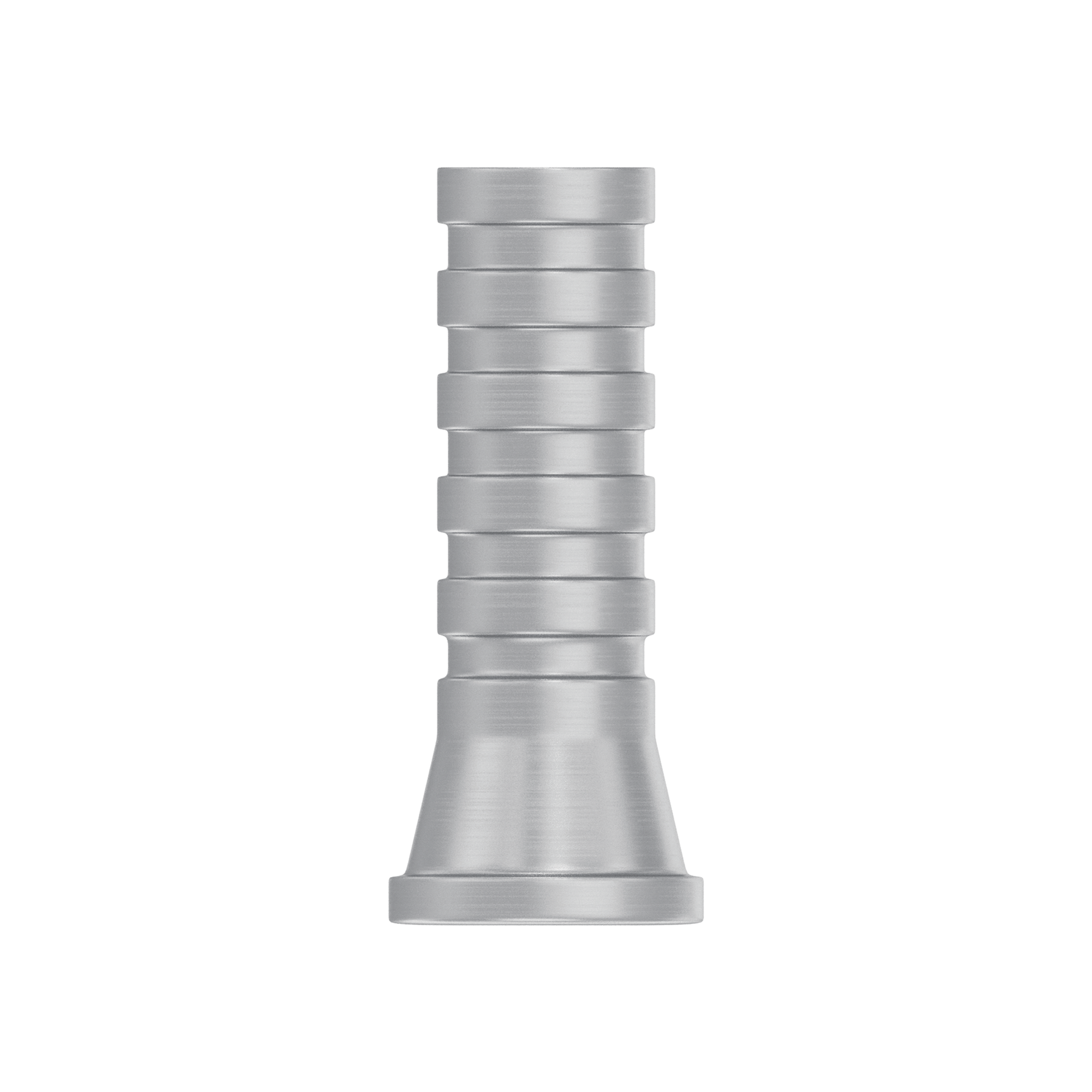

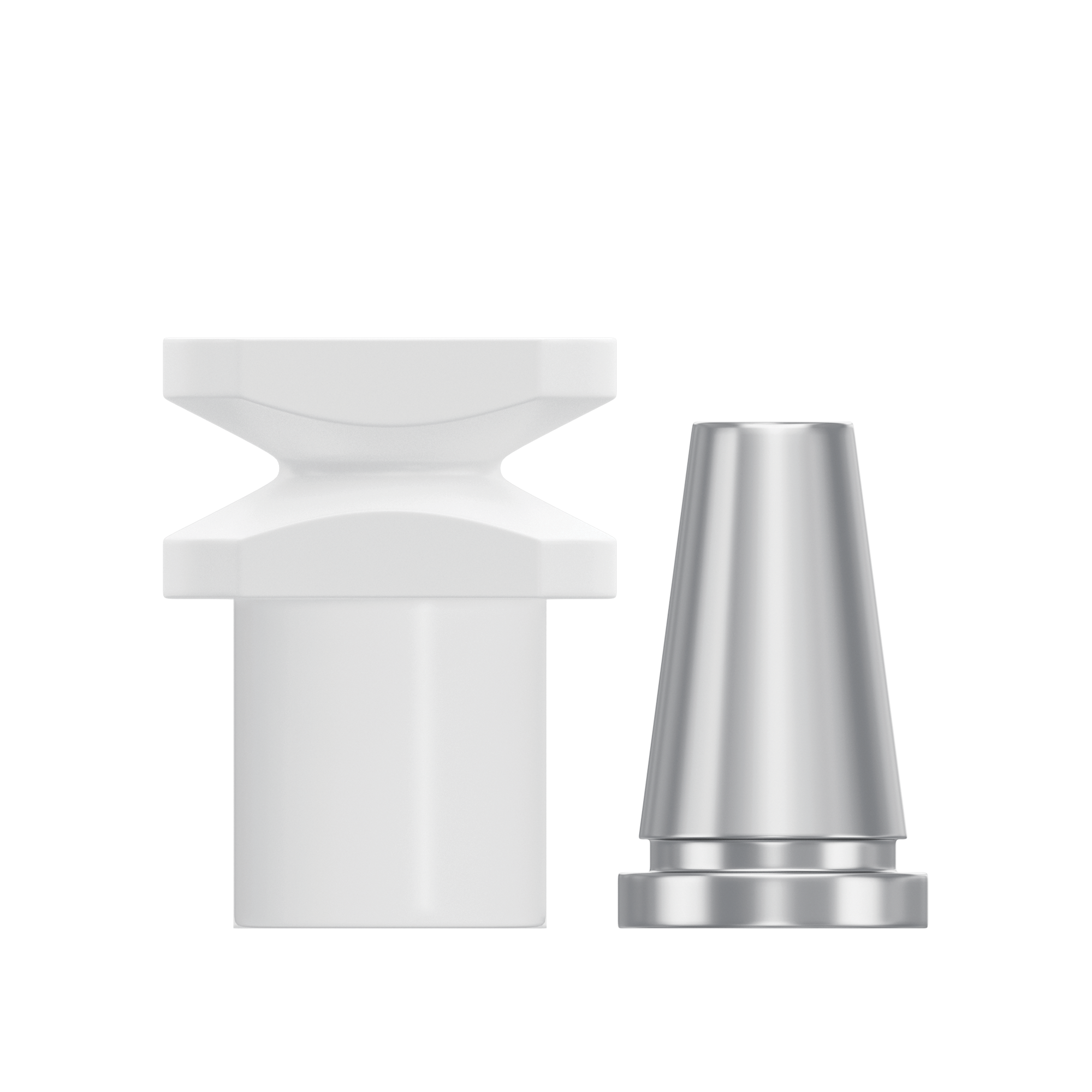

  6. MU-S-TS: Titanium Sleeve Abutment Ø 5.0mm , L=9.0mm, H=12.0mm  x 1

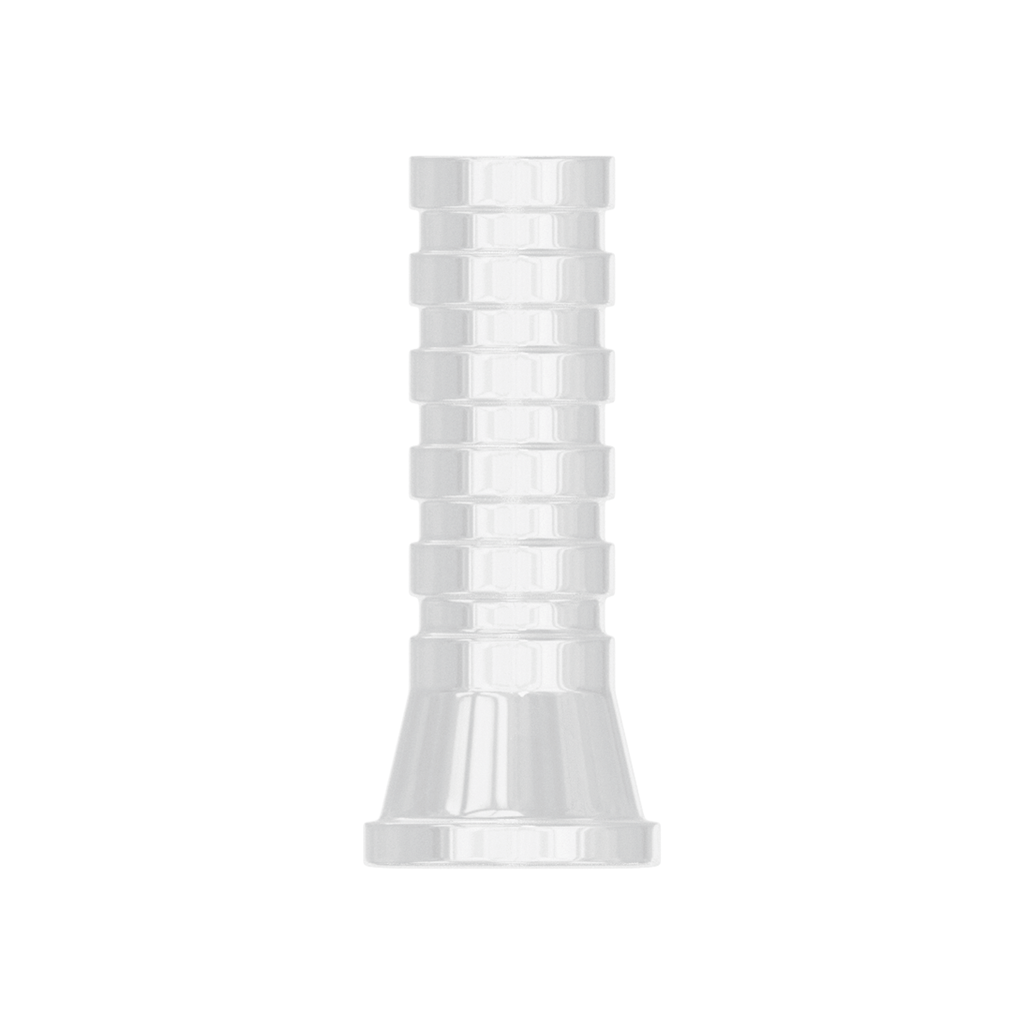

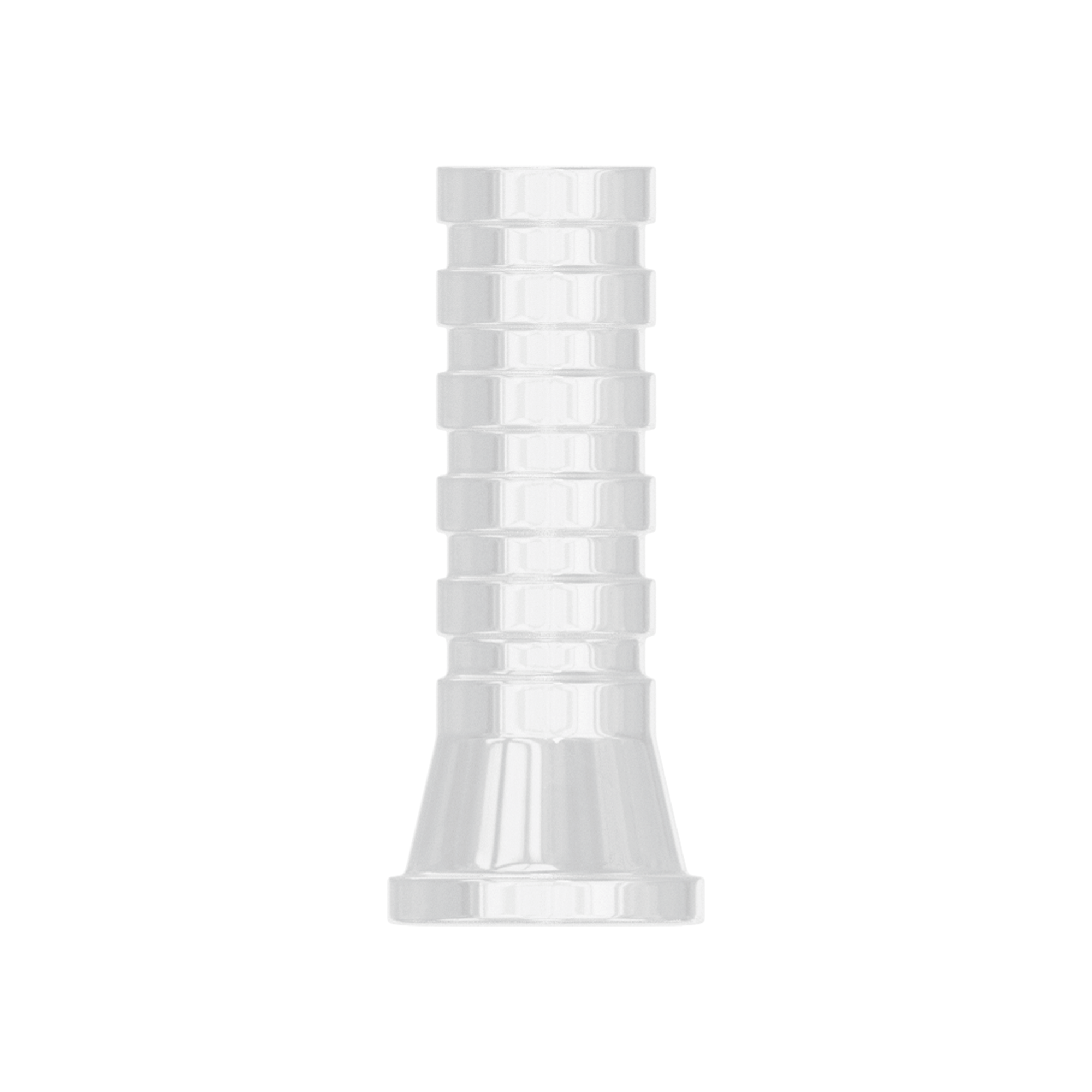

  7. MU-S-SP: Castable Sleeve Abutment(for Lab) Ø 5.0mm , L=9.0mm, H=12.0mm  x 1

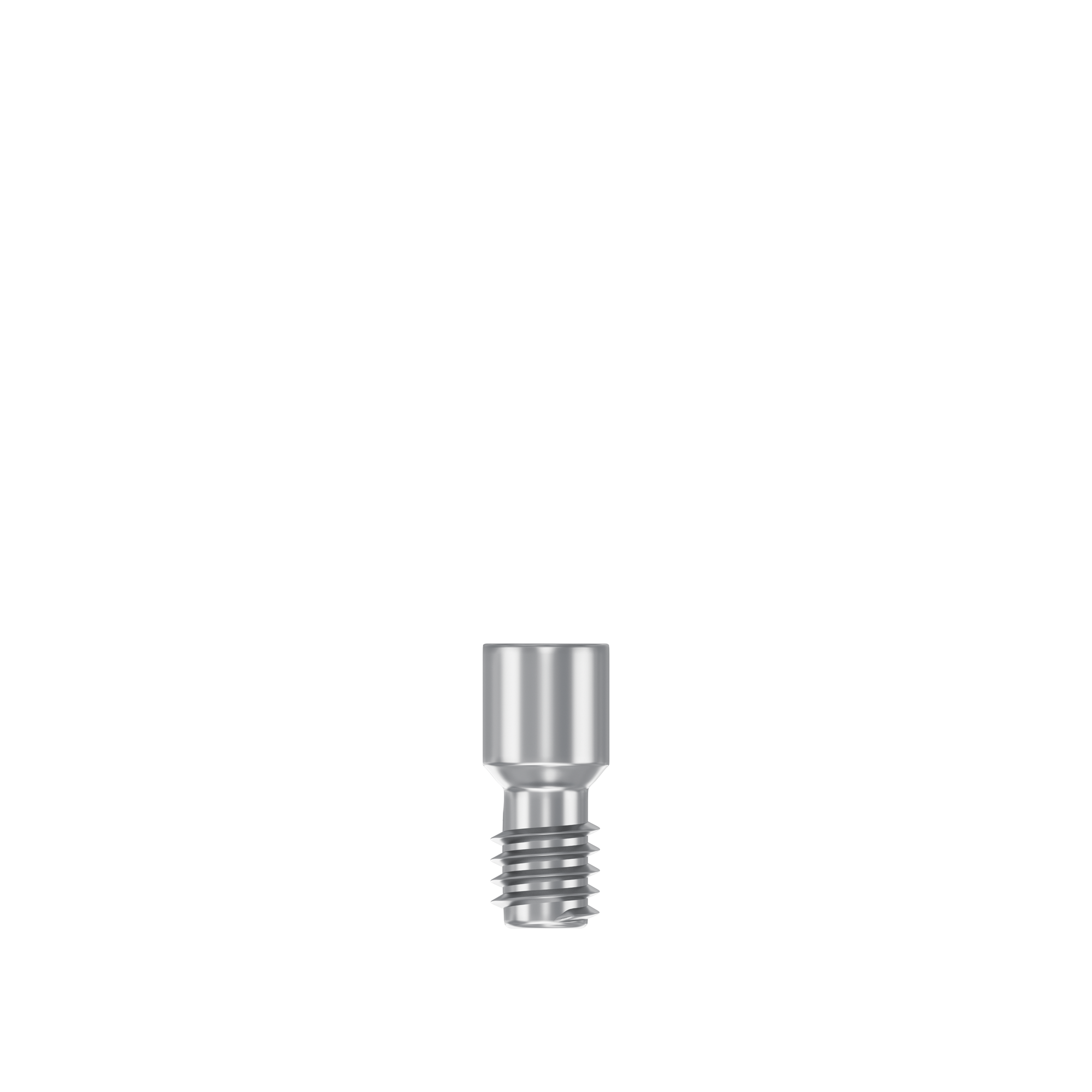

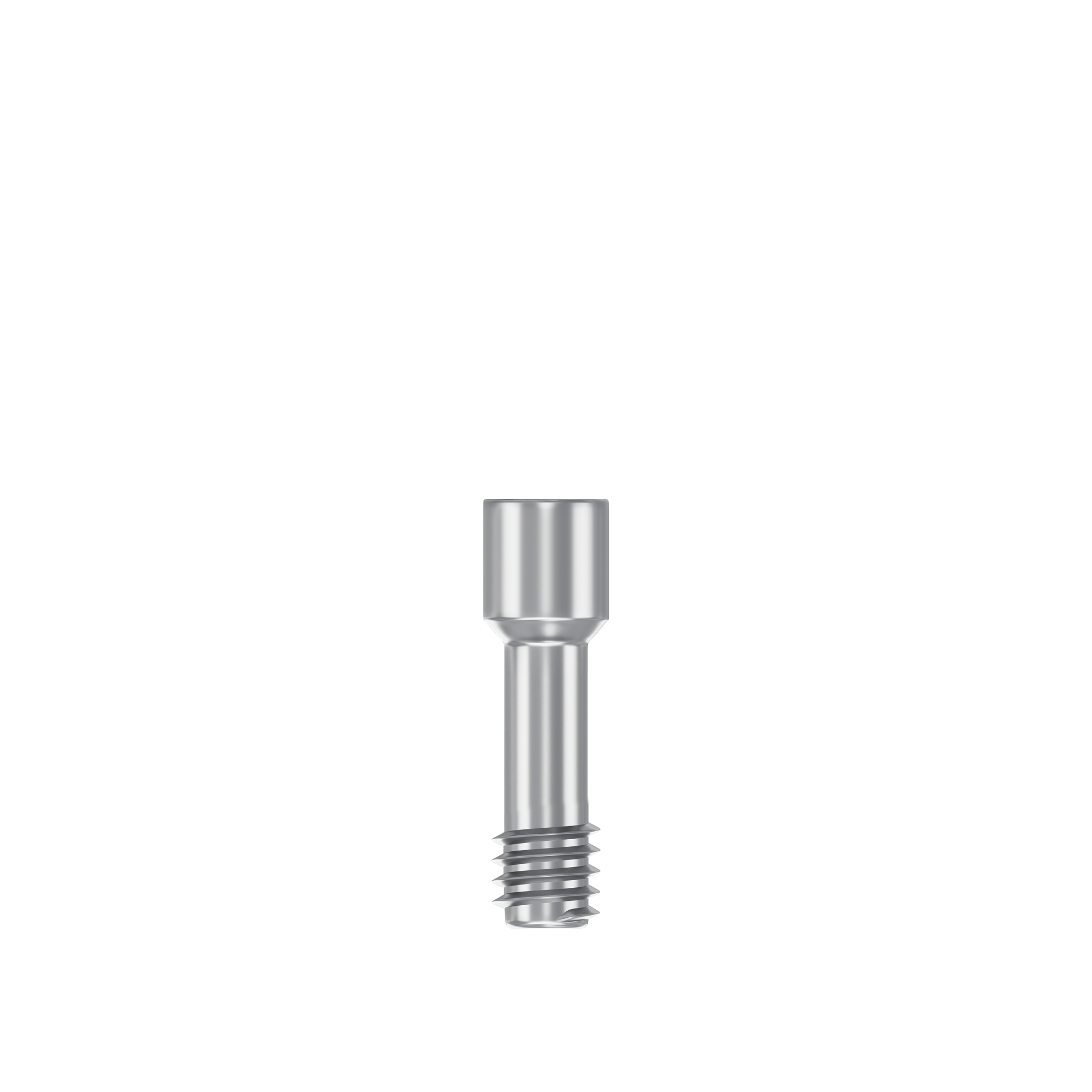

  8. MU-S-FX: Fixation Short Screws Ø 1.72mm , L=2.5mm, H=5.0mm  x 2

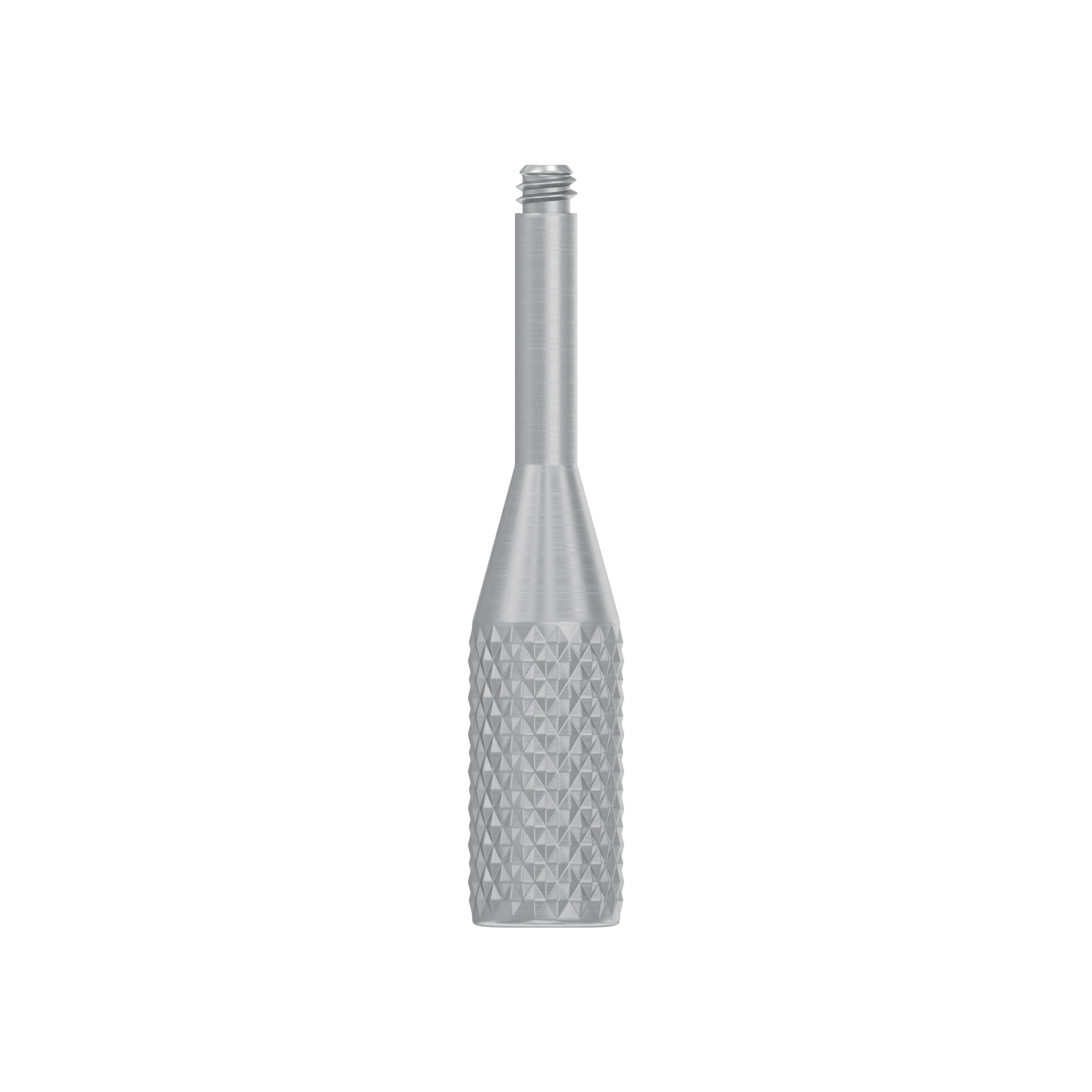

  9. MUIH: Metal Position Holder Ø 1.72mm , L=14.0mm, H=20.0mm  x 1

DSI Next-Gen multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case. DSI Next-gen Multi-Unit abutment is one of the only systems that allows torquing the restoration to 30 Ncm, including angulated versions. This ensures the stability of the restoration.

Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6
  • For non-parallel implant alignment cases



Features:

  • Excellent biocompatibility, no risk of abruption.
  • Precise, non-rotational, functional.
  • Simple, fast, and accurate positioning.
  • Outstanding stability for the crowns and bridges
  • Superior aesthetic results.

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible

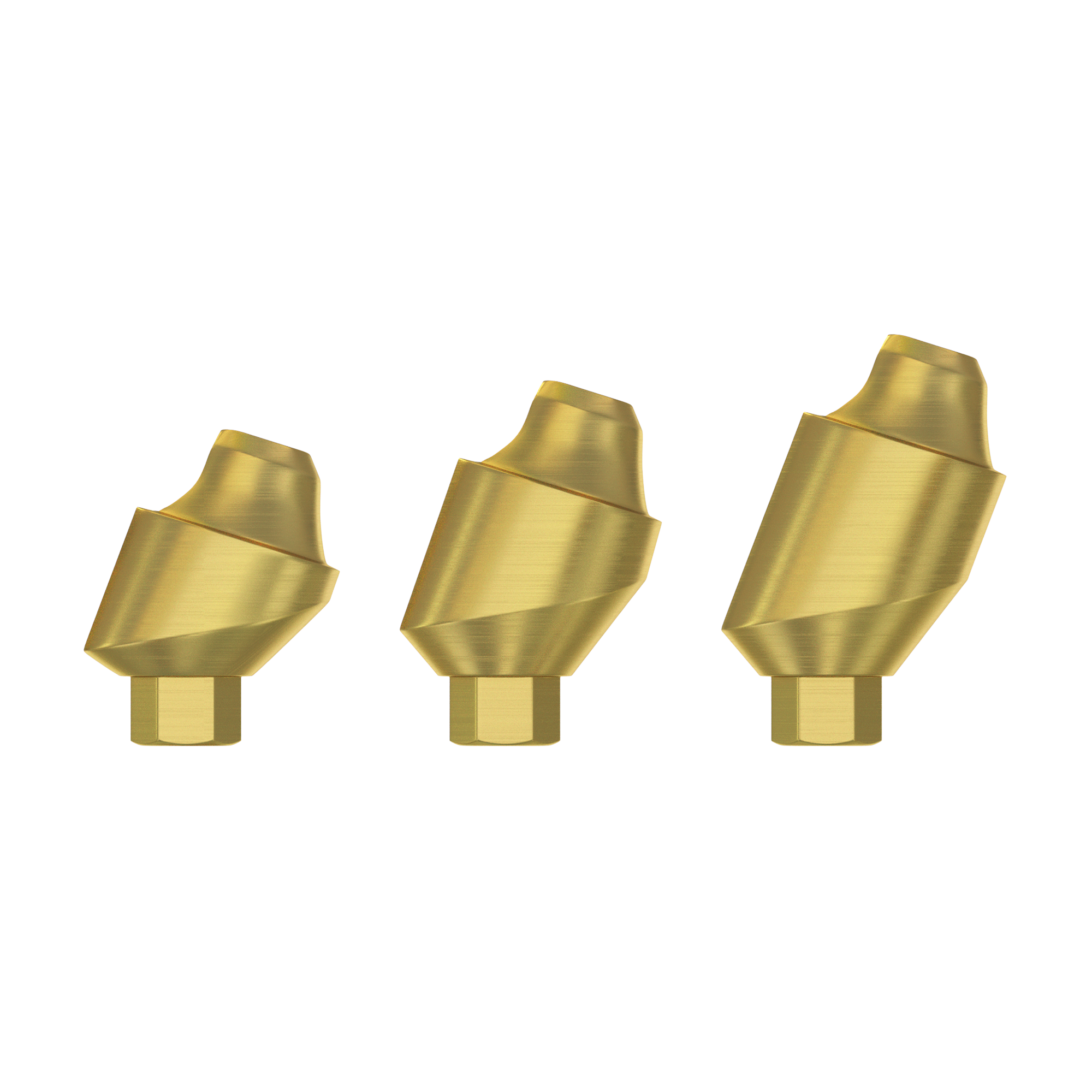

  • Standard platform - regular body Ø5.0mm / collar height 1-3mm
  • Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
  • Multi Unit level Connection M1.7 Compatible with :  Paltop, Surcam
  • 17° Degrees
  • 30° Degrees
  • 45° Degrees
  • Titanium fixation screw included with every abutment

Specification

Product type: Next-Gen MUA Angulated Kit

Platform: Standard platform -  Internal Hex Ø2.42mm

Implant Level Compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP

Multi Unit level Connection M1.7 Compatible with :  Paltop, Surcam

Material:

  • Titanium Ti-6Al-4V-ELI
  • Stainless Steel Grade 316
  • Delrin

Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6

Country of origin: Israel

Material:
  • Titanium alloy Ti-6Al-4V grade 23 ELI
  • Acetal (Delrin®)
Package contents:
  • 1 Angulated MUA + Accessories (see description)
Platform:

Internal Hex Ø2.42mm
