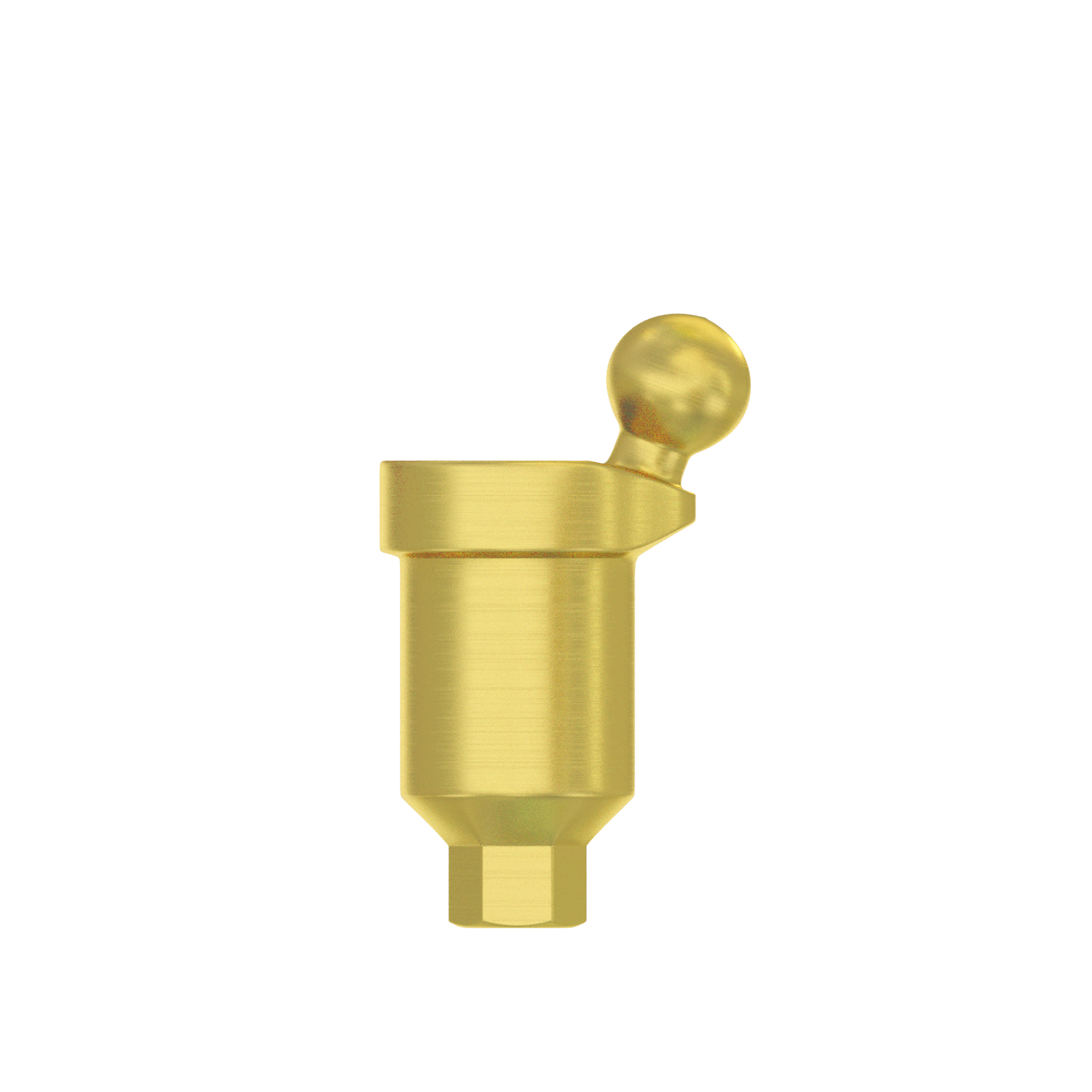

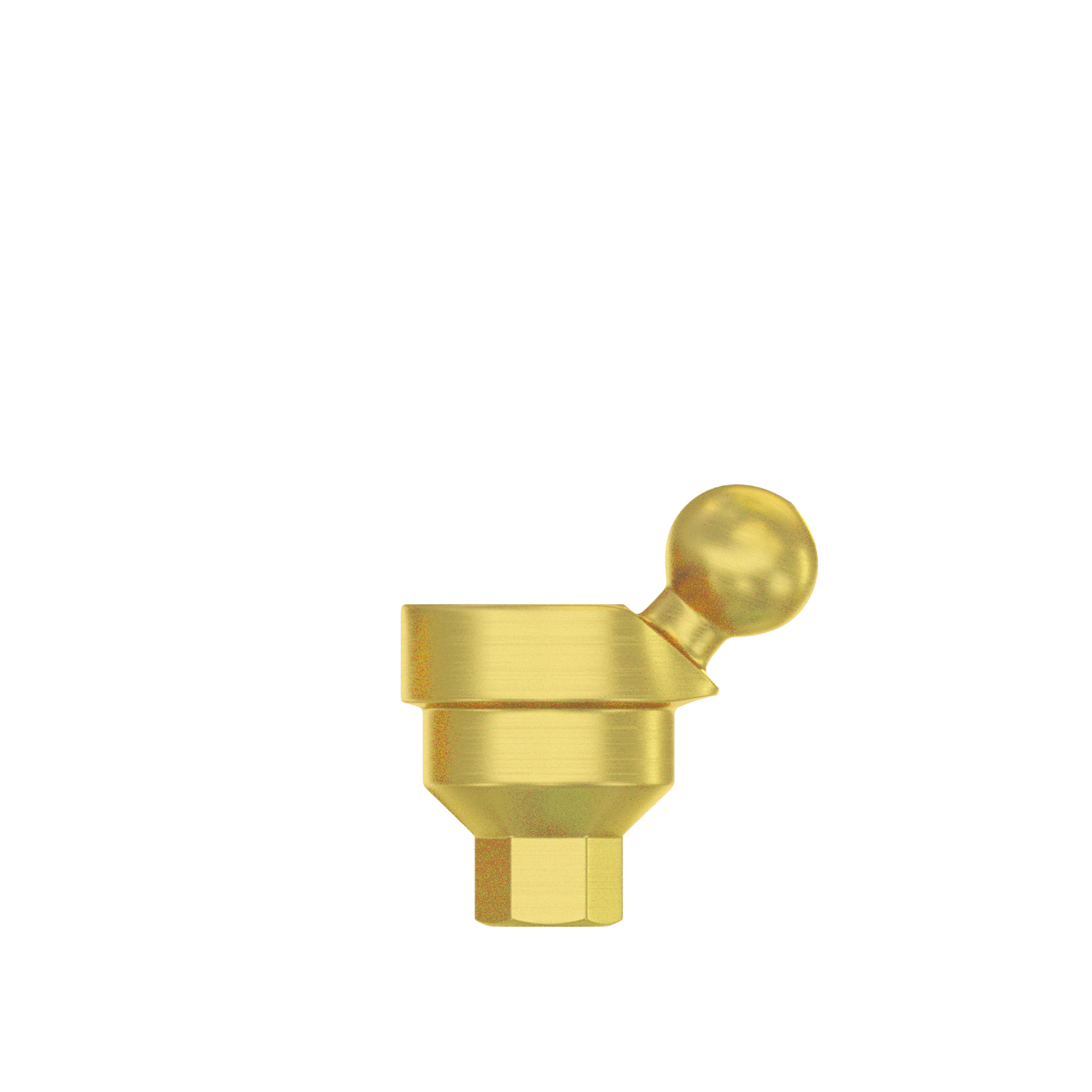

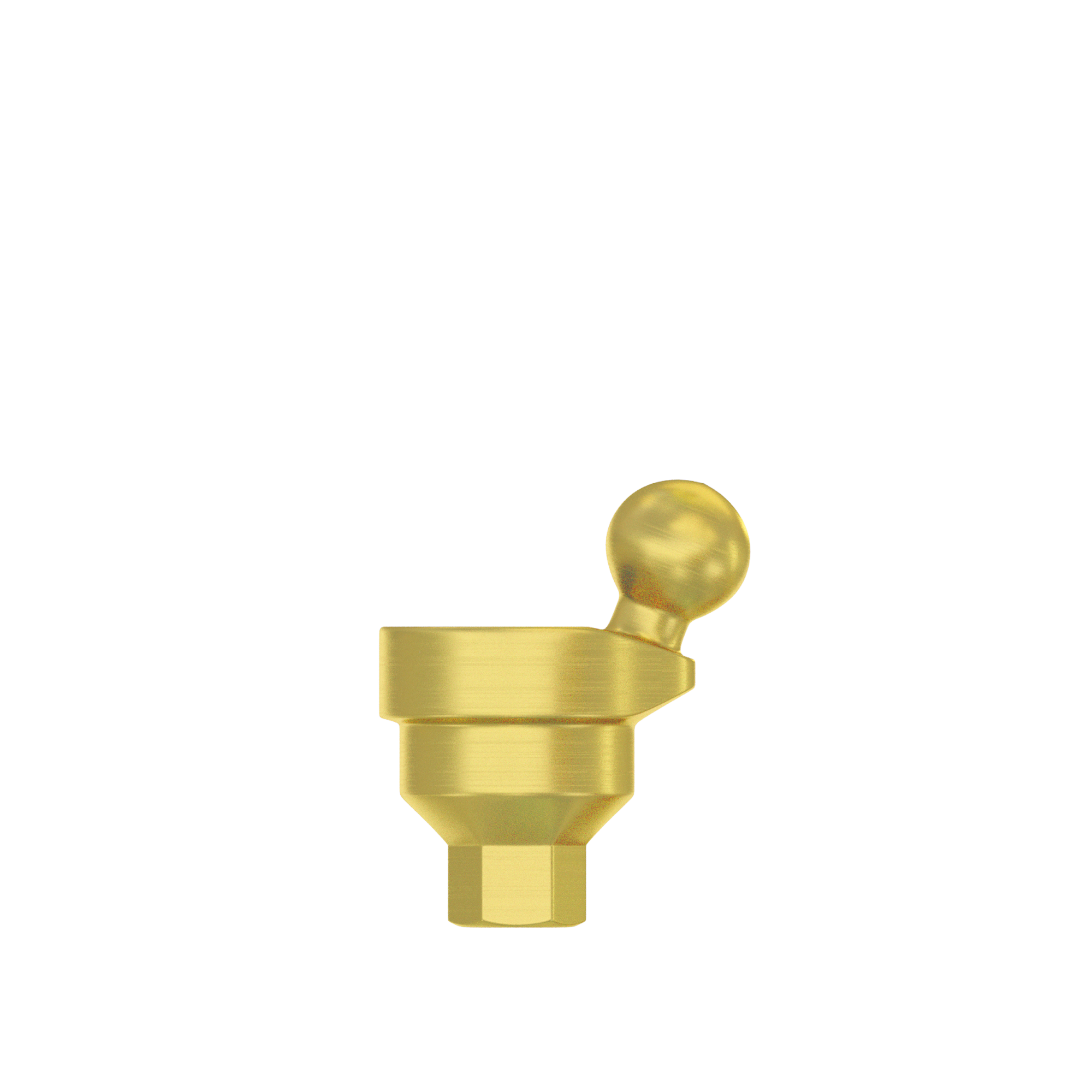

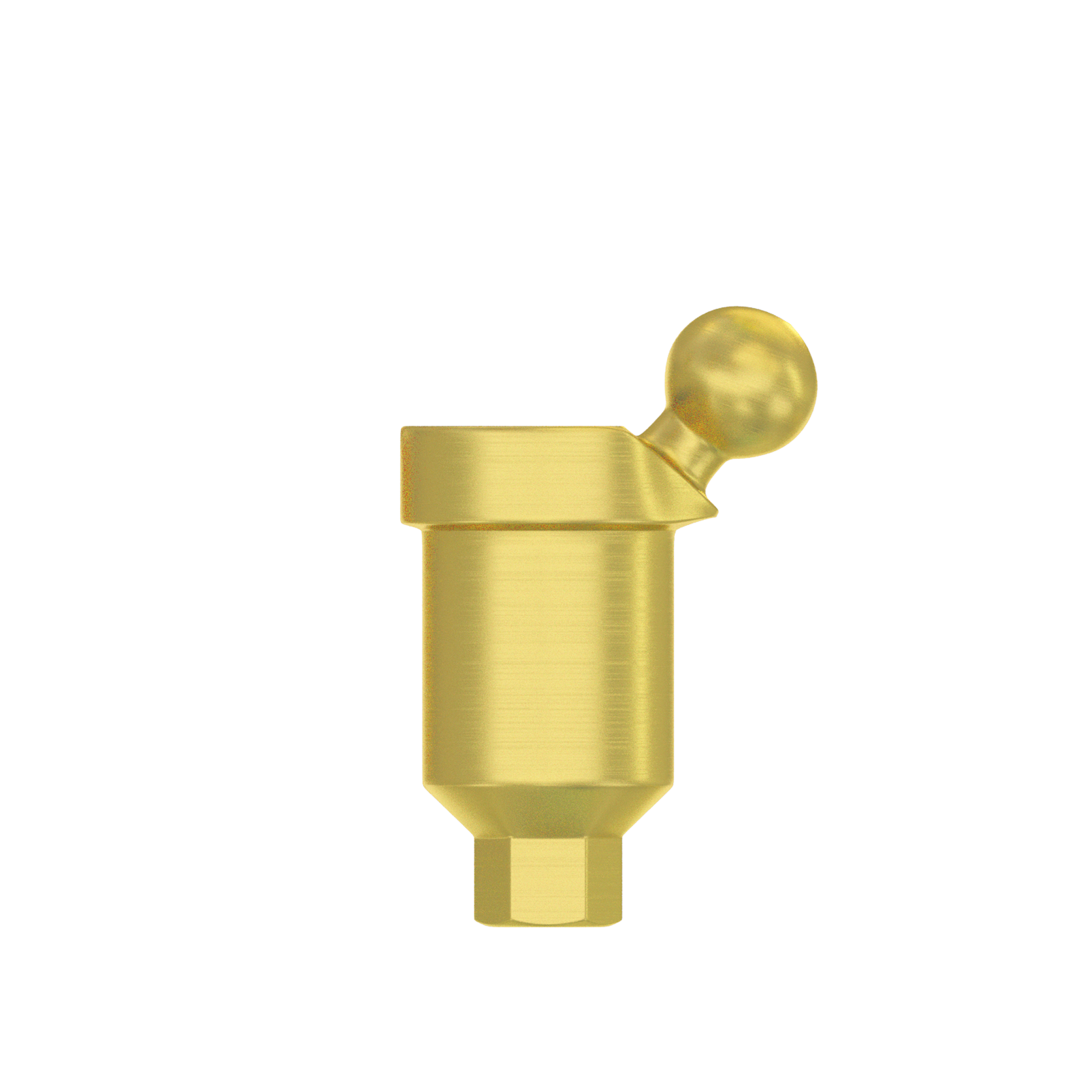

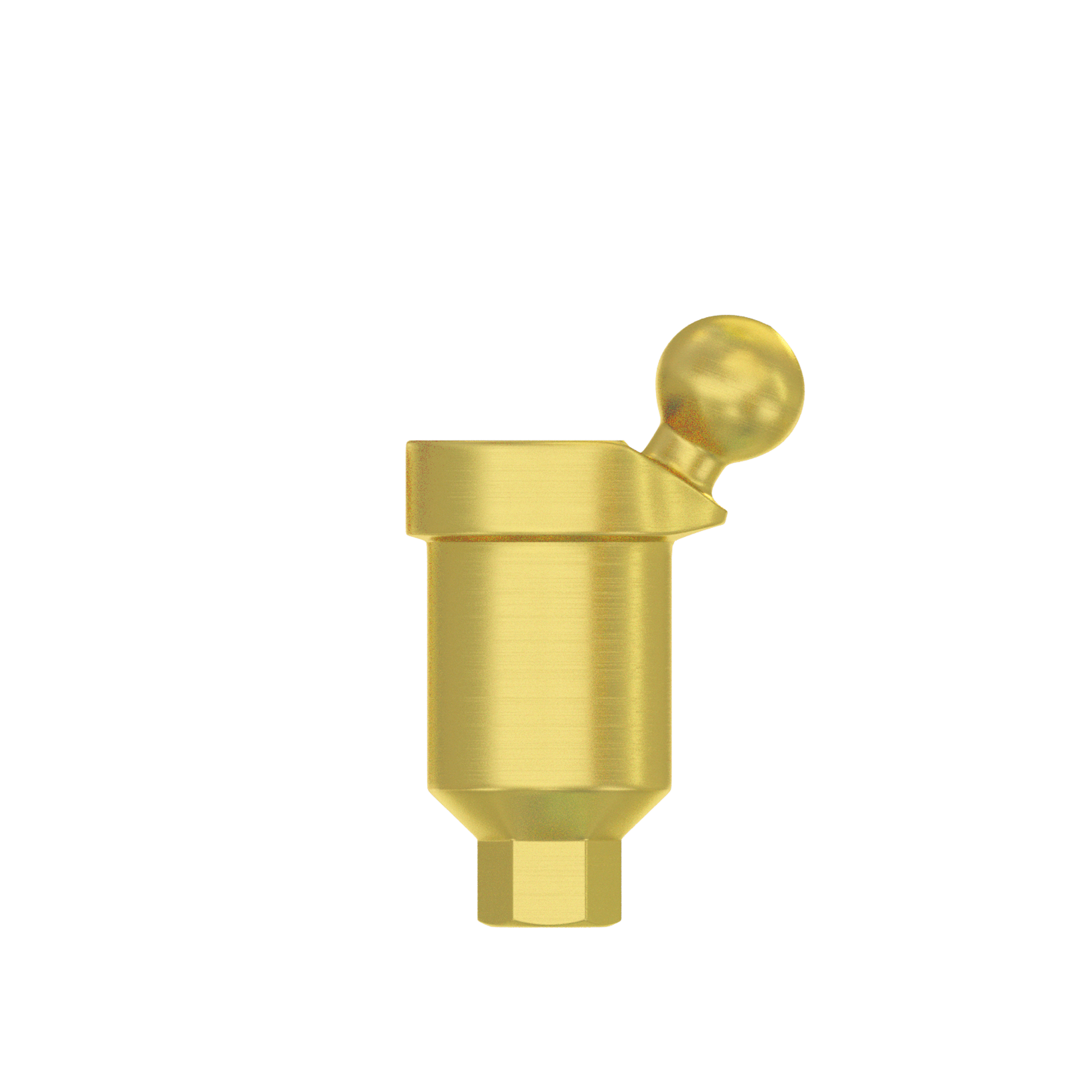

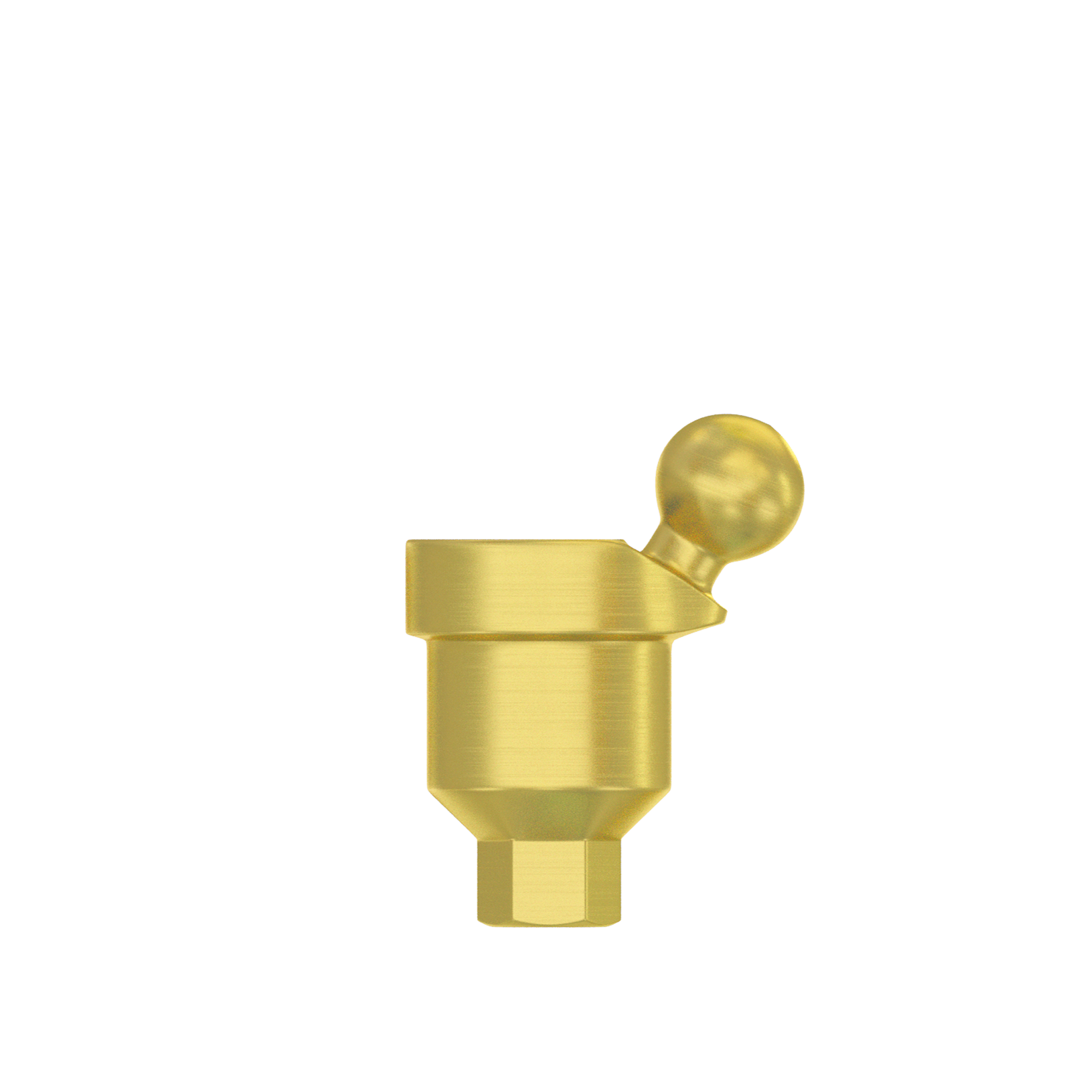

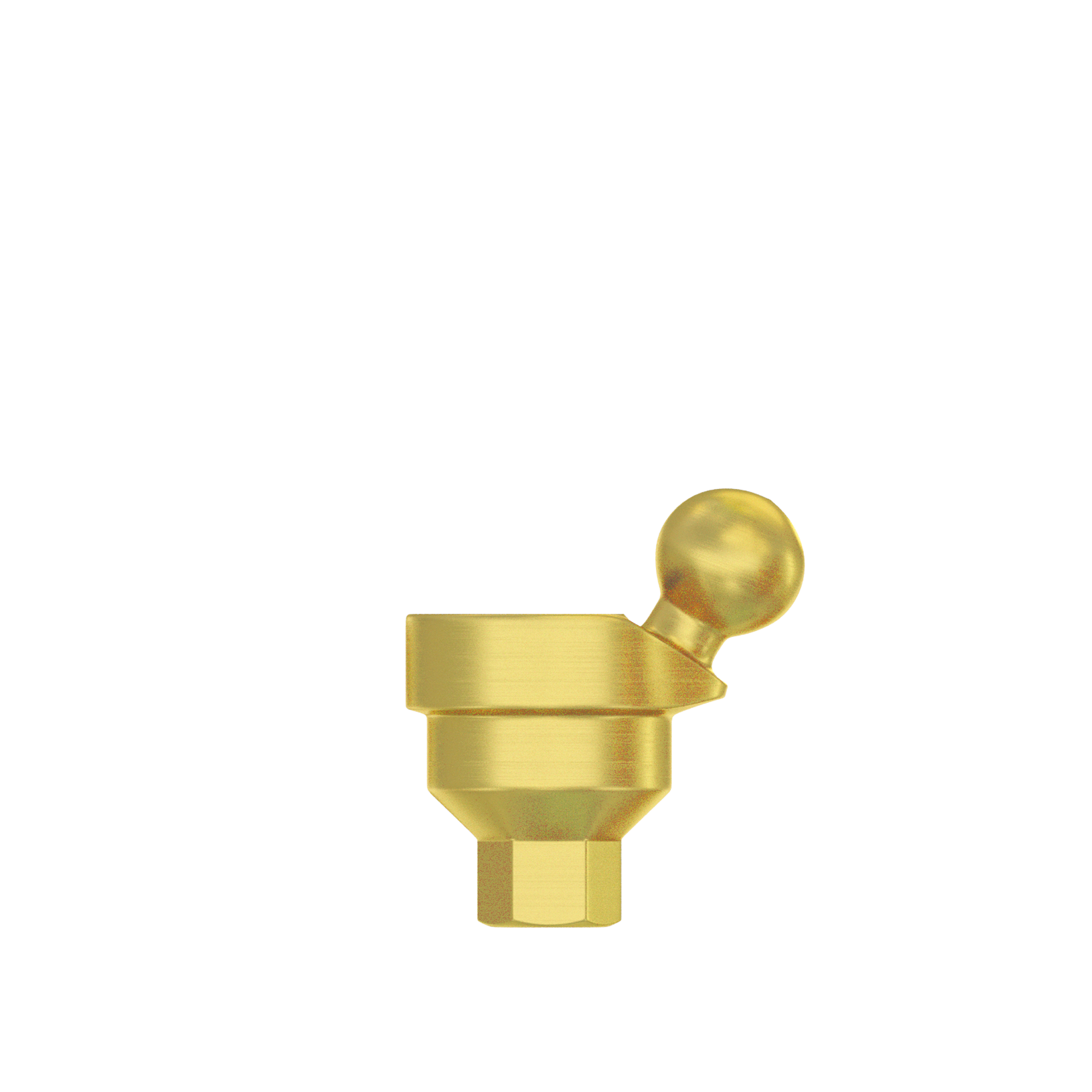

DSI Angulated Ball Attachment 4.2mm Full Set - Internal Hex Ø2.42mm

SKU: PABAT-1810

Quick Buy

  • Collar Height / Angle
  • 1.0mm
  • 2.0mm
  • 3.0mm
  • 18° Degrees
  • 30° Degrees
  • 40° Degrees
Add to wishlist

We deliver to more than 120 countries worldwide.
In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping type Shipping cost Estimated delivery Tracking info
USPS - Standard Shipping $30
14-21
Business days
Available within one week
DHL Express Shipping $49
2-5
Link with full tracking
On-site pickup Free (subject of VAT) - N/A



Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.
In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

We deliver to more than 120 countries worldwide.
In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping type Shipping cost Estimated delivery Tracking info
USPS - Standard Shipping $30
14-21
Business days
Available within one week
DHL Express Shipping $49
2-5
Link with full tracking
On-site pickup Free (subject of VAT) - N/A



Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.
In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

0 Reviews

Description

DSI Angulated Ball attachments are a type of dental attachment that offer remarkable stability and longevity for denture restorations.

They have a unique mechanism that allows for self-positioning and stability during everyday use.

Unlike other attachments, the entire body of the ball attachment can be hidden under the gums, providing a high level of aesthetics.

The ball attachment system is easy to use and can be maintained at home by the patient, reducing the need for constant appointments with the dentist.

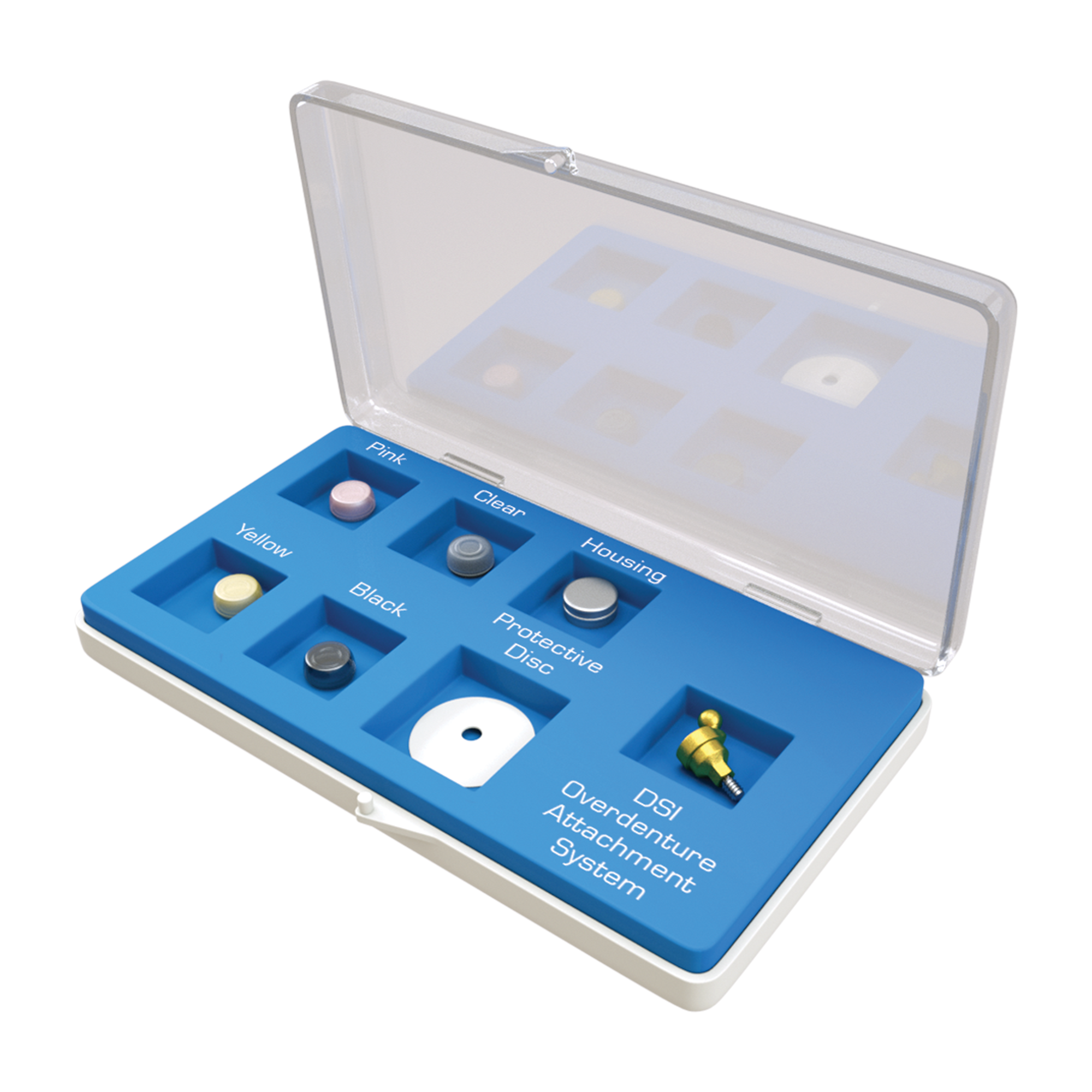

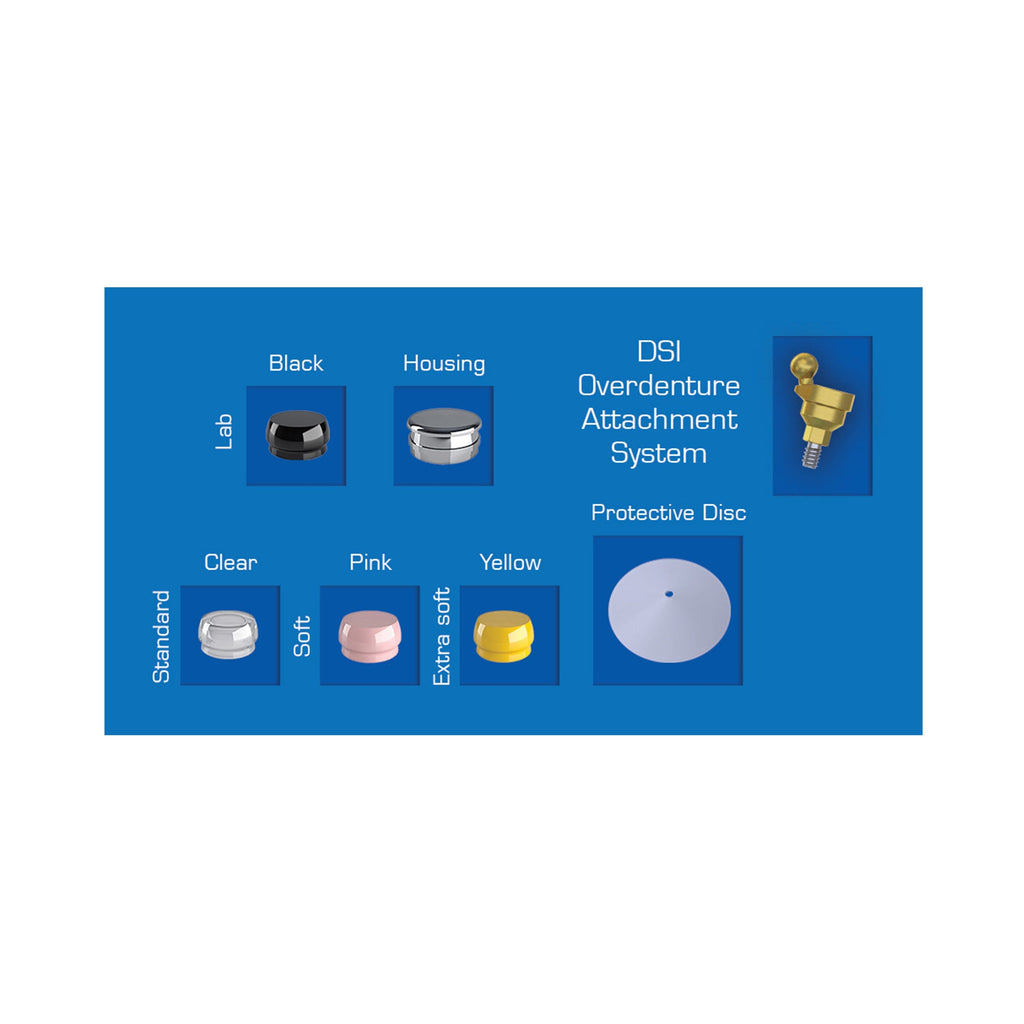

The most commonly used and versatile is the FULL SET, which includes:

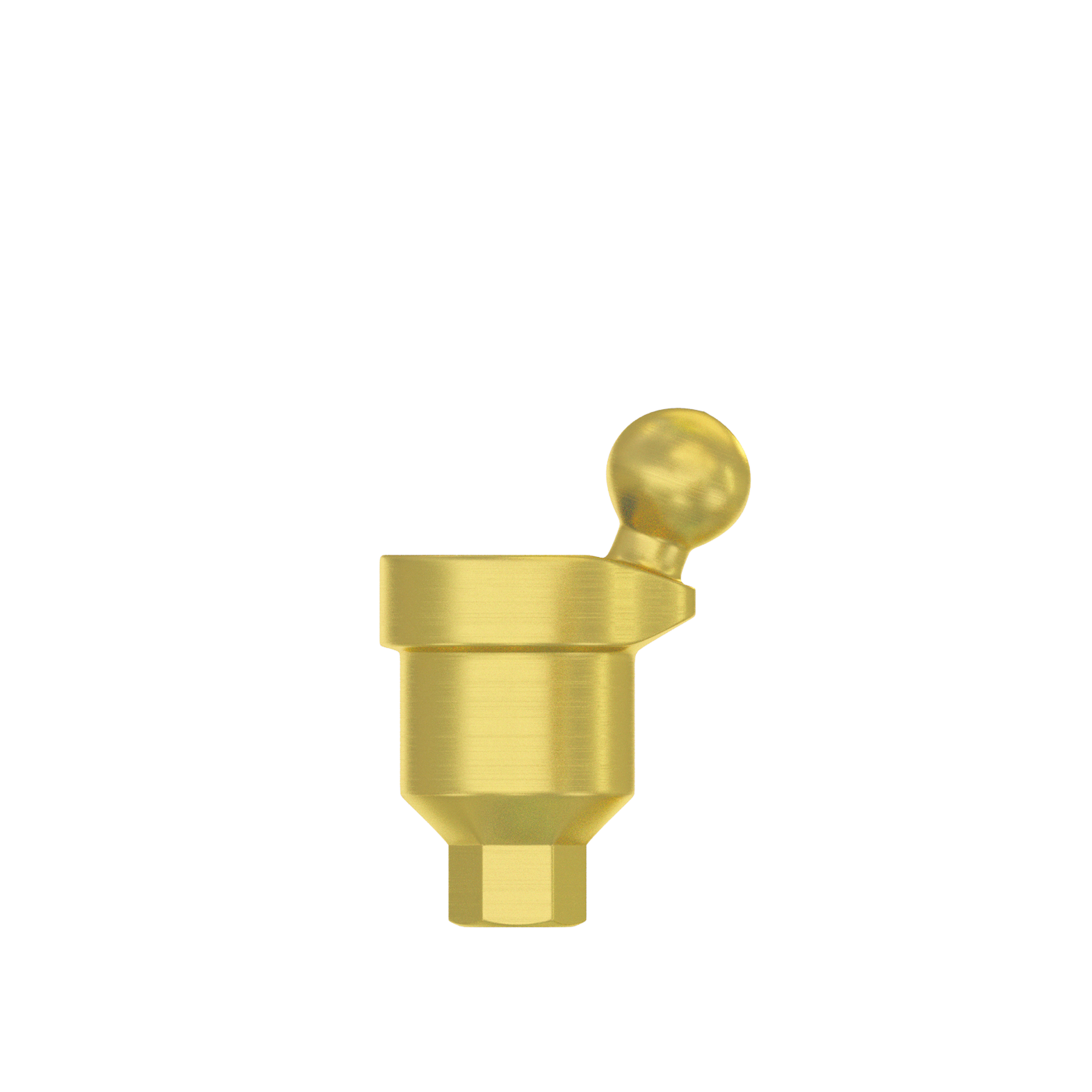

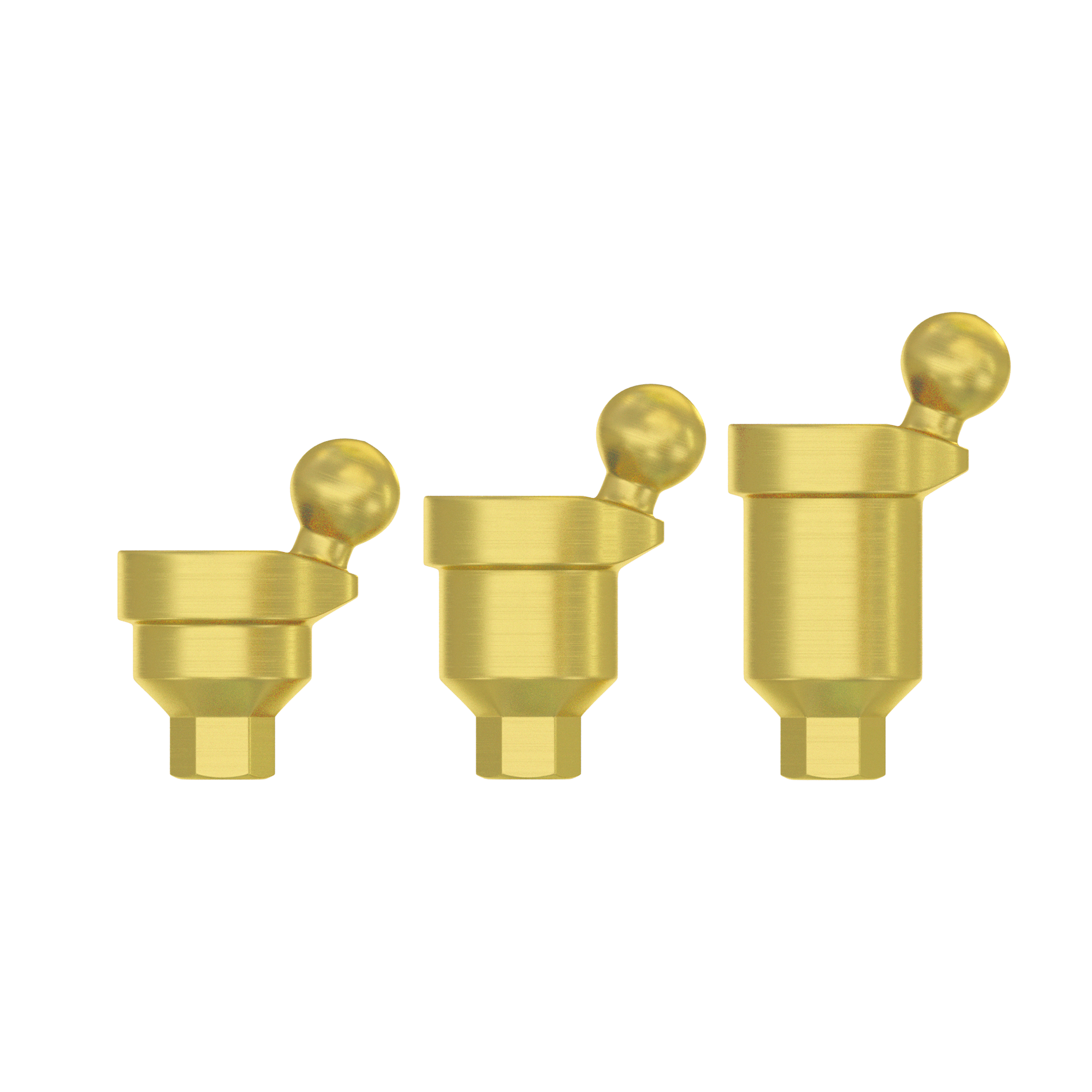

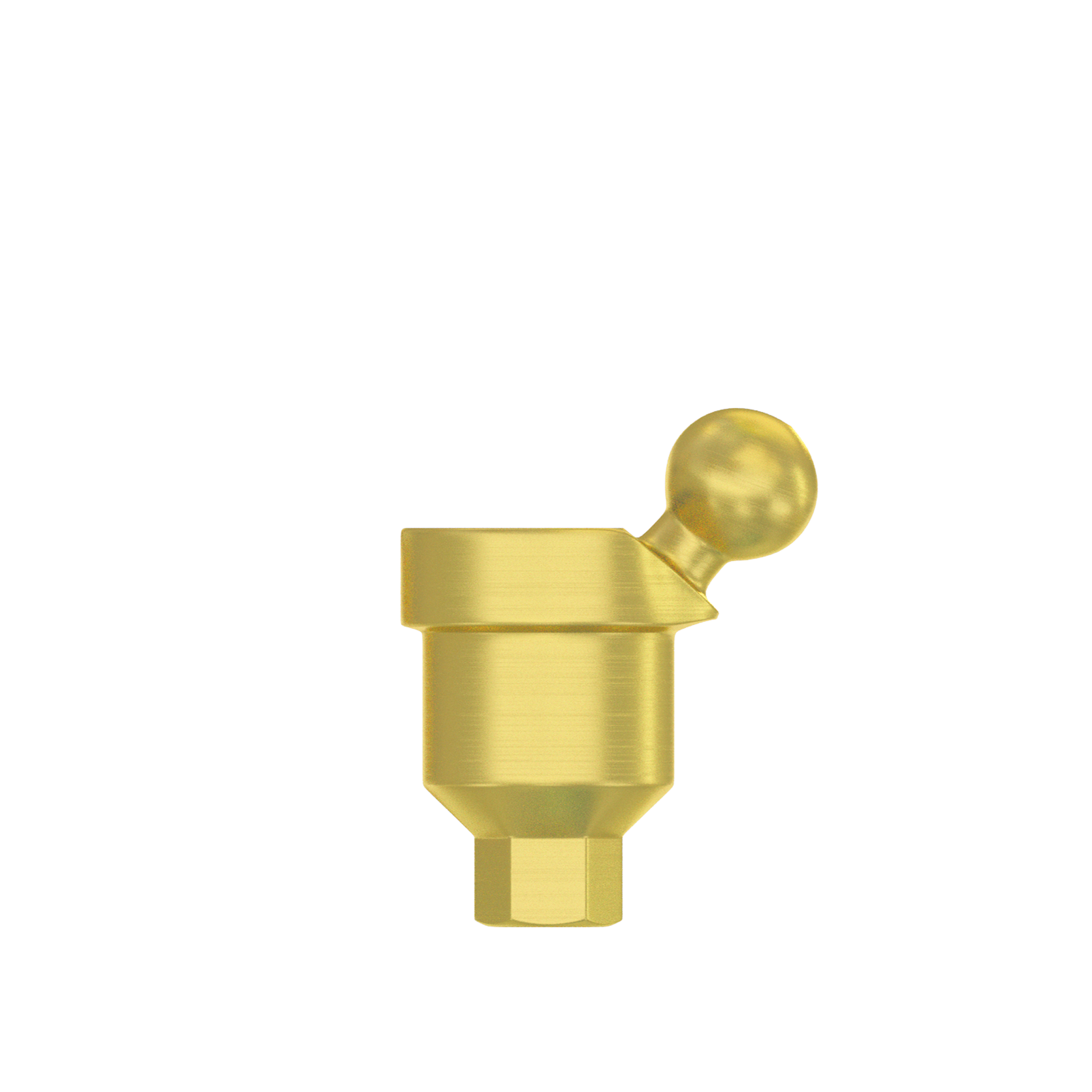

  1. Angulated Ball Attachment Abutment 4.2mm 1.0-3.0mm  x1

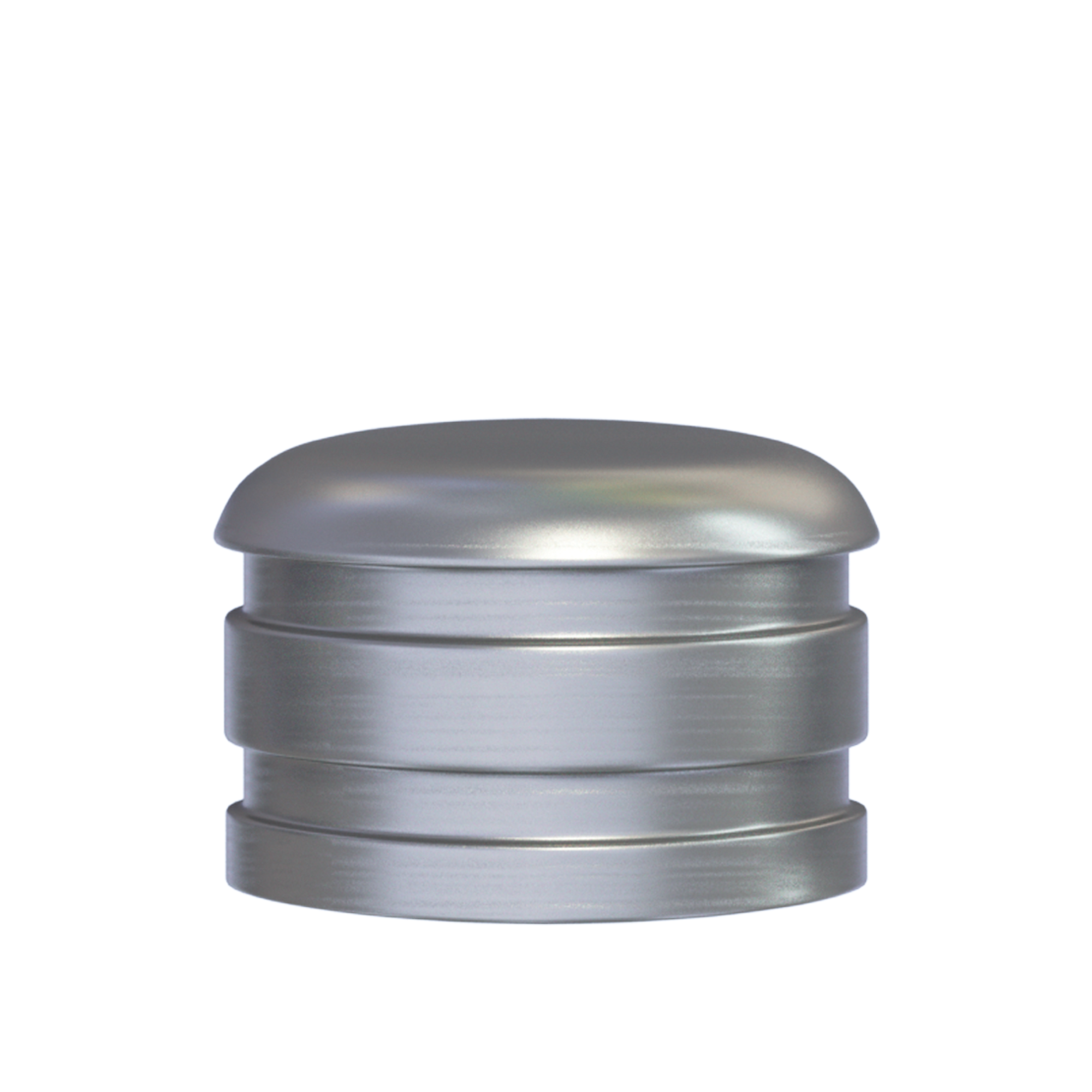

  2. Silver Metal Housing (height 3.2mm) -Ø 4.6mm x 1

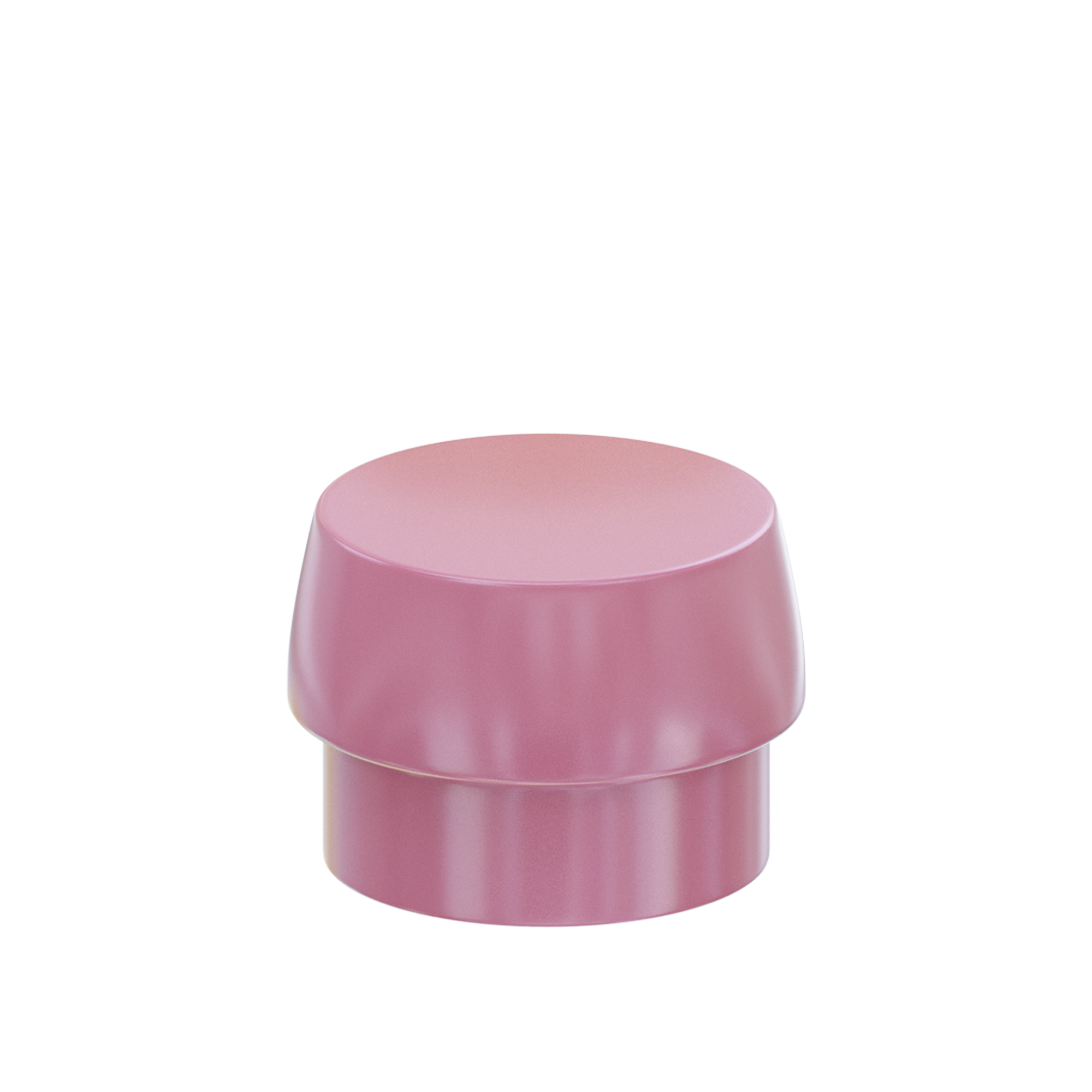

  3. Pink Soft Cap normal size Ø 2.5mm 0.9kg retention x 1

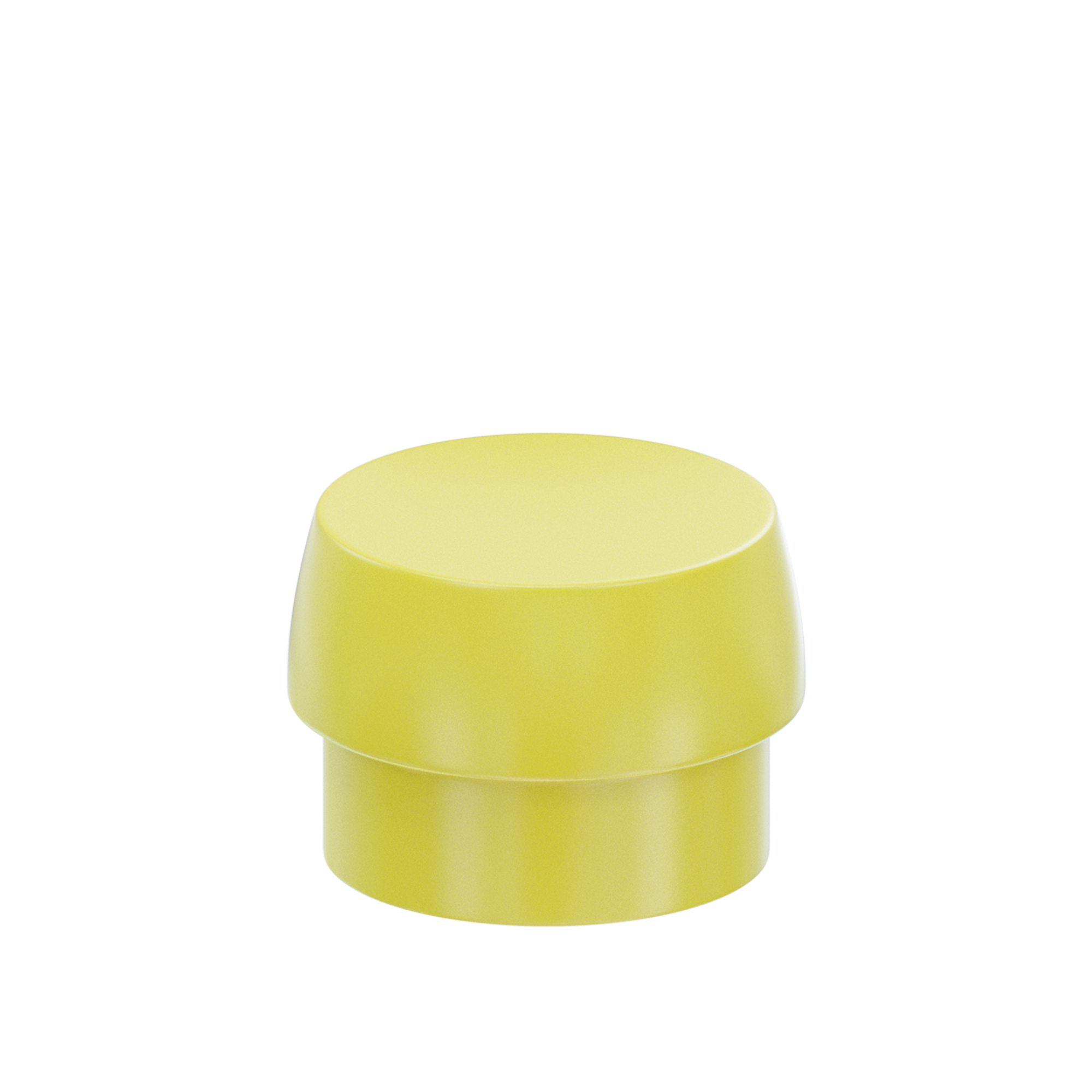

  4. Yellow Extra-Soft Cap normal size Ø 2.5mm 0.5kg retention x 1

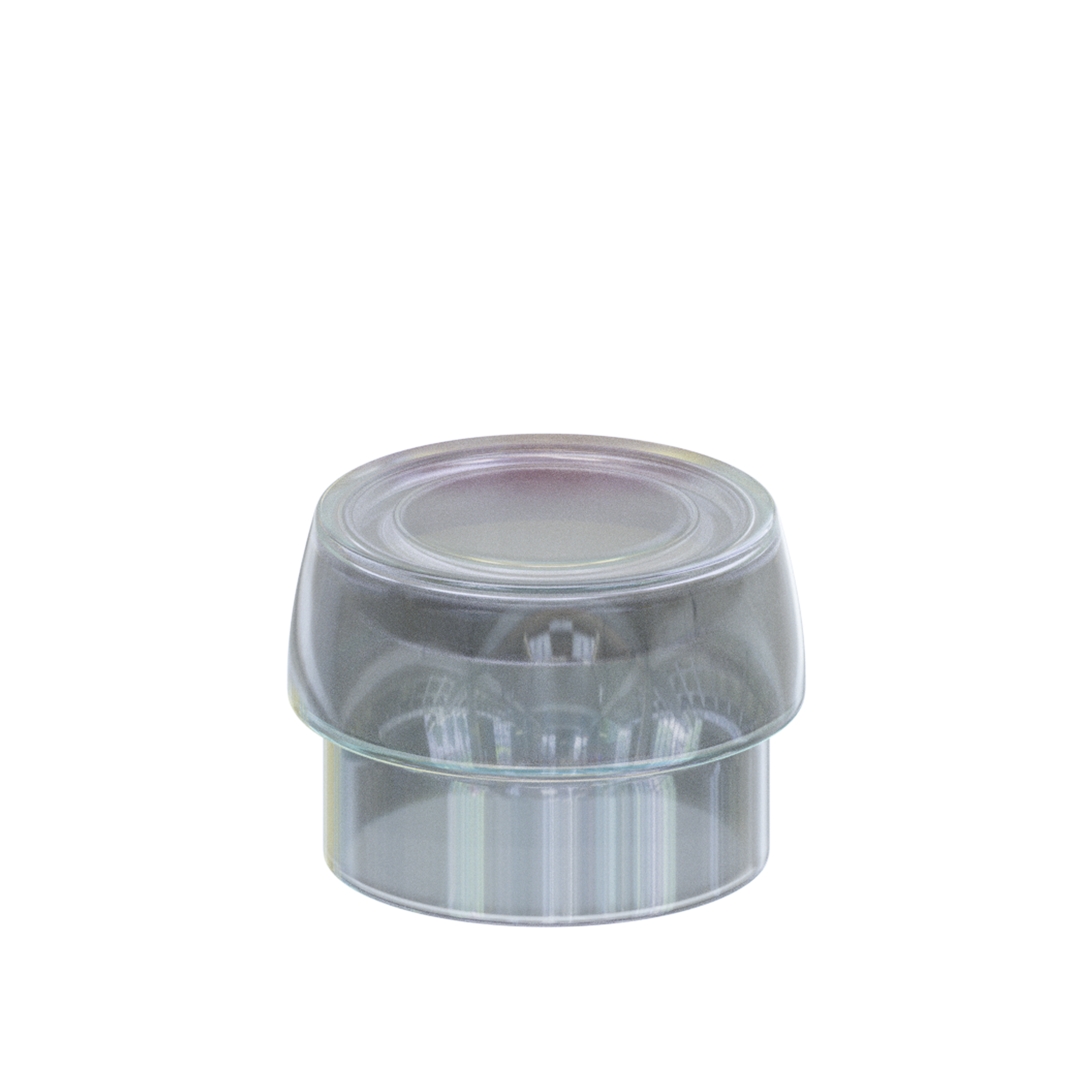

  5. Clear Standard Cap normal size Ø 2.5mm 1.3kg retention x 1

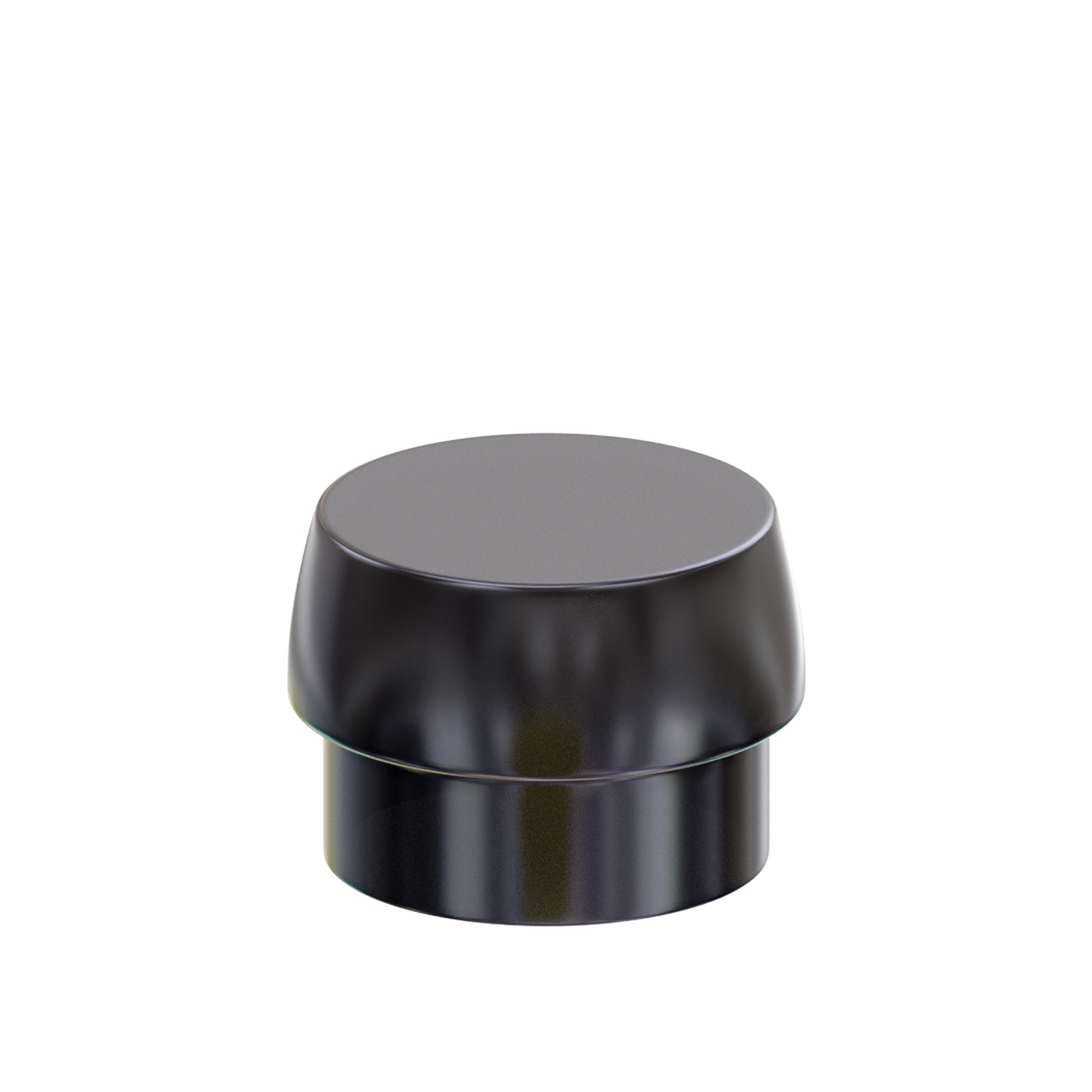

  6. Black Lab Processing normal size Ø 2.5mm x 1

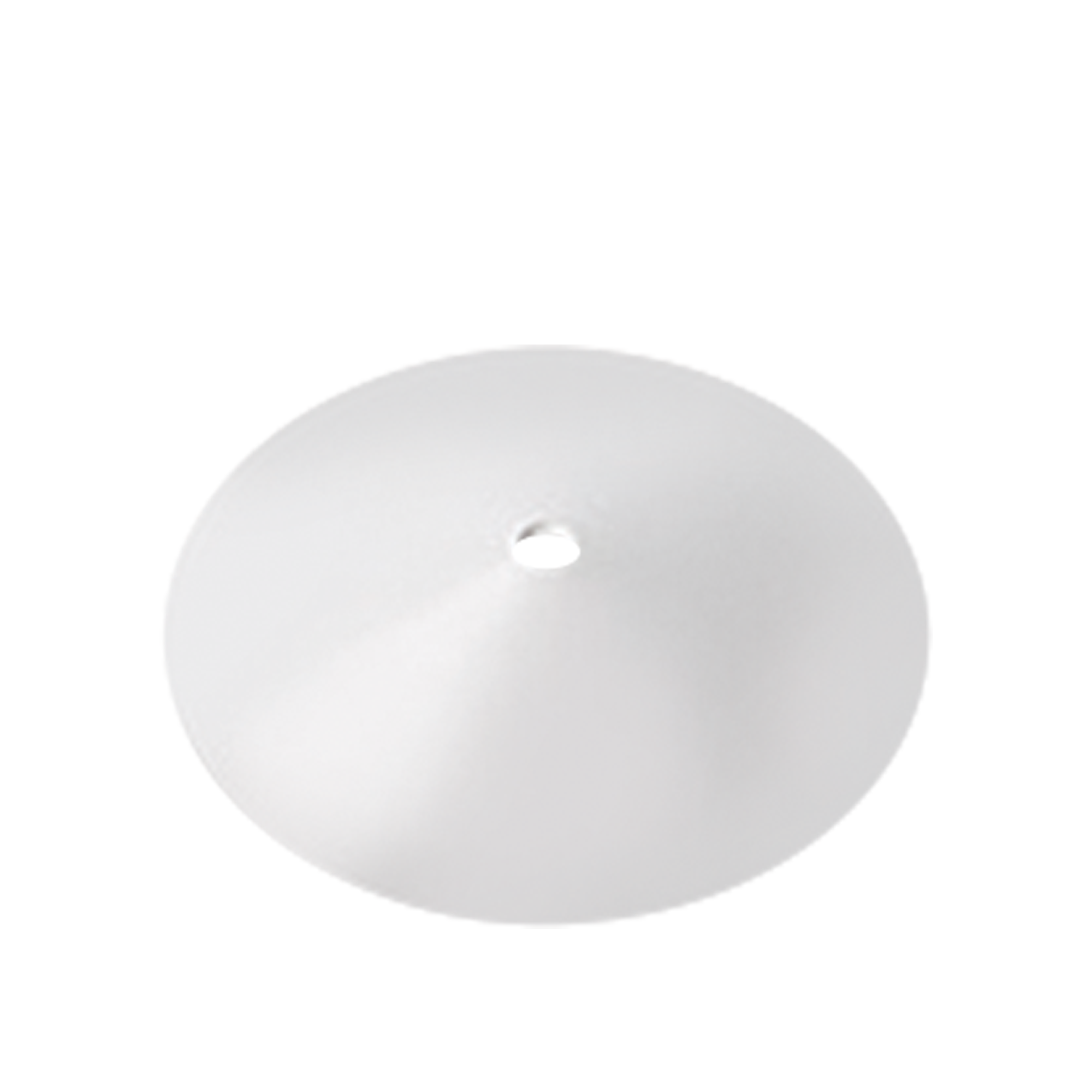

  7. White Protective Disc Ø 14.0mm/Internal Ø1.6mm

Indications:

  • Partial and full dentures
  • All-on-4, All-on-6
  • Denture conversion
  • Single tooth restoration (very rare )
  • For non-parallel implant alignment cases

Features:

  • Internal hex connection is compatible with a major variety of implant brands.

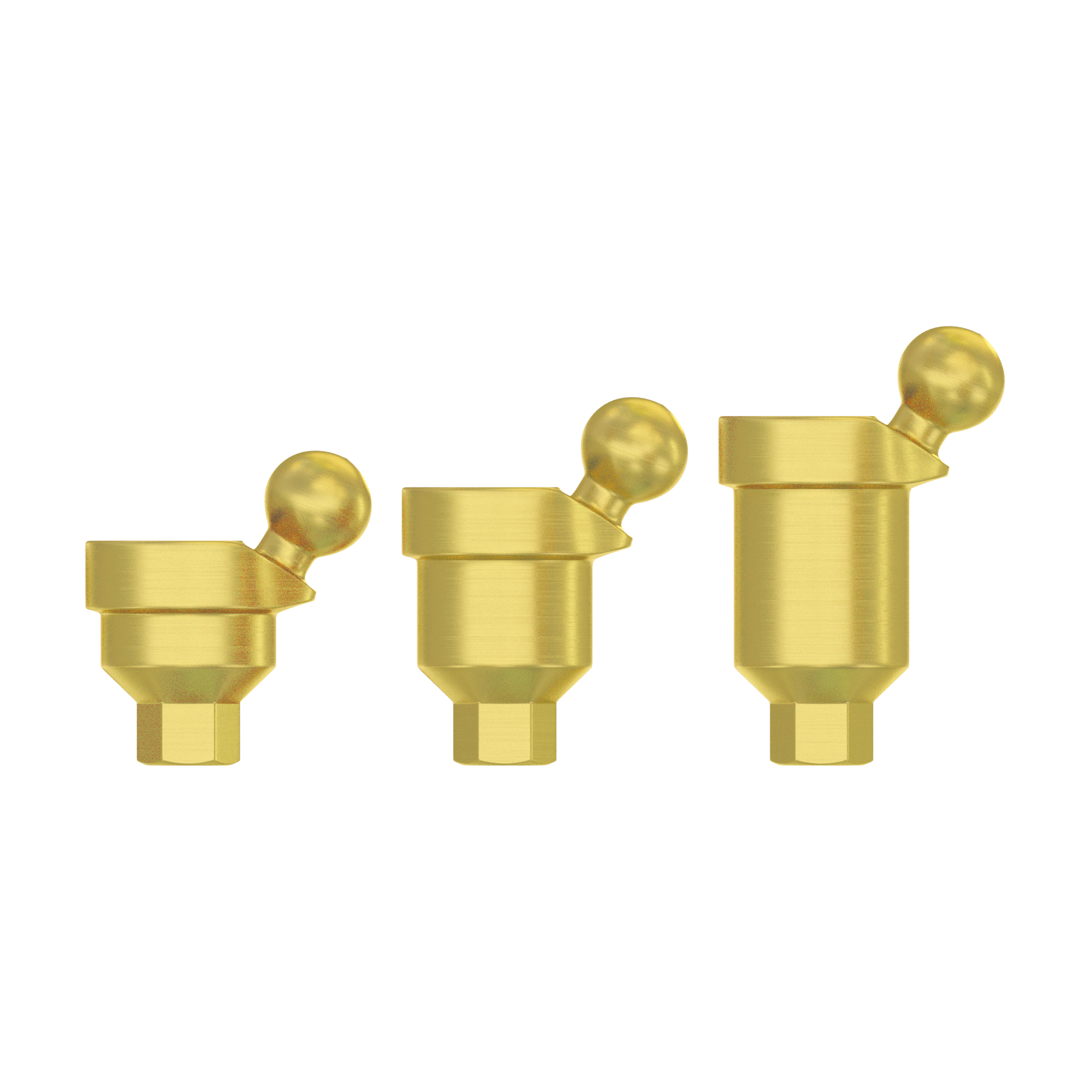

  • Available in different collar heights.
  • wide range or different resilience/retention level soft silicone inserts are available for maximum patient comfort and natural chewing motion
  • Full solid titanium body.
  • Hygiene-friendly construction.
  • Excellent biocompatibility.
  • Perfect choice for overdentures
  • Designed for easy placement.
  • Long term survival of silicone inserts thank to a steady placement.
  • Guarantees a secure fit between with the implant.
  • Stable and durable for a long time

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
  • Standard platform - Ø4.2mm / height 1.0-3.0mm
  • Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
  • 18° Degrees
  • 30° Degrees
  • 40° Degrees
  • Titanium fixation screw included with every abutment



Material:
  • Titanium alloy Ti-6Al-4V grade 23 ELI
Indications:
  • Partial and full dentures
  • All-on-4, All-on-6
  • Single tooth restoration ( very rare)
  • Denture conversion
  • For non-parallel implant alignment cases
Package contents:
  • Angulated Ball Attachment Abutment 4.2mm 1.0-3.0mm x1
  • Silver Metal Housing (height 3.2mm) -Ø 4.6mm x 1
  • Pink Soft Cap normal size Ø 2.5mm 0.9kg retention x 1
  • Yellow Extra-Soft Cap normal size Ø 2.5mm 0.5kg retention x 1Yellow Extra-Soft Cap normal size Ø 2.5mm 0.5kg retention x 1
  • Clear Standard Cap normal size Ø 2.5mm 1.3kg retention x 1
  • Black Lab Processing normal size Ø 2.5mm x 1
  • White Protective Disc Ø 14.0mm/Internal Ø1.6mm
Platform:

Internal Hex Ø2.42mm
