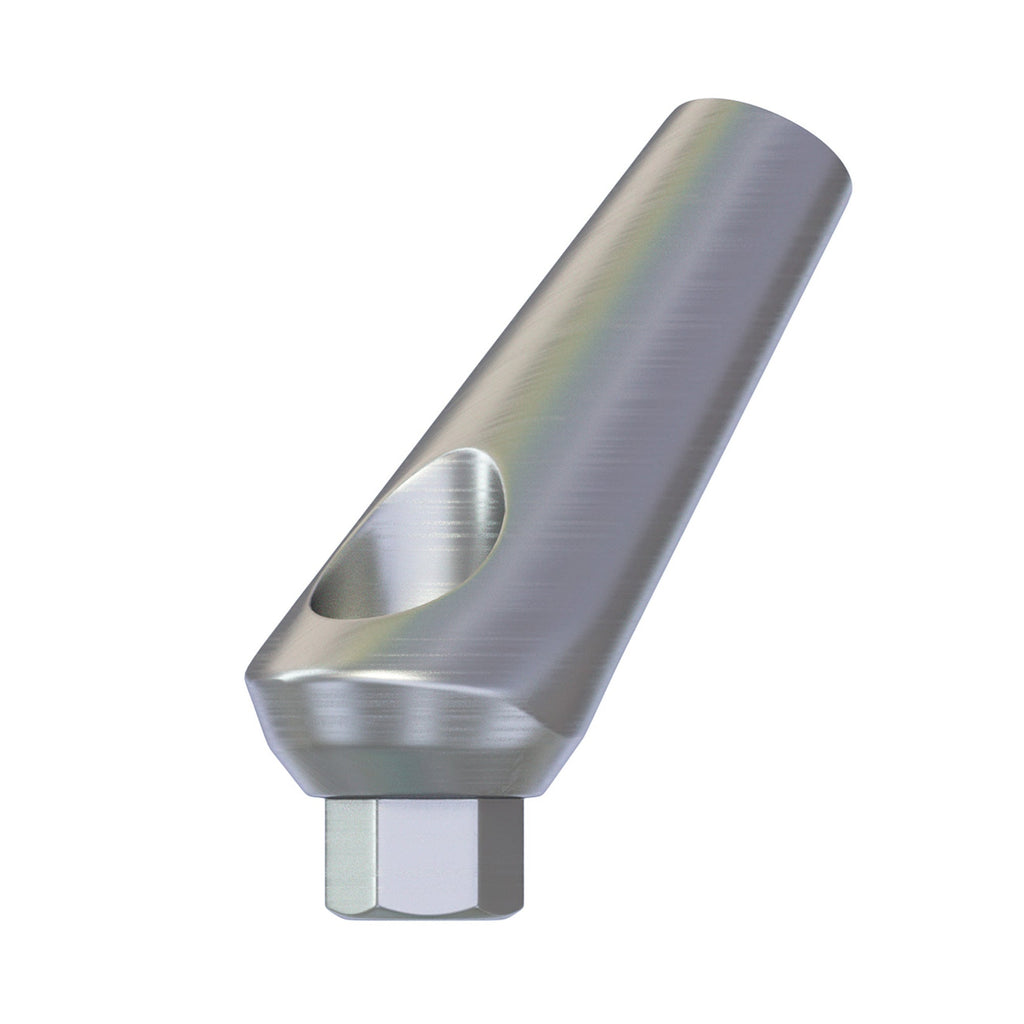

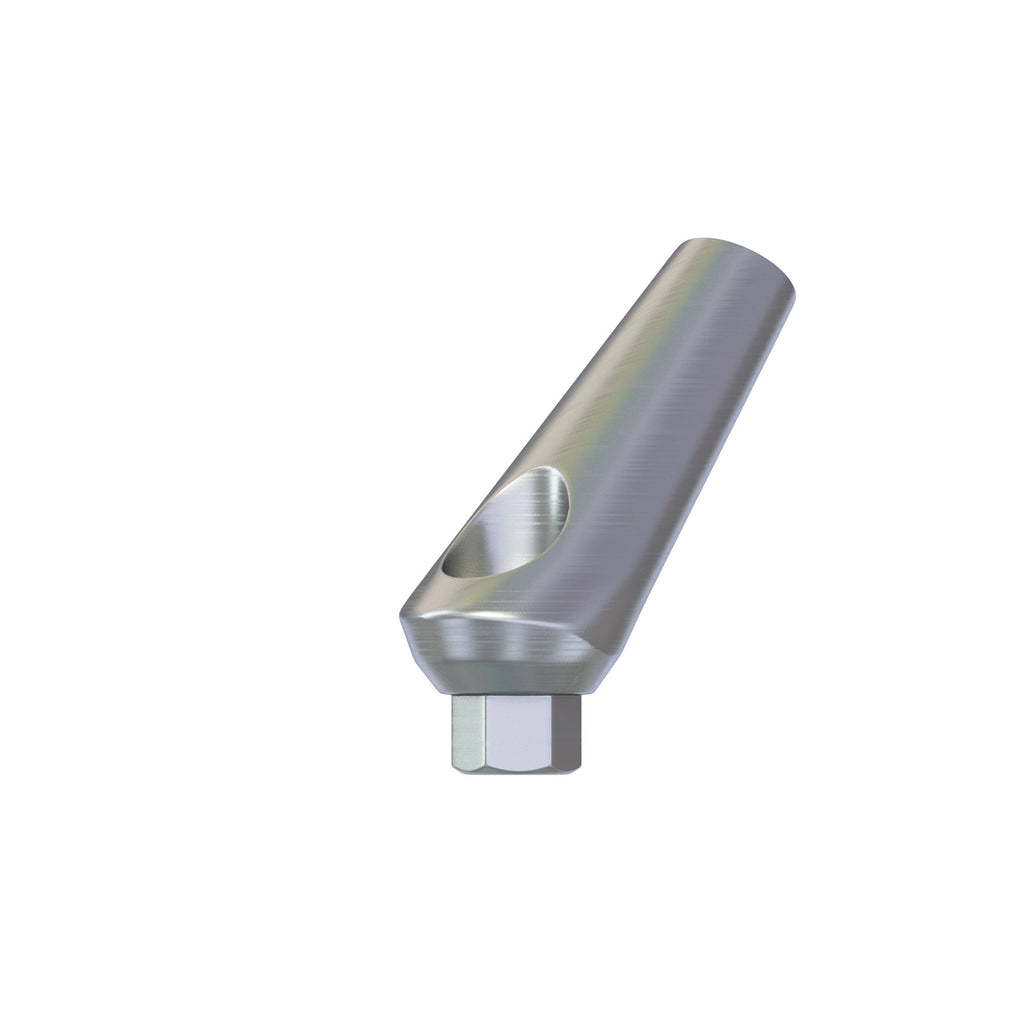

DSI Angulated 45° Regular Abutment 5.2mm - Internal Hex Ø2.42mm

DSI angulated abutments are perfect for restoring parallelism in non-alignment cases in which implants are placed with a certain degree of an angle and not parallel to the adjacent teeth. They are excellent for all types of restorations at all stages of treatment and give outstanding aesthetic results. Can be used both for single crowns or complete bridges.

DSI angulated abutments make a solid marginal seal and abutment to implant connection. They are made out of high-quality titanium grade 5 which gives an adequate combination of biocompatibility and durability.

The 45° angle abutments are specifically intended for situations in which the implant's angle is severely deviated from the central axis and it is difficult to achieve parallelism with the adjacent teeth.

Indications:

• Single crown

• Multiple teeth

• Complete bridges

• Fabrication of long-term/permanent restorations
• For severe non-parallel implant alignment cases


Features:

• Excellent biocompatibility, no risk of abruption.

• Precise, non-rotational, functional.

• Simple, fast, and accurate positioning.

• Outstanding stability for the crowns and bridges

Technical information:

• Made of titanium alloy grade 5 Ti-6Al-4V ELI - biocompatible
• Standard platform 45° angle - regular body Ø5.2mm / height 9mm
• Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
• Titanium fixation screw included with every abutment
