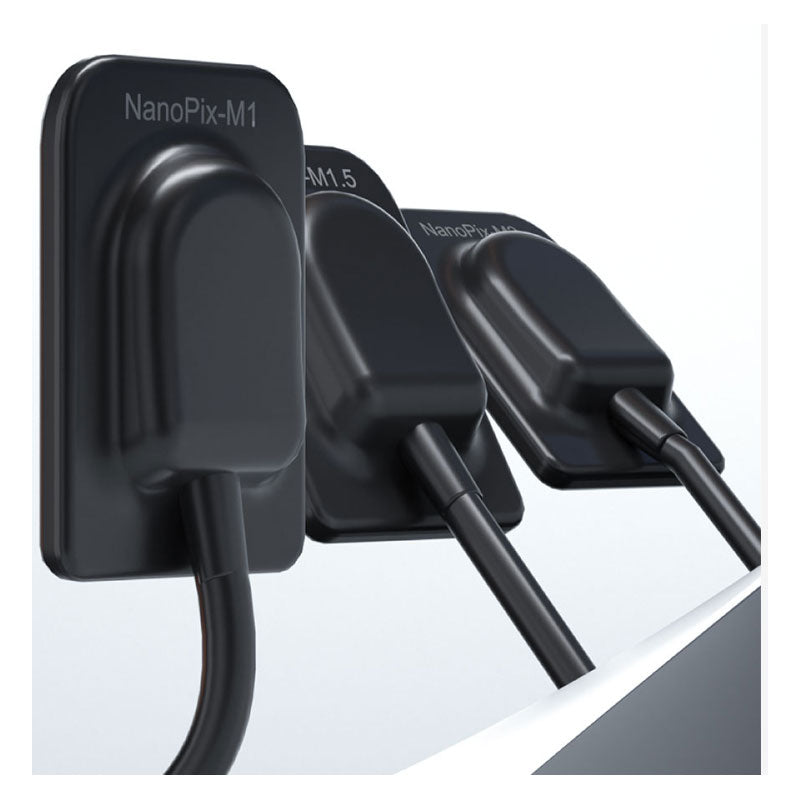

The NanoPix-M series (M1, M1.5, and M2) represents Eighteeth’s approach to predictable, stable, and comfortable intraoral X-ray imaging. All three sensors are built on the same technological platform and differ primarily in size, allowing clinics to choose the optimal balance between coverage area and patient comfort.
At the core of the series is a simple philosophy: clear images from the first exposure, minimal retakes, and smooth integration into daily workflow.

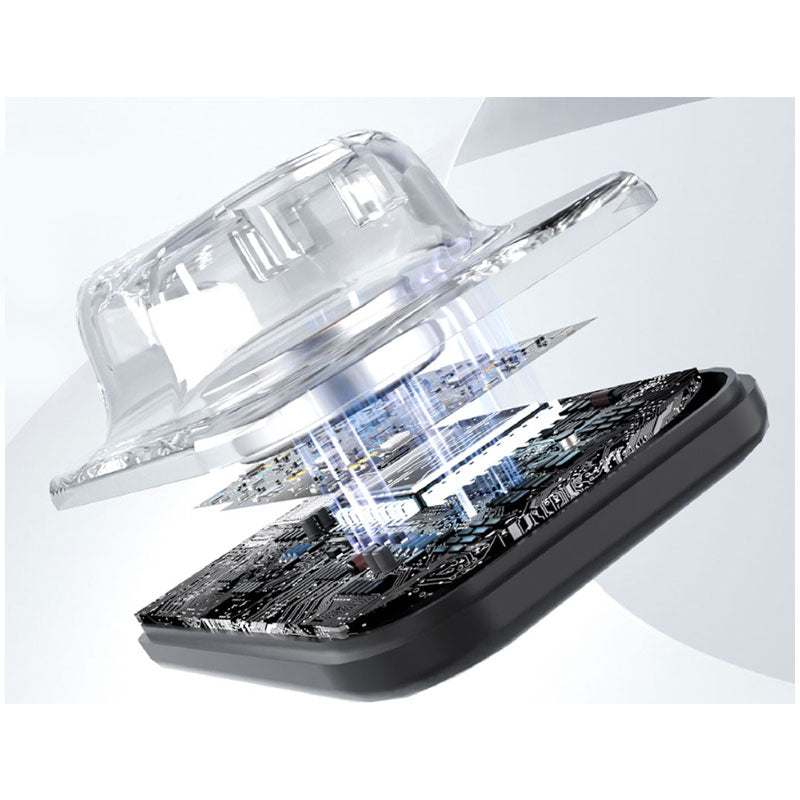

All NanoPix-M sensors share the same advanced foundation:
APS CMOS technology with high signal conversion efficiency
CsI scintillator for improved X-ray absorption and reduced noise
Theoretical resolution: 25 lp/mm
True resolution: ≥12 lp/mm
Pixel size: 20 μm - balanced detail without excessive noise
16-bit AD conversion - extended dynamic range
USB 2.0 connection - no external control boxes
IP68 protection - fully sealed against moisture and dust
Ultra-thin housing: 4.4 mm
Fast image acquisition: approximately 2–3 seconds
In practice, this translates into:
clear apex visualization;
readable periodontal ligament space;
stable contrast between enamel, dentin, and bone;
images that are clinically usable immediately, without prolonged post-processing.
NanoPix-M1 - Compact and Reliable for Daily Diagnostics
NanoPix-M1 is a size-1 intraoral sensor designed for clinics where X-ray imaging is performed frequently and must be readable on the first attempt.

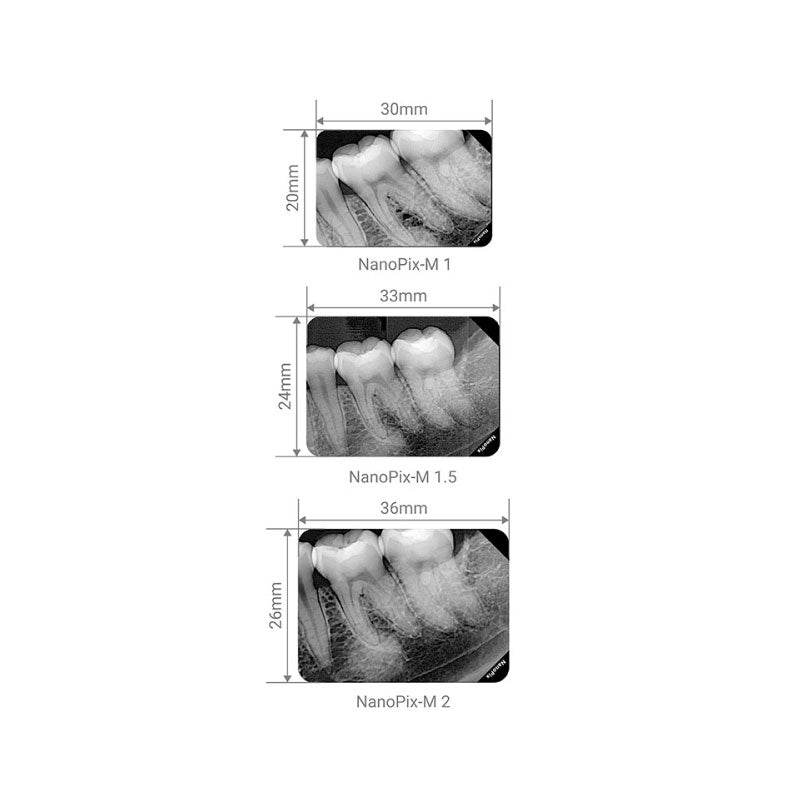

Active area: 20 × 30 mm
Pixel matrix: 1000 × 1500
Mechanical size: 25 × 38.5 mm
It is well suited for:
routine periapical and bitewing imaging;
high-patient-flow clinics;
environments where reliability and quick workflow matter more than maximum coverage.
The thin, rigid housing with rounded edges minimizes patient discomfort while maintaining stable positioning in the mouth.
NanoPix-M1.5 - The Working Standard for Predictable Results
NanoPix-M1.5 is a medium-size (1.5) sensor designed as a daily workhorse for clinics with steady patient flow.
Active area: 24 × 33 mm
Pixel matrix: 1200 × 1650
Mechanical size: 29 × 43.5 mm
This model offers an optimal balance between coverage and comfort, making it a preferred choice for clinics that rely heavily on periapical and bitewing images.
In everyday use, NanoPix-M1.5 delivers:
stable image quality without exposure surprises;
minimal retakes;
consistent performance across different X-ray generators and software platforms.
It is often chosen by clinicians who value predictability, minimal adjustments, and a smooth clinical rhythm.
NanoPix-M2 - Maximum Coverage, Same Predictable Quality
NanoPix-M2 is the largest sensor in the NanoPix-M family, intended for cases where maximum imaging area is preferred.
Active area: 26 × 36 mm
Pixel matrix: 1000 × 1500
Mechanical size: 31.6 × 45 mm
Despite its larger size, NanoPix-M2 maintains the same thin profile and rounded design, ensuring patient comfort while reducing the need for multiple exposures.
Designed for Real Clinical Workflow
Across all three models, the NanoPix-M series focuses on:
fast image readout that does not interrupt appointments;
stable operation with popular imaging software platforms;
minimal system requirements and easy installation;
durability suitable for intensive daily use.
Specification

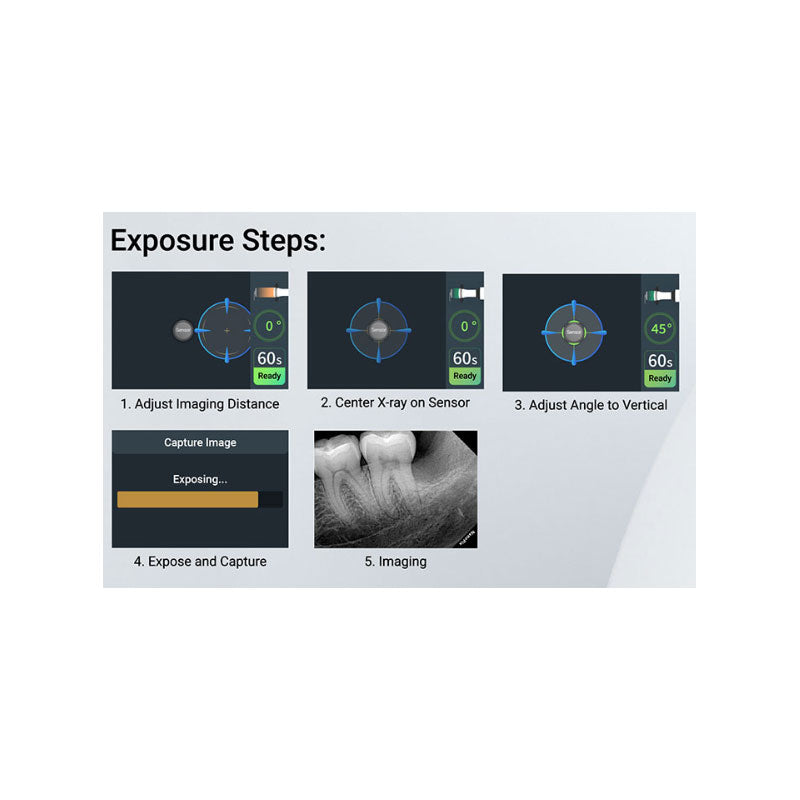

M-TECH technology for precise positioning - one shot is all you need
Real-time angle feedback for consistent results
Say goodbye to holders - shoot smarter, not harder
