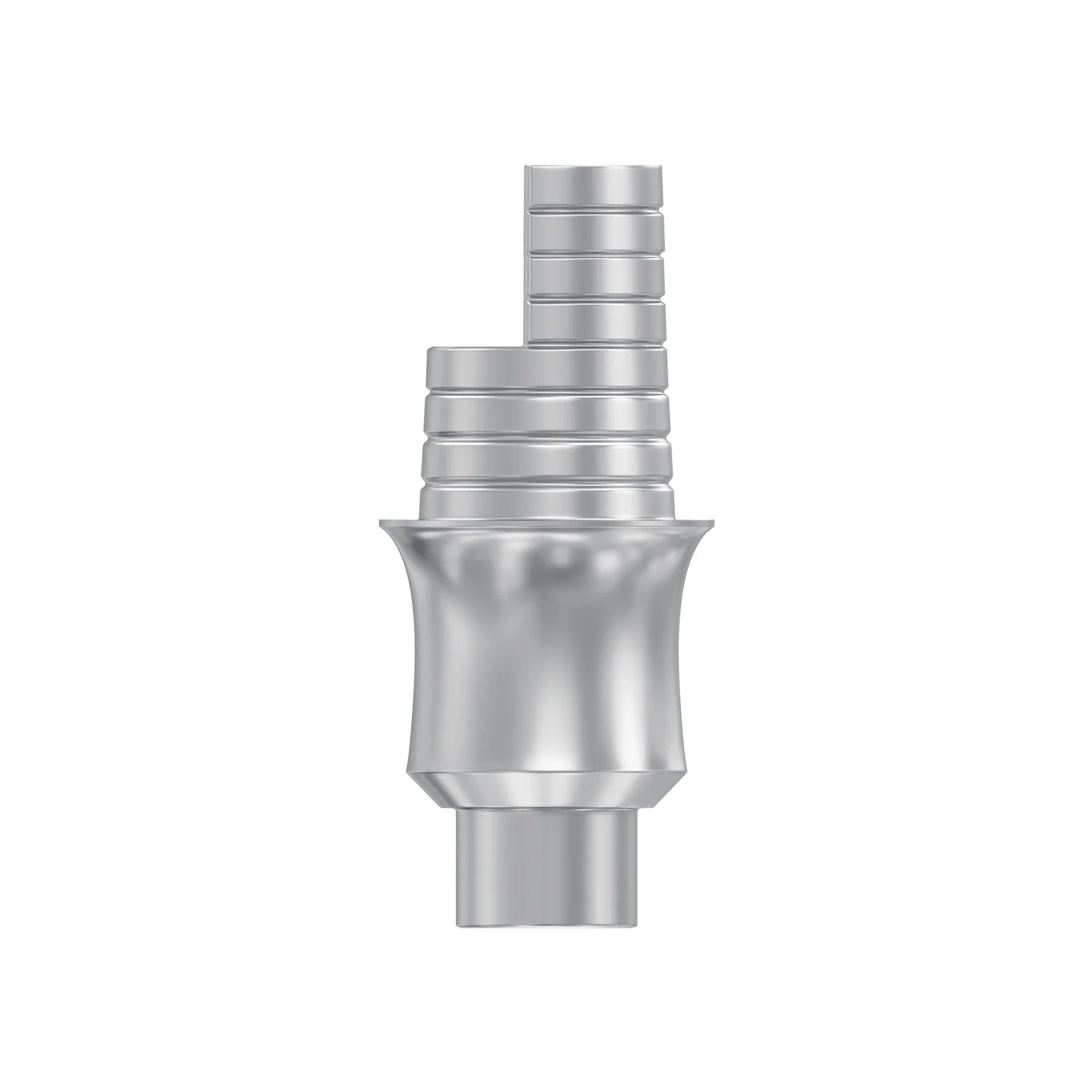

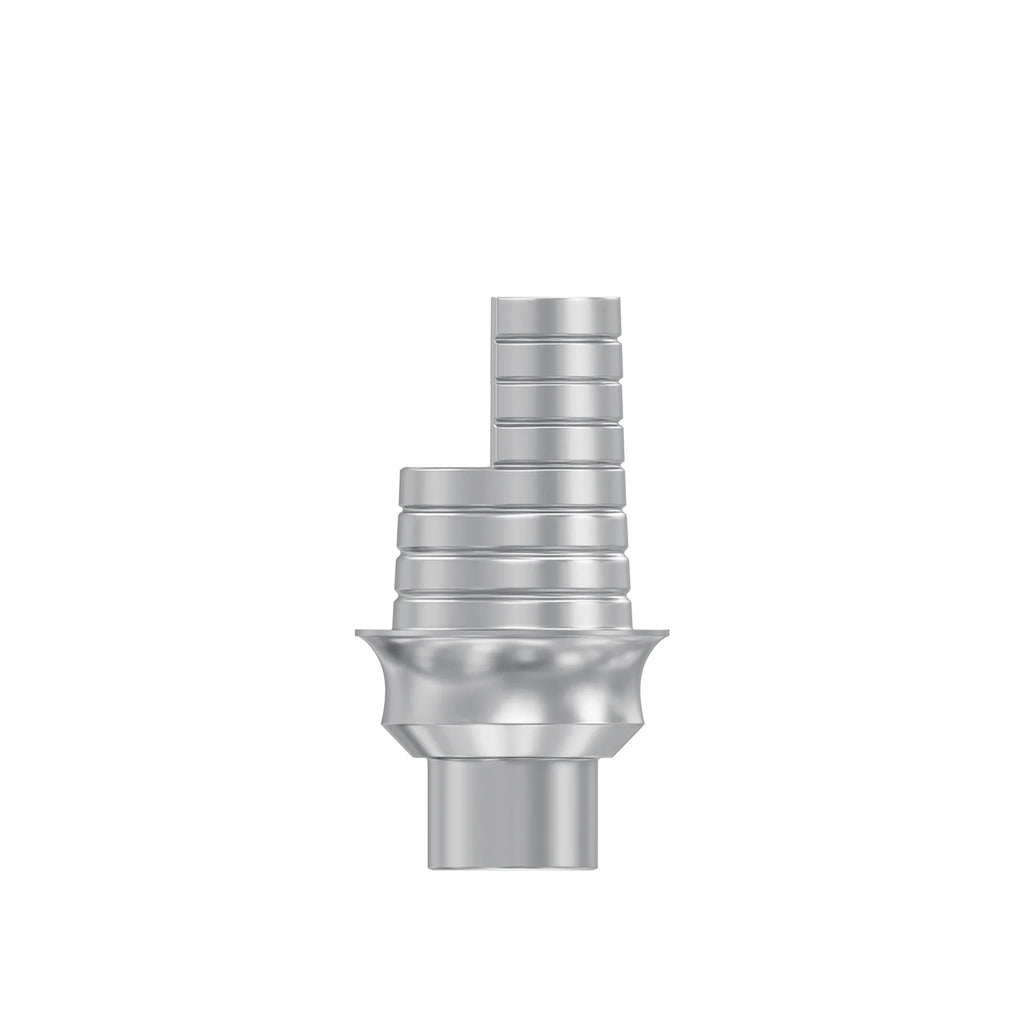

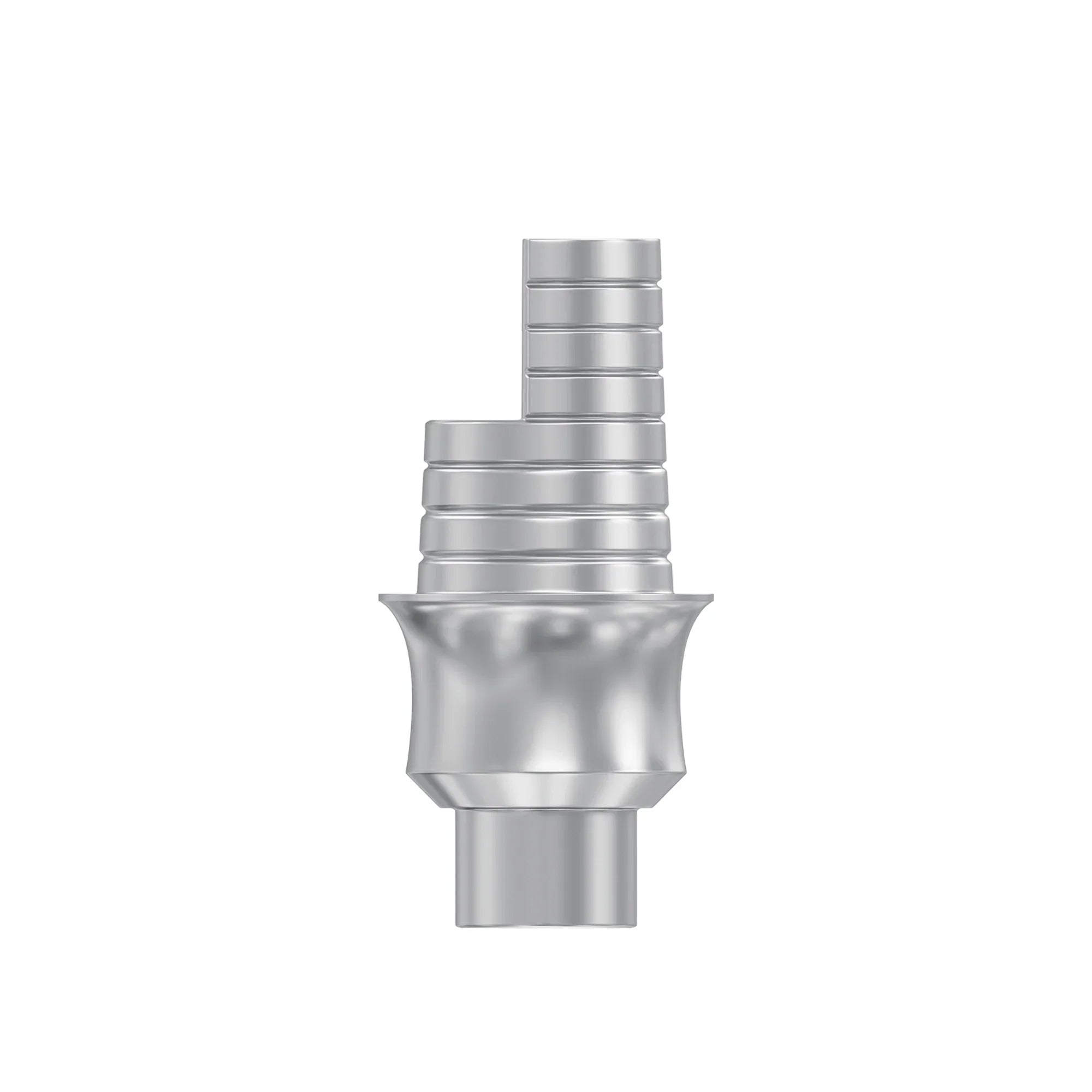

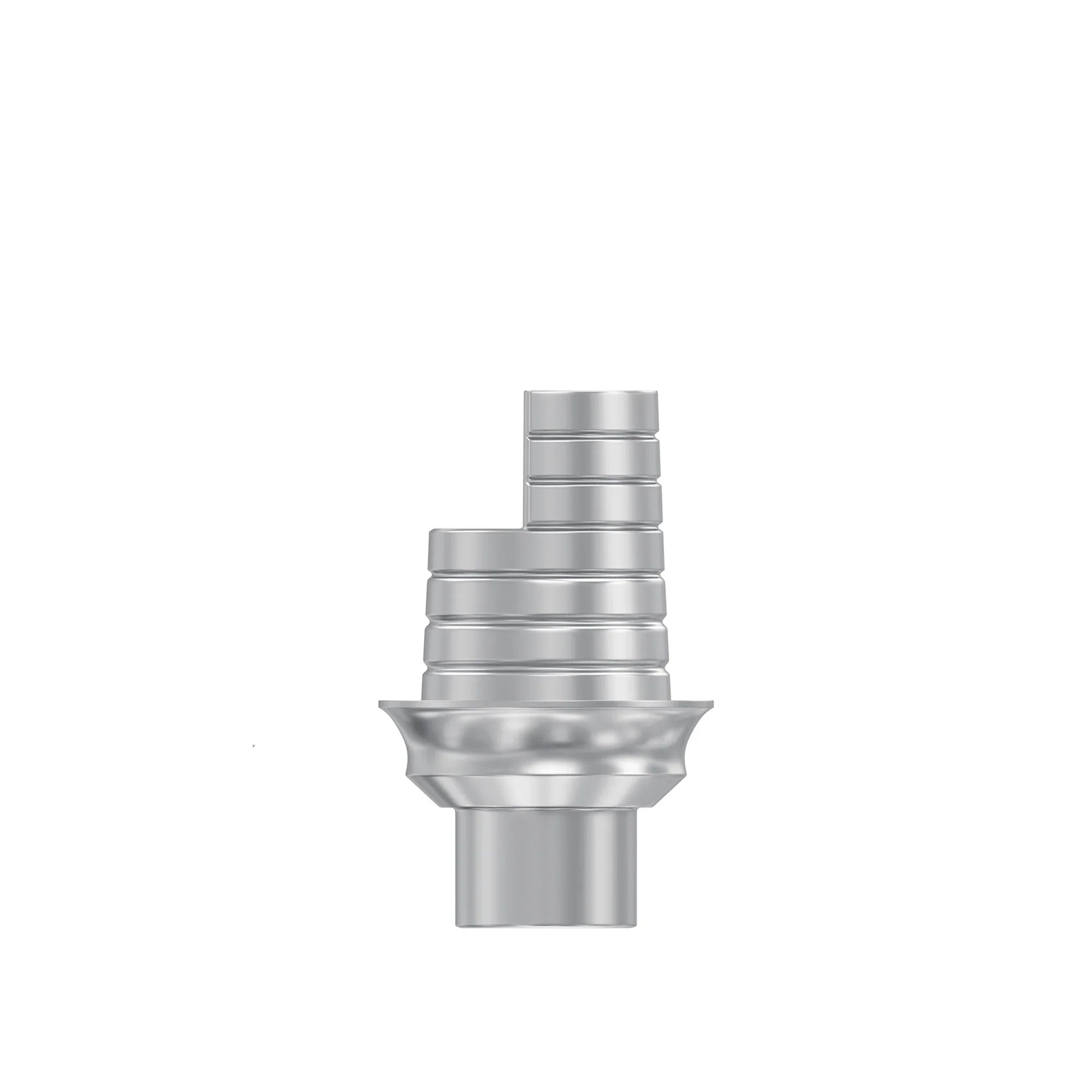

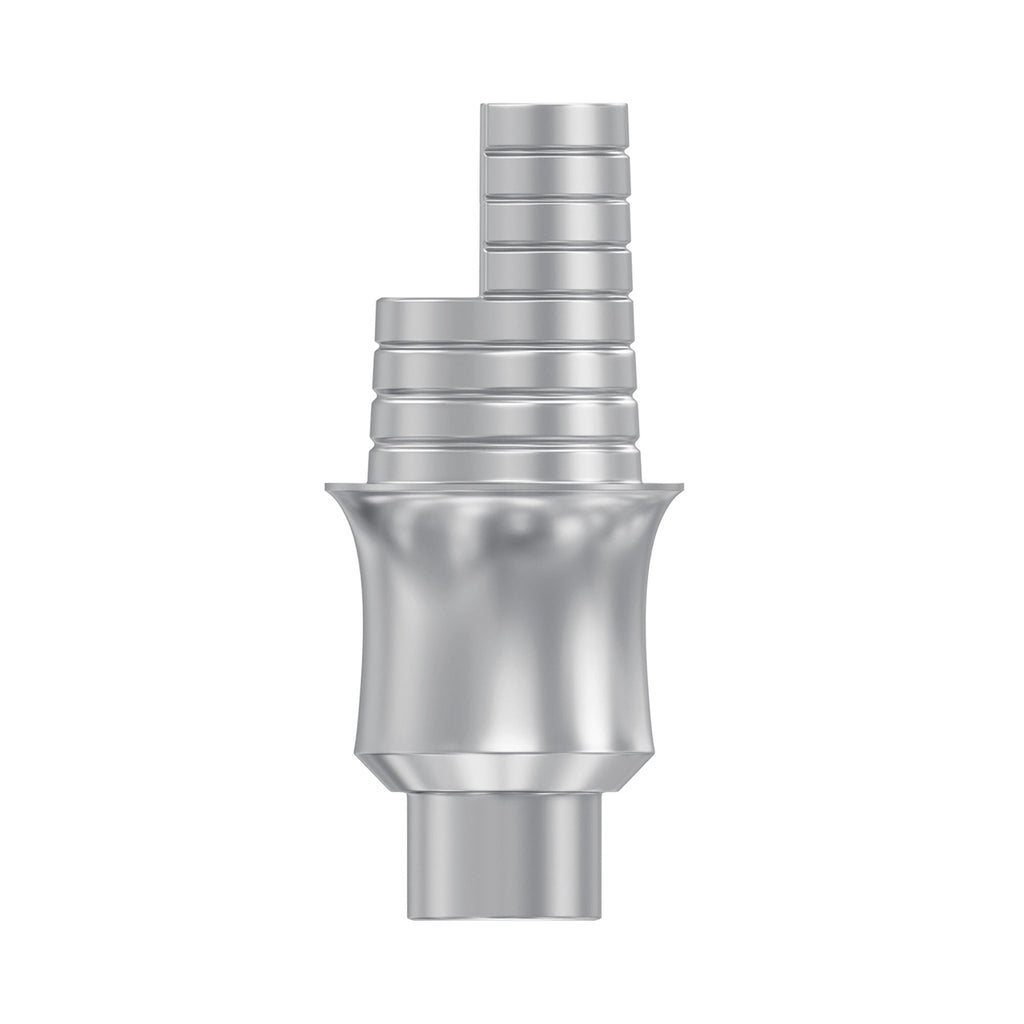

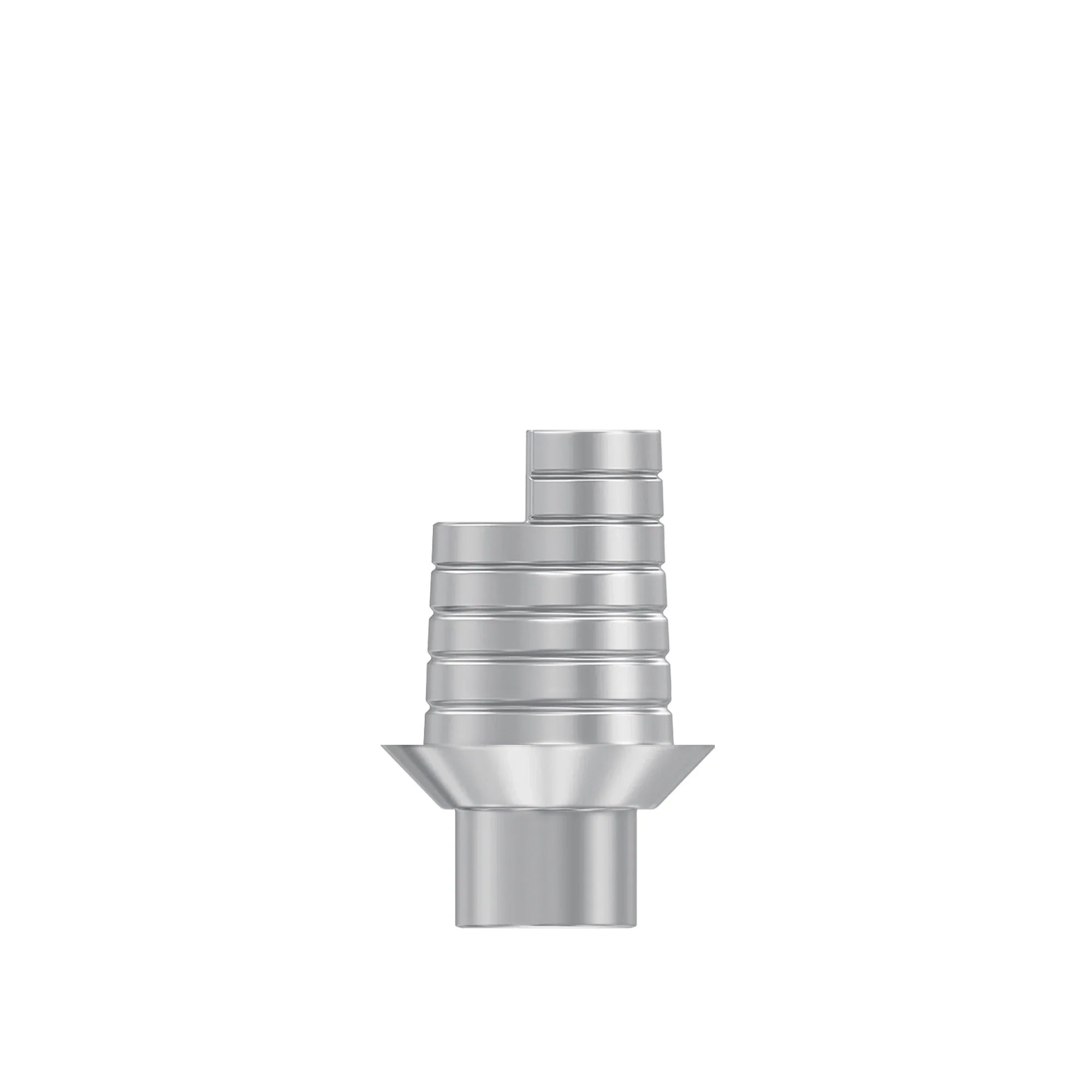

The DSI Angulated Ti-Base offers up to a 25-degree adjustable angle, enhancing aesthetic results and crown stability. This feature strategically positions the screw hole to avoid vulnerable areas of the crown, reducing the risk of undue pressure on the composite filling compared to the zirconia or porcelain components. This angled approach minimizes the need for patients to open their mouths wide and allows practitioners to avoid deep hand placement during abutment fixation, ensuring optimal aesthetics and convenience by eliminating access holes on the visible side of the restoration.
The system is fully compatible with the DSI digital library, like all other DSI ti-base abutments, making it ideal for single or multiple crown restorations, including full bridges.
The DSI Angulated Ti-Base Abutments, accommodating up to a 25-degree angle with an emergency profile, provide excellent aesthetic appeal and rapid recovery times. These abutments significantly enhance the speed, precision, and cost-efficiency of any restoration system. No modifications are required for the digital library, positioning it as an unparalleled solution in the current market.
Please Note: The angled access screw requires the DS-MAAD prosthetic driver for proper operation and tightening.
Links for DSI digital libraries download:
Indications:
- Single crown
- Multiple teeth
- Complete bridges
- Fabrication of long-term/permanent restorations
- Can be used both screw-retained and cement-retained
Features:
- A customized shape and emergence profile that is perfectly tailored to meet specific clinical needs
- Outstanding aesthetic results ensure superior visual outcomes
- Up to 25 degrees, enhancing aesthetic results and crown stability
- Strategically position the screw hole to avoid undue pressure on the composite filling
- Minimizes the need for deep hand placement and wide mouth openings during abutment fixation
- Eliminates access holes on the visible side of the restoration
- Fully compatible with the DSI digital library, like all other ti-base abutments
- Suitable for single or multiple crown restorations, including full bridges
- The unique concave design adapts seamlessly to gingival height for optimal fit
- Can be used for both screw-retained and cement-retained restorations
- Increases the speed, accuracy, and cost-efficiency of restoration processes.
- Special hexagon design that matches the geometry of the DSI scan post for perfect alignment.
- Superior stability provides the utmost stability for crown attachment
- Enhanced prosthesis integrity, improves the overall strength and durability of the prosthesis unit
- Achieves ideal fit in single, partial, and full denture restorations
- Adapts to the gum line for long-term performance and enhanced aesthetics
- Made from Grade 5 titanium for maximum biocompatibility
Technical information:
- Made of titanium alloy grade 5 Ti-6Al-4V ELI - biocompatible
- Standard platform - Internal Hex 2.42mm, Ø4.5mm
- Connection - Rotational
- Angle - Up to 25° adjustable angle
- Collar height: for selection 0.5mm/1mm/2mm/3mm/4mm
- Compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
- Titanium fixation screw included with every abutment
